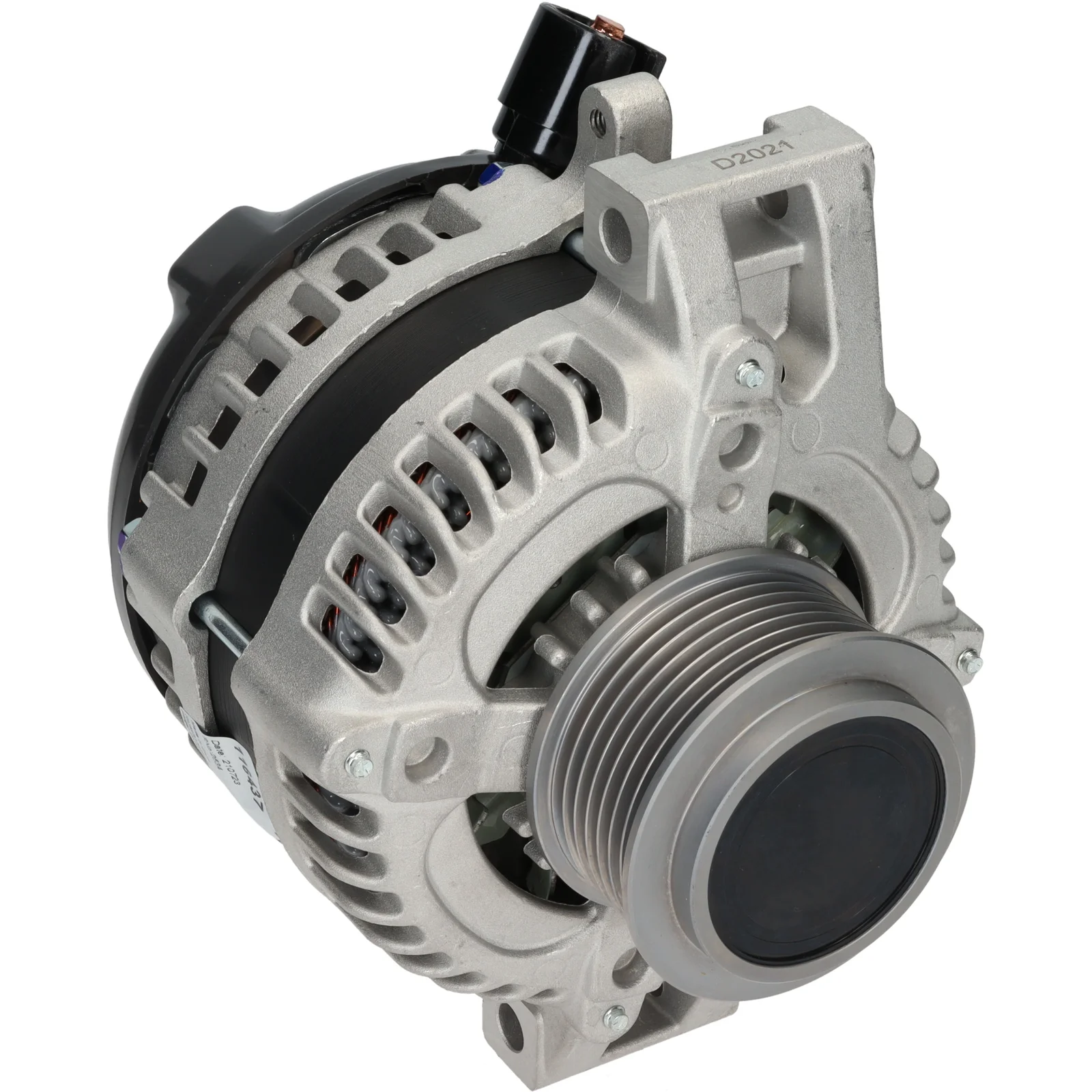

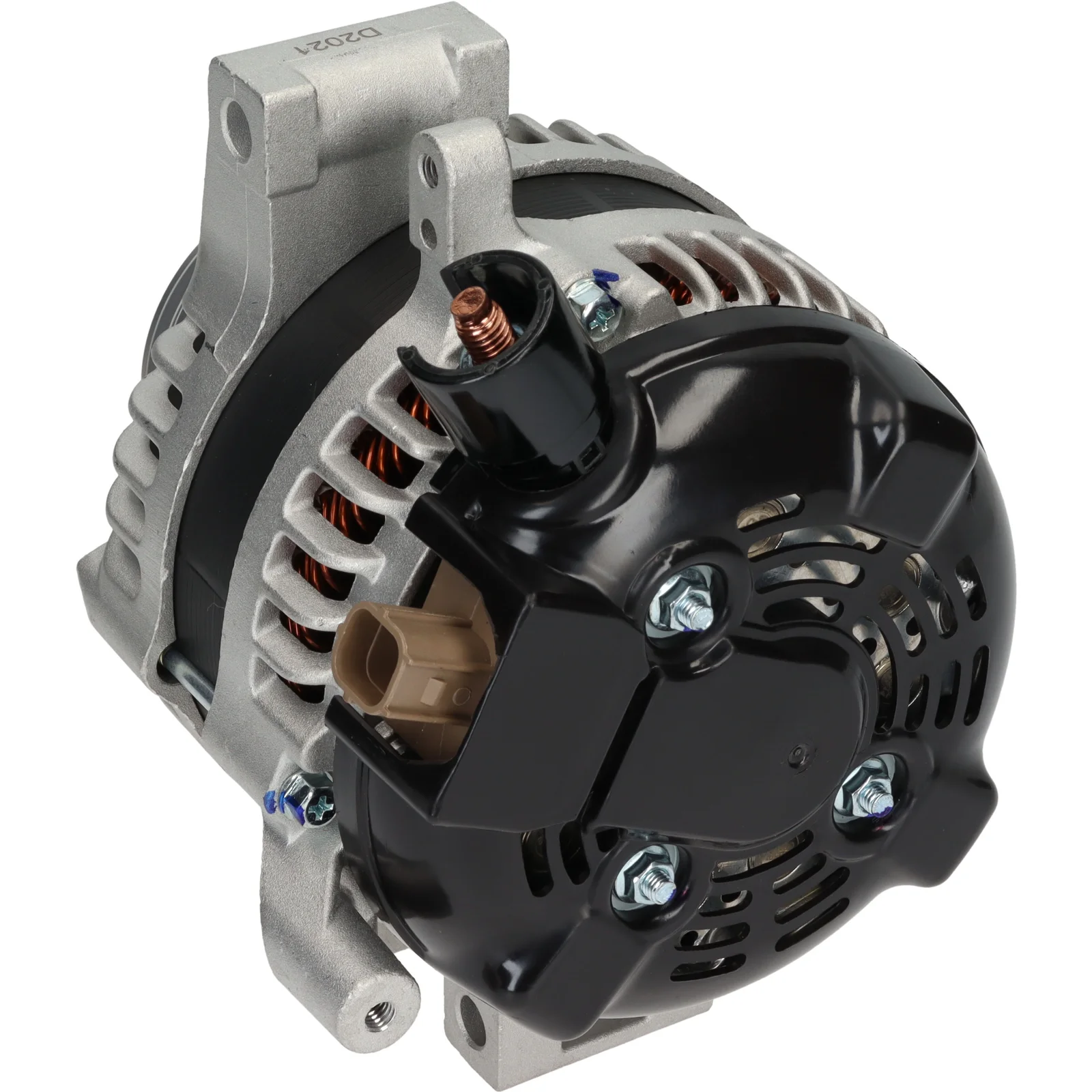

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116437

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 43.50

Beskrivning

Voltage: 14
Amp: 120
Pulley dist.: 36.00
Width/holder arm: 46.00
Mount. bracket dist.: 43.50
Bracket hole: 8.80
Bracket hole 2: 9.00
Belt. adj. bracket hole 1: 8.80
Pulley dia.: 65.00
Grooves/pulley: 7
Radius: 80.00
Radius 2: 82.00
B+: M8
Position/B+ in min.: 57
D+ Size: Plug
Rotation: CW
Plug no.: PL167
Total length mm: 164.00
Terminal type: L-IG-FR-C
Pulley: SP/FW
Fan: IF

Filer

Specifikation

B+ M8
Mount. bracket dist. 43.50
Belt. adj. bracket hole 1 8.80
Plug no. PL167
Bracket hole 8.80
Bracket hole 2 9.00
Position/B+ in min. 57
Pulley SP/FW
Pulley dia. 65.00
Pulley dist. 36.00
Radius 80.00
D+ Size Plug
Radius 2 82.00
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L-IG-FR-C
Voltage 14
Total length 164.00 mm
Width/holder arm 46.00
Amp 120

  • OEM
    CSG26, CSG66, F032116437, 31100-RL0-G01, 31100-RL0-G51, 31100-RLO-G61, 104210-2260, 104210-2660

  • Konkurrentreferens
    A6279, CAL40340, CAL40472, DRA0822, LRA03347, 8EL015630-581, 28-5959, 125.558.090, 125.564.120, 222.152.1202, 222.161.1202, 20630N-OS, 554115RI, 554375RI, 12060993

  • Normaliserat artikelnummer
    a6279, cal40340, cal40472, csg26, csg66, dra0822, f032116437, lra03347, 8el015630581, 20630nos, 31100rl0g01, 31100rl0g51, 31100rlog61, 285959, 554115ri, 554375ri, 12060993, 125558090, 125564120, 1042102260, 1042102660, 2221521202, 2221611202

  • Passar modeller
    Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B1 Body: Estate From date: 01-07-2008 Fuel: Diesel Approved: Yes Manufacture type: kombi
    Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B1 From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B2 Type description: CU3 From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B2 Type description: CW3 Body: Estate From date: 01-07-2008 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Honda Model: CR-V Model series: CR-V Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B3 Type description: RE6 From date: 01-01-2007 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 120
    Pulley dist.: 36.00
    Width/holder arm: 46.00
    Mount. bracket dist.: 43.50
    Bracket hole: 8.80
    Bracket hole 2: 9.00
    Belt. adj. bracket hole 1: 8.80
    Pulley dia.: 65.00
    Grooves/pulley: 7
    Radius: 80.00
    Radius 2: 82.00
    B+: M8
    Position/B+ in min.: 57
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL167
    Total length mm: 164.00
    Terminal type: L-IG-FR-C
    Pulley: SP/FW
    Fan: IF

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 43.50
    Belt. adj. bracket hole 1 8.80
    Plug no. PL167
    Bracket hole 8.80
    Bracket hole 2 9.00
    Position/B+ in min. 57
    Pulley SP/FW
    Pulley dia. 65.00
    Pulley dist. 36.00
    Radius 80.00
    D+ Size Plug
    Radius 2 82.00
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type L-IG-FR-C
    Voltage 14
    Total length 164.00 mm
    Width/holder arm 46.00
    Amp 120
  • Fordonsmatchning

    • OEM
      CSG26, CSG66, F032116437, 31100-RL0-G01, 31100-RL0-G51, 31100-RLO-G61, 104210-2260, 104210-2660

    • Konkurrentreferens
      A6279, CAL40340, CAL40472, DRA0822, LRA03347, 8EL015630-581, 28-5959, 125.558.090, 125.564.120, 222.152.1202, 222.161.1202, 20630N-OS, 554115RI, 554375RI, 12060993

    • Normaliserat artikelnummer
      a6279, cal40340, cal40472, csg26, csg66, dra0822, f032116437, lra03347, 8el015630581, 20630nos, 31100rl0g01, 31100rl0g51, 31100rlog61, 285959, 554115ri, 554375ri, 12060993, 125558090, 125564120, 1042102260, 1042102660, 2221521202, 2221611202

    • Passar modeller
      Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B1 Body: Estate From date: 01-07-2008 Fuel: Diesel Approved: Yes Manufacture type: kombi
      Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B1 From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B2 Type description: CU3 From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Honda Model: Accord Model series: Accord Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B2 Type description: CW3 Body: Estate From date: 01-07-2008 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Honda Model: CR-V Model series: CR-V Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B3 Type description: RE6 From date: 01-01-2007 Fuel: Diesel Approved: Yes
