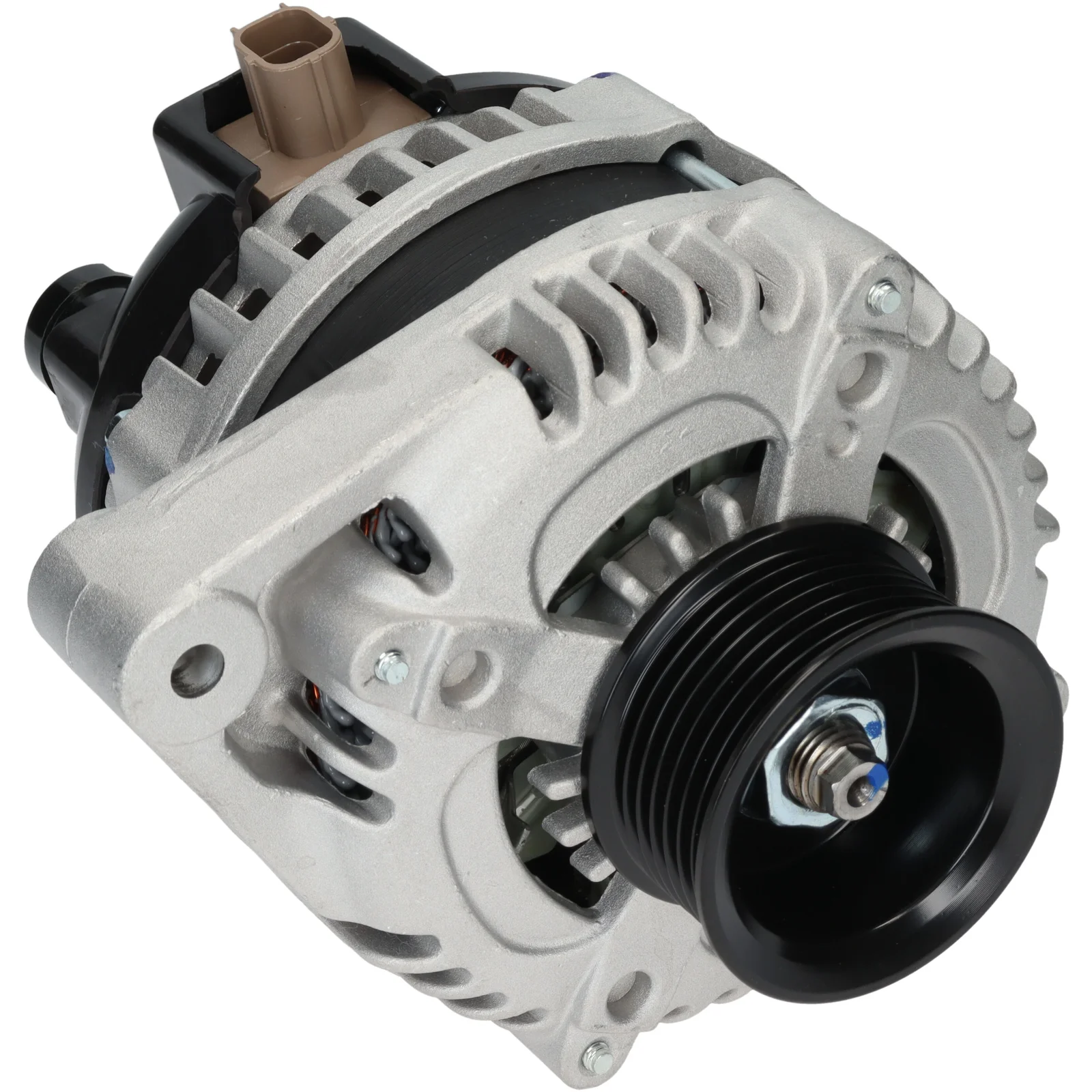

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116658

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 130, Rotation: CW, Mount. bracket dist.: 34.50

Beskrivning

Voltage: 14
Amp: 130
Pulley dist.: 42.90
Width/holder arm: 15.00
Mount. bracket dist.: 34.50
Bracket hole: 11.00
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 60.00
Grooves/pulley: 7
Radius: 81.50
Radius 2: 90.00
B+: M6
Position/B+ in min.: 3
Rotation: CW
Plug no.: PL193
Total length mm: 176.00
Terminal type: L-IG-FR-C
Pulley: SP
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 34.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 57
Plug no. PL193
Bracket hole 11.00
Position/B+ in min. 3
Pulley SP
Pulley dia. 60.00
Pulley dist. 42.90
Radius 81.50
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L-IG-FR-C
Voltage 14
Total length 176.00 mm
Width/holder arm 15.00
Amp 130

  • OEM
    F032116658, 31100-r40-a01, 104210-5890

  • Konkurrentreferens
    A6300, CAL40338, DAN1376, DRA0927, LRA03974, 28-7584, 125.567.130, 222.167.1302, 10194, 11390N, 553935RI, 12060956

  • Normaliserat artikelnummer
    a6300, cal40338, dan1376, dra0927, f032116658, lra03974, 10194, 11390n, 31100r40a01, 287584, 553935ri, 12060956, 125567130, 1042105890, 2221671302

  • Passar modeller
    Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24Z3 Body: Estate From date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: kombi
    Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24Z3 Type description: CU2 From date: 01-07-2008 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accordi Size of motor: 2.4 Brand of engine: K24Z2 Type description: CP Body: Saloon From date: 01-09-2007 To date: 01-12-2012 Fuel: Petrol Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 130
    Pulley dist.: 42.90
    Width/holder arm: 15.00
    Mount. bracket dist.: 34.50
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 57
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 60.00
    Grooves/pulley: 7
    Radius: 81.50
    Radius 2: 90.00
    B+: M6
    Position/B+ in min.: 3
    Rotation: CW
    Plug no.: PL193
    Total length mm: 176.00
    Terminal type: L-IG-FR-C
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 34.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 57
    Plug no. PL193
    Bracket hole 11.00
    Position/B+ in min. 3
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 42.90
    Radius 81.50
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type L-IG-FR-C
    Voltage 14
    Total length 176.00 mm
    Width/holder arm 15.00
    Amp 130
  • Fordonsmatchning

    • OEM
      F032116658, 31100-r40-a01, 104210-5890

    • Konkurrentreferens
      A6300, CAL40338, DAN1376, DRA0927, LRA03974, 28-7584, 125.567.130, 222.167.1302, 10194, 11390N, 553935RI, 12060956

    • Normaliserat artikelnummer
      a6300, cal40338, dan1376, dra0927, f032116658, lra03974, 10194, 11390n, 31100r40a01, 287584, 553935ri, 12060956, 125567130, 1042105890, 2221671302

    • Passar modeller
      Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24Z3 Body: Estate From date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: kombi
      Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24Z3 Type description: CU2 From date: 01-07-2008 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accordi Size of motor: 2.4 Brand of engine: K24Z2 Type description: CP Body: Saloon From date: 01-09-2007 To date: 01-12-2012 Fuel: Petrol Approved: Yes
