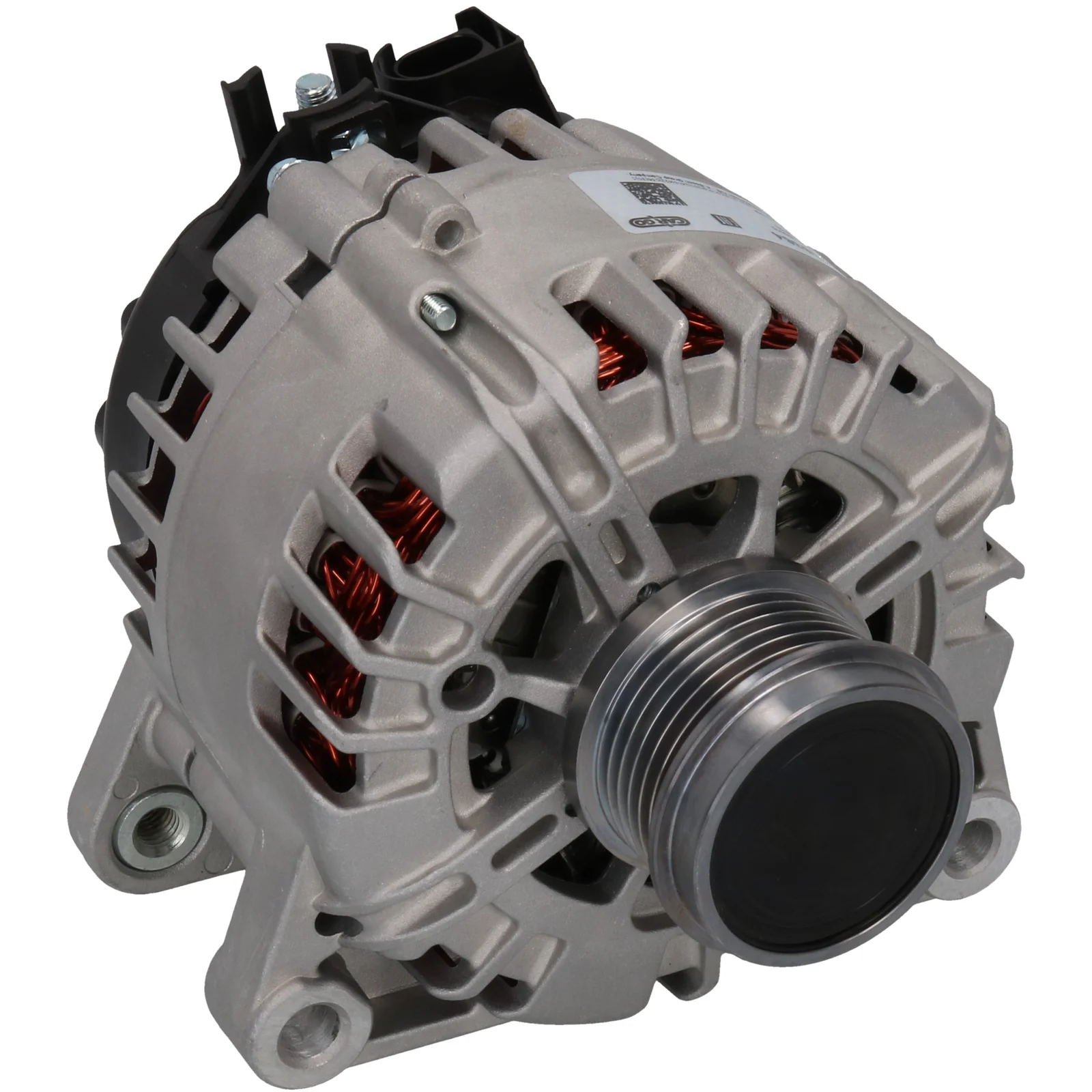

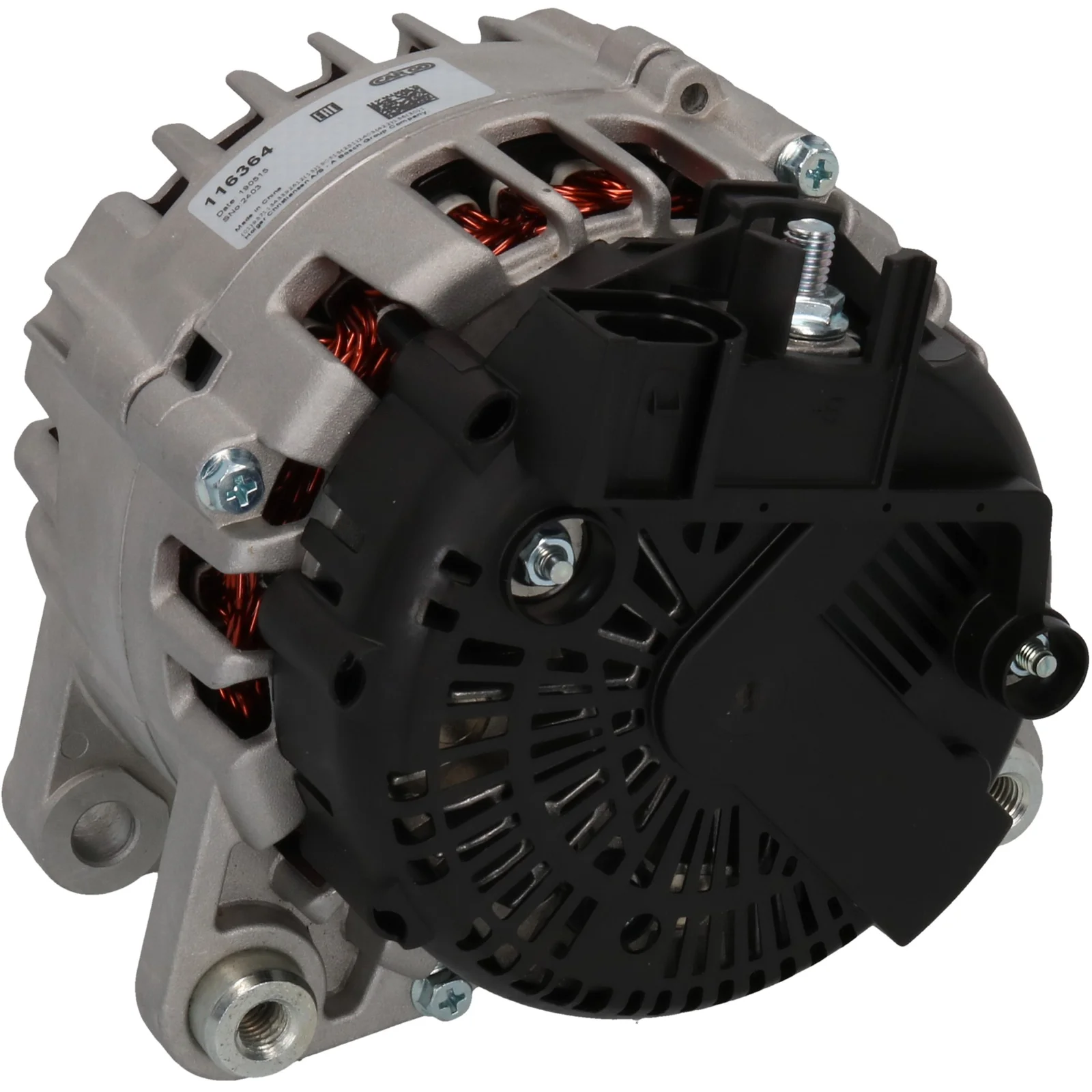

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116364

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 48.50

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 42.50
Width/holder arm: 21.00
Mount. bracket dist.: 48.50
Bracket hole: 11.20
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 11.20
Pulley dia.: 53.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 54
D+ Size: M5
Rotation: CW
Plug no.: PL174
Total length mm: 193.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 48.50
Belt. adj. bracket hole 1 11.20
Belt. adj. brackethole pos. 47
Plug no. PL174
Bracket hole 11.20
Position/B+ in min. 54
Pulley SP/FW
Pulley dia. 53.50
Pulley dist. 42.50
Radius 90.00
D+ Size M5
Radius 2 90.00
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 193.00 mm
Width/holder arm 21.00
Amp 150

  • OEM
    AG9T10300BA, ag9t10300da, F032116364, TG15C173, TG15C175, 1684713, 2610692B, 2610812A

  • Konkurrentreferens
    A3274(VALEO), A3318, CAL15050, DRA1239, LRA03555, 28-6995, 219.141.1502, 219.327.1502, 595.530.150, 210878, 210878A, 439914, 553944RI, 12090858

  • Normaliserat artikelnummer
    a3274valeo, a3318, ag9t10300ba, ag9t10300da, cal15050, dra1239, f032116364, lra03555, tg15c173, tg15c175, 210878, 210878a, 286995, 439914, 553944ri, 1684713, 2610692b, 2610812a, 12090858, 595530150, 2191411502, 2193271502

  • Passar modeller
    Ford Model: Mondeo Model series: Mondeo Saloon Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Type description: BA7 Body: Saloon From date: 01-08-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBA Body: Estate From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBA From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB Body: Estate From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA Body: Box Body / Estate From date: 01-03-2010 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA Body: Estate From date: 01-03-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA Body: Hatchback From date: 01-03-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA From date: 01-03-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFBA Body: Estate From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFBA From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    1 / 6
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 42.50
    Width/holder arm: 21.00
    Mount. bracket dist.: 48.50
    Bracket hole: 11.20
    Belt. adj. brackethole pos.: 47
    Belt. adj. bracket hole 1: 11.20
    Pulley dia.: 53.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 54
    D+ Size: M5
    Rotation: CW
    Plug no.: PL174
    Total length mm: 193.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 48.50
    Belt. adj. bracket hole 1 11.20
    Belt. adj. brackethole pos. 47
    Plug no. PL174
    Bracket hole 11.20
    Position/B+ in min. 54
    Pulley SP/FW
    Pulley dia. 53.50
    Pulley dist. 42.50
    Radius 90.00
    D+ Size M5
    Radius 2 90.00
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 21.00
    Amp 150
  • Fordonsmatchning

    • OEM
      AG9T10300BA, ag9t10300da, F032116364, TG15C173, TG15C175, 1684713, 2610692B, 2610812A

    • Konkurrentreferens
      A3274(VALEO), A3318, CAL15050, DRA1239, LRA03555, 28-6995, 219.141.1502, 219.327.1502, 595.530.150, 210878, 210878A, 439914, 553944RI, 12090858

    • Normaliserat artikelnummer
      a3274valeo, a3318, ag9t10300ba, ag9t10300da, cal15050, dra1239, f032116364, lra03555, tg15c173, tg15c175, 210878, 210878a, 286995, 439914, 553944ri, 1684713, 2610692b, 2610812a, 12090858, 595530150, 2191411502, 2193271502

    • Passar modeller
      Ford Model: Mondeo Model series: Mondeo Saloon Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Type description: BA7 Body: Saloon From date: 01-08-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBA Body: Estate From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBA From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB Body: Estate From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA Body: Box Body / Estate From date: 01-03-2010 To date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA Body: Estate From date: 01-03-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA Body: Hatchback From date: 01-03-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA From date: 01-03-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFBA Body: Estate From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFBA From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
