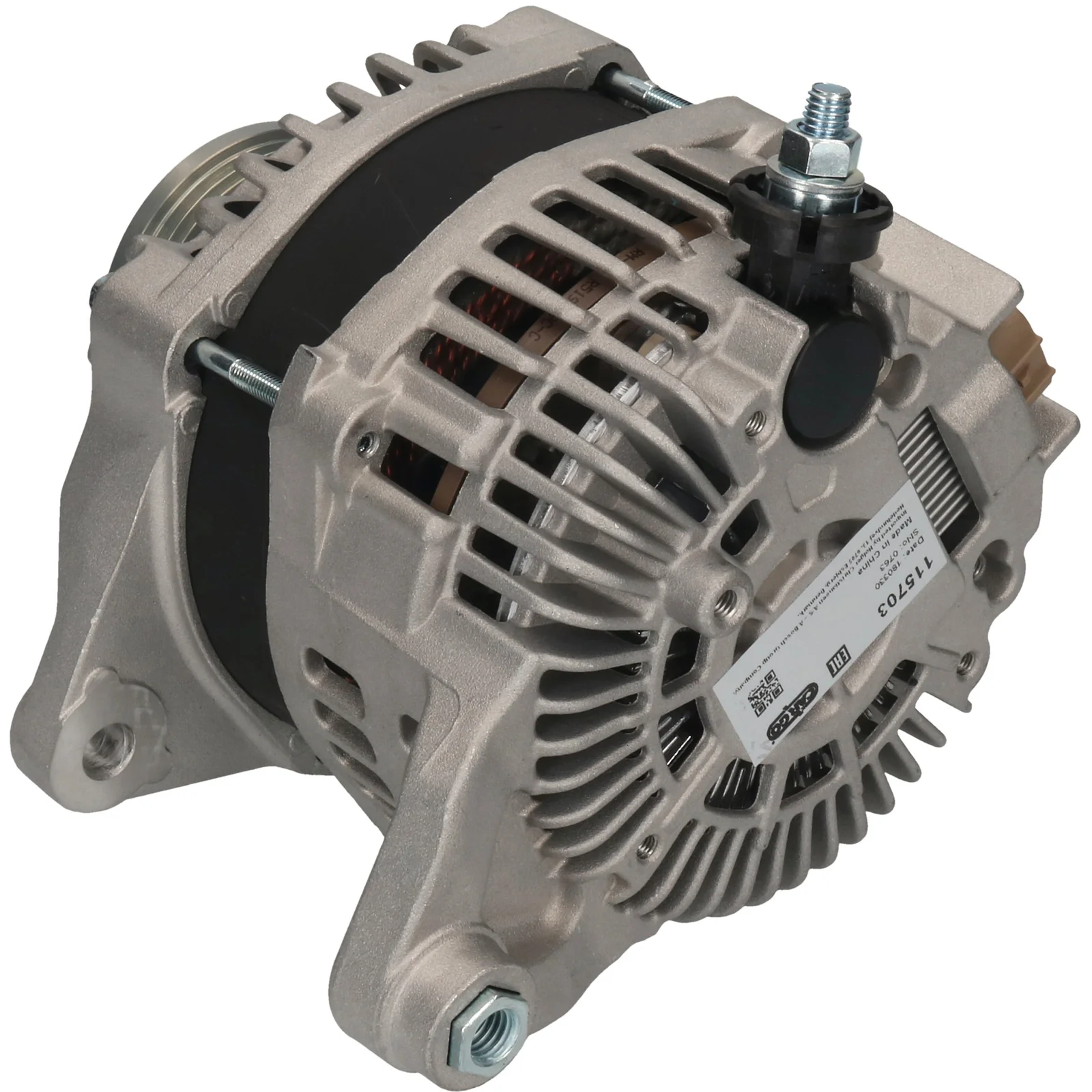

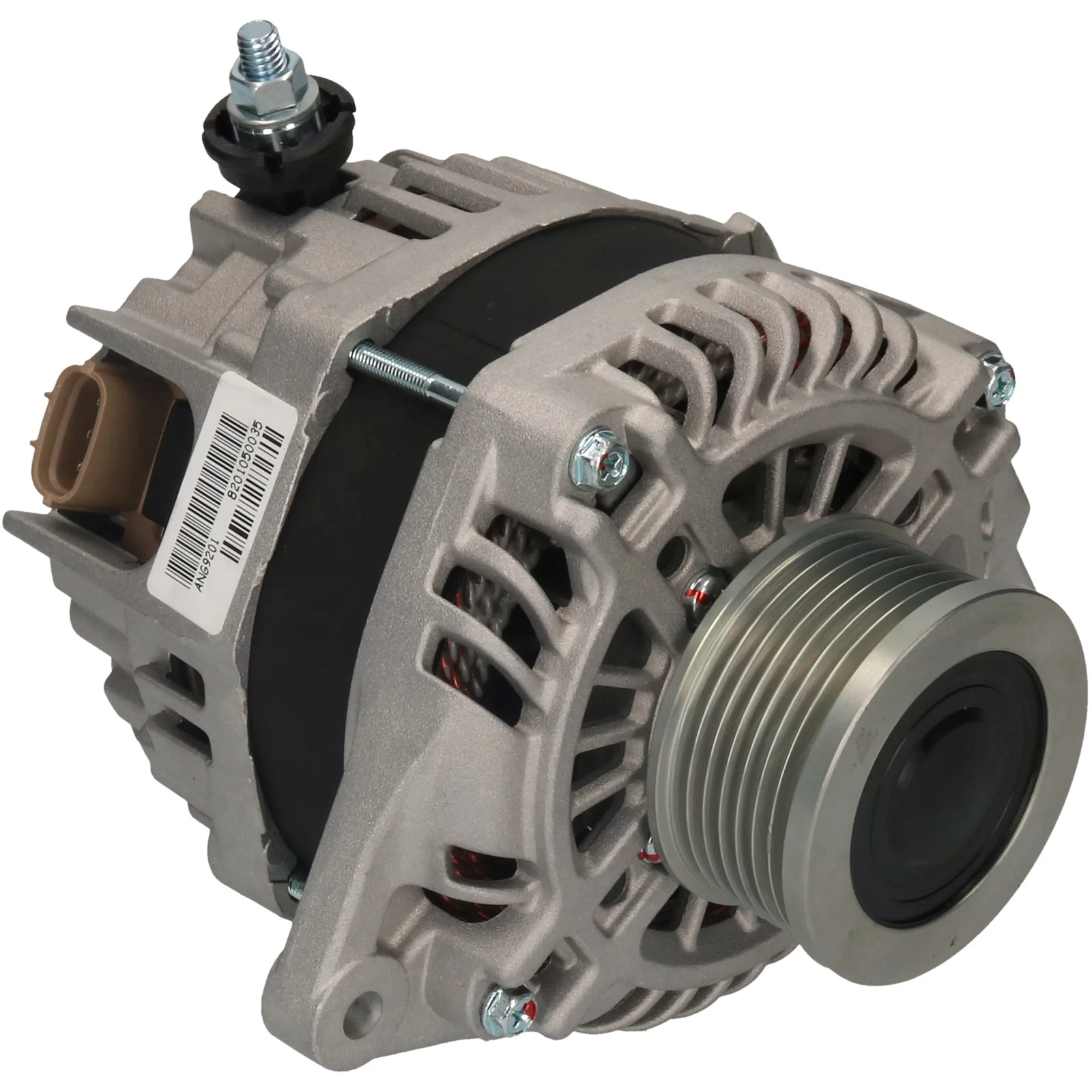

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115703

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 81.00

Beskrivning

Nissan Navara Gen. 12V-150A 12V - 150A, 7gr.frg, (C/PWM, S, L) För Yourex produkt order 90-400-2517

Voltage: 14
Amp: 150
Pulley dist.: 38.50
Width/holder arm: 13.00
Mount. bracket dist.: 81.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 53
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 65.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL163
Total length mm: 173.00
Terminal type: L-S-C
Pulley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 53
Plug no. PL163
Bracket hole 10.50
Position/B+ in min. 50
Pulley SP/FW
Pulley dia. 65.00
Pulley dist. 38.50
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L-S-C
Voltage 14
Total length 173.00 mm
Width/holder arm 13.00
Amp 150

  • OEM
    A002TX1781, A2T-X1781, A2T-X1781AE, A2TX1781, A2TX1781AE, A2TX1781ZE, F032115703, 23100-1AT1A, 23100-1at1a, 23100-1AT3A, 23100-1AT6M, 115703, 7485146058

  • Konkurrentreferens
    A5226, CAL35309, DRA1304, F042205108, LRA03628, 8EL015630-511, 28-6738, 165.582.150, 227.323.1502, 21339R, 21339RW, 114114, 209519, 209519A, 440673, 12061039

  • Bilmärken
    Nissan

  • Normaliserat artikelnummer
    a002tx1781, a2tx1781, a2tx1781ae, a2tx1781ze, a5226, cal35309, dra1304, f032115703, f042205108, lra03628, 8el015630511, 21339r, 21339rw, 114114, 115703, 209519, 209519a, 231001at1a, 231001at3a, 231001at6m, 286738, 440673, 12061039, 165582150, 2273231502, 7485146058

  • Passar modeller
    Nissan Model: Murano Model series: Murano Model type: 4x4 Size of motor: 2.5 Brand of engine: YD25DDTi Type description: Z51 From date: 01-01-2010 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Nissan Model: Murano Model series: Murano Model type: 4X4 Type of engine: DCI Size of motor: 2.5 Brand of engine: YD25DDTi Type description: Z51 Body: Box Body / Estate From date: 01-03-2013 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Nissan Model: Navara Model series: Navara Model type: 4WD Type of engine: dCi Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D40 Body: Pick Up From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Nissan Model: Navara Model series: Navara Model type: 4WD Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTI Type description: D40 Body: Pick Up From date: 01-12-2009 Fuel: Diesel Approved: Yes
    Nissan Model: Navara Model series: Navara NP300 Model type: dCi 4WD Type of engine: dci Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D40 Body: Pickup Fuel: Diesel Approved: Yes
    Nissan Model: Navara Model series: Navara NP300 Model type: dCi Type of engine: dci Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D40 Body: Pickup Fuel: Diesel Approved: Yes
    Nissan Model: Navara Model series: Navara Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D40 Body: Pick Up From date: 01-10-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Navara Model series: Navara Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D40 Body: Pick Up From date: 01-12-2005 Fuel: Diesel Approved: Yes
    Nissan Model: Navara Model series: Navara Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTI Type description: D40 Body: Platform / Chassis From date: 01-03-2010 Fuel: Diesel Approved: Yes
    Nissan Model: NP300 Navara Model series: NP300 Navara Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D40 Body: Pickup From date: 01-09-2008 Fuel: Diesel Approved: Yes
    Nissan Model: NP300 Navara Model series: NP300 Navara Type of engine: dCi Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D40 Body: Platform/Chassis From date: 01-08-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Nissan Model: Pathfinder Model series: Pathfinder Model type: 4WD Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTi Type description: R51 From date: 01-03-2005 Fuel: Diesel Approved: Yes
    Nissan Model: Pathfinder Model series: Pathfinder Model type: Dci 4X4 R51M Type of engine: DCI Size of motor: 2.5 Brand of engine: YD25DDTi Type description: R51_ Body: Box Body / Estate From date: 01-03-2013 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Nissan Model: Pathfinder Model series: Pathfinder Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTI Type description: R51 From date: 01-08-2010 Fuel: Diesel Approved: Yes
    Nissan Series: Cabstar (F24) Model: 2.5 dCi Engine volume: 2.5 Year: 10.11-
    Nissan Series: Murano (Z51) Model: 2.5 4x4 Year: 01.10-
    Nissan Series: Navara (D40) Model: 2.5 dCi 4WD Engine volume: 2.5 Engine type: YD 25 DDTi Year: 01.10-
    Nissan Series: Pathfinder (R51) Model: 2.5 dCi Engine volume: 2.5 Year: 08.10-
