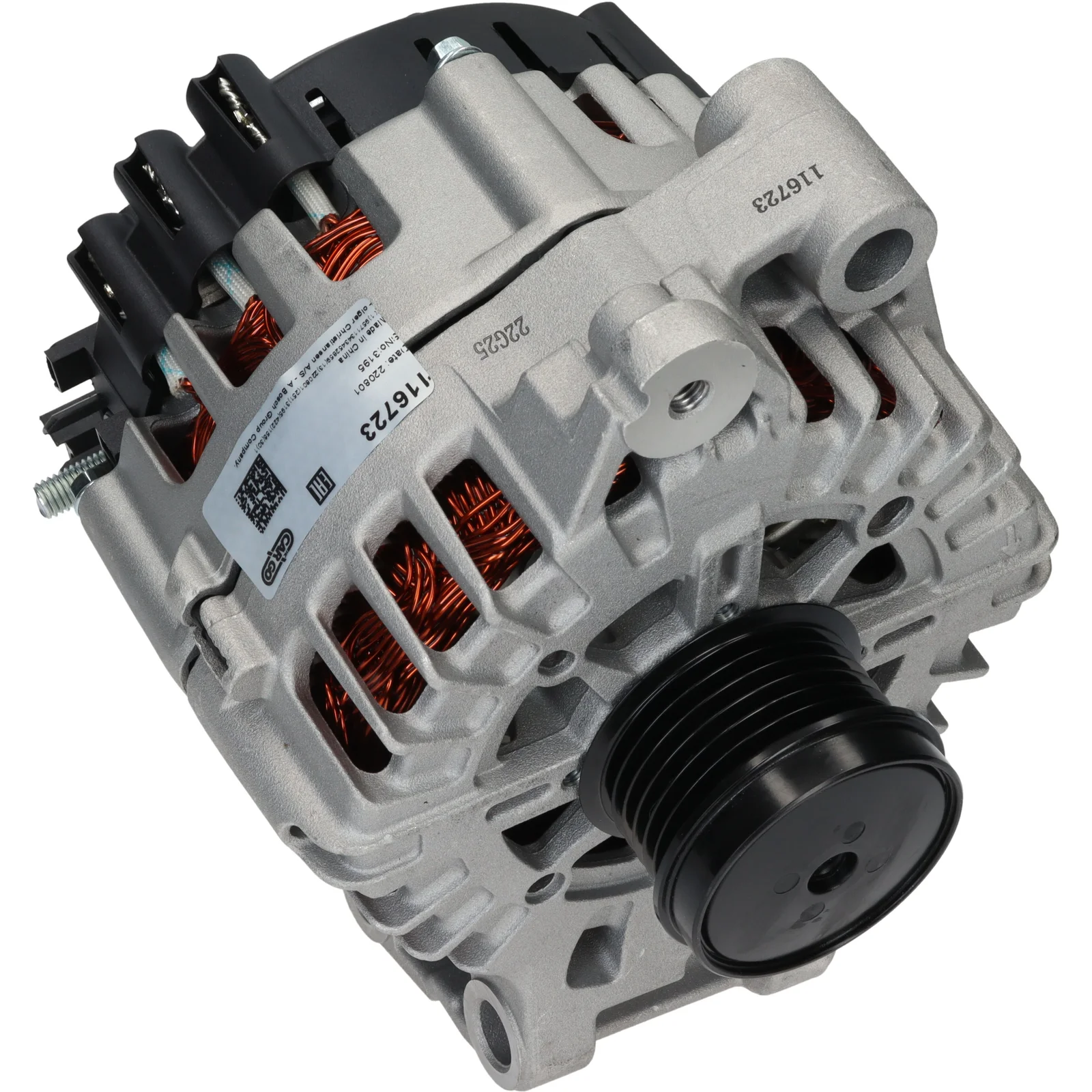

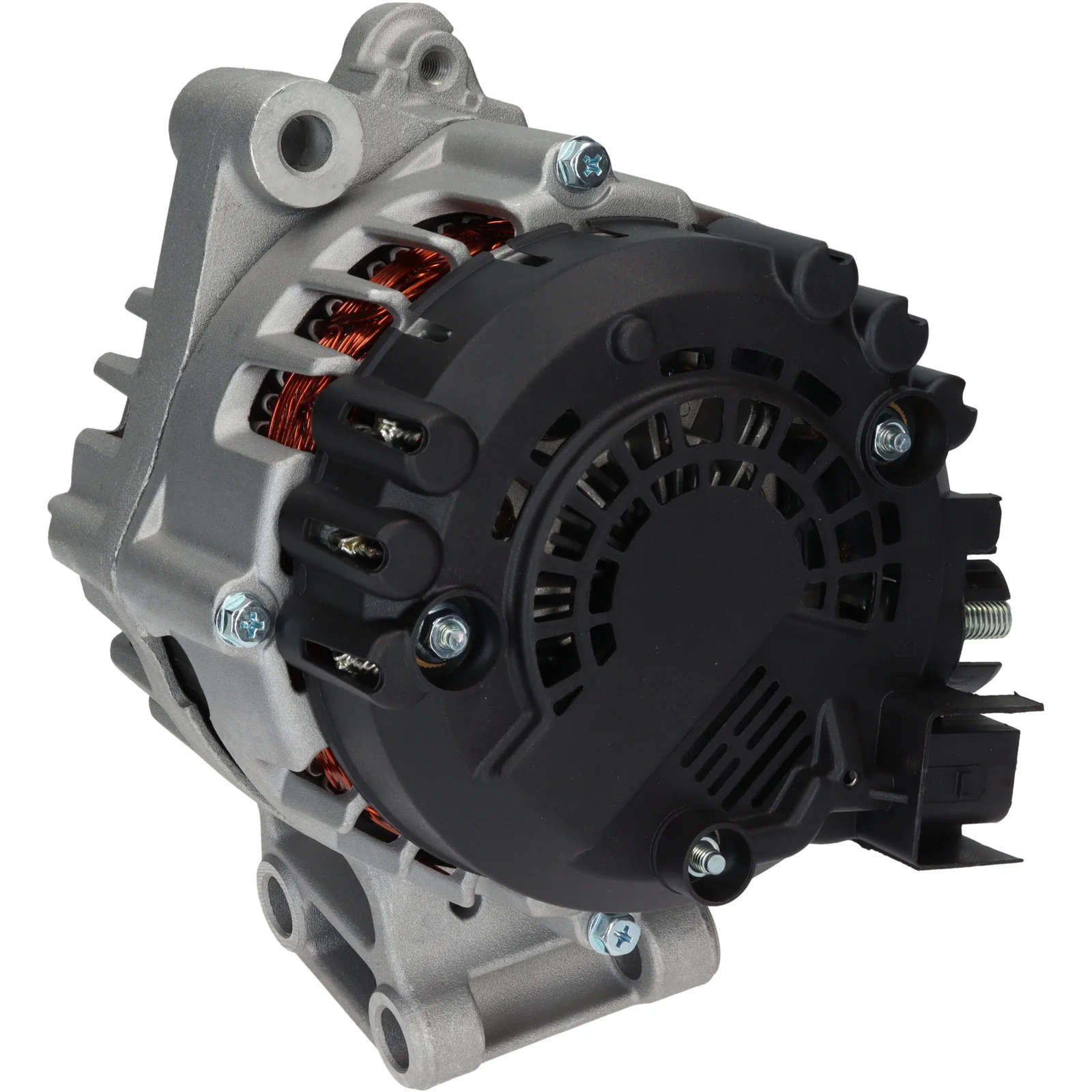

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116723

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 50.00

Beskrivning

Gen. 12V-180A passar Volvo 12V - 180A, frg 6gr. COM/LIN För Yourex produkt order 90-600-5236

Voltage: 14
Amp: 180
Pulley dist.: 11.00
Width/holder arm: 72.00
Mount. bracket dist.: 50.00
Bracket hole: 12.50
Belt. adj. brackethole pos.: 3
Belt. adj. bracket hole 1: 10.50
Belt. adj. bracket hole 2: M8
Pulley dia.: 51.00
Grooves/pulley: 6
Radius: 84.50
Radius 2: 87.00
B+: M8
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL174
Total length mm: 185.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 50.00
Belt. adj. bracket hole 1 10.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 3
Plug no. PL174
Bracket hole 12.50
Position/B+ in min. 20
Pulley SP/FW
Pulley dia. 51.00
Pulley dist. 11.00
Radius 84.50
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 72.00
Amp 180

  • OEM
    F032116723, fg17t010, FG18S 107, fg18s107, FGN18S107, 115990, 116723, 439968, 440582, 2617130, 31285436, 31345236, 36002013

  • Konkurrentreferens
    A3622S, CAL15591, DRA0874, LRA03776, 28-6886, 28-6887, 238.155.1802, 815.540.180, 815.542.180, 4112, 439968, 440582, 554503RIV, 12090884, 12090985, 89215951

  • Bilmärken
    Volvo

  • Normaliserat artikelnummer
    a3622s, cal15591, dra0874, f032116723, fg17t010, fg18s107, fgn18s107, lra03776, 4112, 115990, 116723, 286886, 286887, 439968, 440582, 554503riv, 2617130, 12090884, 12090985, 31285436, 31345236, 36002013, 89215951, 815540180, 815542180, 2381551802

  • Passar modeller
    Volvo Model: S60 Model series: S60 Model type: T3 Size of motor: 1.6 Brand of engine: B4164T3 From date: 01-04-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Volvo Model: S60 Model series: S60 Model type: T4 Size of motor: 1.6 Brand of engine: B4164T From date: 01-04-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Volvo Model: S60 Model series: S60 Size of motor: 1.6 Brand of engine: B4164T2 From date: 01-04-2011 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes
    Volvo Model: S80 Model series: S80 Model type: T4 Size of motor: 1.6 Brand of engine: B4164T From date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: S80 Model series: S80 Size of motor: 1.6 Brand of engine: B4164T2 From date: 01-05-2011 Fuel: Bi-Fuel Approved: Yes
    Volvo Model: V40 Model series: V40 Cross Country Model type: T4 GTDi Type of engine: GTDi Size of motor: 1.6 Brand of engine: B4164T Type description: 526 Body: Hatchback From date: 01-10-2012 To date: 01-12-2016 Fuel: Petrol Approved: Yes
    Volvo Model: V40 Model series: V40 Size of motor: 1.6 Brand of engine: B4164T Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
    Volvo Model: V40 Model series: V40 Type of engine: GTDi Size of motor: 1.6 Brand of engine: B4164T Body: Hatchback From date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: V40 Model series: V40 Type of engine: GTDi Size of motor: 1.6 Brand of engine: B4164T3 Body: Hatchback From date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: V40 Model series: V40 Type of engine: TDi Size of motor: 1.6 Brand of engine: B4164T4 Body: Hatchback From date: 01-03-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Volvo Model: V60 Model series: V60 Model type: T3 Size of motor: 1.6 Brand of engine: B4164T3 Body: Estate From date: 01-09-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Volvo Model: V60 Model series: V60 Model type: T4 Size of motor: 1.6 Brand of engine: B4164T Body: Estate From date: 01-09-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Volvo Model: V60 Model series: V60 Size of motor: 1.6 Brand of engine: B4164T2 Body: Estate From date: 01-04-2011 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes
    Volvo Model: V70 Model series: V70 Model type: D5 AWD Size of motor: 1.6 Brand of engine: B4164T Body: Estate From date: 01-10-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Volvo Model: V70 Model series: V70 Model type: T4F Size of motor: 1.6 Brand of engine: B4164T2 Body: Estate From date: 01-01-2011 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes Manufacture type: Kombi
    Volvo Series: S60 II Model: 1.6 T3 Engine volume: 1.6 Engine type: B 4164 T3 Year: 04.10-
    Volvo Series: S60 II Model: 1.6 T4 Engine volume: 1.6 Engine type: B 4164 T Year: 04.10-
    Volvo Series: S60 II Model: 1.6 T4F Engine volume: 1.6 Engine type: B 4164 T2 Year: 04.11-
    Volvo Series: V40 Halvkombi Model: T2 GTDi Engine volume: 1.6 Engine type: B 4164 T4 Year: 03.13-
    Volvo Series: V40 Halvkombi Model: T3 GTDi Engine volume: 1.6 Engine type: B 4164 T3 Year: 03.12-
    Volvo Series: V40 Halvkombi Model: T4 GTDi Engine volume: 1.6 Engine type: B 4164 T Year: 03.12-
    Volvo Series: V60 Model: 1.6 T3 Engine volume: 1.6 Engine type: B 4164 T3 Year: 09.10-
    Volvo Series: V60 Model: 1.6 T4 Engine volume: 1.6 Engine type: B 4164 T Year: 09.10-
    Volvo Series: V60 Model: 1.6 T4F Engine volume: 1.6 Engine type: B 4164 T2 Year: 04.11-
    Volvo Series: V70 III Model: 1.6 T4 Engine volume: 1.6 Engine type: B 4164 T Year: 10.10-
    Volvo Series: V70 III Model: 1.6 T4F Engine volume: 1.6 Engine type: B 4164 T2 Year: 01.11-
