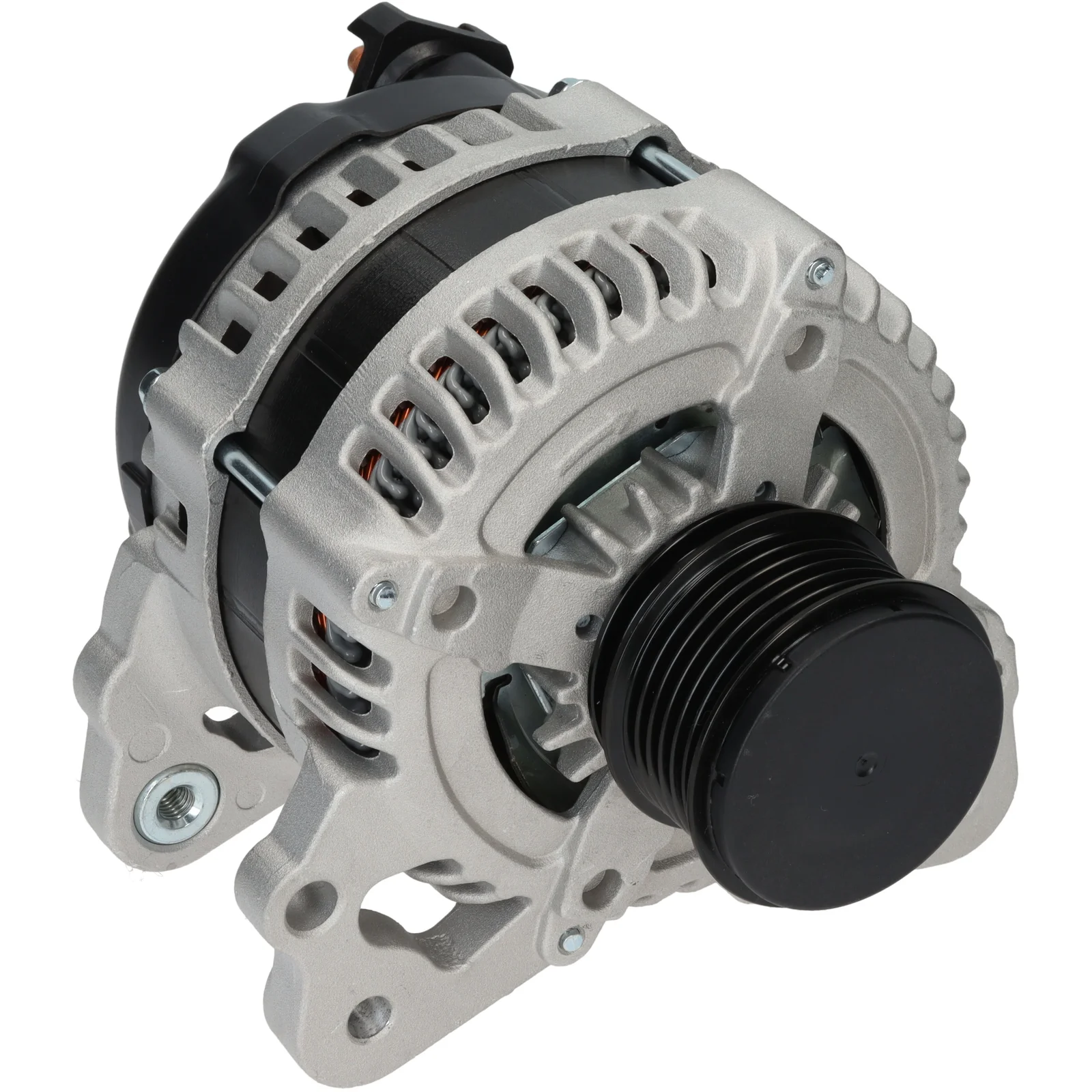

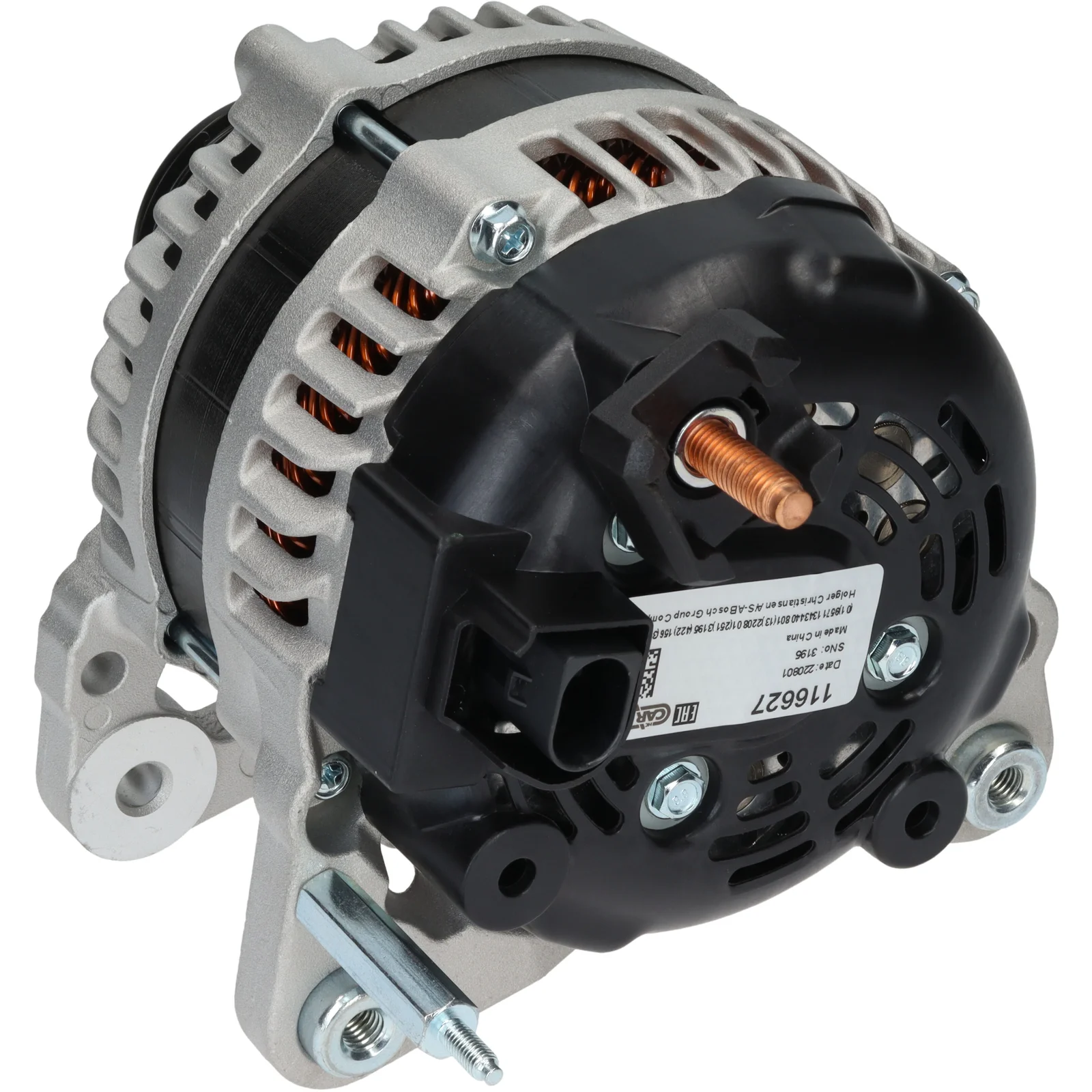

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116627

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 140, Rotation: CW, Mount. bracket dist.: 60.50

Beskrivning

Voltage: 14
Amp: 140
Pulley dist.: 39.50
Width/holder arm: 13.80
Mount. bracket dist.: 60.50
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Belt. adj. bracket hole 2: M8
Pulley dia.: 56.20
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 60
Rotation: CW
Plug no.: PL181
Total length mm: 200.00
Terminal type: COM
Pulley: SP/FW
Fan: IF
Regulator: w/
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 45
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 60
Pulley SP/FW
Pulley dia. 56.20
Pulley dist. 39.50
Radius 90.00
Radius 2 90.00
Regulator w/
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 200.00 mm
Width/holder arm 13.80
Amp 140

  • OEM
    F032116627, 03L903024, 03L903024X, 104211-8380

  • Konkurrentreferens
    A6506S, CAL40439, DAN1328, DRA1484, 28-6984, 305.935.140, 210974, 210974A, 440904, 554465RI, 12090900

  • Normaliserat artikelnummer
    a6506s, cal40439, dan1328, dra1484, f032116627, 03l903024, 03l903024x, 210974, 210974a, 286984, 440904, 554465ri, 12090900, 305935140, 1042118380

  • Passar modeller
    VW Model: Tiguan Model series: Tiguan Model type: 4 Motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CFGC Type description: 5N_ From date: 01-11-2012 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    VW Model: Tiguan Model series: Tiguan Type of engine: TDi Size of motor: 2.0 Brand of engine: CBAA Type description: 5N1 Body: SUV From date: 01-11-2007 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    VW Model: Tiguan Model series: Tiguan Type of engine: TDi Size of motor: 2.0 Brand of engine: CBAB Body: SUV From date: 01-09-2007 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    VW Model: Tiguan Model series: Tiguan Type of engine: TDi Size of motor: 2.0 Brand of engine: CBAB Type description: 5N1 Body: SUV From date: 01-03-2008 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    VW Model: Tiguan Model series: Tiguan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Type description: 5N1 Body: SUV From date: 01-11-2007 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    VW Model: Tiguan Model series: Tiguan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Body: SUV From date: 01-09-2007 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    VW Model: Tiguan Model series: Tiguan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 5N1 Body: SUV From date: 01-03-2008 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    VW Model: Tiguan Model series: Tiguan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFD Type description: 5N_ From date: 01-05-2010 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    VW Model: Tiguan Model series: Tiguan Type of engine: TDi Size of motor: 2.0 Brand of engine: CLJA Body: SUV From date: 01-09-2007 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    VW Model: Tiguan Model series: Tiguan Van Model type: 4Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGC Type description: 5N_ Body: Box Body / Estate From date: 01-11-2012 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    VW Model: Tiguan Model series: Tiguan Van Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 5N_ Body: Box Body / Estate From date: 01-11-2009 To date: 01-07-2018 Fuel: Diesel Approved: Yes
