Artikelnr: F032115865

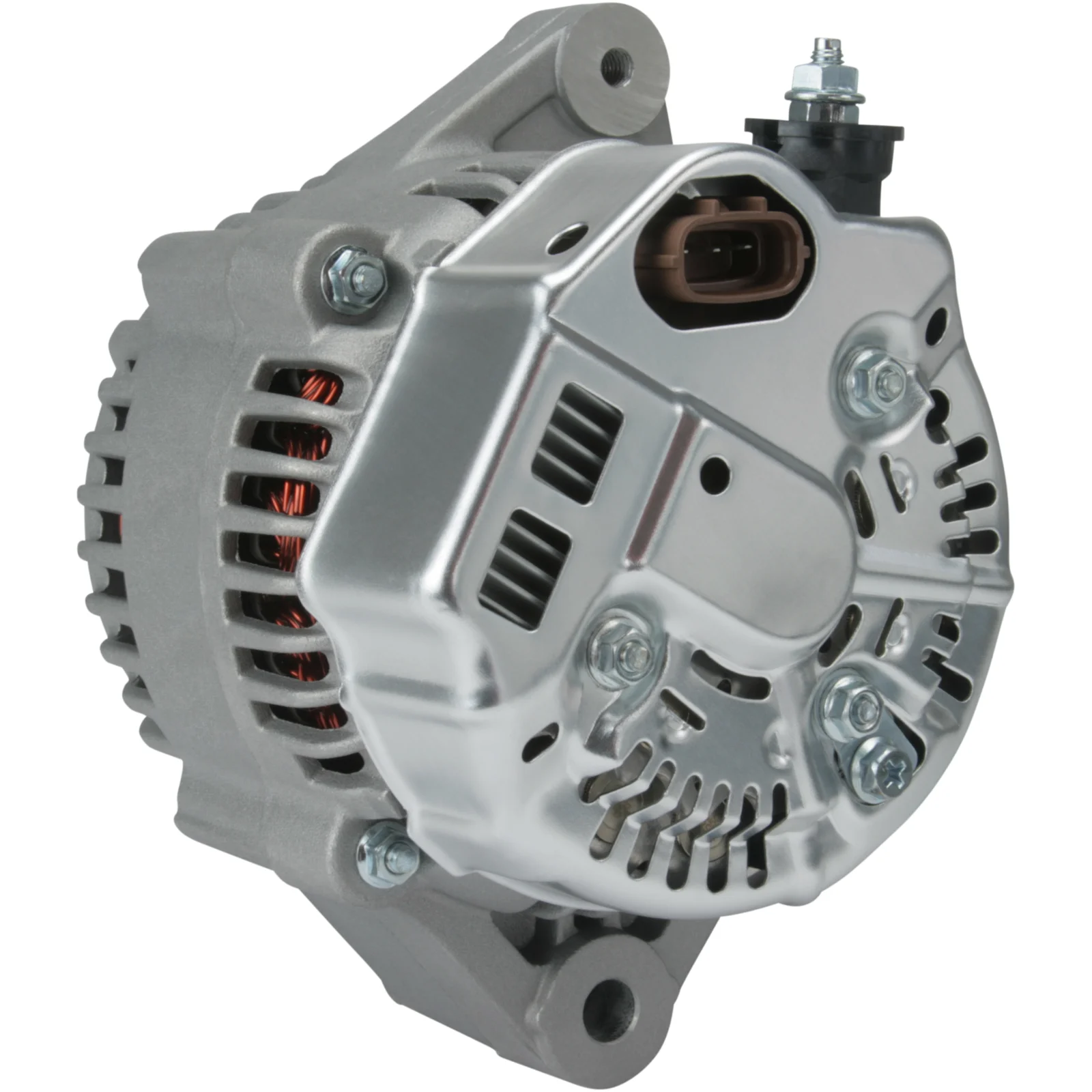

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 95, Rotation: CW, Pulley dia.: 62.50

Beskrivning

Voltage: 14
Amp: 95
Pulley dist.: 32.00
Width/holder arm: 58.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 62.50
Grooves/pulley: 4
Radius: 80.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL74
Total length mm: 157.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Specifikation

B+ M6
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 50
Plug no. PL74
Bracket hole 10.20
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 62.50
Pulley dist. 32.00
Radius 80.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 157.00 mm
Width/holder arm 58.00
Amp 95
  • OEM

    cjs52, CJU82, CJU88, cjv85, CJV86, F032115865, 31100-P3F-E01, 31100-P3F-G01, 31100-P3F-G52, 101211-9340, 101211-9440, 101211-9820, 101211-9821, 101211-9880, 102211-1850, 102211-1860
  • Konkurrentreferens

    A6663S, CAL40196, DRA4277, J5114043, LRA02161, 28-4615, 125.517.095, 125.546.090, 222.137.952, 0986CR0853, 11101N, 11101R, 209359, 209359A, 553293RI, 9090844, 12061156, 12061211
  • Normaliserat artikelnummer

    a6663s, cal40196, cjs52, cju82, cju88, cjv85, cjv86, dra4277, f032115865, j5114043, lra02161, 0986cr0853, 11101n, 11101r, 31100p3fe01, 31100p3fg01, 31100p3fg52, 209359, 209359a, 284615, 553293ri, 9090844, 12061156, 12061211, 125517095, 125546090, 222137952, 1012119340, 1012119440, 1012119820, 1012119821, 1012119880, 1022111850, 1022111860
  • Passar modeller

    Honda Model: CR-V Model series: CR-V Model type: 4WD Size of motor: 2.0 Brand of engine: B20Z2 Type description: RD Body: SUV From date: 01-09-1998 To date: 01-12-2001 Fuel: Petrol Approved: Yes
    Honda Model: CR-V Model series: CR-V Size of motor: 2.0 Brand of engine: B20Z1 Type description: RD Body: SUV From date: 01-04-1999 To date: 01-02-2002 Fuel: Gasoline Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: 16V Size of motor: 2.0 Brand of engine: B20B Type description: RD1, RD3 Body: SUV From date: 01-10-1995 To date: 01-12-2001 Fuel: Gasoline Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: 16V Size of motor: 2.0 Brand of engine: B20Z1 Type description: RD1, RD3 Body: SUV From date: 01-01-1999 To date: 01-02-2002 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 95
    Pulley dist.: 32.00
    Width/holder arm: 58.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 62.50
    Grooves/pulley: 4
    Radius: 80.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 60
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL74
    Total length mm: 157.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 50
    Plug no. PL74
    Bracket hole 10.20
    Position/B+ in min. 60
    Prod. info BN
    Pulley SP
    Pulley dia. 62.50
    Pulley dist. 32.00
    Radius 80.00
    D+ Size Plug
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 157.00 mm
    Width/holder arm 58.00
    Amp 95
  • Fordonsmatchning
    • OEM

      cjs52, CJU82, CJU88, cjv85, CJV86, F032115865, 31100-P3F-E01, 31100-P3F-G01, 31100-P3F-G52, 101211-9340, 101211-9440, 101211-9820, 101211-9821, 101211-9880, 102211-1850, 102211-1860
    • Konkurrentreferens

      A6663S, CAL40196, DRA4277, J5114043, LRA02161, 28-4615, 125.517.095, 125.546.090, 222.137.952, 0986CR0853, 11101N, 11101R, 209359, 209359A, 553293RI, 9090844, 12061156, 12061211
    • Normaliserat artikelnummer

      a6663s, cal40196, cjs52, cju82, cju88, cjv85, cjv86, dra4277, f032115865, j5114043, lra02161, 0986cr0853, 11101n, 11101r, 31100p3fe01, 31100p3fg01, 31100p3fg52, 209359, 209359a, 284615, 553293ri, 9090844, 12061156, 12061211, 125517095, 125546090, 222137952, 1012119340, 1012119440, 1012119820, 1012119821, 1012119880, 1022111850, 1022111860
    • Passar modeller

      Honda Model: CR-V Model series: CR-V Model type: 4WD Size of motor: 2.0 Brand of engine: B20Z2 Type description: RD Body: SUV From date: 01-09-1998 To date: 01-12-2001 Fuel: Petrol Approved: Yes
      Honda Model: CR-V Model series: CR-V Size of motor: 2.0 Brand of engine: B20Z1 Type description: RD Body: SUV From date: 01-04-1999 To date: 01-02-2002 Fuel: Gasoline Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: 16V Size of motor: 2.0 Brand of engine: B20B Type description: RD1, RD3 Body: SUV From date: 01-10-1995 To date: 01-12-2001 Fuel: Gasoline Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: 16V Size of motor: 2.0 Brand of engine: B20Z1 Type description: RD1, RD3 Body: SUV From date: 01-01-1999 To date: 01-02-2002 Fuel: Gasoline Approved: Yes
