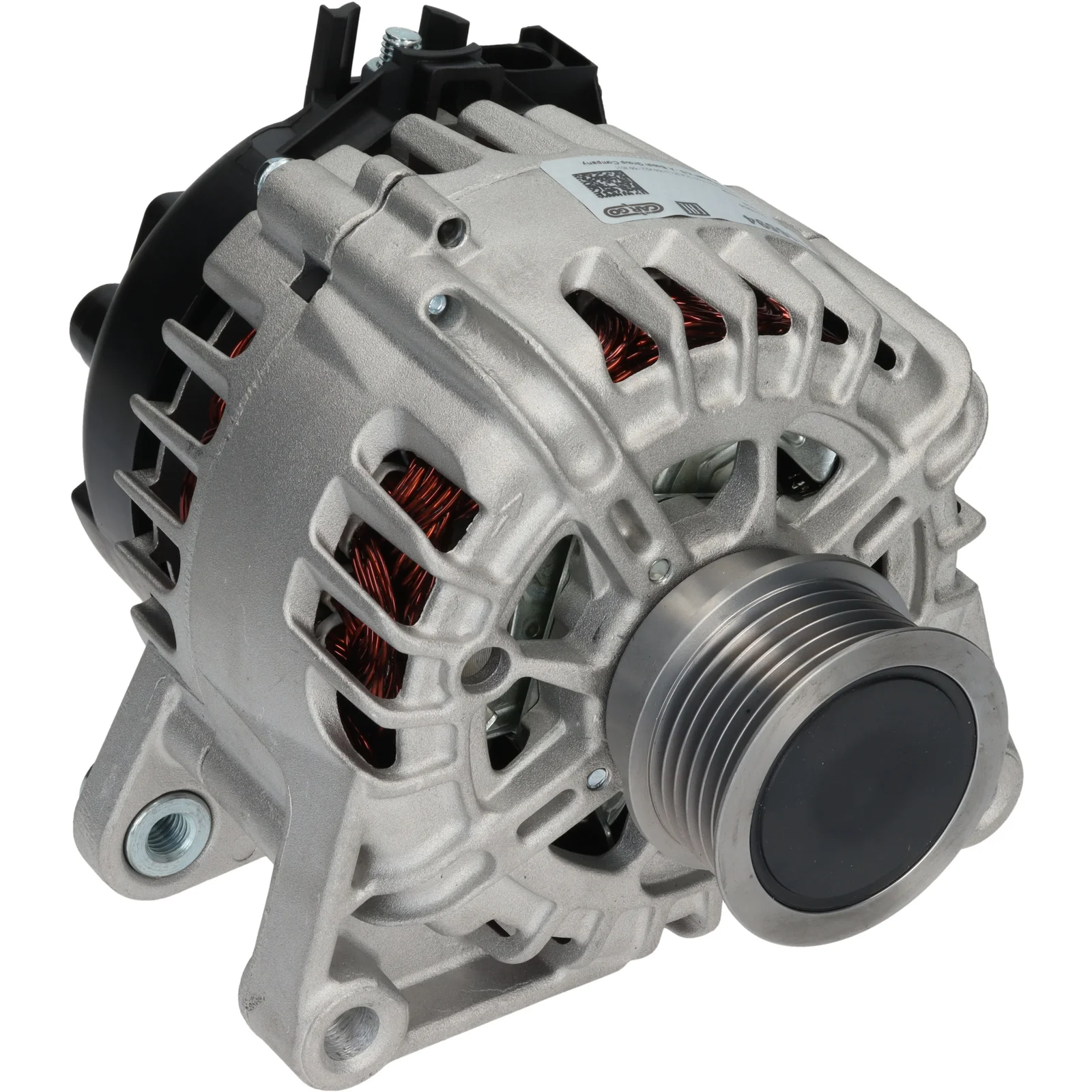

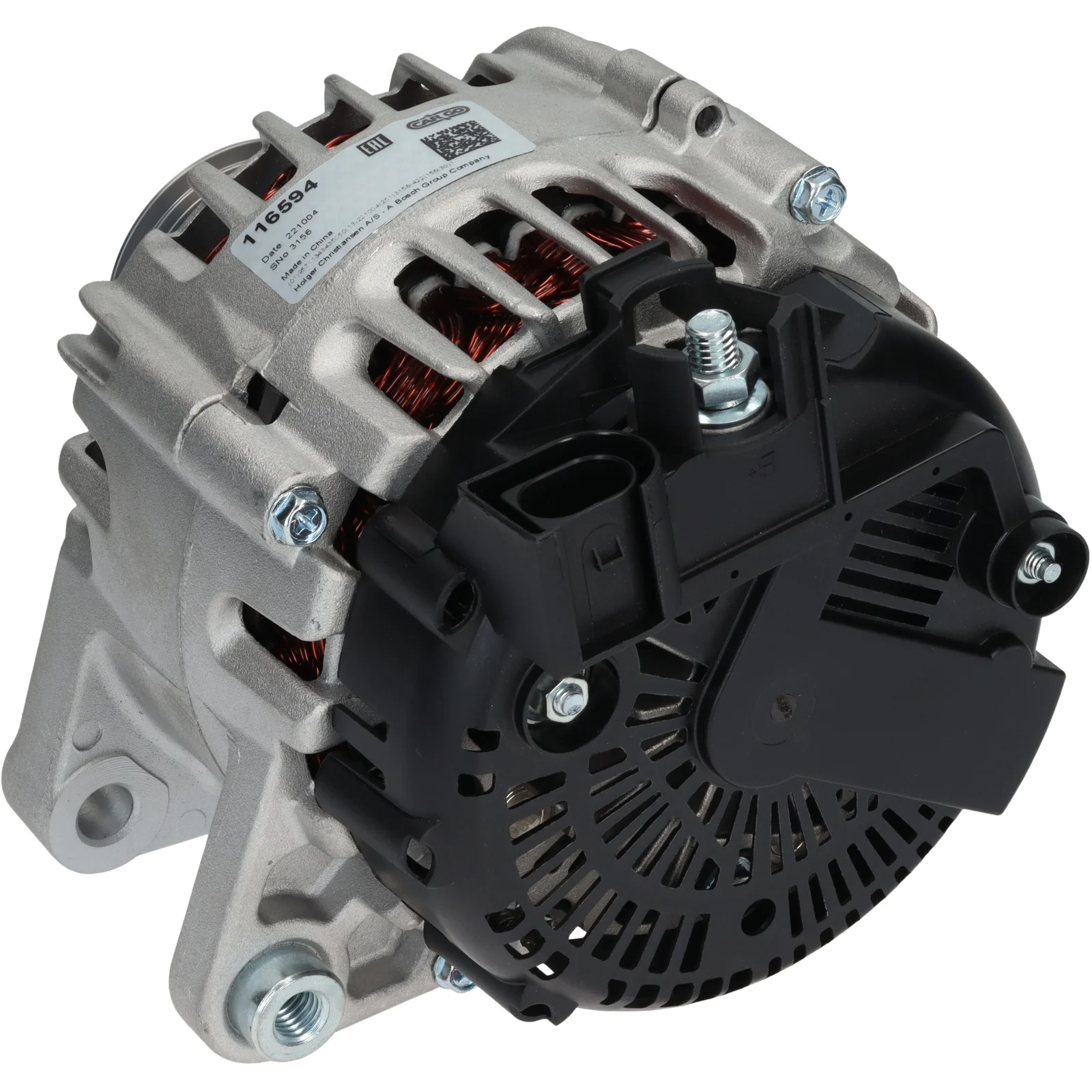

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116594

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 49.00

Beskrivning

Generator 12V-150A till Ford 12V - 150A, 6gr.frg, (LIN) ID kod 25 För Yourex produkt order 90-180-1975

Voltage: 14
Amp: 150
Pulley dist.: 48.00
Width/holder arm: 21.00
Mount. bracket dist.: 49.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL174
Total length mm: 190.00
Terminal type: COM
ID Code: 25
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 49.00
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 47
Plug no. PL174
Bracket hole 11.00
Position/B+ in min. 50
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 48.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 25
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 21.00
Amp 150

  • OEM
    F032116594, FG15T 093, FG15T093, FG15T137, FV4T-10300MA, FV4T-10300MB, FV4T-10300MC, FV4T10300MA, FV4T10300MC, 116594, 439944, 440688, 1873207, 2261975, 2380380, 2618427

  • Konkurrentreferens
    CAL15041, DRA1643, LRA03772, 8EL015630-811, 28-6882, 595.913.150, 20560N, 209317, 209317A, 439944, 440688, 12090851, 32085900, 89215844, 0986085900

  • Bilmärken
    Ford EU

  • Normaliserat artikelnummer
    cal15041, dra1643, f032116594, fg15t093, fg15t137, fv4t10300ma, fv4t10300mb, fv4t10300mc, lra03772, 8el015630811, 20560n, 116594, 209317, 209317a, 286882, 439944, 440688, 1873207, 2261975, 2380380, 2618427, 12090851, 32085900, 89215844, 595913150, 0986085900

  • Passar modeller
    Ford EU Series: C-Max II Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DB/C/D Year: 03.15-06.19
    Ford EU Series: C-Max II Model: 2.0 TDCi Engine volume: 2.0 Engine type: T8DE Year: 03.15-06.19
    Ford EU Series: C-MAX II Van Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DB/C Year: 03.15-06.19
    Ford EU Series: C-MAX II Van Model: 2.0 TDCi Engine volume: 2.0 Engine type: T8DE Year: 03.15-06.19
    Ford EU Series: Focus III Sedan Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DA/T7DB Year: 11.14-
    Ford EU Series: Focus III Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DA / B Year: 11.14-
    Ford EU Series: Focus III Model: 2.0 TDCi ST Engine volume: 2.0 Engine type: T8DA Year: 11.14-
    Ford EU Series: Focus III Skåp Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DA/ T7DB Year: 11.14-
    Ford EU Series: Focus III Turnier Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DA/B Year: 11.14-
    Ford EU Series: Focus III Turnier Model: 2.0 TDCi ST Engine volume: 2.0 Engine type: T8DA Year: 11.14-
    Ford EU Series: Grand C-Max Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DB/T7DC Year: 03.15-
    Ford EU Series: Grand C-Max Model: 2.0 TDCi Engine volume: 2.0 Engine type: T8DE Year: 03.15-
    Ford EU Series: GRAND C-MAX Van Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DB/T7DC Year: 03.15-06.19
    Ford EU Series: GRAND C-MAX Van Model: 2.0 TDCi Engine volume: 2.0 Engine type: T8DE Year: 03.15-06.19
    Ford EU Series: Kuga II Model: 2.0 TDCi 4x4 Engine volume: 2.0 Engine type: T8MA/T8MB Year: 09.14-10.14
    Ford EU Series: Kuga II Model: 2.0 TDCi 4x4 Engine volume: 2.0 Engine type: TZMA/TZMB Year: 09.14-10.14
    Ford EU Series: Kuga II Model: 2.0 TDCi Engine volume: 2.0 Engine type: TZMA/B/C/D Year: 09.14-10.14
    Ford EU Series: Kuga II Model: 2.0 TDCi Engine volume: 2.0 Engine type: XRMA/B/C Year: 09.14-06.19
    Ford EU Series: Kuga II Van Model: 2.0 TDCi 4X4 Engine volume: 2.0 Engine type: T7MA/T7MB Year: 09.14-10.14
    Ford EU Series: Kuga II Van Model: 2.0 TDCi 4X4 Engine volume: 2.0 Engine type: T8MA / T8MB Year: 09.14-
    Ford EU Series: Kuga II Van Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7MA / T7MB Year: 09.14-
    Ford EU Series: Kuga II Van Model: 2.0 TDCi Engine volume: 2.0 Engine type: XRMA/B Year: 06.19-
    Ford Model: C-Max Model series: C-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Body: Van From date: 01-03-2015 Fuel: Diesel Approved: Yes
    Ford Model: C-Max Model series: C-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Type description: DXA/CB7, DXA/CEU Body: MPV From date: 01-03-2015 Fuel: Diesel Approved: Yes
    Ford Model: C-Max Model series: C-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8DE Body: Van From date: 01-03-2015 Fuel: Diesel Approved: Yes
    Ford Model: C-Max Model series: C-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8DE Type description: DXA/CB7, DXA/CEU Body: MPV From date: 01-03-2015 Fuel: Diesel Approved: Yes
    Ford Model: C-Max Model series: Grand C-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Type description: DXA/CB7, DXA/CEU Body: MPV From date: 01-03-2015 Fuel: Diesel Approved: Yes
    Ford Model: C-Max Model series: Grand C-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8DE Type description: DXA/CB7, DXA/CEU Body: MPV From date: 01-03-2015 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Body: Estate From date: 01-11-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Body: Hatchback From date: 01-11-2014 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB From date: 01-11-2014 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8DA Body: Estate From date: 01-11-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8DA Body: Hatchback From date: 01-11-2014 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Van Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Body: Van From date: 01-11-2014 Fuel: Diesel Approved: Yes
    Ford Model: Grand C-Max Model series: Grand C-Max Van Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Body: Van From date: 01-03-2015 Fuel: Diesel Approved: Yes
    Ford Model: Grand C-Max Model series: Grand C-Max Van Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8DE Body: Van From date: 01-03-2015 Fuel: Diesel Approved: Yes
    Ford Model: Kuga Model series: Kuga Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7MA Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Kuga Model series: Kuga Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7MB Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Kuga Model series: Kuga Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8MA Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Kuga Model series: Kuga Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8MB Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Kuga Model series: Kuga Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7MA Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Kuga Model series: Kuga Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7MB Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Kuga Model series: Kuga Type of engine: TDCi Size of motor: 2.0 Brand of engine: XRMA Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Kuga Model series: Kuga Type of engine: TDCi Size of motor: 2.0 Brand of engine: XRMB Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Kuga Model series: Kuga Type of engine: TDCi Size of motor: 2.0 Brand of engine: XRMB, XRMA Body: Box From date: 01-06-2019 Fuel: Diesel Approved: Yes
    Ford Model: Kuga Model series: Kuga Van Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7MA, T7MB Body: Van From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Kuga Model series: Kuga Van Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8MB, T8MA Body: Van From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Kuga Model series: Kuga Van Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7MB, T7MA Body: Van From date: 01-09-2014 Fuel: Diesel Approved: Yes
    1 / 10
  • Beskrivning
    Generator 12V-150A till Ford 12V - 150A, 6gr.frg, (LIN) ID kod 25 För Yourex produkt order 90-180-1975

    Voltage: 14
    Amp: 150
    Pulley dist.: 48.00
    Width/holder arm: 21.00
    Mount. bracket dist.: 49.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 47
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL174
    Total length mm: 190.00
    Terminal type: COM
    ID Code: 25
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 49.00
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 47
    Plug no. PL174
    Bracket hole 11.00
    Position/B+ in min. 50
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 48.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 25
    Terminal type COM
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 21.00
    Amp 150
  • Fordonsmatchning

    • OEM
      F032116594, FG15T 093, FG15T093, FG15T137, FV4T-10300MA, FV4T-10300MB, FV4T-10300MC, FV4T10300MA, FV4T10300MC, 116594, 439944, 440688, 1873207, 2261975, 2380380, 2618427

    • Konkurrentreferens
      CAL15041, DRA1643, LRA03772, 8EL015630-811, 28-6882, 595.913.150, 20560N, 209317, 209317A, 439944, 440688, 12090851, 32085900, 89215844, 0986085900

    • Bilmärken
      Ford EU

    • Normaliserat artikelnummer
      cal15041, dra1643, f032116594, fg15t093, fg15t137, fv4t10300ma, fv4t10300mb, fv4t10300mc, lra03772, 8el015630811, 20560n, 116594, 209317, 209317a, 286882, 439944, 440688, 1873207, 2261975, 2380380, 2618427, 12090851, 32085900, 89215844, 595913150, 0986085900

    • Passar modeller
      Ford EU Series: C-Max II Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DB/C/D Year: 03.15-06.19
      Ford EU Series: C-Max II Model: 2.0 TDCi Engine volume: 2.0 Engine type: T8DE Year: 03.15-06.19
      Ford EU Series: C-MAX II Van Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DB/C Year: 03.15-06.19
      Ford EU Series: C-MAX II Van Model: 2.0 TDCi Engine volume: 2.0 Engine type: T8DE Year: 03.15-06.19
      Ford EU Series: Focus III Sedan Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DA/T7DB Year: 11.14-
      Ford EU Series: Focus III Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DA / B Year: 11.14-
      Ford EU Series: Focus III Model: 2.0 TDCi ST Engine volume: 2.0 Engine type: T8DA Year: 11.14-
      Ford EU Series: Focus III Skåp Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DA/ T7DB Year: 11.14-
      Ford EU Series: Focus III Turnier Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DA/B Year: 11.14-
      Ford EU Series: Focus III Turnier Model: 2.0 TDCi ST Engine volume: 2.0 Engine type: T8DA Year: 11.14-
      Ford EU Series: Grand C-Max Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DB/T7DC Year: 03.15-
      Ford EU Series: Grand C-Max Model: 2.0 TDCi Engine volume: 2.0 Engine type: T8DE Year: 03.15-
      Ford EU Series: GRAND C-MAX Van Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7DB/T7DC Year: 03.15-06.19
      Ford EU Series: GRAND C-MAX Van Model: 2.0 TDCi Engine volume: 2.0 Engine type: T8DE Year: 03.15-06.19
      Ford EU Series: Kuga II Model: 2.0 TDCi 4x4 Engine volume: 2.0 Engine type: T8MA/T8MB Year: 09.14-10.14
      Ford EU Series: Kuga II Model: 2.0 TDCi 4x4 Engine volume: 2.0 Engine type: TZMA/TZMB Year: 09.14-10.14
      Ford EU Series: Kuga II Model: 2.0 TDCi Engine volume: 2.0 Engine type: TZMA/B/C/D Year: 09.14-10.14
      Ford EU Series: Kuga II Model: 2.0 TDCi Engine volume: 2.0 Engine type: XRMA/B/C Year: 09.14-06.19
      Ford EU Series: Kuga II Van Model: 2.0 TDCi 4X4 Engine volume: 2.0 Engine type: T7MA/T7MB Year: 09.14-10.14
      Ford EU Series: Kuga II Van Model: 2.0 TDCi 4X4 Engine volume: 2.0 Engine type: T8MA / T8MB Year: 09.14-
      Ford EU Series: Kuga II Van Model: 2.0 TDCi Engine volume: 2.0 Engine type: T7MA / T7MB Year: 09.14-
      Ford EU Series: Kuga II Van Model: 2.0 TDCi Engine volume: 2.0 Engine type: XRMA/B Year: 06.19-
      Ford Model: C-Max Model series: C-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Body: Van From date: 01-03-2015 Fuel: Diesel Approved: Yes
      Ford Model: C-Max Model series: C-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Type description: DXA/CB7, DXA/CEU Body: MPV From date: 01-03-2015 Fuel: Diesel Approved: Yes
      Ford Model: C-Max Model series: C-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8DE Body: Van From date: 01-03-2015 Fuel: Diesel Approved: Yes
      Ford Model: C-Max Model series: C-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8DE Type description: DXA/CB7, DXA/CEU Body: MPV From date: 01-03-2015 Fuel: Diesel Approved: Yes
      Ford Model: C-Max Model series: Grand C-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Type description: DXA/CB7, DXA/CEU Body: MPV From date: 01-03-2015 Fuel: Diesel Approved: Yes
      Ford Model: C-Max Model series: Grand C-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8DE Type description: DXA/CB7, DXA/CEU Body: MPV From date: 01-03-2015 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Body: Estate From date: 01-11-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Body: Hatchback From date: 01-11-2014 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB From date: 01-11-2014 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8DA Body: Estate From date: 01-11-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8DA Body: Hatchback From date: 01-11-2014 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Van Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Body: Van From date: 01-11-2014 Fuel: Diesel Approved: Yes
      Ford Model: Grand C-Max Model series: Grand C-Max Van Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7DB Body: Van From date: 01-03-2015 Fuel: Diesel Approved: Yes
      Ford Model: Grand C-Max Model series: Grand C-Max Van Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8DE Body: Van From date: 01-03-2015 Fuel: Diesel Approved: Yes
      Ford Model: Kuga Model series: Kuga Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7MA Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Kuga Model series: Kuga Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7MB Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Kuga Model series: Kuga Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8MA Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Kuga Model series: Kuga Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8MB Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Kuga Model series: Kuga Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7MA Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Kuga Model series: Kuga Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7MB Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Kuga Model series: Kuga Type of engine: TDCi Size of motor: 2.0 Brand of engine: XRMA Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Kuga Model series: Kuga Type of engine: TDCi Size of motor: 2.0 Brand of engine: XRMB Type description: DM2 From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Kuga Model series: Kuga Type of engine: TDCi Size of motor: 2.0 Brand of engine: XRMB, XRMA Body: Box From date: 01-06-2019 Fuel: Diesel Approved: Yes
      Ford Model: Kuga Model series: Kuga Van Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7MA, T7MB Body: Van From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Kuga Model series: Kuga Van Model type: 4x4 Type of engine: TDCi Size of motor: 2.0 Brand of engine: T8MB, T8MA Body: Van From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Kuga Model series: Kuga Van Type of engine: TDCi Size of motor: 2.0 Brand of engine: T7MB, T7MA Body: Van From date: 01-09-2014 Fuel: Diesel Approved: Yes
