HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114246

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 46.70

Beskrivning

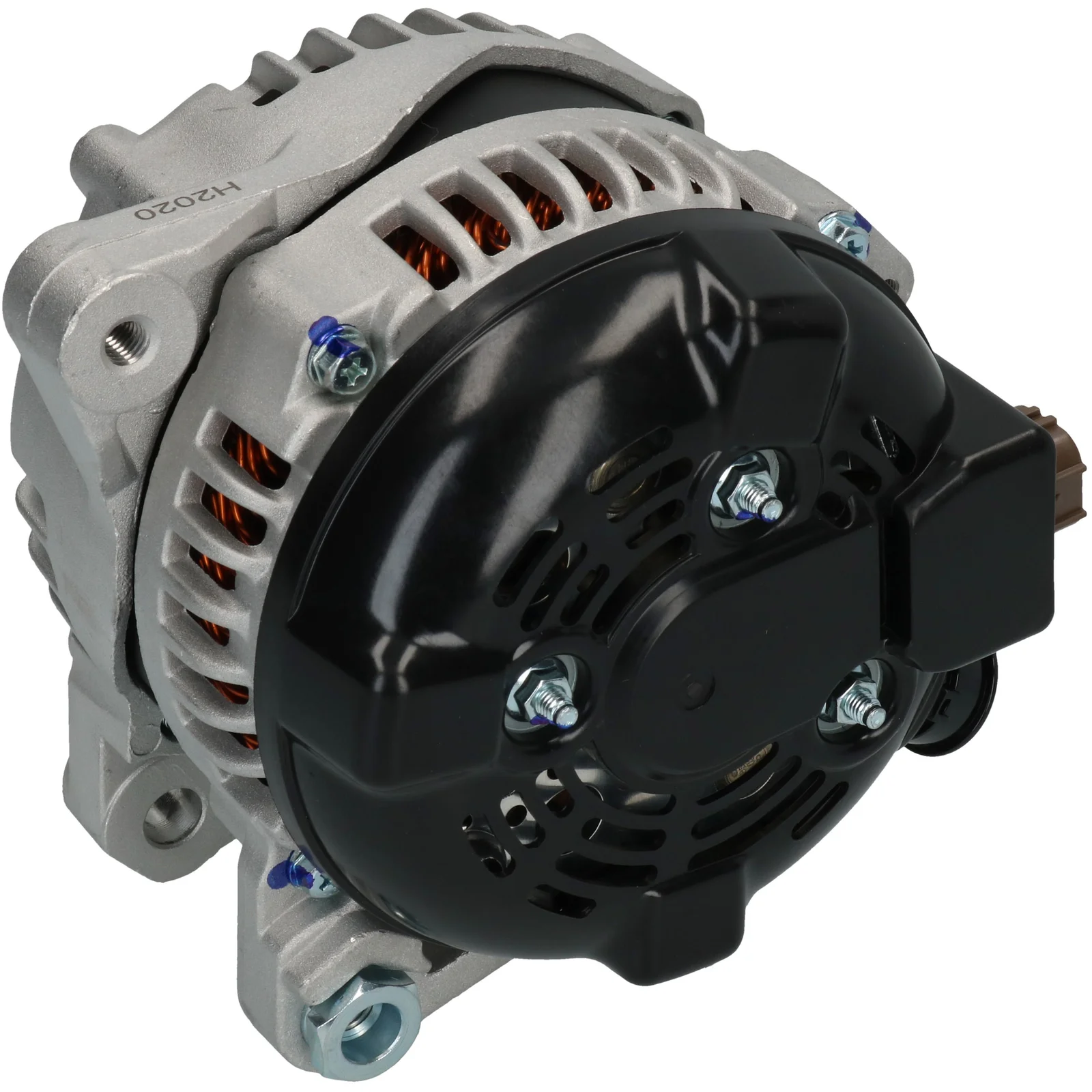

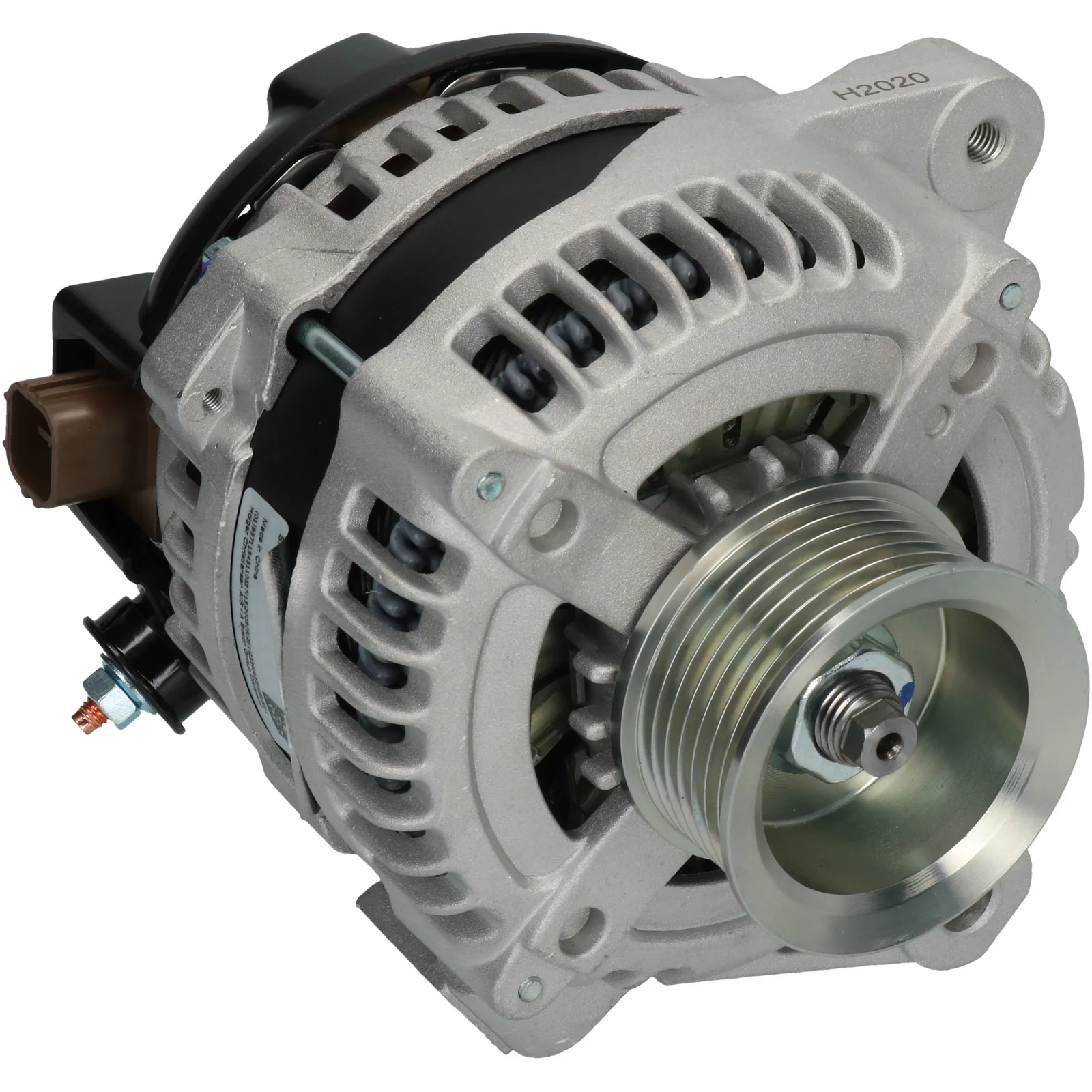

Toyota RAV4 Generator 12V-100A 12V - 100A, 7gr, (IG, L, RLO, M) För Yourex produkt order 90-555-2833

Voltage: 14
Amp: 100
Pulley dist.: 35.60
Width/holder arm: 18.00
Mount. bracket dist.: 46.70
Bracket hole: 11.20
Belt. adj. brackethole pos.: 15
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 84.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 12
Rotation: CW
Plug no.: PL146
Total length mm: 162.00
Communication: RLO
Pulley: SP
Regulator type: IR
Servicing: Toyota

Filer

Specifikation

B+ M6
Communication RLO
Mount. bracket dist. 46.70
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 15
Plug no. PL146
Bracket hole 11.20
Position/B+ in min. 12
Pulley SP
Pulley dia. 55.00
Pulley dist. 35.60
Radius 84.00
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 7
Voltage 14
Total length 162.00 mm
Width/holder arm 18.00
Amp 100

  • OEM
    DAN 1052, F032114246, 021080-2040, 27060-0H200, 27060-0h200, 27060-28190, 27060-28330, 104210-2190, 104210-3610, 104210-4760, 104210-4761, 104210-4762, 114246

  • Konkurrentreferens
    A6312, A6312(DENSO), CAL40316, DAN1052, DRA0659, J5112159, 28-5765, 195.951.100, 235.316.1002, 21418R, 12060953

  • Bilmärken
    Toyota

  • Normaliserat artikelnummer
    a6312, a6312denso, cal40316, dan1052, dra0659, f032114246, j5112159, 21418r, 114246, 270600h200, 285765, 12060953, 195951100, 0210802040, 1042102190, 1042103610, 1042104760, 1042104761, 1042104762, 2353161002, 2706028190, 2706028330

  • Passar modeller
    Toyota Model: Highlander / Kluger Model series: Highlander / Kluger Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _U2_ Body: SUV From date: 01-09-2000 To date: 01-05-2007 Fuel: Petrol Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: ACA_, ACE_ From date: 01-02-2006 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    Toyota Series: RAV 4 III (ACA_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 05.06-11.12
    Toyota Series: RAV 4 III (_A3_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 02.06-12.12
  • Beskrivning
    Toyota RAV4 Generator 12V-100A 12V - 100A, 7gr, (IG, L, RLO, M) För Yourex produkt order 90-555-2833

    Voltage: 14
    Amp: 100
    Pulley dist.: 35.60
    Width/holder arm: 18.00
    Mount. bracket dist.: 46.70
    Bracket hole: 11.20
    Belt. adj. brackethole pos.: 15
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 7
    Radius: 84.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 12
    Rotation: CW
    Plug no.: PL146
    Total length mm: 162.00
    Communication: RLO
    Pulley: SP
    Regulator type: IR
    Servicing: Toyota

    Filer

  • Specifikation
    B+ M6
    Communication RLO
    Mount. bracket dist. 46.70
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 15
    Plug no. PL146
    Bracket hole 11.20
    Position/B+ in min. 12
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 35.60
    Radius 84.00
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 7
    Voltage 14
    Total length 162.00 mm
    Width/holder arm 18.00
    Amp 100
  • Fordonsmatchning

    • OEM
      DAN 1052, F032114246, 021080-2040, 27060-0H200, 27060-0h200, 27060-28190, 27060-28330, 104210-2190, 104210-3610, 104210-4760, 104210-4761, 104210-4762, 114246

    • Konkurrentreferens
      A6312, A6312(DENSO), CAL40316, DAN1052, DRA0659, J5112159, 28-5765, 195.951.100, 235.316.1002, 21418R, 12060953

    • Bilmärken
      Toyota

    • Normaliserat artikelnummer
      a6312, a6312denso, cal40316, dan1052, dra0659, f032114246, j5112159, 21418r, 114246, 270600h200, 285765, 12060953, 195951100, 0210802040, 1042102190, 1042103610, 1042104760, 1042104761, 1042104762, 2353161002, 2706028190, 2706028330

    • Passar modeller
      Toyota Model: Highlander / Kluger Model series: Highlander / Kluger Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _U2_ Body: SUV From date: 01-09-2000 To date: 01-05-2007 Fuel: Petrol Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: ACA_, ACE_ From date: 01-02-2006 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
      Toyota Series: RAV 4 III (ACA_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 05.06-11.12
      Toyota Series: RAV 4 III (_A3_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 02.06-12.12
