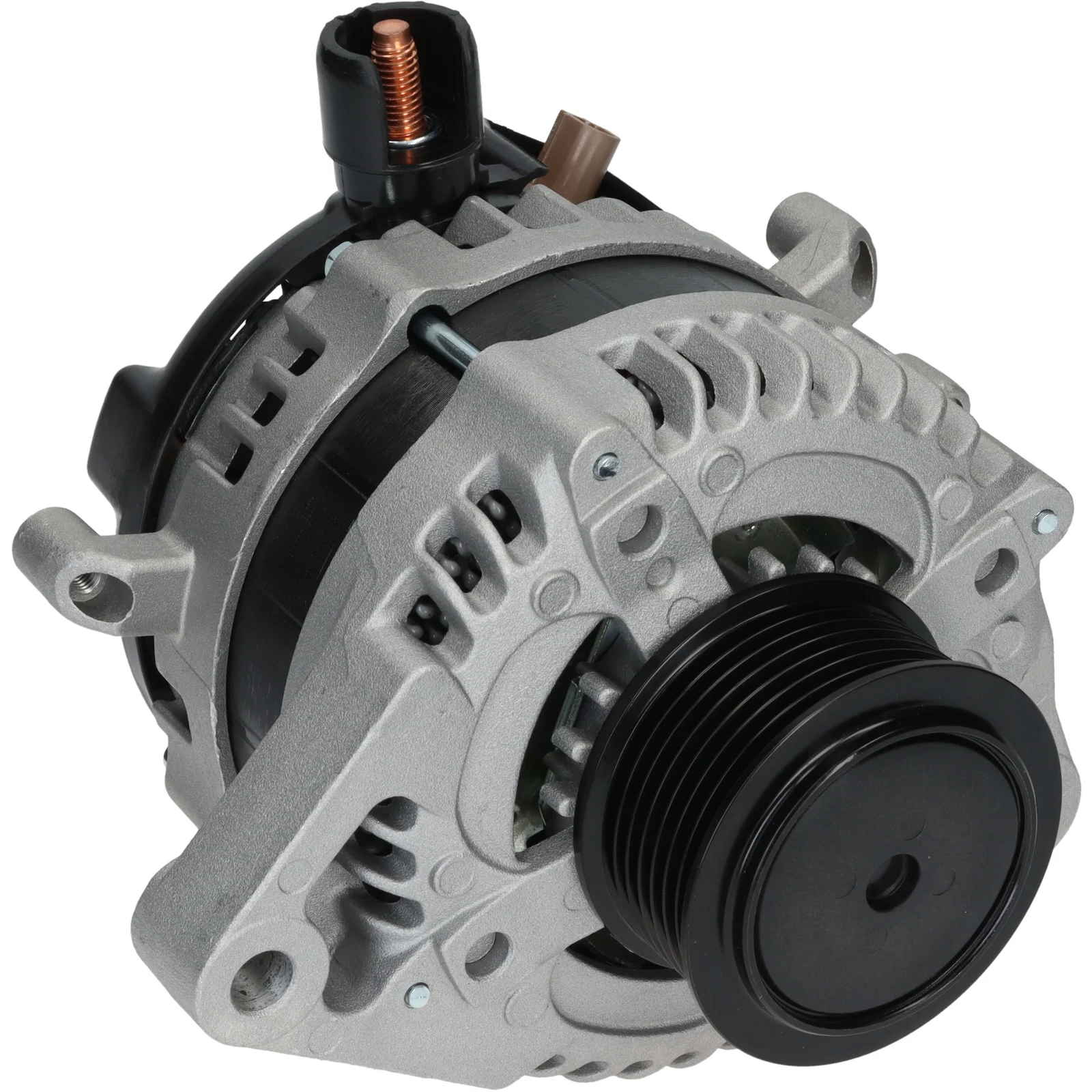

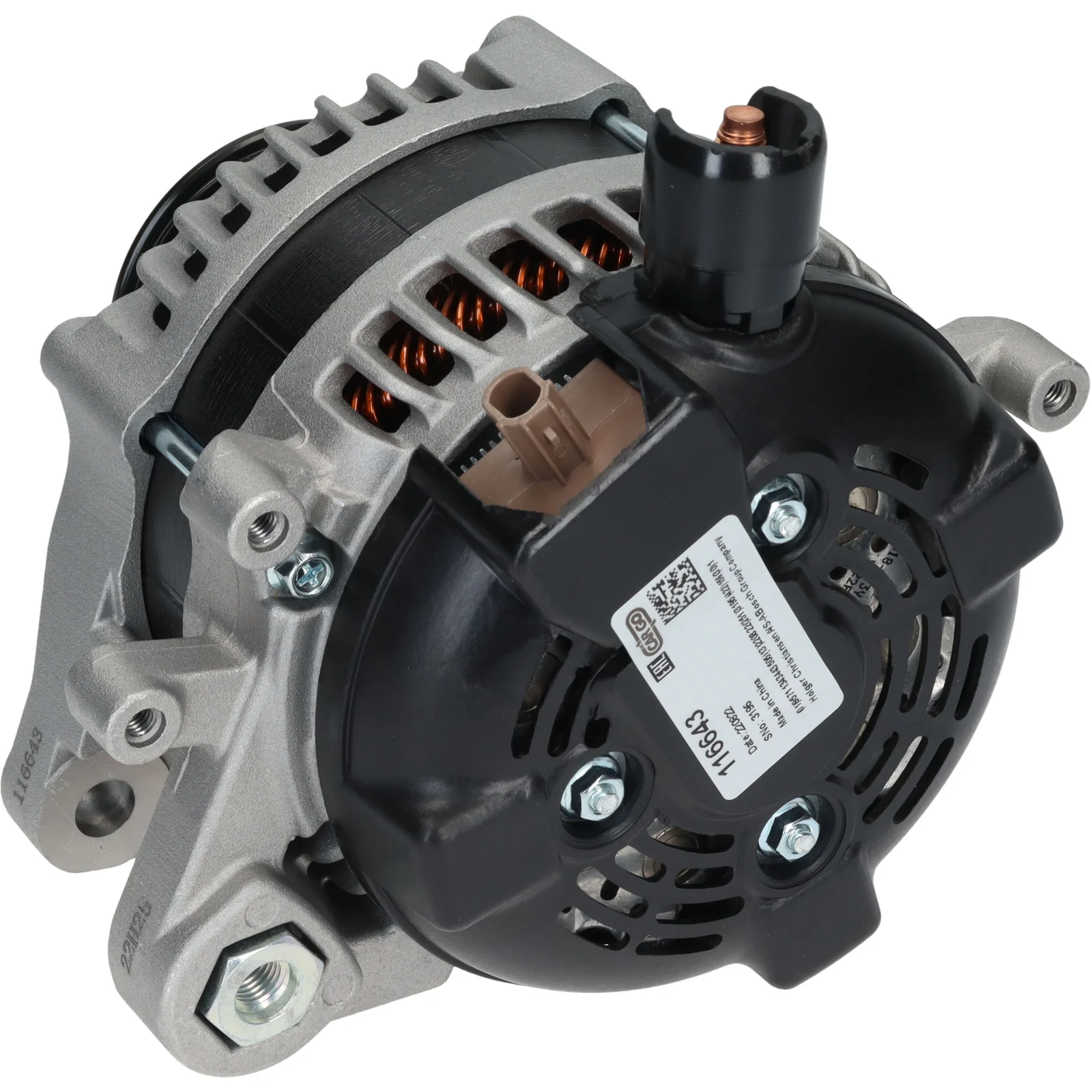

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116643

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 35.00

Beskrivning

Generator 12V-150A 12V - 150A, 7gr.frg, (LIN) ID-kod 244 För Yourex produkt order 90-222-4828

Voltage: 14
Amp: 150
Pulley dist.: 42.50
Width/holder arm: 15.00
Mount. bracket dist.: 35.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 53
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 65.00
Grooves/pulley: 7
Radius: 86.00
Radius 2: 87.50
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL205
Total length mm: 165.00
Terminal type: COM
Communication: LIN
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 35.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 53
Plug no. PL205
Bracket hole 11.00
Position/B+ in min. 50
Pulley dia. 65.00
Pulley dist. 42.50
Radius 86.00
Radius 2 87.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 165.00 mm
Width/holder arm 15.00
Amp 150

  • OEM
    CSK 04, CSK 28, CSK04, CSK28, F032116643, MAN 7587, 31100-59N-G01, 31100-RSX-G01, 31100-RSXG01, 31100-RZ0-G01, 31100-RZ0G01, 104211-8040, 104211-8280, 116643, 19084020, 63377587

  • Konkurrentreferens
    A6667S, CAL40401, CAL40401GS, CAL40438, DAN1122, DAN1326, DRA1352, DRA1483, LRA03992, 8EL015630-821, 28-7602, 125.568.150, 222.168.1502, 209300, 209300A, 554201RI, 554201RID, 554464RI, 12061214, 0986085000

  • Bilmärken
    Honda

  • Normaliserat artikelnummer
    a6667s, cal40401, cal40401gs, cal40438, csk04, csk28, dan1122, dan1326, dra1352, dra1483, f032116643, lra03992, man7587, 8el015630821, 31100rsxg01, 31100rz0g01, 116643, 209300, 209300a, 287602, 554201ri, 554201rid, 554464ri, 3110059ng01, 12061214, 19084020, 63377587, 125568150, 0986085000, 1042118040, 1042118280, 2221681502

  • Passar modeller
    Honda Model: Civic Model series: Civic Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: FK Body: Estate From date: 01-01-2014 Fuel: Diesel Approved: Yes Manufacture type: Tourer
    Honda Model: Civic Model series: Civic Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: FK, FB, FG Body: Hatchback From date: 01-02-2013 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Model type: 4WD Type of engine: Diesel Size of motor: 1.6 Brand of engine: N16A4 Type description: RE From date: 01-02-2015 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: RE, RM_ Body: SUV From date: 01-10-2013 Fuel: Diesel Approved: Yes
    Honda Model: HR-V Model series: HR-V Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A3 Type description: RU From date: 01-08-2015 Fuel: Diesel Approved: Yes
    Honda Series: Civic IX Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 02.13-
    Honda Series: Civic IX Tourer Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 01.14-
    Honda Series: CR-V IV Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 10.13-
    Honda Series: CR-V IV Model: 1.6i-DTEC 4WD Engine volume: 1.6 Engine type: N16A4 Year: 02.15-
    Honda Series: HR-V (RU) Model: 1.6 i-DTEC (RU8) Engine volume: 1.6 Engine type: N16A3 Year: 8.15-
    1 / 2
  • Beskrivning
    Generator 12V-150A 12V - 150A, 7gr.frg, (LIN) ID-kod 244 För Yourex produkt order 90-222-4828

    Voltage: 14
    Amp: 150
    Pulley dist.: 42.50
    Width/holder arm: 15.00
    Mount. bracket dist.: 35.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 53
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 65.00
    Grooves/pulley: 7
    Radius: 86.00
    Radius 2: 87.50
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL205
    Total length mm: 165.00
    Terminal type: COM
    Communication: LIN
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 35.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 53
    Plug no. PL205
    Bracket hole 11.00
    Position/B+ in min. 50
    Pulley dia. 65.00
    Pulley dist. 42.50
    Radius 86.00
    Radius 2 87.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 165.00 mm
    Width/holder arm 15.00
    Amp 150
  • Fordonsmatchning

    • OEM
      CSK 04, CSK 28, CSK04, CSK28, F032116643, MAN 7587, 31100-59N-G01, 31100-RSX-G01, 31100-RSXG01, 31100-RZ0-G01, 31100-RZ0G01, 104211-8040, 104211-8280, 116643, 19084020, 63377587

    • Konkurrentreferens
      A6667S, CAL40401, CAL40401GS, CAL40438, DAN1122, DAN1326, DRA1352, DRA1483, LRA03992, 8EL015630-821, 28-7602, 125.568.150, 222.168.1502, 209300, 209300A, 554201RI, 554201RID, 554464RI, 12061214, 0986085000

    • Bilmärken
      Honda

    • Normaliserat artikelnummer
      a6667s, cal40401, cal40401gs, cal40438, csk04, csk28, dan1122, dan1326, dra1352, dra1483, f032116643, lra03992, man7587, 8el015630821, 31100rsxg01, 31100rz0g01, 116643, 209300, 209300a, 287602, 554201ri, 554201rid, 554464ri, 3110059ng01, 12061214, 19084020, 63377587, 125568150, 0986085000, 1042118040, 1042118280, 2221681502

    • Passar modeller
      Honda Model: Civic Model series: Civic Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: FK Body: Estate From date: 01-01-2014 Fuel: Diesel Approved: Yes Manufacture type: Tourer
      Honda Model: Civic Model series: Civic Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: FK, FB, FG Body: Hatchback From date: 01-02-2013 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Model type: 4WD Type of engine: Diesel Size of motor: 1.6 Brand of engine: N16A4 Type description: RE From date: 01-02-2015 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A1 Type description: RE, RM_ Body: SUV From date: 01-10-2013 Fuel: Diesel Approved: Yes
      Honda Model: HR-V Model series: HR-V Type of engine: i-DTEC Size of motor: 1.6 Brand of engine: N16A3 Type description: RU From date: 01-08-2015 Fuel: Diesel Approved: Yes
      Honda Series: Civic IX Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 02.13-
      Honda Series: Civic IX Tourer Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 01.14-
      Honda Series: CR-V IV Model: 1.6 i-DTEC Engine volume: 1.6 Engine type: N 16 A 1 Year: 10.13-
      Honda Series: CR-V IV Model: 1.6i-DTEC 4WD Engine volume: 1.6 Engine type: N16A4 Year: 02.15-
      Honda Series: HR-V (RU) Model: 1.6 i-DTEC (RU8) Engine volume: 1.6 Engine type: N16A3 Year: 8.15-
