HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114749

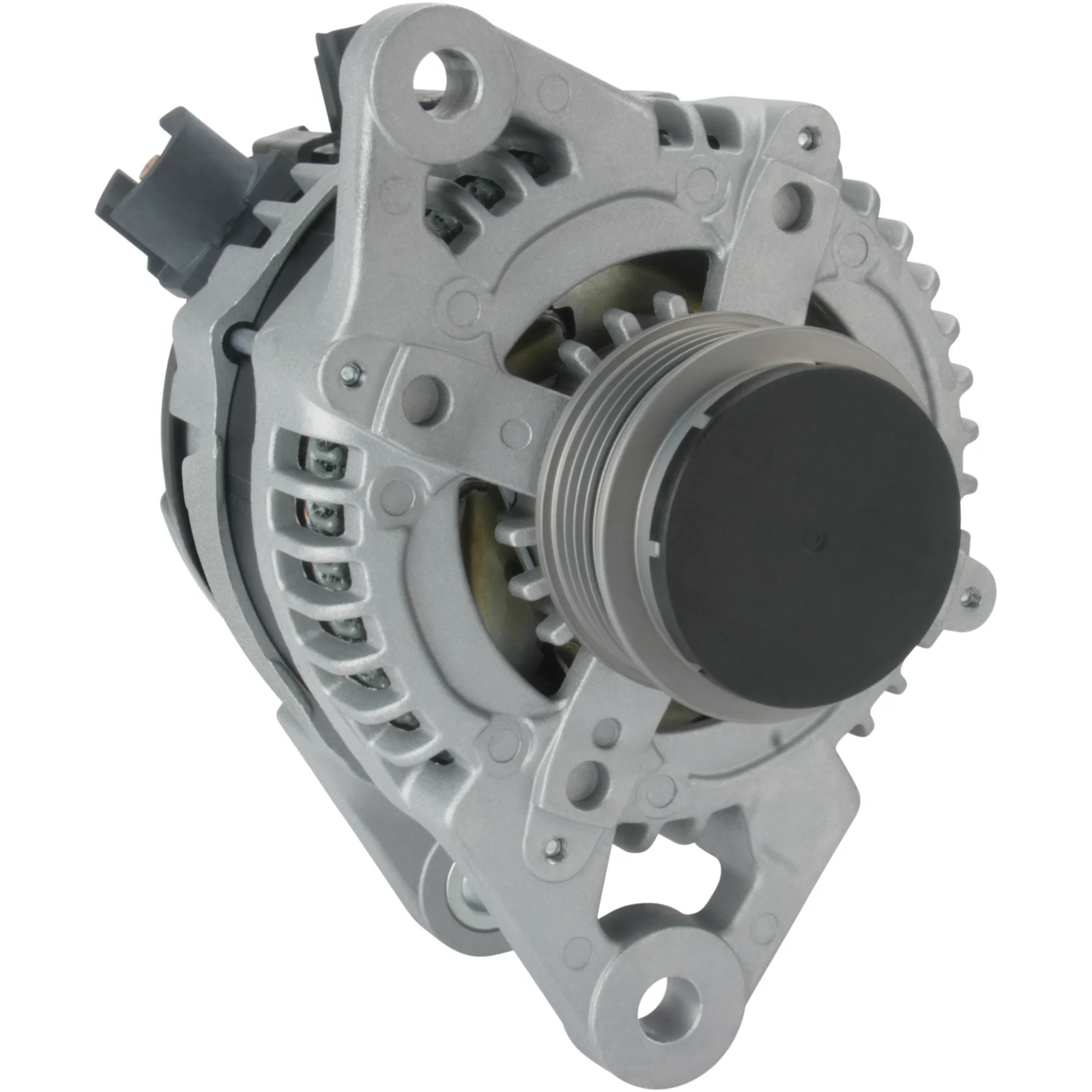

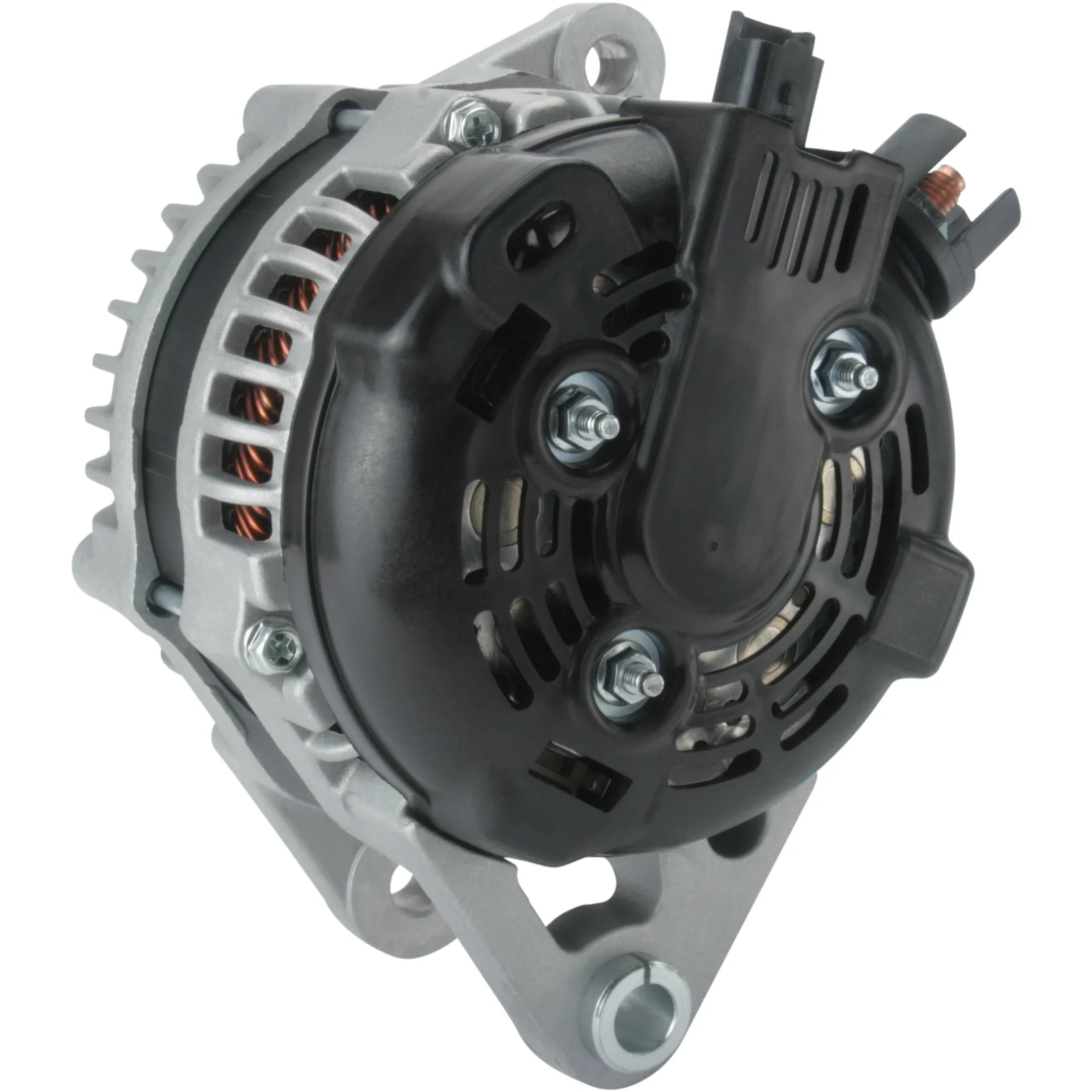

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 64.50

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 28.00
Width/holder arm: 14.20
Mount. bracket dist.: 64.50
Bracket hole: 12.00
Belt. adj. brackethole pos.: 54
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 61.50
Grooves/pulley: 5
Radius: 93.50
Radius 2: 83.00
B+: M8
Position/B+ in min.: 9
D+ Size: Plug
Rotation: CW
Plug no.: PL72
Total length mm: 167.00
Terminal type: L-DFM
Pulley: SP/FW
Fan: IF
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 64.50
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 54
Plug no. PL72
Bracket hole 12.00
Position/B+ in min. 9
Prod. info BN
Pulley SP/FW
Pulley dia. 61.50
Pulley dist. 28.00
Radius 93.50
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 5
Terminal type L-DFM
Voltage 14
Total length 167.00 mm
Width/holder arm 14.20
Amp 150

  • OEM
    F032114749, 1986A01316, 2016ir, 104210-2780, 104210-5020, 104210-5021, 50500728, 51734825, 63377015

  • Konkurrentreferens
    A6051, A6051(DENSO), CAL30128, DAN936, DENDAN936, DRA0371, DRA0371X, lra03084, man7015, 8EL011712-361, 8EL738212-301, 28-5696, 218.307.1502, 24086R, 210688, 210688A, 9090222, 12090261, 32118823, 063377015, 063377015010

  • Normaliserat artikelnummer
    a6051, a6051denso, cal30128, dan936, dendan936, dra0371, dra0371x, f032114749, lra03084, man7015, 8el011712361, 8el738212301, 1986a01316, 2016ir, 24086r, 210688, 210688a, 285696, 9090222, 12090261, 32118823, 50500728, 51734825, 063377015, 63377015, 1042102780, 1042105020, 1042105021, 2183071502, 063377015010

  • Passar modeller
    Alfa Romeo Model: Alfa 159 Model series: Alfa 159 Type of engine: JTDM Size of motor: 2.4 Brand of engine: 939A3.000 Type description: 939 Body: Estate From date: 01-03-2006 To date: 01-11-2011 Fuel: Diesel Approved: Yes Manufacture type: sportswago
    Alfa Romeo Model: Alfa 159 Model series: Alfa 159 Type of engine: JTDM Size of motor: 2.4 Brand of engine: 939A3.000 Type description: 939 From date: 01-09-2005 To date: 01-11-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Croma Model series: Croma Type of engine: Multijet Size of motor: 2.4 Brand of engine: 939A3.000 Type description: 939 Body: Estate From date: 01-06-2005 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 28.00
    Width/holder arm: 14.20
    Mount. bracket dist.: 64.50
    Bracket hole: 12.00
    Belt. adj. brackethole pos.: 54
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 61.50
    Grooves/pulley: 5
    Radius: 93.50
    Radius 2: 83.00
    B+: M8
    Position/B+ in min.: 9
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL72
    Total length mm: 167.00
    Terminal type: L-DFM
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 64.50
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 54
    Plug no. PL72
    Bracket hole 12.00
    Position/B+ in min. 9
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 61.50
    Pulley dist. 28.00
    Radius 93.50
    D+ Size Plug
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 5
    Terminal type L-DFM
    Voltage 14
    Total length 167.00 mm
    Width/holder arm 14.20
    Amp 150
  • Fordonsmatchning

    • OEM
      F032114749, 1986A01316, 2016ir, 104210-2780, 104210-5020, 104210-5021, 50500728, 51734825, 63377015

    • Konkurrentreferens
      A6051, A6051(DENSO), CAL30128, DAN936, DENDAN936, DRA0371, DRA0371X, lra03084, man7015, 8EL011712-361, 8EL738212-301, 28-5696, 218.307.1502, 24086R, 210688, 210688A, 9090222, 12090261, 32118823, 063377015, 063377015010

    • Normaliserat artikelnummer
      a6051, a6051denso, cal30128, dan936, dendan936, dra0371, dra0371x, f032114749, lra03084, man7015, 8el011712361, 8el738212301, 1986a01316, 2016ir, 24086r, 210688, 210688a, 285696, 9090222, 12090261, 32118823, 50500728, 51734825, 063377015, 63377015, 1042102780, 1042105020, 1042105021, 2183071502, 063377015010

    • Passar modeller
      Alfa Romeo Model: Alfa 159 Model series: Alfa 159 Type of engine: JTDM Size of motor: 2.4 Brand of engine: 939A3.000 Type description: 939 Body: Estate From date: 01-03-2006 To date: 01-11-2011 Fuel: Diesel Approved: Yes Manufacture type: sportswago
      Alfa Romeo Model: Alfa 159 Model series: Alfa 159 Type of engine: JTDM Size of motor: 2.4 Brand of engine: 939A3.000 Type description: 939 From date: 01-09-2005 To date: 01-11-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Croma Model series: Croma Type of engine: Multijet Size of motor: 2.4 Brand of engine: 939A3.000 Type description: 939 Body: Estate From date: 01-06-2005 Fuel: Diesel Approved: Yes
