HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112765

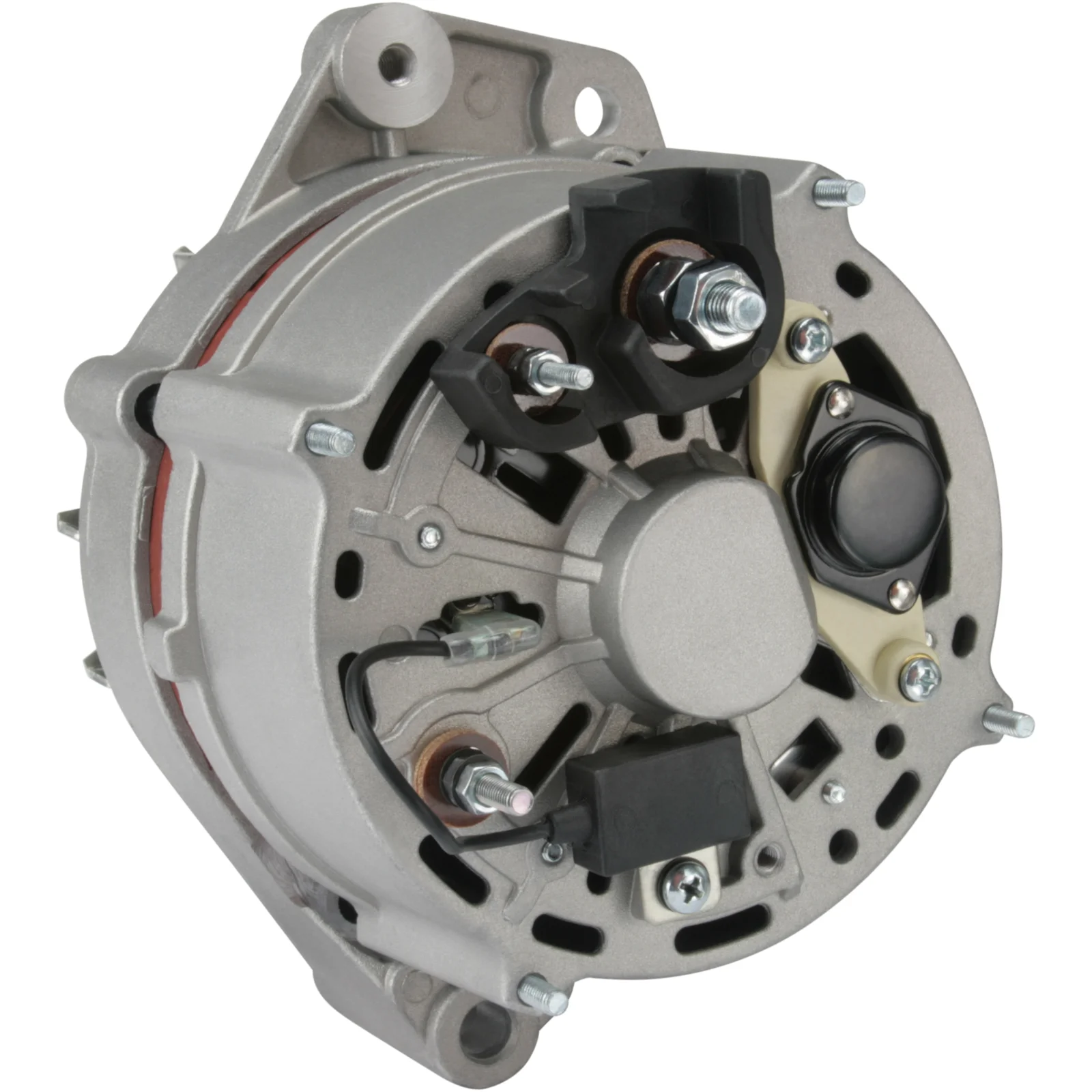

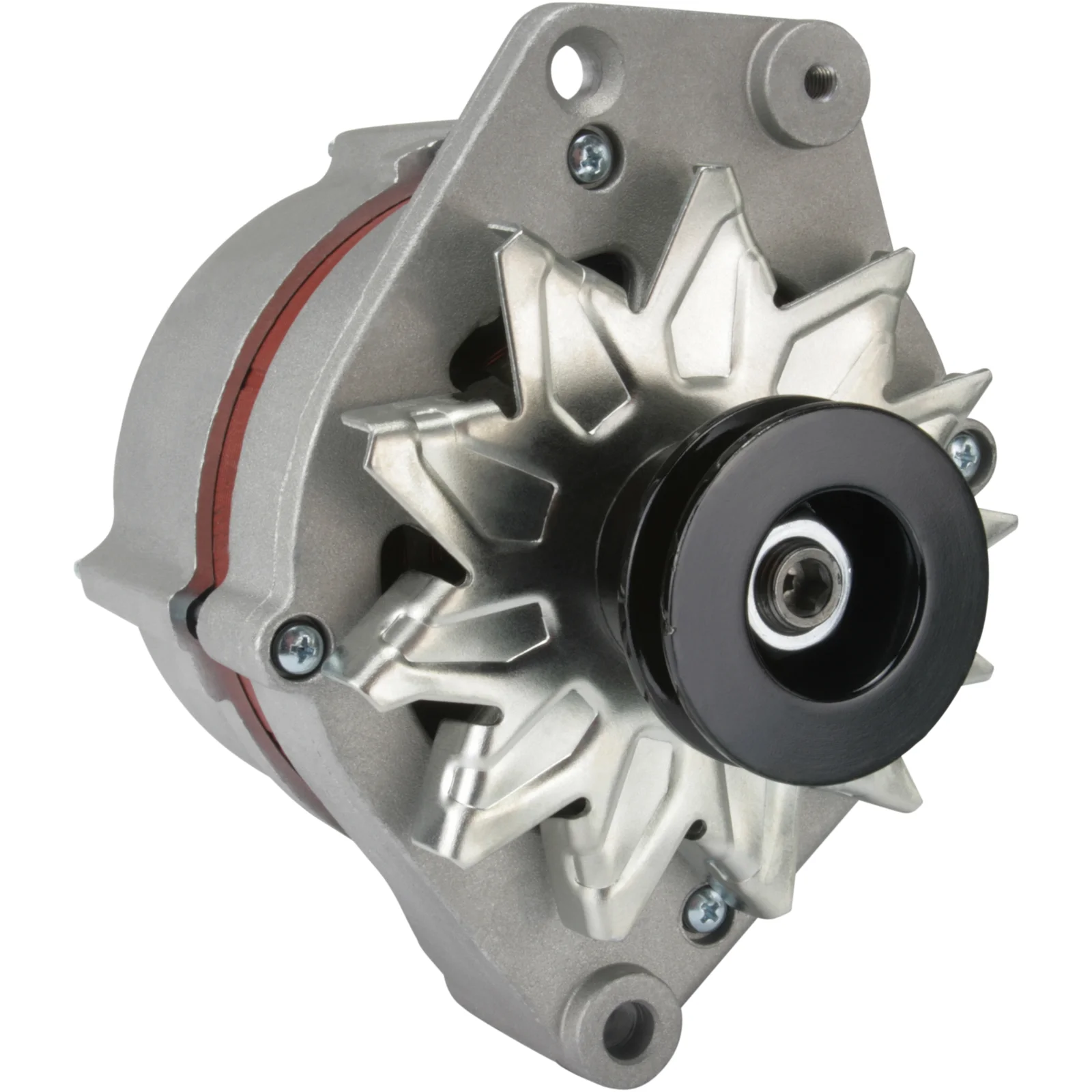

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley dia.: 73.00

Beskrivning

Voltage: 14
Amp: 90
Terminal: W
Pulley dist.: 100.00
Width/holder arm: 55.80
Bracket hole: 10.30
Belt. adj. brackethole pos.: 2
Belt. adj. bracket hole 1: M8
Pulley dia.: 73.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 87.00
B+: M8
Position/B+ in min.: 58
D+ Size: M5
Rotation: CW
W plug type: 6.30
Total length mm: 185.00
Pulley: P
Prod. info: BN
Servicing: VW

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 2
Bracket hole 10.30
Position/B+ in min. 58
Prod. info BN
Pulley P
Pulley dia. 73.00
Pulley dist. 100.00
Radius 90.00
D+ Size M5
Radius 2 87.00
Rotation CW
Servicing VW
Grooves/pulley 1
Terminal W
Voltage 14
W plug type 6.30
Total length 185.00 mm
Width/holder arm 55.80
Amp 90

  • OEM
    b120500330, b120500331, F032112765, 610ir, 1516597R, 031903023A, 068903017q, 068903017QX, 068903029H, 068903029J, 068903029k, 068903029L, 068903031r, 068903031RX, 074903023A, 074903025a, 0120469021, 0120469722, 0120469723, 0120469813, 0120469814

  • Konkurrentreferens
    A0106, A0106SR, ALT10177, ALT10229, CAL10169, dra6790, FRA846, LRA02644, lrb00176, QA3072, 8EL012426-641, 8el725893-001, 28-1706, 28-1862, 41-34.240, 41-36.790, 211.111.902, 211.120.902, 211.138.902, 211.166.902, 2555, 4488, 13625, 13625R, 30610RI, 56308, 118357, 210145, 210145A, 436633, 437405, 443161, 746930, 9034240, 9036790, 12036790, 32469722, 943356505, 943356510, 0986036790, 943356505010

  • Normaliserat artikelnummer
    a0106, a0106sr, alt10177, alt10229, b120500330, b120500331, cal10169, dra6790, f032112765, fra846, lra02644, lrb00176, qa3072, 8el012426641, 8el725893001, 610ir, 2555, 4488, 13625, 13625r, 30610ri, 56308, 118357, 210145, 210145a, 281706, 281862, 436633, 437405, 443161, 746930, 1516597r, 4134240, 4136790, 9034240, 9036790, 12036790, 031903023a, 32469722, 068903017q, 068903017qx, 068903029h, 068903029j, 068903029k, 068903029l, 068903031r, 068903031rx, 074903023a, 074903025a, 0120469021, 0120469722, 0120469723, 0120469813, 0120469814, 211111902, 211120902, 211138902, 211166902, 943356505, 943356510, 0986036790, 943356505010

  • Passar modeller
    VW Model: Eurovan Model series: Eurovan Model type: CL Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1993 Fuel: Diesel Approved: Yes
    VW Model: Eurovan Model series: Eurovan Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1993 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: RA Body: Hatchback From date: 01-05-1986 To date: 01-03-1988 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1Y From date: 01-05-1989 To date: 01-10-1993 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1Y Type description: 3A5, 35 Body: Estate From date: 01-05-1989 To date: 01-10-1993 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TD Size of motor: 1.6 Brand of engine: RA From date: 01-08-1988 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TD Size of motor: 1.6 Brand of engine: RA Type description: 3A5, 35 Body: Estate From date: 01-08-1988 To date: 01-09-1993 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TD Size of motor: 1.6 Brand of engine: SB From date: 01-08-1988 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TD Size of motor: 1.6 Brand of engine: SB Type description: 3A5, 35 Body: Estate From date: 01-08-1988 To date: 01-09-1993 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Transporter Model series: Transporter IV Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1X Type description: 70XA Body: Van From date: 01-09-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter IV Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1X Type description: 70XB, 70XC, 7DB, 7DW Body: Bus From date: 01-09-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter IV Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1X Type description: 70XD Body: Platform / Chassis From date: 01-09-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Bus From date: 01-03-1986 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Platform / Chassis From date: 01-03-1986 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Van From date: 01-03-1986 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.6 Brand of engine: CS Body: Bus From date: 01-01-1981 To date: 01-07-1987 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.6 Brand of engine: CS Body: Platform / Chassis From date: 01-01-1981 To date: 01-07-1987 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.6 Brand of engine: CS Body: Van From date: 01-01-1981 To date: 01-07-1987 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.7 Brand of engine: KY Body: Bus From date: 01-10-1986 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.7 Brand of engine: KY Body: Platform / Chassis From date: 01-07-1989 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.7 Brand of engine: KY Body: Van From date: 01-08-1984 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Bus From date: 01-08-1984 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Platform / Chassis From date: 01-10-1984 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Van From date: 01-10-1984 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AAF Body: Bus From date: 01-09-1990 To date: 01-06-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AAF Body: Platform / Chassis From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Bus From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Platform / Chassis From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Van From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Bus From date: 01-09-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Platform / Chassis From date: 01-09-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Van From date: 01-07-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
