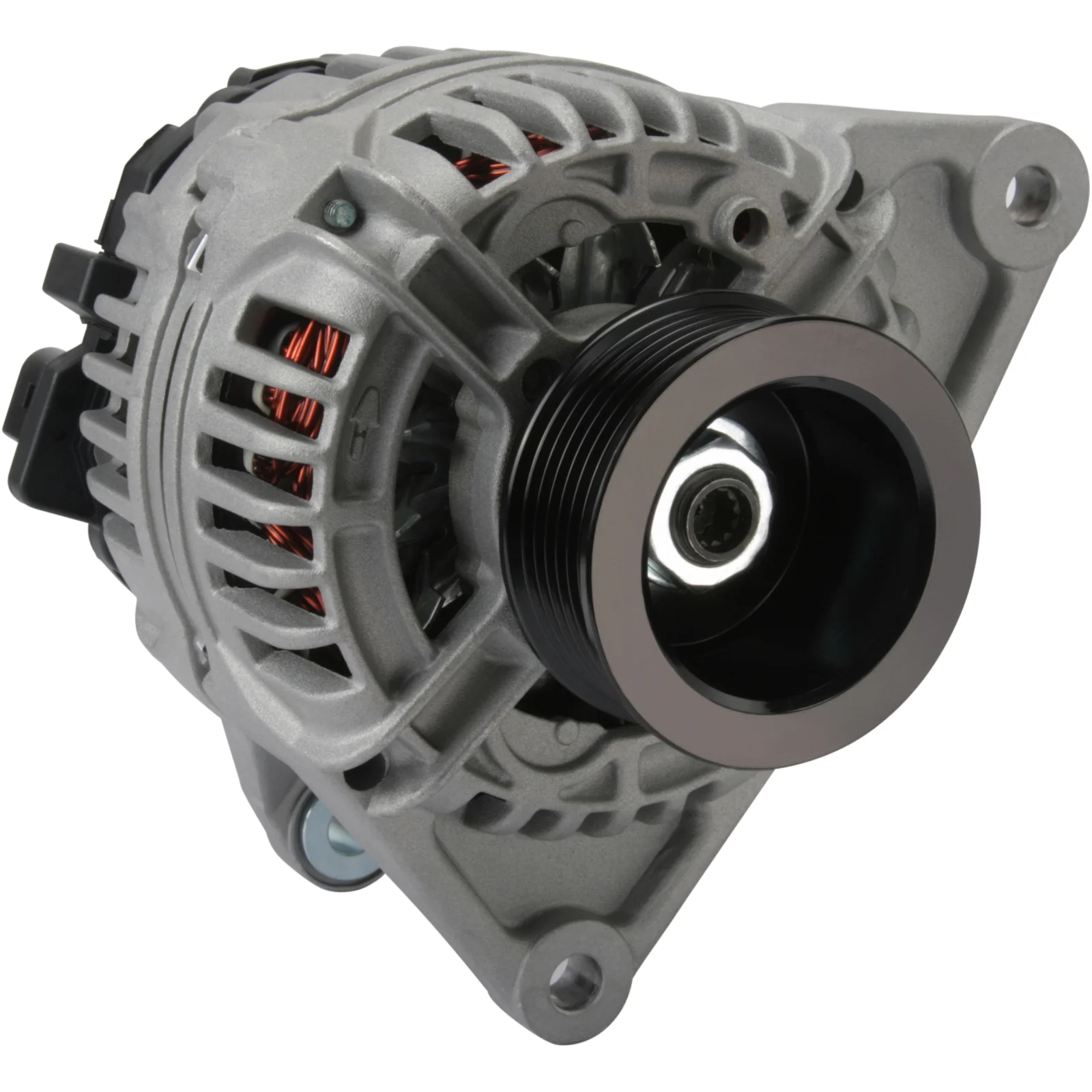

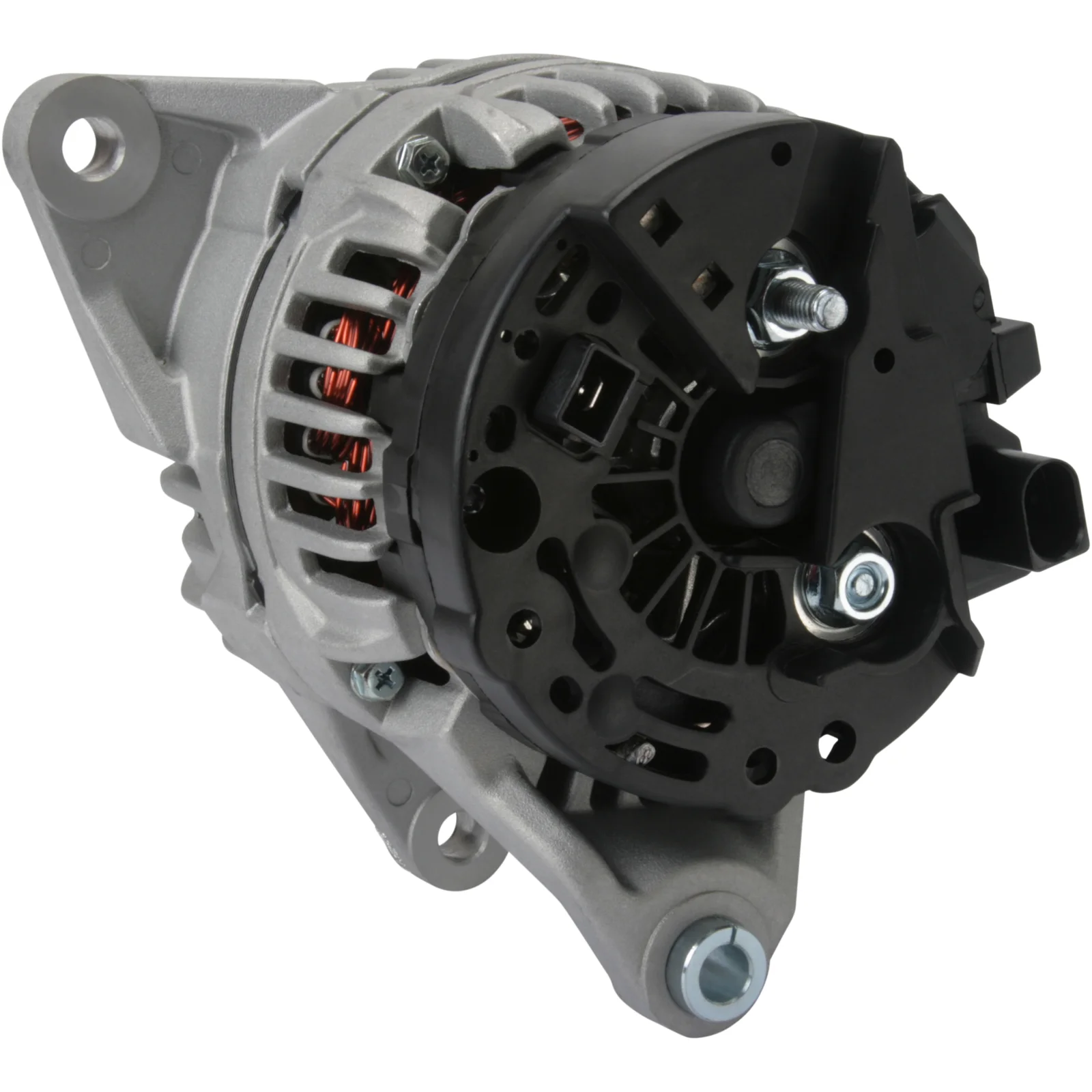

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113280

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 81.00

Beskrivning

Voltage: 14
Amp: 90
Terminal: W
Pulley dist.: 46.70
Width/holder arm: 13.70
Mount. bracket dist.: 81.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 11.20
Pulley dia.: 68.00
Grooves/pulley: 6
Radius: 91.50
Radius 2: 94.00
B+: M8
Position/B+ in min.: 2
D+ Size: Plug
Rotation: CW
Plug no.: PL87
W plug type: 6.30
Total length mm: 191.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Renault VI

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 11.20
Belt. adj. brackethole pos. 10
Plug no. PL87
Bracket hole 10.50
Position/B+ in min. 2
Prod. info BN
Pulley SP
Pulley dia. 68.00
Pulley dist. 46.70
Radius 91.50
D+ Size Plug
Radius 2 94.00
Regulator type IR
Rotation CW
Servicing Renault VI
Grooves/pulley 6
Terminal W
Voltage 14
W plug type 6.30
Total length 191.00 mm
Width/holder arm 13.70
Amp 90

  • OEM
    C8520046A, F032113280, 1684ir, 1986A00727, 2855975, 8520046A, 38522314F, 0124320002, 0124325052, 504010576, 504225814, 7700377092

  • Konkurrentreferens
    A0255, A0522, CAL10157, CAL10261, DRA0749, DRB2670, LRA02187, LRA03280, 28-4649, 28-5892, 230.187.902, 519.124.902, 9451, 20021N, 23187N, 119912, 202095, 210933, 210933A, 301684RI, 437481, 443513, 12042670, 12090340, 0986042670, 0986081360, 0986081363

  • Normaliserat artikelnummer
    a0255, a0522, c8520046a, cal10157, cal10261, dra0749, drb2670, f032113280, lra02187, lra03280, 1684ir, 1986a00727, 9451, 20021n, 23187n, 119912, 202095, 210933, 210933a, 284649, 285892, 301684ri, 437481, 443513, 2855975, 8520046a, 12042670, 12090340, 38522314f, 0124320002, 0124325052, 230187902, 504010576, 504225814, 519124902, 0986042670, 0986081360, 0986081363, 7700377092

  • Passar modeller
    Iveco Model: Vertis Model series: 130 V 18 Size of motor: 3.9 Brand of engine: F4AE3481B Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Iveco Model: Vertis Model series: 130 V 19 Size of motor: 3.9 Brand of engine: F4AE3481A Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Iveco Model: Vertis Model series: 90 V 16 Size of motor: 3.9 Brand of engine: F4AE3481D Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Iveco Model: Vertis Model series: 90 V 18 Size of motor: 3.9 Brand of engine: F4AE3481B Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Renault Model: Mascott Model series: Mascott Model type: 110 Size of motor: 2.8 Brand of engine: S9W206 Type description: FH_ Body: Box From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault Model: Mascott Model series: Mascott Model type: 110 Size of motor: 2.8 Brand of engine: S9W206 Type description: UH_, HH_ Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Renault Model: Mascott Model series: Mascott Platform/Chassis Model type: 150 Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W212 Type description: UH_, HH_ Body: Platform/Chassis From date: 01-08-2002 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault Model: Mascott Model series: Mascott Van Model type: 150 Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W212 Type description: FH_ Body: Van From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.35 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.50 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.55 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 110.60 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 130.35 Size of motor: 2.8 Brand of engine: 8140.43.S.2585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 130.55 Size of motor: 2.8 Brand of engine: 8140.43.S.2585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 130.65 Size of motor: 2.8 Brand of engine: 8140.43.S.2585 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 140.35 Size of motor: 2.8 Brand of engine: 8140.43k Type description: Mascott Body: Platform / Chassis From date: 01-01-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 140.35 Size of motor: 2.8 Brand of engine: 8140.43k Type description: Mascott Body: Twin Cab From date: 01-01-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 140.55 Size of motor: 2.8 Brand of engine: 8140.43k Type description: Mascott Body: Twin Cab From date: 01-01-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 150.35 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Platform / Chassis From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 150.35 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Twin Cab From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 150.55 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Platform / Chassis From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 150.55 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Twin Cab From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 150.65 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Twin Cab From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 90.35 Size of motor: 2.8 Brand of engine: 8140.63.2585 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 90.35 Size of motor: 2.8 Brand of engine: 8140.63.2585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 14
    Amp: 90
    Terminal: W
    Pulley dist.: 46.70
    Width/holder arm: 13.70
    Mount. bracket dist.: 81.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 11.20
    Pulley dia.: 68.00
    Grooves/pulley: 6
    Radius: 91.50
    Radius 2: 94.00
    B+: M8
    Position/B+ in min.: 2
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL87
    W plug type: 6.30
    Total length mm: 191.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Renault VI

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 11.20
    Belt. adj. brackethole pos. 10
    Plug no. PL87
    Bracket hole 10.50
    Position/B+ in min. 2
    Prod. info BN
    Pulley SP
    Pulley dia. 68.00
    Pulley dist. 46.70
    Radius 91.50
    D+ Size Plug
    Radius 2 94.00
    Regulator type IR
    Rotation CW
    Servicing Renault VI
    Grooves/pulley 6
    Terminal W
    Voltage 14
    W plug type 6.30
    Total length 191.00 mm
    Width/holder arm 13.70
    Amp 90
  • Fordonsmatchning

    • OEM
      C8520046A, F032113280, 1684ir, 1986A00727, 2855975, 8520046A, 38522314F, 0124320002, 0124325052, 504010576, 504225814, 7700377092

    • Konkurrentreferens
      A0255, A0522, CAL10157, CAL10261, DRA0749, DRB2670, LRA02187, LRA03280, 28-4649, 28-5892, 230.187.902, 519.124.902, 9451, 20021N, 23187N, 119912, 202095, 210933, 210933A, 301684RI, 437481, 443513, 12042670, 12090340, 0986042670, 0986081360, 0986081363

    • Normaliserat artikelnummer
      a0255, a0522, c8520046a, cal10157, cal10261, dra0749, drb2670, f032113280, lra02187, lra03280, 1684ir, 1986a00727, 9451, 20021n, 23187n, 119912, 202095, 210933, 210933a, 284649, 285892, 301684ri, 437481, 443513, 2855975, 8520046a, 12042670, 12090340, 38522314f, 0124320002, 0124325052, 230187902, 504010576, 504225814, 519124902, 0986042670, 0986081360, 0986081363, 7700377092

    • Passar modeller
      Iveco Model: Vertis Model series: 130 V 18 Size of motor: 3.9 Brand of engine: F4AE3481B Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
      Iveco Model: Vertis Model series: 130 V 19 Size of motor: 3.9 Brand of engine: F4AE3481A Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
      Iveco Model: Vertis Model series: 90 V 16 Size of motor: 3.9 Brand of engine: F4AE3481D Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
      Iveco Model: Vertis Model series: 90 V 18 Size of motor: 3.9 Brand of engine: F4AE3481B Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
      Renault Model: Mascott Model series: Mascott Model type: 110 Size of motor: 2.8 Brand of engine: S9W206 Type description: FH_ Body: Box From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault Model: Mascott Model series: Mascott Model type: 110 Size of motor: 2.8 Brand of engine: S9W206 Type description: UH_, HH_ Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2005 Fuel: Diesel Approved: Yes
      Renault Model: Mascott Model series: Mascott Platform/Chassis Model type: 150 Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W212 Type description: UH_, HH_ Body: Platform/Chassis From date: 01-08-2002 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault Model: Mascott Model series: Mascott Van Model type: 150 Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W212 Type description: FH_ Body: Van From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.35 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.50 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.55 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 110.60 Size of motor: 2.8 Brand of engine: 8140.43.C.2586 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 130.35 Size of motor: 2.8 Brand of engine: 8140.43.S.2585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 130.55 Size of motor: 2.8 Brand of engine: 8140.43.S.2585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 130.65 Size of motor: 2.8 Brand of engine: 8140.43.S.2585 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 140.35 Size of motor: 2.8 Brand of engine: 8140.43k Type description: Mascott Body: Platform / Chassis From date: 01-01-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 140.35 Size of motor: 2.8 Brand of engine: 8140.43k Type description: Mascott Body: Twin Cab From date: 01-01-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 140.55 Size of motor: 2.8 Brand of engine: 8140.43k Type description: Mascott Body: Twin Cab From date: 01-01-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 150.35 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Platform / Chassis From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 150.35 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Twin Cab From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 150.55 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Platform / Chassis From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 150.55 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Twin Cab From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 150.65 Size of motor: 2.8 Brand of engine: 8140.43N.3585 Type description: Mascott Body: Twin Cab From date: 01-10-2001 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 90.35 Size of motor: 2.8 Brand of engine: 8140.63.2585 Type description: Mascott Body: Platform / Chassis From date: 01-01-1999 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 90.35 Size of motor: 2.8 Brand of engine: 8140.63.2585 Type description: Mascott Body: Twin Cab From date: 01-01-1999 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      1 / 5
