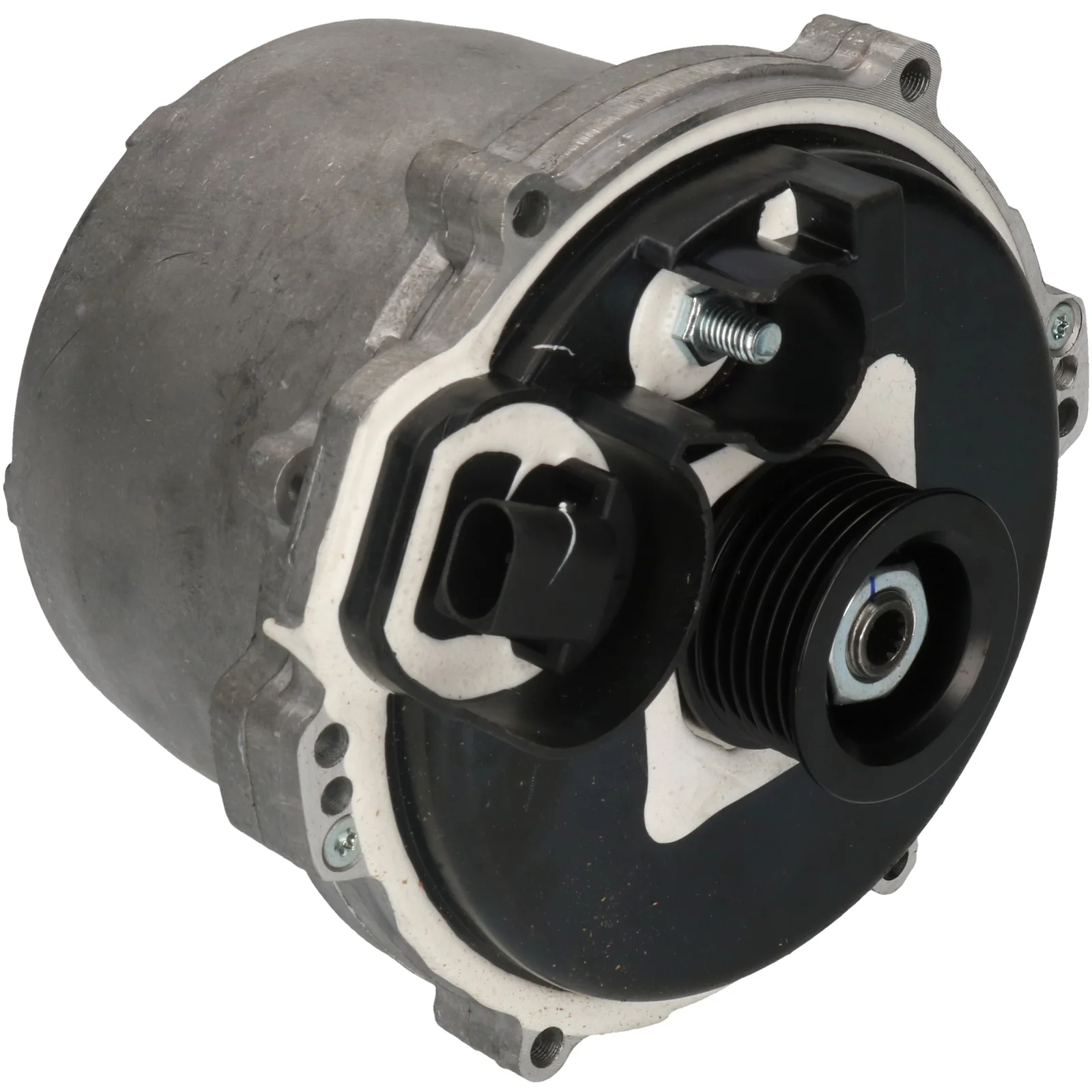

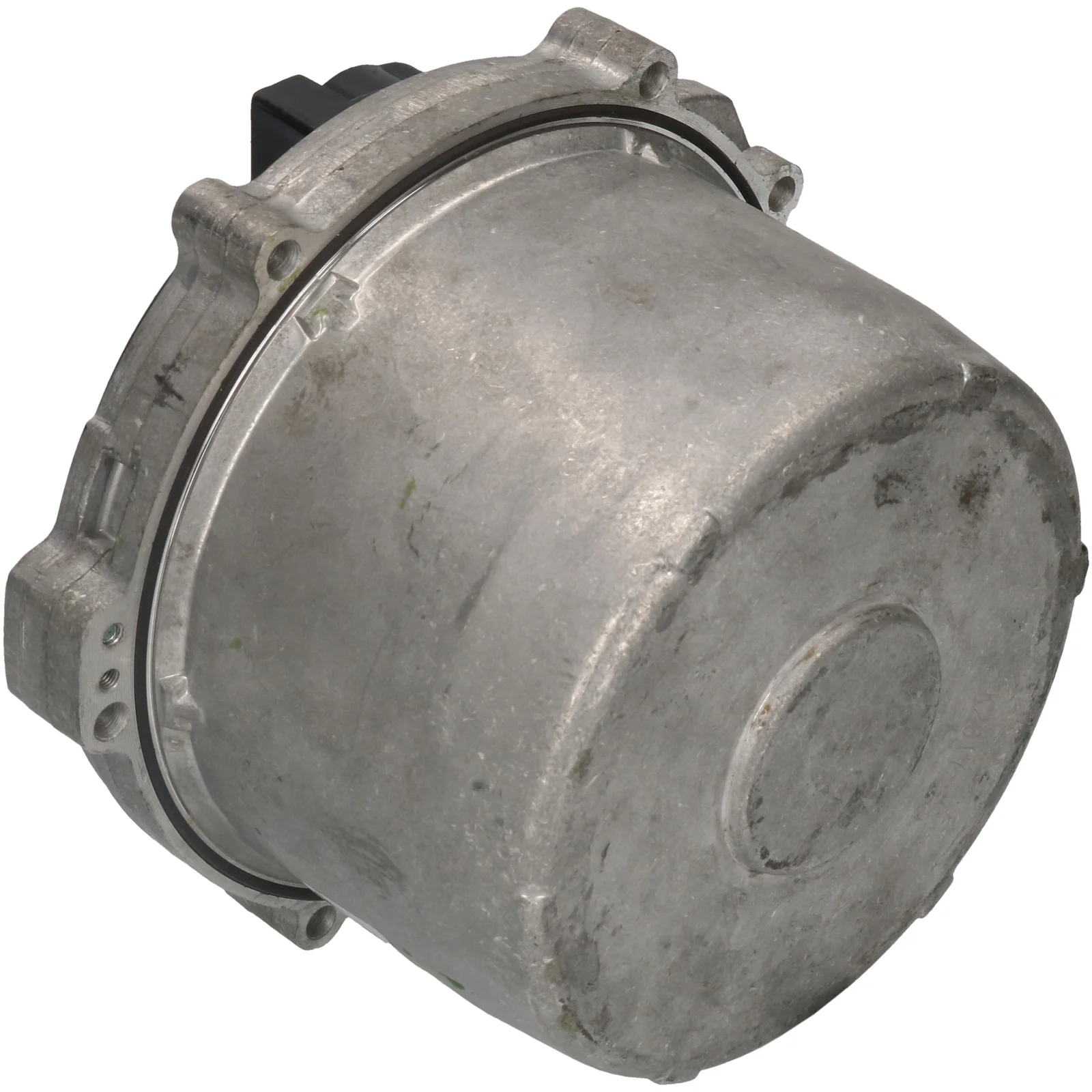

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115473

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 180, Rotation: CW, Pulley dia.: 49.00

Beskrivning

Voltage: 14
Amp: 180
Pulley dist.: 41.00
Width/holder arm: 22.00
Bracket hole: M5
Pulley dia.: 49.00
Grooves/pulley: 6
Radius: 88.00
B+: M8
Position/B+ in min.: 6
Rotation: CW
Plug no.: PL86
Total length mm: 158.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication BSS
Plug no. PL86
Bracket hole M5
Position/B+ in min. 6
Prod. info BN
Pulley SP
Pulley dia. 49.00
Pulley dist. 41.00
Radius 88.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 158.00 mm
Width/holder arm 22.00
Amp 180

  • OEM
    F032115473, 01220AA090, 01220AA160, 01220AA360, 7507741, 7507995, 7523606, 7523608, 7526286, 12310304582, 12317507741, 12317507995, 12317523606, 12317523608, 12317526286

  • Konkurrentreferens
    A0626PR, A0626S, CAL10323, CAL32181, DRA0139, DRA0139N, LRA02864, 28-4980, 215.167.1802, 215.403.180, 11078, 11078N, 11078R, 13976N, 13976R, 111792, 112319, 600711, 9047170, 12047170, 0986047170, 0986047173, 0986047177

  • Normaliserat artikelnummer
    a0626pr, a0626s, cal10323, cal32181, dra0139, dra0139n, f032115473, lra02864, 01220aa090, 01220aa160, 01220aa360, 11078, 11078n, 11078r, 13976n, 13976r, 111792, 112319, 284980, 600711, 7507741, 7507995, 7523606, 7523608, 7526286, 9047170, 12047170, 215403180, 0986047170, 0986047173, 0986047177, 2151671802, 12310304582, 12317507741, 12317507995, 12317523606, 12317523608, 12317526286

  • Passar modeller
    BMW Model: 7 Model series: 735 Type of engine: i Size of motor: 3.6 Brand of engine: N62B36 Type description: E65 From date: 01-11-2001 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 735 Type of engine: Li Size of motor: 3.6 Brand of engine: N62B36A Type description: E66 From date: 01-11-2001 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 745 Type of engine: i Size of motor: 4.4 Brand of engine: N62B44 Type description: E65 From date: 01-07-2001 To date: 01-03-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 745 Type of engine: Li Size of motor: 4.4 Brand of engine: N62B44A Type description: E66 From date: 01-07-2001 To date: 01-03-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 760 Type of engine: i Size of motor: 6.0 Brand of engine: N73B60 Type description: E65, E66, E67 From date: 01-01-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 760 Type of engine: Li Size of motor: 6.0 Brand of engine: N73B60A Type description: E65, E66, E67 From date: 01-01-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 180
    Pulley dist.: 41.00
    Width/holder arm: 22.00
    Bracket hole: M5
    Pulley dia.: 49.00
    Grooves/pulley: 6
    Radius: 88.00
    B+: M8
    Position/B+ in min.: 6
    Rotation: CW
    Plug no.: PL86
    Total length mm: 158.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Plug no. PL86
    Bracket hole M5
    Position/B+ in min. 6
    Prod. info BN
    Pulley SP
    Pulley dia. 49.00
    Pulley dist. 41.00
    Radius 88.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 158.00 mm
    Width/holder arm 22.00
    Amp 180
  • Fordonsmatchning

    • OEM
      F032115473, 01220AA090, 01220AA160, 01220AA360, 7507741, 7507995, 7523606, 7523608, 7526286, 12310304582, 12317507741, 12317507995, 12317523606, 12317523608, 12317526286

    • Konkurrentreferens
      A0626PR, A0626S, CAL10323, CAL32181, DRA0139, DRA0139N, LRA02864, 28-4980, 215.167.1802, 215.403.180, 11078, 11078N, 11078R, 13976N, 13976R, 111792, 112319, 600711, 9047170, 12047170, 0986047170, 0986047173, 0986047177

    • Normaliserat artikelnummer
      a0626pr, a0626s, cal10323, cal32181, dra0139, dra0139n, f032115473, lra02864, 01220aa090, 01220aa160, 01220aa360, 11078, 11078n, 11078r, 13976n, 13976r, 111792, 112319, 284980, 600711, 7507741, 7507995, 7523606, 7523608, 7526286, 9047170, 12047170, 215403180, 0986047170, 0986047173, 0986047177, 2151671802, 12310304582, 12317507741, 12317507995, 12317523606, 12317523608, 12317526286

    • Passar modeller
      BMW Model: 7 Model series: 735 Type of engine: i Size of motor: 3.6 Brand of engine: N62B36 Type description: E65 From date: 01-11-2001 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
      BMW Model: 7 Model series: 735 Type of engine: Li Size of motor: 3.6 Brand of engine: N62B36A Type description: E66 From date: 01-11-2001 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
      BMW Model: 7 Model series: 745 Type of engine: i Size of motor: 4.4 Brand of engine: N62B44 Type description: E65 From date: 01-07-2001 To date: 01-03-2005 Fuel: Gasoline Approved: Yes
      BMW Model: 7 Model series: 745 Type of engine: Li Size of motor: 4.4 Brand of engine: N62B44A Type description: E66 From date: 01-07-2001 To date: 01-03-2005 Fuel: Gasoline Approved: Yes
      BMW Model: 7 Model series: 760 Type of engine: i Size of motor: 6.0 Brand of engine: N73B60 Type description: E65, E66, E67 From date: 01-01-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
      BMW Model: 7 Model series: 760 Type of engine: Li Size of motor: 6.0 Brand of engine: N73B60A Type description: E65, E66, E67 From date: 01-01-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
