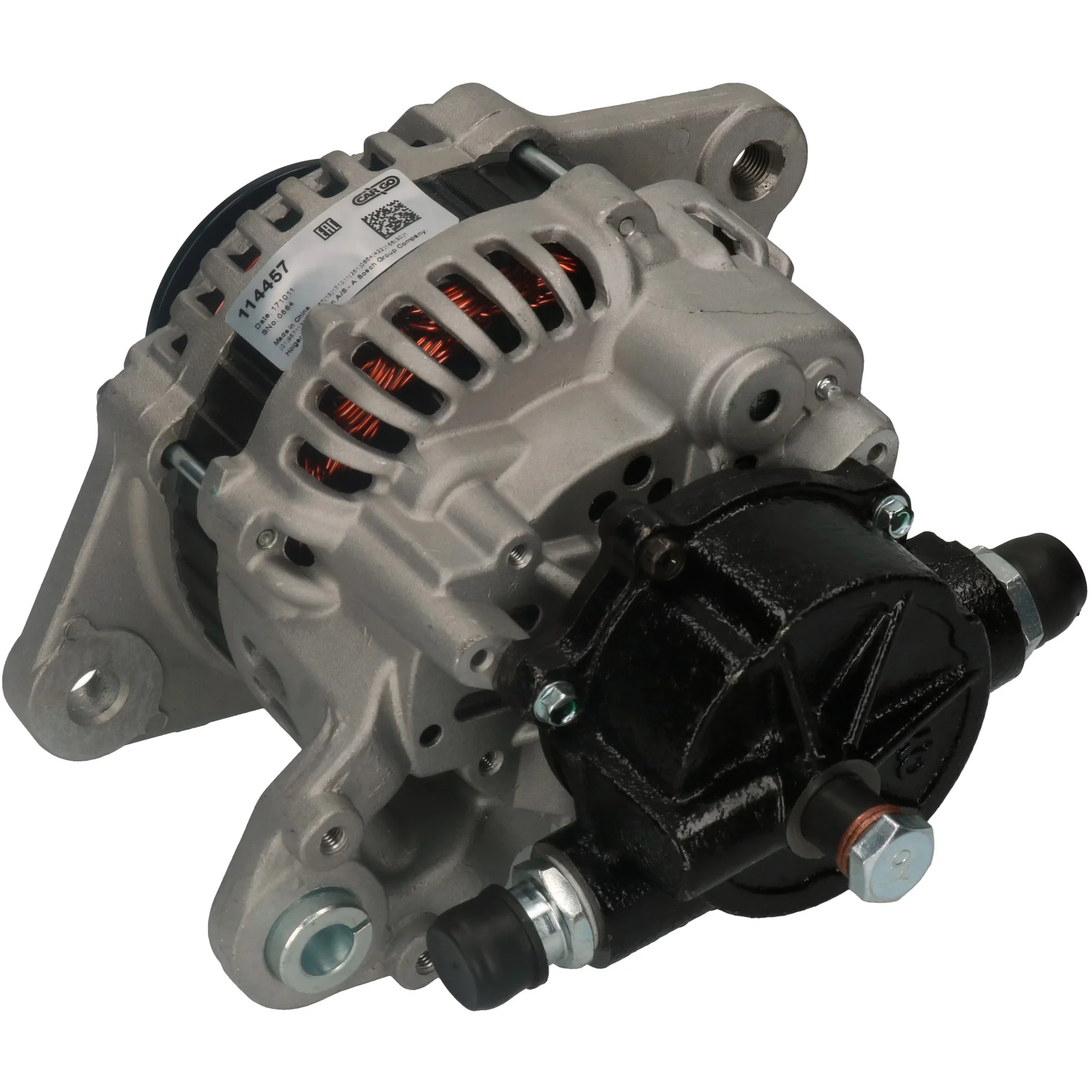

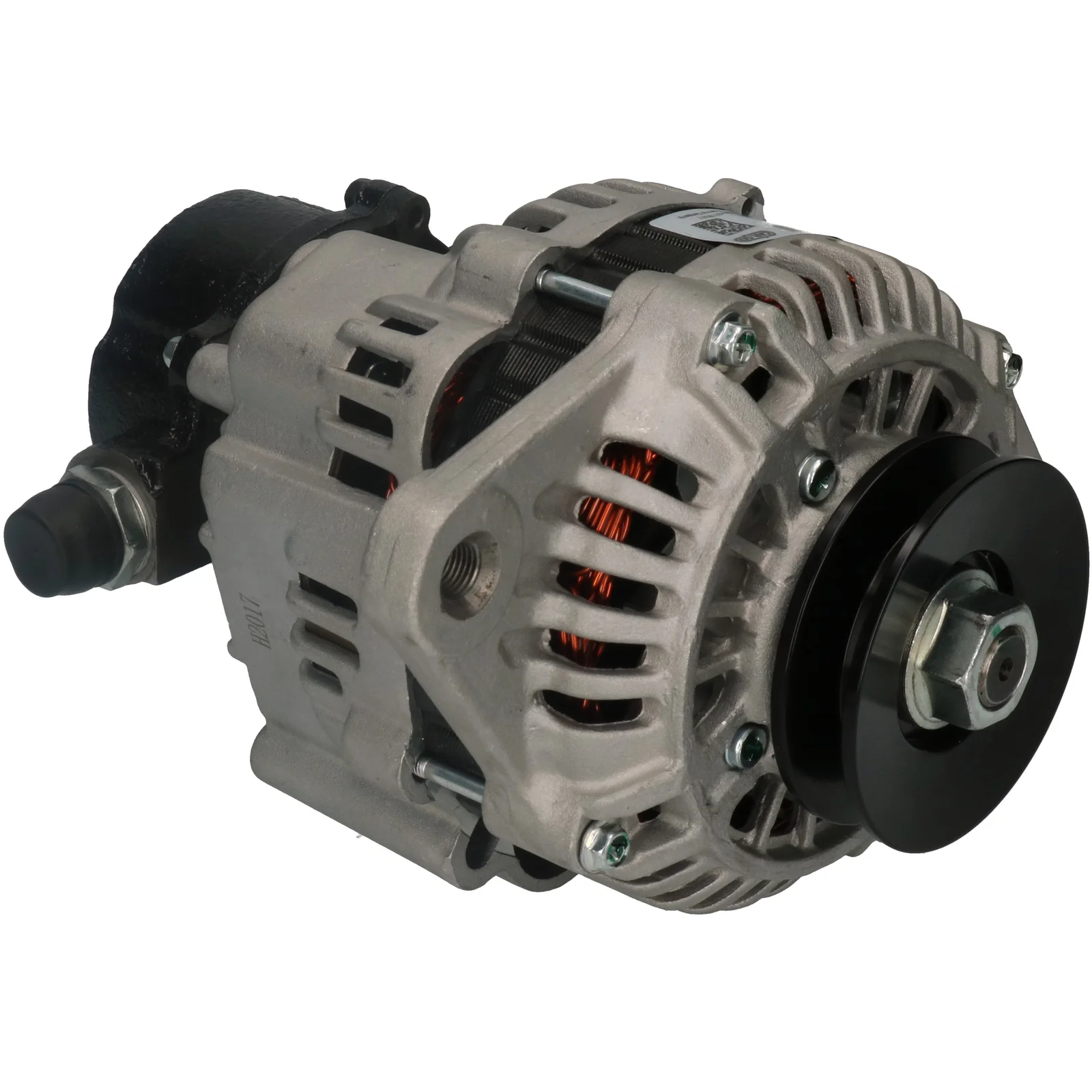

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114457

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 35, Rotation: CW, Mount. bracket dist.: 81.00

Beskrivning

Voltage: 28
Amp: 35
Pulley dist.: 44.50
Width/holder arm: 13.70
Mount. bracket dist.: 81.00
Bracket hole: 12.30
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M12
Pulley dia.: 84.00
Grooves/pulley: 1
Radius: 94.00
Radius 2: 95.00
B+: M8
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL89
Total length mm: 237.00
Terminal type: L-R
Lamp type: Active
Pulley: P
Vac. pump: Yes
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M12
Belt. adj. brackethole pos. 60
Plug no. PL89
Bracket hole 12.30
Position/B+ in min. 15
Prod. info BN
Pulley P
Pulley dia. 84.00
Pulley dist. 44.50
Radius 94.00
D+ Size Plug
Radius 2 95.00
Rotation CW
Grooves/pulley 1
Lamp type Active
Terminal type L-R
Vac. pump Yes
Voltage 28
Total length 237.00 mm
Width/holder arm 13.70
Amp 35

  • OEM
    A003TN5883, a3tn5883, F032114457, 32B68-00200

  • Konkurrentreferens
    A5345, CAL35608, DRA0465, LRA04257, 48-7866, 12435N

  • Normaliserat artikelnummer
    a003tn5883, a3tn5883, a5345, cal35608, dra0465, f032114457, lra04257, 32b6800200, 12435n, 487866

  • Passar modeller
    Mitsubishi Model: FD Model series: FD35D Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD35D2 Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD40D Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD45D Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD50C Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD50D Brand of engine: S6E/S6S Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 28
    Amp: 35
    Pulley dist.: 44.50
    Width/holder arm: 13.70
    Mount. bracket dist.: 81.00
    Bracket hole: 12.30
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M12
    Pulley dia.: 84.00
    Grooves/pulley: 1
    Radius: 94.00
    Radius 2: 95.00
    B+: M8
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL89
    Total length mm: 237.00
    Terminal type: L-R
    Lamp type: Active
    Pulley: P
    Vac. pump: Yes
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M12
    Belt. adj. brackethole pos. 60
    Plug no. PL89
    Bracket hole 12.30
    Position/B+ in min. 15
    Prod. info BN
    Pulley P
    Pulley dia. 84.00
    Pulley dist. 44.50
    Radius 94.00
    D+ Size Plug
    Radius 2 95.00
    Rotation CW
    Grooves/pulley 1
    Lamp type Active
    Terminal type L-R
    Vac. pump Yes
    Voltage 28
    Total length 237.00 mm
    Width/holder arm 13.70
    Amp 35
  • Fordonsmatchning

    • OEM
      A003TN5883, a3tn5883, F032114457, 32B68-00200

    • Konkurrentreferens
      A5345, CAL35608, DRA0465, LRA04257, 48-7866, 12435N

    • Normaliserat artikelnummer
      a003tn5883, a3tn5883, a5345, cal35608, dra0465, f032114457, lra04257, 32b6800200, 12435n, 487866

    • Passar modeller
      Mitsubishi Model: FD Model series: FD35D Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD35D2 Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD40D Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD45D Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD50C Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD50D Brand of engine: S6E/S6S Approved: Yes
