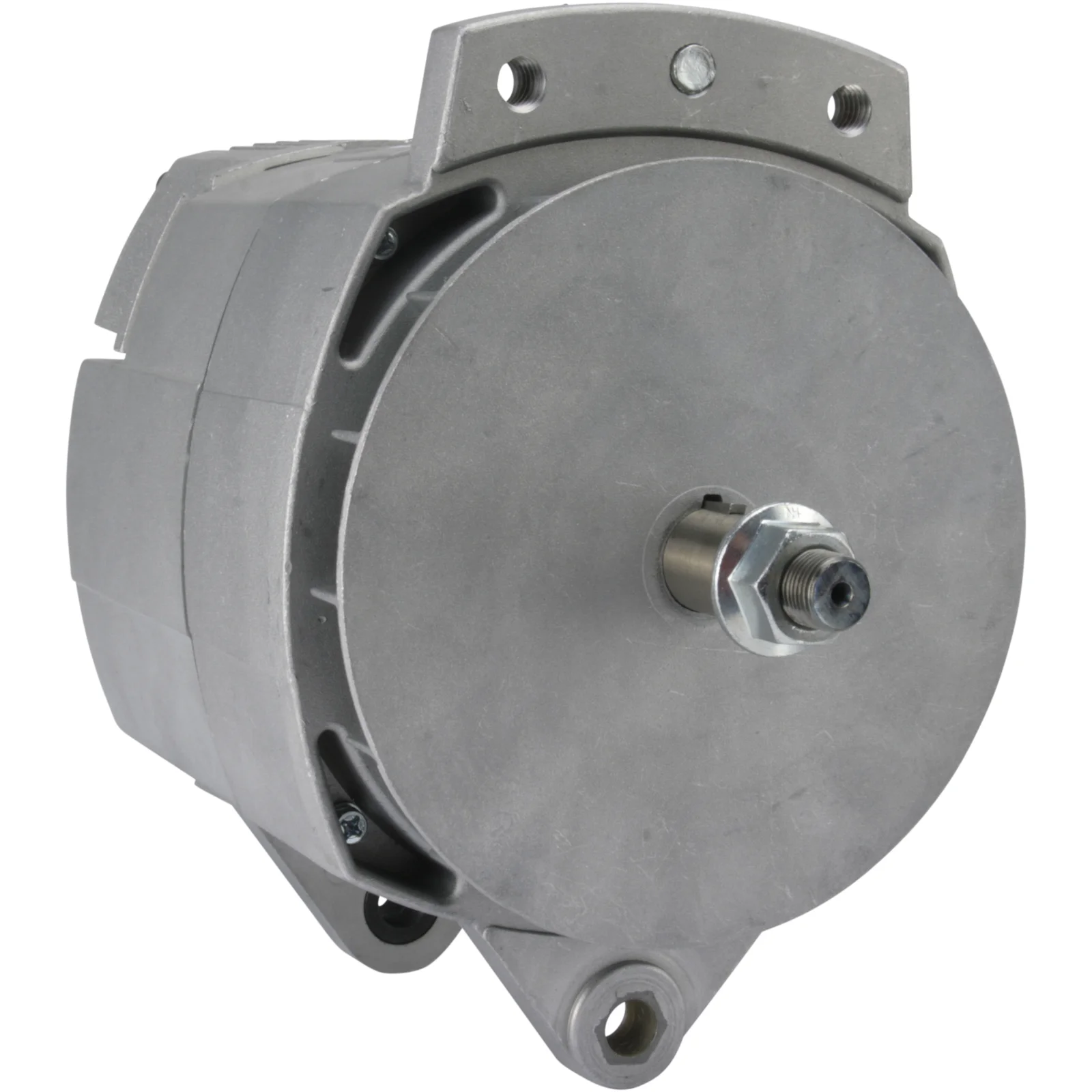

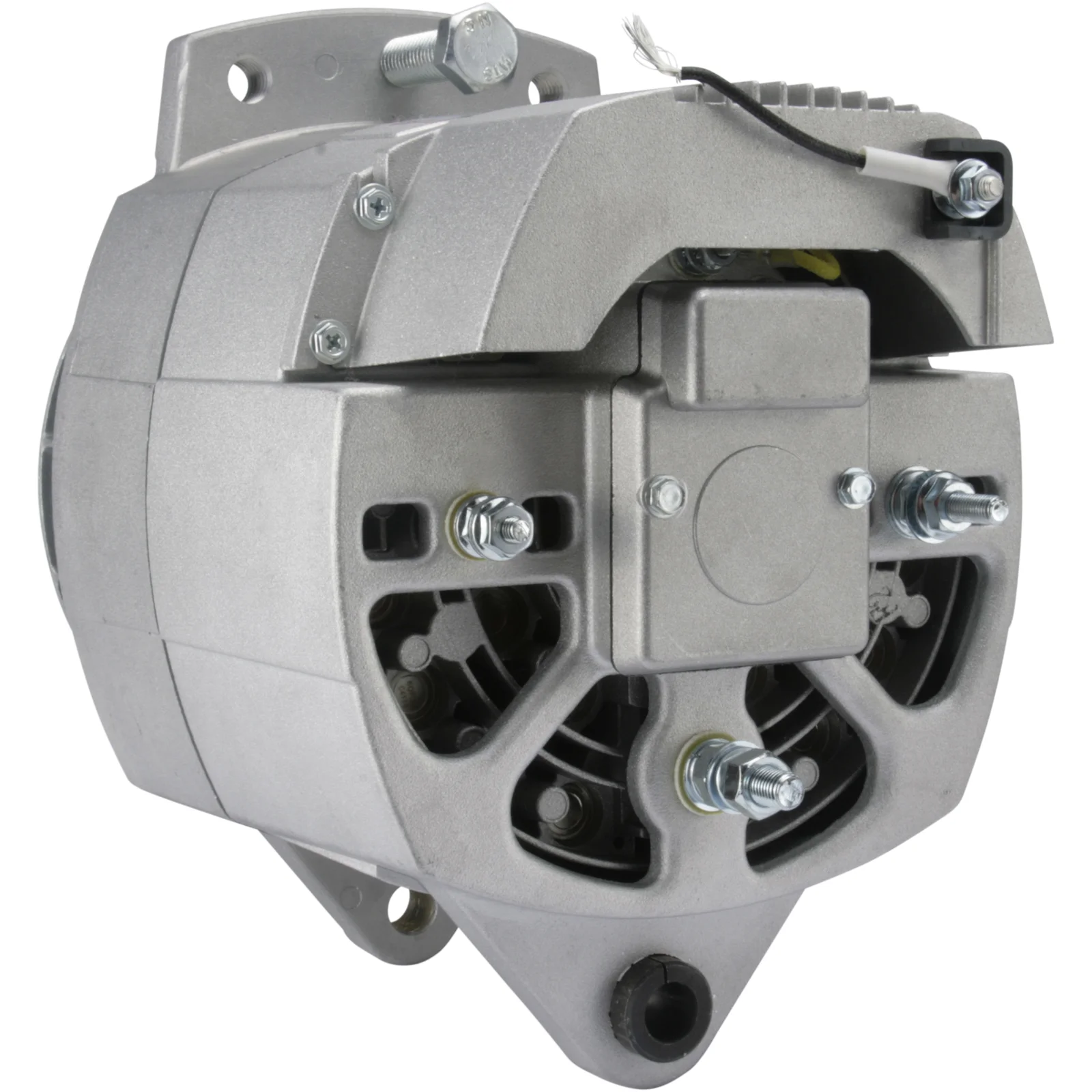

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114349

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 150, Rotation: CW, Mount. bracket dist.: 101.00

Beskrivning

Voltage: 28
Amp: 150
Pulley dist.: 45.50
Width/holder arm: 14.00
Mount. bracket dist.: 101.00
Bracket hole: 13.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 1/2" UNC
Belt. adj. bracket hole 2: 1/2" UNC
Belt. adj. bracket hole 3: 1/2" UNC
Pulley dia.: 78.00
Grooves/pulley: 2
Radius: 104.00
Radius 2: 108.00
B+: M8
Position/B+ in min.: 30
D+ Size: M5
Rotation: CW
Total length mm: 270.00
Pulley: w/o
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 101.00
Belt. adj. bracket hole 1 1/2" UNC
Belt. adj. bracket hole 2 1/2" UNC
Belt. adj. bracket hole 3 1/2" UNC
Belt. adj. brackethole pos. 60
Bracket hole 13.00
Position/B+ in min. 30
Prod. info BN
Pulley w/o
Pulley dia. 78.00
Pulley dist. 45.50
Radius 104.00
D+ Size M5
Radius 2 108.00
Regulator type IR
Rotation CW
Grooves/pulley 2
Voltage 28
Total length 270.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F032114349, 8SC3238VC

  • Konkurrentreferens
    ALT-0192, F042308018, F042308019, F042308021, F042308057, F042511761, F042A08018, F042A08021

  • Normaliserat artikelnummer
    alt0192, f032114349, f042308018, f042308019, f042308021, f042308057, f042511761, f042a08018, f042a08021, 8sc3238vc

  • Passar modeller
    Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
    Xichai-Fawd Model: Bus Model series: Various models Body: Bus Approved: Yes
  • Beskrivning
    Voltage: 28
    Amp: 150
    Pulley dist.: 45.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 101.00
    Bracket hole: 13.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 1/2" UNC
    Belt. adj. bracket hole 2: 1/2" UNC
    Belt. adj. bracket hole 3: 1/2" UNC
    Pulley dia.: 78.00
    Grooves/pulley: 2
    Radius: 104.00
    Radius 2: 108.00
    B+: M8
    Position/B+ in min.: 30
    D+ Size: M5
    Rotation: CW
    Total length mm: 270.00
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 101.00
    Belt. adj. bracket hole 1 1/2" UNC
    Belt. adj. bracket hole 2 1/2" UNC
    Belt. adj. bracket hole 3 1/2" UNC
    Belt. adj. brackethole pos. 60
    Bracket hole 13.00
    Position/B+ in min. 30
    Prod. info BN
    Pulley w/o
    Pulley dia. 78.00
    Pulley dist. 45.50
    Radius 104.00
    D+ Size M5
    Radius 2 108.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 2
    Voltage 28
    Total length 270.00 mm
    Width/holder arm 14.00
    Amp 150
  • Fordonsmatchning

    • OEM
      F032114349, 8SC3238VC

    • Konkurrentreferens
      ALT-0192, F042308018, F042308019, F042308021, F042308057, F042511761, F042A08018, F042A08021

    • Normaliserat artikelnummer
      alt0192, f032114349, f042308018, f042308019, f042308021, f042308057, f042511761, f042a08018, f042a08021, 8sc3238vc

    • Passar modeller
      Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
      Xichai-Fawd Model: Bus Model series: Various models Body: Bus Approved: Yes
