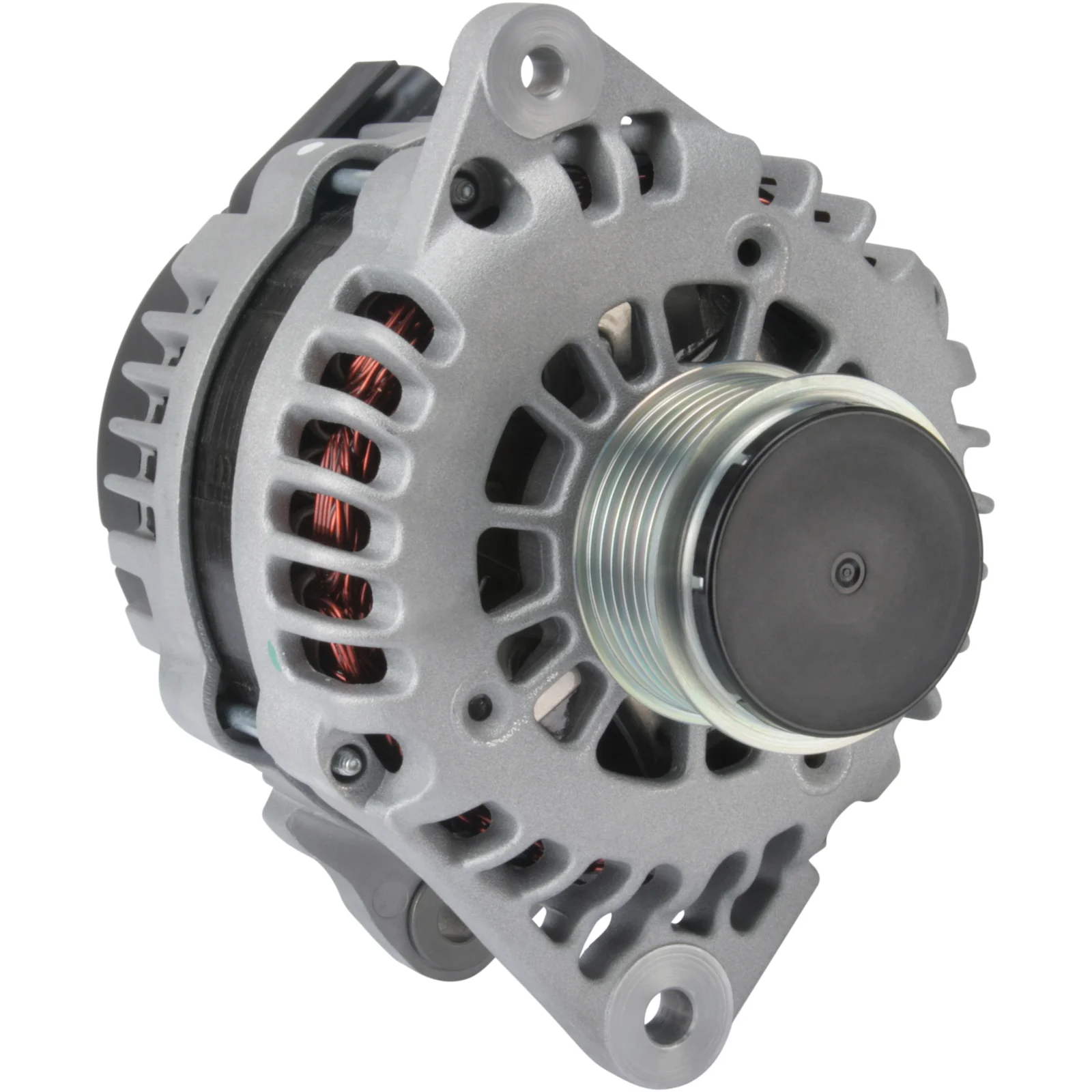

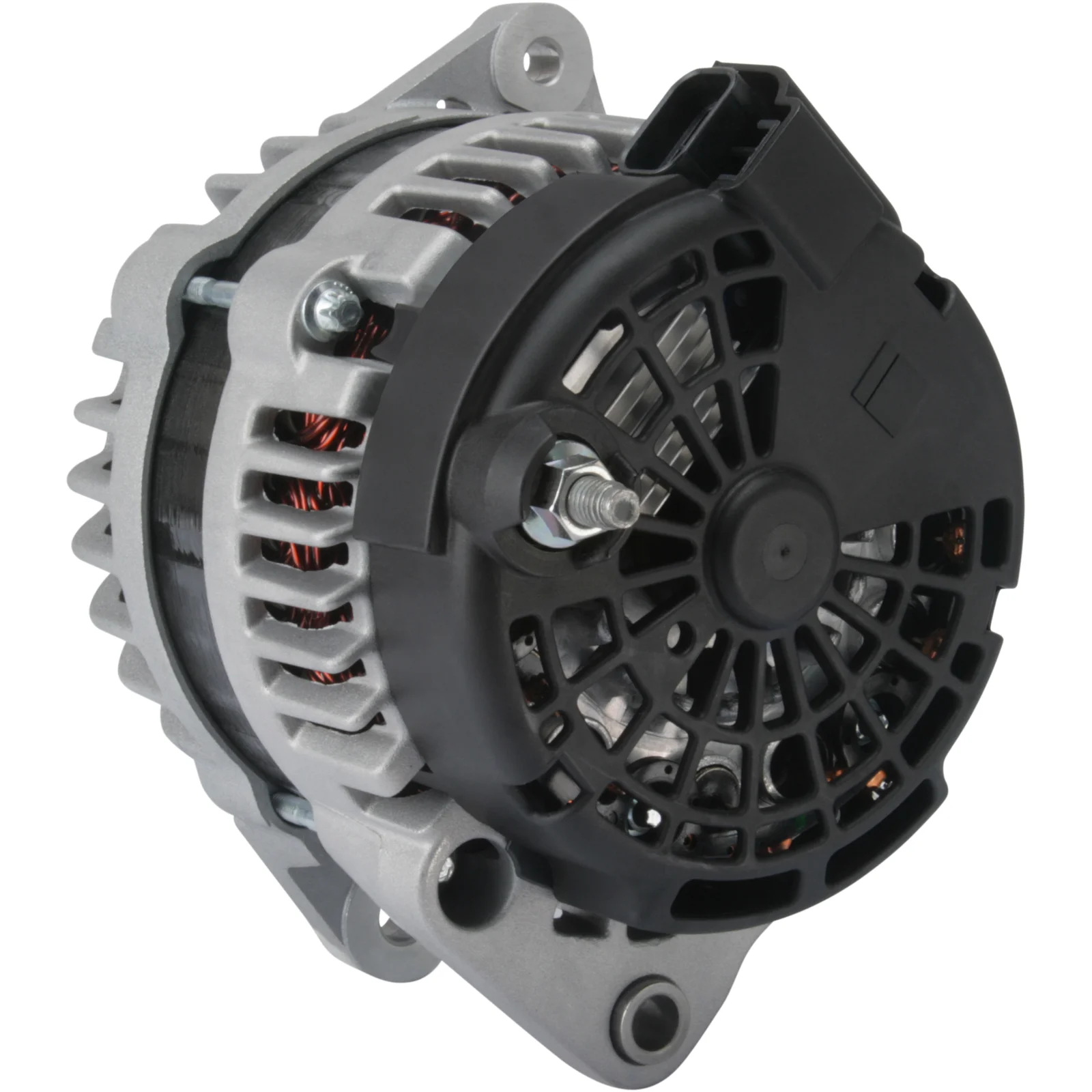

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114512

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 140, Rotation: CW, Mount. bracket dist.: 66.00

Beskrivning

Voltage: 14
Amp: 140
Pulley dist.: 35.50
Width/holder arm: 13.00
Mount. bracket dist.: 66.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 60.00
Grooves/pulley: 6
Radius: 84.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL127
Total length mm: 200.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL127
Bracket hole 10.50
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 60.00
Pulley dist. 35.50
Radius 84.00
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 200.00 mm
Width/holder arm 13.00
Amp 140

  • OEM
    F032114512, 2017ir, 1204425, 6204275, 8400156, 8400158, 8400218, 98031155, 98042873, 8980311551, 8980428730

  • Konkurrentreferens
    A1021, A1021(P), CAL60113, DRA2075, DRA2075N, DRA4295, 8EL012429-171, 8EL738212-481, 28-5706, 228.177.1402, 112822, 210945, 210945A, 302017RI, 440707, 553272RI, 9090840, 12090316, 0986084150

  • Normaliserat artikelnummer
    a1021, a1021p, cal60113, dra2075, dra2075n, dra4295, f032114512, 8el012429171, 8el738212481, 2017ir, 112822, 210945, 210945a, 285706, 302017ri, 440707, 553272ri, 1204425, 6204275, 8400156, 8400158, 8400218, 9090840, 12090316, 98031155, 98042873, 0986084150, 2281771402, 8980311551, 8980428730

  • Passar modeller
    Opel Model: Astra H Model series: Astra H Family Caravan Type of engine: CDTI Size of motor: 1.7 Brand of engine: Z17DTJ Type description: A04 Body: Estate From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Opel Model: Astra H Model series: Astra H Family Hatchback Type of engine: CDTI Size of motor: 1.7 Brand of engine: Z17DTR Type description: A04 Body: Hatchback From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra Classic Estate Type of engine: CDTi Size of motor: 1.7 Brand of engine: A17DTR Body: Estate From date: 01-01-2009 Fuel: Diesel Approved: Yes Manufacture type: Estate
    Opel Model: Astra Model series: Astra Classic Saloon Type of engine: CDTi Size of motor: 1.7 Brand of engine: A17DTR From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra Classic Saloon Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTJ From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra Classic Type of engine: CDTi Size of motor: 1.7 Brand of engine: A17DTJ Type description: L48 Body: Hatchback From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra Classic Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTJ Type description: L48 Body: Hatchback From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.7 Brand of engine: A17DTJ Body: Estate From date: 01-02-2007 To date: 01-05-2014 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.7 Brand of engine: A17DTR Body: Hatchback From date: 01-02-2007 To date: 01-05-2014 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTJ Body: Hatchback From date: 01-02-2007 To date: 01-05-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Model type: L08 Type of engine: CDTi Size of motor: 1.7 Brand of engine: A17DTS Type description: S07 Body: Box From date: 01-07-2012 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: 75 Type of engine: CDTi Size of motor: 1.7 Brand of engine: A17DT Type description: S10 Body: Van From date: 01-01-2013 To date: 01-01-2017 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: 75 Type of engine: CDTi Size of motor: 1.7 Brand of engine: A17DTC Type description: S10 Body: Van From date: 01-01-2013 To date: 01-10-2013 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: 75 Type of engine: CDTi Size of motor: 1.7 Brand of engine: A17DTS Type description: S10 Body: Van From date: 01-01-2013 To date: 01-10-2013 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira B Type of engine: CDTi Size of motor: 1.7 Brand of engine: A17DTJ Body: MPV From date: 01-01-2008 To date: 01-04-2015 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira B Type of engine: CDTi Size of motor: 1.7 Brand of engine: A17DTR Body: Van From date: 01-01-2008 To date: 01-04-2015 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira B Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTJ Body: MPV From date: 01-01-2008 To date: 01-04-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTJ Body: Estate From date: 01-08-2004 To date: 01-10-2012 Fuel: Diesel Approved: Yes Manufacture type: Estate
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTJ Body: Hatchback From date: 01-01-2004 To date: 01-05-2009 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astravan Model series: Astravan Mk V Type of engine: CDTi Size of motor: 1.7 Brand of engine: A17DTJ Type description: H Body: Van From date: 01-06-2011 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astravan Model series: Astravan Mk V Type of engine: CDTi Size of motor: 1.7 Brand of engine: A17DTR Type description: H Body: Van From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astravan Model series: Astravan Mk V Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTJ Type description: H Body: Van From date: 01-06-2011 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astravan Model series: Astravan Mk V Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTR Type description: H Body: Van From date: 01-11-2011 Fuel: Diesel Approved: Yes
