- Generator
-

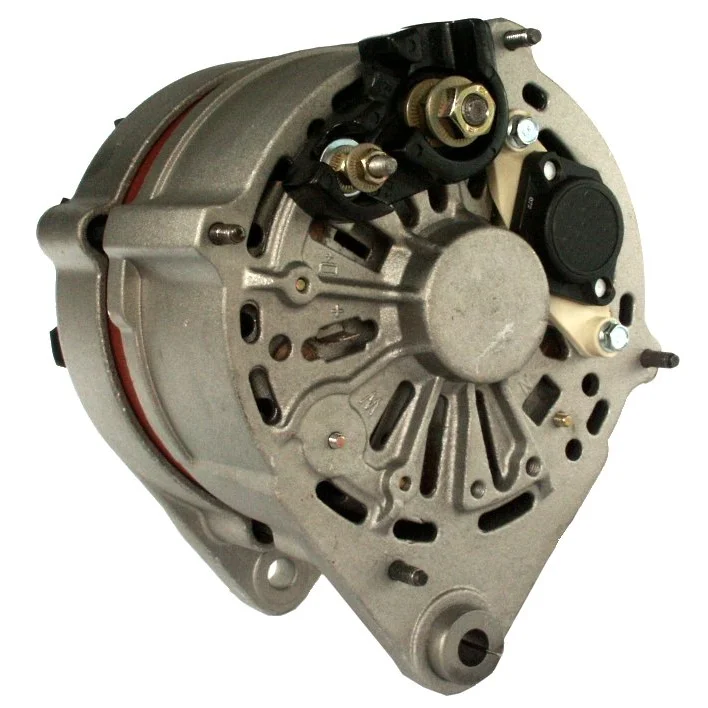

HC-Cargo Generator
- Generator
-
HC-Cargo Generator
Artikelnr: F032112750
HC-Cargo Generator
Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 82.00
Beskrivning
Voltage: 14
Amp: 90
Pulley dist.: 31.50
Width/holder arm: 14.00
Mount. bracket dist.: 82.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: M8
Pulley dia.: 67.00
Grooves/pulley: 1
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 57
D+ Size: M5
Rotation: CW
Total length mm: 177.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Audi
Amp: 90
Pulley dist.: 31.50
Width/holder arm: 14.00
Mount. bracket dist.: 82.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: M8
Pulley dia.: 67.00
Grooves/pulley: 1
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 57
D+ Size: M5
Rotation: CW
Total length mm: 177.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Audi
Filer
Specifikation
| B+ | M8 |
|---|---|
| Mount. bracket dist. | 82.00 |
| Belt. adj. bracket hole 1 | M8 |
| Belt. adj. brackethole pos. | 50 |
| Bracket hole | 10.00 |
| Position/B+ in min. | 57 |
| Prod. info | BN |
| Pulley | P |
| Pulley dia. | 67.00 |
| Pulley dist. | 31.50 |
| Radius | 92.00 |
| D+ Size | M5 |
| Radius 2 | 92.00 |
| Regulator type | IR |
| Rotation | CW |
| Servicing | Audi |
| Grooves/pulley | 1 |
| Voltage | 14 |
| Total length | 177.50 mm |
| Width/holder arm | 14.00 |
| Amp | 90 |
-
OEM
F032112750, 521ir, 034903015t, 034903016a, 034903016d, 034903016g, 034906016G, 046903015g, 051903015B, 054903015, 074903023h, 074903023M, 0120468122, 0120469790, 0120469822, 0120469823, 0120469832, 0120469839, 0120469888, 0120469889, 0120469903, 0120469908, 0120469953, 0120469986 -
Konkurrentreferens
ALT10287, dra6660, lra00561, LRA02213, LRA02632, QA2037, va277, 1-1400-01BO, 28-1625, 28-1972, 28-3518, 28-3879, 28-4682, 41-36.660, 205.014.090, 211.127.902, 211.139.902, 211.151.902, 211.199.1002, 14972R, 14988, 30521RI, 56297, 436303, 436389, 9036660, 12036660, 943356608, 0986036660, 0986036667 -
Normaliserat artikelnummer
alt10287, dra6660, f032112750, lra00561, lra02213, lra02632, qa2037, va277, 521ir, 14972r, 14988, 30521ri, 56297, 281625, 281972, 283518, 283879, 284682, 436303, 436389, 1140001bo, 4136660, 9036660, 12036660, 034903015t, 034903016a, 034903016d, 034903016g, 034906016g, 046903015g, 051903015b, 054903015, 074903023h, 074903023m, 0120468122, 0120469790, 0120469822, 0120469823, 0120469832, 0120469839, 0120469888, 0120469889, 0120469903, 0120469908, 0120469953, 0120469986, 205014090, 211127902, 211139902, 211151902, 943356608, 0986036660, 0986036667, 2111991002 -
Passar modeller
Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 2.3 Brand of engine: AAR Body: Estate From date: 01-09-1991 To date: 01-07-1994 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 2.3 Brand of engine: AAR From date: 01-12-1990 To date: 01-07-1994 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 2.3 Brand of engine: NF From date: 01-01-1990 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 2.3 Brand of engine: NF Type description: 44, 44Q, C3 Body: Estate From date: 01-01-1990 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Model type: Quattro Type of engine: E Size of motor: 2.3 Brand of engine: NF Body: Estate From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Model type: Quattro Type of engine: E Size of motor: 2.3 Brand of engine: NF From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Type of engine: E Turbo Size of motor: 2.2 Brand of engine: MC From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Type of engine: Turbo Size of motor: 2.2 Brand of engine: MC Body: Estate From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Size of motor: 2.3 Brand of engine: AAR Body: Estate From date: 01-09-1991 To date: 01-07-1994 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Size of motor: 2.3 Brand of engine: AAR From date: 01-12-1990 To date: 01-07-1994 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 2.3 Brand of engine: NF Body: Estate From date: 01-03-1990 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 2.3 Brand of engine: NF Body: Estate From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 3D Type description: 44 Body: Estate From date: 01-08-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 3D Type description: 44 From date: 01-08-1989 To date: 01-07-1991 Fuel: Diesel Approved: Yes Audi Model: 100 Model series: 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAS From date: 01-12-1990 To date: 01-07-1994 Fuel: Diesel Approved: Yes Audi Model: 100 Model series: 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAS Type description: 4A Body: Estate From date: 01-12-1990 To date: 01-07-1994 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Type of engine: E Size of motor: 2.3 Brand of engine: NF From date: 01-10-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Type of engine: E Size of motor: 2.3 Brand of engine: NF Type description: 44, 44Q, C3.. Body: Estate From date: 01-01-1990 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Type of engine: TDi Size of motor: 2.5 Brand of engine: 1T Body: Estate From date: 01-01-1990 To date: 01-11-1990 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Type of engine: TDi Size of motor: 2.5 Brand of engine: 1T From date: 01-01-1990 To date: 01-11-1990 Fuel: Diesel Approved: Yes Audi Model: 100 Model series: 100 Type of engine: Turbo Size of motor: 2.2 Brand of engine: MC Body: Estate From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Type of engine: Turbo Size of motor: 2.2 Brand of engine: MC From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Model type: Quattro Type of engine: Turbo 20V Size of motor: 2.2 Brand of engine: 3B Body: Estate From date: 01-07-1989 To date: 01-12-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 200 Model series: 200 Model type: Quattro Type of engine: Turbo 20V Size of motor: 2.2 Brand of engine: 3B From date: 01-03-1989 To date: 01-12-1990 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Model type: Quattro Type of engine: Turbo Size of motor: 2.2 Brand of engine: 1B Body: Estate From date: 01-02-1988 To date: 01-12-1991 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 200 Model series: 200 Model type: Quattro Type of engine: Turbo Size of motor: 2.2 Brand of engine: 1B From date: 01-02-1988 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Model type: Quattro Type of engine: Turbo Size of motor: 2.2 Brand of engine: MC From date: 01-01-1985 To date: 01-12-1991 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Size of motor: 2.3 Brand of engine: NF Body: Estate From date: 01-11-1986 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 200 Model series: 200 Size of motor: 2.3 Brand of engine: NF From date: 01-11-1986 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Type of engine: Turbo Size of motor: 2.2 Brand of engine: 1B From date: 01-02-1988 To date: 01-12-1990 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Type of engine: Turbo Size of motor: 2.2 Brand of engine: 2B From date: 01-02-1988 To date: 01-12-1990 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Type of engine: Turbo Size of motor: 2.2 Brand of engine: MC Body: Estate From date: 01-08-1985 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 200 Model series: 200 Type of engine: Turbo Size of motor: 2.2 Brand of engine: MC From date: 01-08-1985 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Model type: Quattro Size of motor: 2.3 Brand of engine: NG Body: Estate From date: 01-09-1991 To date: 01-11-1994 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 80 Model series: 80 Model type: Quattro Size of motor: 2.3 Brand of engine: NG From date: 01-09-1991 To date: 01-12-1994 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 2.3 Brand of engine: NG Body: Estate From date: 01-07-1992 To date: 01-01-1996 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 80 Model series: 80 Size of motor: 2.3 Brand of engine: NG From date: 01-09-1991 To date: 01-12-1994 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Model type: Quattro Type of engine: 20V Size of motor: 2.0 Brand of engine: NM Type description: 89,89Q,8A,B3 From date: 01-08-1988 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Model type: Quattro Type of engine: E 20V Size of motor: 2.3 Brand of engine: 7A From date: 01-04-1990 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Model type: Quattro Type of engine: E 20V Size of motor: 2.3 Brand of engine: 7A From date: 01-06-1988 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Model type: Quattro Type of engine: E Size of motor: 2.2 Brand of engine: KV From date: 01-04-1987 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Model type: Quattro Type of engine: E Size of motor: 2.3 Brand of engine: NG From date: 01-04-1987 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Model type: Quattro Type of engine: E Size of motor: 2.3 Brand of engine: NG From date: 01-04-1987 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Type of engine: 20V Size of motor: 2.0 Brand of engine: NM From date: 01-08-1989 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Type of engine: E 20V Size of motor: 2.3 Brand of engine: 7A From date: 01-04-1990 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Type of engine: E 20V Size of motor: 2.3 Brand of engine: 7A From date: 01-08-1988 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Type of engine: E Size of motor: 2.2 Brand of engine: KV From date: 01-04-1987 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Type of engine: E Size of motor: 2.3 Brand of engine: NG From date: 01-04-1987 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Type of engine: E Size of motor: 2.3 Brand of engine: NG From date: 01-04-1987 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.5 Brand of engine: AAT Type description: 4A5 Body: Estate From date: 01-06-1994 To date: 01-12-1997 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: Cabriolet Model series: Cabriolet Size of motor: 2.3 Brand of engine: NG Body: Convertible From date: 01-05-1991 To date: 01-07-1994 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Size of motor: 2.2 Brand of engine: KV Body: Coupe From date: 01-11-1988 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Size of motor: 2.3 Brand of engine: NG Body: Coupe From date: 01-05-1990 To date: 01-12-1996 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Size of motor: 2.3 Brand of engine: NG Body: Coupe From date: 01-11-1988 To date: 01-12-1992 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: 20V Size of motor: 2.0 Brand of engine: NM Body: Coupe From date: 01-08-1989 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: 20V Size of motor: 2.2 Brand of engine: RR Body: Coupe From date: 01-08-1989 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: 20V Size of motor: 2.3 Brand of engine: 7A Body: Coupe From date: 01-05-1990 To date: 01-12-1996 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: 20V Size of motor: 2.3 Brand of engine: 7A Body: Coupe From date: 01-11-1988 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: Turbo Size of motor: 2.2 Brand of engine: 1B Body: Coupe From date: 01-08-1987 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: Turbo Size of motor: 2.2 Brand of engine: MB Body: Coupe From date: 01-08-1987 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: S2 Quattro Size of motor: 2.2 Brand of engine: 3B Body: Coupe From date: 01-09-1990 To date: 01-09-1992 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 2.2 Type description: 89, 8B Body: Coupe From date: 01-11-1988 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 2.3 Brand of engine: NG Body: Coupe From date: 01-03-1990 To date: 01-12-1996 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 2.3 Brand of engine: NG Body: Coupe From date: 01-10-1988 To date: 01-07-1994 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: 20V Size of motor: 2.3 Brand of engine: 7A Body: Coupe From date: 01-08-1989 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: 20V Size of motor: 2.3 Brand of engine: 7A Body: Coupe From date: 01-08-1990 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Seat Model: Toledo Model series: Toledo Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Type description: 1l Body: Hatchback From date: 01-05-1991 To date: 01-03-1999 Fuel: Gasoline Approved: Yes Seat Model: Toledo Model series: Toledo Type of engine: 16V Size of motor: 1.8 Brand of engine: PL Type description: 1l Body: Hatchback From date: 01-05-1991 To date: 01-03-1999 Fuel: Gasoline Approved: Yes VW Model: Corrado Model series: Corrado Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Body: Coupe From date: 01-04-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Corrado Model series: Corrado Type of engine: i 16V Size of motor: 2.0 Brand of engine: 9A Body: Coupe From date: 01-08-1991 To date: 01-12-1995 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Model type: GLi Type of engine: 16V Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Model type: GTX Type of engine: 16V Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: CL Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1992 To date: 01-01-1992 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: GL Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: GL Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1991 To date: 01-01-1993 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Body: Estate From date: 01-04-1988 To date: 01-12-1989 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Type of engine: 16V Size of motor: 1.8 Brand of engine: KR From date: 01-04-1988 To date: 01-12-1989 Fuel: Gasoline Approved: Yes 1 / 16
-
Beskrivning
Voltage: 14
Amp: 90
Pulley dist.: 31.50
Width/holder arm: 14.00
Mount. bracket dist.: 82.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: M8
Pulley dia.: 67.00
Grooves/pulley: 1
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 57
D+ Size: M5
Rotation: CW
Total length mm: 177.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: AudiFiler
-
Specifikation
B+ M8 Mount. bracket dist. 82.00 Belt. adj. bracket hole 1 M8 Belt. adj. brackethole pos. 50 Bracket hole 10.00 Position/B+ in min. 57 Prod. info BN Pulley P Pulley dia. 67.00 Pulley dist. 31.50 Radius 92.00 D+ Size M5 Radius 2 92.00 Regulator type IR Rotation CW Servicing Audi Grooves/pulley 1 Voltage 14 Total length 177.50 mm Width/holder arm 14.00 Amp 90 -
Fordonsmatchning
-
OEM
F032112750, 521ir, 034903015t, 034903016a, 034903016d, 034903016g, 034906016G, 046903015g, 051903015B, 054903015, 074903023h, 074903023M, 0120468122, 0120469790, 0120469822, 0120469823, 0120469832, 0120469839, 0120469888, 0120469889, 0120469903, 0120469908, 0120469953, 0120469986 -
Konkurrentreferens
ALT10287, dra6660, lra00561, LRA02213, LRA02632, QA2037, va277, 1-1400-01BO, 28-1625, 28-1972, 28-3518, 28-3879, 28-4682, 41-36.660, 205.014.090, 211.127.902, 211.139.902, 211.151.902, 211.199.1002, 14972R, 14988, 30521RI, 56297, 436303, 436389, 9036660, 12036660, 943356608, 0986036660, 0986036667 -
Normaliserat artikelnummer
alt10287, dra6660, f032112750, lra00561, lra02213, lra02632, qa2037, va277, 521ir, 14972r, 14988, 30521ri, 56297, 281625, 281972, 283518, 283879, 284682, 436303, 436389, 1140001bo, 4136660, 9036660, 12036660, 034903015t, 034903016a, 034903016d, 034903016g, 034906016g, 046903015g, 051903015b, 054903015, 074903023h, 074903023m, 0120468122, 0120469790, 0120469822, 0120469823, 0120469832, 0120469839, 0120469888, 0120469889, 0120469903, 0120469908, 0120469953, 0120469986, 205014090, 211127902, 211139902, 211151902, 943356608, 0986036660, 0986036667, 2111991002 -
Passar modeller
Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 2.3 Brand of engine: AAR Body: Estate From date: 01-09-1991 To date: 01-07-1994 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 2.3 Brand of engine: AAR From date: 01-12-1990 To date: 01-07-1994 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 2.3 Brand of engine: NF From date: 01-01-1990 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Size of motor: 2.3 Brand of engine: NF Type description: 44, 44Q, C3 Body: Estate From date: 01-01-1990 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Model type: Quattro Type of engine: E Size of motor: 2.3 Brand of engine: NF Body: Estate From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Model type: Quattro Type of engine: E Size of motor: 2.3 Brand of engine: NF From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Type of engine: E Turbo Size of motor: 2.2 Brand of engine: MC From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Model type: Quattro Type of engine: Turbo Size of motor: 2.2 Brand of engine: MC Body: Estate From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Size of motor: 2.3 Brand of engine: AAR Body: Estate From date: 01-09-1991 To date: 01-07-1994 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Size of motor: 2.3 Brand of engine: AAR From date: 01-12-1990 To date: 01-07-1994 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Size of motor: 2.3 Brand of engine: NF Body: Estate From date: 01-03-1990 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Size of motor: 2.3 Brand of engine: NF Body: Estate From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 3D Type description: 44 Body: Estate From date: 01-08-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 3D Type description: 44 From date: 01-08-1989 To date: 01-07-1991 Fuel: Diesel Approved: Yes Audi Model: 100 Model series: 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAS From date: 01-12-1990 To date: 01-07-1994 Fuel: Diesel Approved: Yes Audi Model: 100 Model series: 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAS Type description: 4A Body: Estate From date: 01-12-1990 To date: 01-07-1994 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Type of engine: E Size of motor: 2.3 Brand of engine: NF From date: 01-10-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Type of engine: E Size of motor: 2.3 Brand of engine: NF Type description: 44, 44Q, C3.. Body: Estate From date: 01-01-1990 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 100 Model series: 100 Type of engine: TDi Size of motor: 2.5 Brand of engine: 1T Body: Estate From date: 01-01-1990 To date: 01-11-1990 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: 100 Model series: 100 Type of engine: TDi Size of motor: 2.5 Brand of engine: 1T From date: 01-01-1990 To date: 01-11-1990 Fuel: Diesel Approved: Yes Audi Model: 100 Model series: 100 Type of engine: Turbo Size of motor: 2.2 Brand of engine: MC Body: Estate From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 100 Model series: 100 Type of engine: Turbo Size of motor: 2.2 Brand of engine: MC From date: 01-08-1986 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Model type: Quattro Type of engine: Turbo 20V Size of motor: 2.2 Brand of engine: 3B Body: Estate From date: 01-07-1989 To date: 01-12-1990 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 200 Model series: 200 Model type: Quattro Type of engine: Turbo 20V Size of motor: 2.2 Brand of engine: 3B From date: 01-03-1989 To date: 01-12-1990 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Model type: Quattro Type of engine: Turbo Size of motor: 2.2 Brand of engine: 1B Body: Estate From date: 01-02-1988 To date: 01-12-1991 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 200 Model series: 200 Model type: Quattro Type of engine: Turbo Size of motor: 2.2 Brand of engine: 1B From date: 01-02-1988 To date: 01-11-1990 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Model type: Quattro Type of engine: Turbo Size of motor: 2.2 Brand of engine: MC From date: 01-01-1985 To date: 01-12-1991 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Size of motor: 2.3 Brand of engine: NF Body: Estate From date: 01-11-1986 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Manufacture type: AVANT Audi Model: 200 Model series: 200 Size of motor: 2.3 Brand of engine: NF From date: 01-11-1986 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Type of engine: Turbo Size of motor: 2.2 Brand of engine: 1B From date: 01-02-1988 To date: 01-12-1990 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Type of engine: Turbo Size of motor: 2.2 Brand of engine: 2B From date: 01-02-1988 To date: 01-12-1990 Fuel: Gasoline Approved: Yes Audi Model: 200 Model series: 200 Type of engine: Turbo Size of motor: 2.2 Brand of engine: MC Body: Estate From date: 01-08-1985 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 200 Model series: 200 Type of engine: Turbo Size of motor: 2.2 Brand of engine: MC From date: 01-08-1985 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Model type: Quattro Size of motor: 2.3 Brand of engine: NG Body: Estate From date: 01-09-1991 To date: 01-11-1994 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 80 Model series: 80 Model type: Quattro Size of motor: 2.3 Brand of engine: NG From date: 01-09-1991 To date: 01-12-1994 Fuel: Gasoline Approved: Yes Audi Model: 80 Model series: 80 Size of motor: 2.3 Brand of engine: NG Body: Estate From date: 01-07-1992 To date: 01-01-1996 Fuel: Gasoline Approved: Yes Manufacture type: Avant Audi Model: 80 Model series: 80 Size of motor: 2.3 Brand of engine: NG From date: 01-09-1991 To date: 01-12-1994 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Model type: Quattro Type of engine: 20V Size of motor: 2.0 Brand of engine: NM Type description: 89,89Q,8A,B3 From date: 01-08-1988 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Model type: Quattro Type of engine: E 20V Size of motor: 2.3 Brand of engine: 7A From date: 01-04-1990 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Model type: Quattro Type of engine: E 20V Size of motor: 2.3 Brand of engine: 7A From date: 01-06-1988 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Model type: Quattro Type of engine: E Size of motor: 2.2 Brand of engine: KV From date: 01-04-1987 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Model type: Quattro Type of engine: E Size of motor: 2.3 Brand of engine: NG From date: 01-04-1987 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Model type: Quattro Type of engine: E Size of motor: 2.3 Brand of engine: NG From date: 01-04-1987 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Type of engine: 20V Size of motor: 2.0 Brand of engine: NM From date: 01-08-1989 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Type of engine: E 20V Size of motor: 2.3 Brand of engine: 7A From date: 01-04-1990 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Type of engine: E 20V Size of motor: 2.3 Brand of engine: 7A From date: 01-08-1988 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Type of engine: E Size of motor: 2.2 Brand of engine: KV From date: 01-04-1987 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Type of engine: E Size of motor: 2.3 Brand of engine: NG From date: 01-04-1987 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: 90 Model series: 90 Type of engine: E Size of motor: 2.3 Brand of engine: NG From date: 01-04-1987 To date: 01-09-1991 Fuel: Gasoline Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.5 Brand of engine: AAT Type description: 4A5 Body: Estate From date: 01-06-1994 To date: 01-12-1997 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: Cabriolet Model series: Cabriolet Size of motor: 2.3 Brand of engine: NG Body: Convertible From date: 01-05-1991 To date: 01-07-1994 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Size of motor: 2.2 Brand of engine: KV Body: Coupe From date: 01-11-1988 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Size of motor: 2.3 Brand of engine: NG Body: Coupe From date: 01-05-1990 To date: 01-12-1996 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Size of motor: 2.3 Brand of engine: NG Body: Coupe From date: 01-11-1988 To date: 01-12-1992 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: 20V Size of motor: 2.0 Brand of engine: NM Body: Coupe From date: 01-08-1989 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: 20V Size of motor: 2.2 Brand of engine: RR Body: Coupe From date: 01-08-1989 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: 20V Size of motor: 2.3 Brand of engine: 7A Body: Coupe From date: 01-05-1990 To date: 01-12-1996 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: 20V Size of motor: 2.3 Brand of engine: 7A Body: Coupe From date: 01-11-1988 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: Turbo Size of motor: 2.2 Brand of engine: 1B Body: Coupe From date: 01-08-1987 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: Quattro Type of engine: Turbo Size of motor: 2.2 Brand of engine: MB Body: Coupe From date: 01-08-1987 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Model type: S2 Quattro Size of motor: 2.2 Brand of engine: 3B Body: Coupe From date: 01-09-1990 To date: 01-09-1992 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 2.2 Type description: 89, 8B Body: Coupe From date: 01-11-1988 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 2.3 Brand of engine: NG Body: Coupe From date: 01-03-1990 To date: 01-12-1996 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Size of motor: 2.3 Brand of engine: NG Body: Coupe From date: 01-10-1988 To date: 01-07-1994 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: 20V Size of motor: 2.3 Brand of engine: 7A Body: Coupe From date: 01-08-1989 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Audi Model: Coupe Model series: Coupe Type of engine: 20V Size of motor: 2.3 Brand of engine: 7A Body: Coupe From date: 01-08-1990 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Seat Model: Toledo Model series: Toledo Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Type description: 1l Body: Hatchback From date: 01-05-1991 To date: 01-03-1999 Fuel: Gasoline Approved: Yes Seat Model: Toledo Model series: Toledo Type of engine: 16V Size of motor: 1.8 Brand of engine: PL Type description: 1l Body: Hatchback From date: 01-05-1991 To date: 01-03-1999 Fuel: Gasoline Approved: Yes VW Model: Corrado Model series: Corrado Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Body: Coupe From date: 01-04-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes VW Model: Corrado Model series: Corrado Type of engine: i 16V Size of motor: 2.0 Brand of engine: 9A Body: Coupe From date: 01-08-1991 To date: 01-12-1995 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Model type: GLi Type of engine: 16V Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes VW Model: Jetta Model series: Jetta Model type: GTX Type of engine: 16V Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: CL Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1992 To date: 01-01-1992 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: GL Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: GL Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1991 To date: 01-01-1993 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Body: Estate From date: 01-04-1988 To date: 01-12-1989 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Type of engine: 16V Size of motor: 1.8 Brand of engine: KR From date: 01-04-1988 To date: 01-12-1989 Fuel: Gasoline Approved: Yes 1 / 16
-
