HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032111963

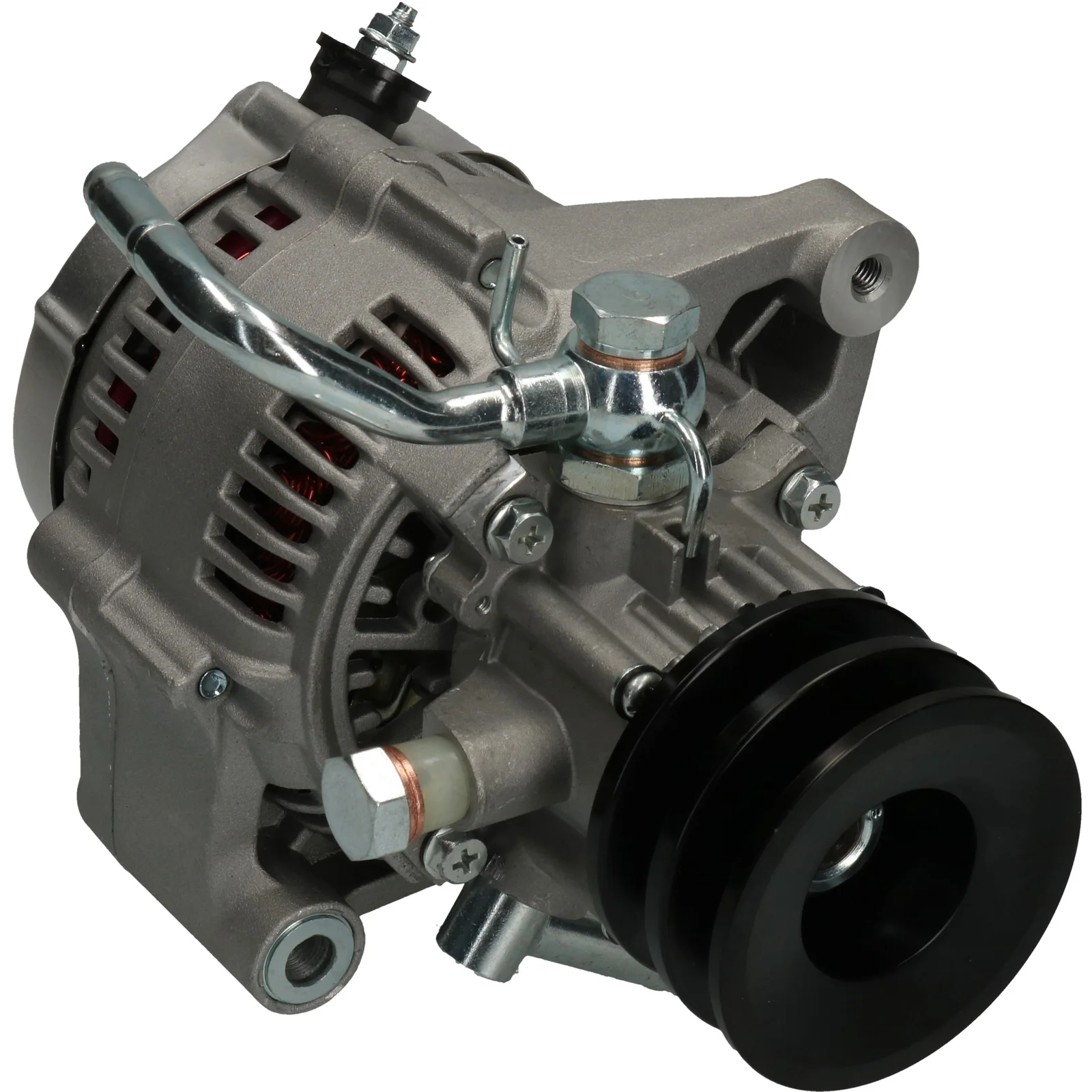

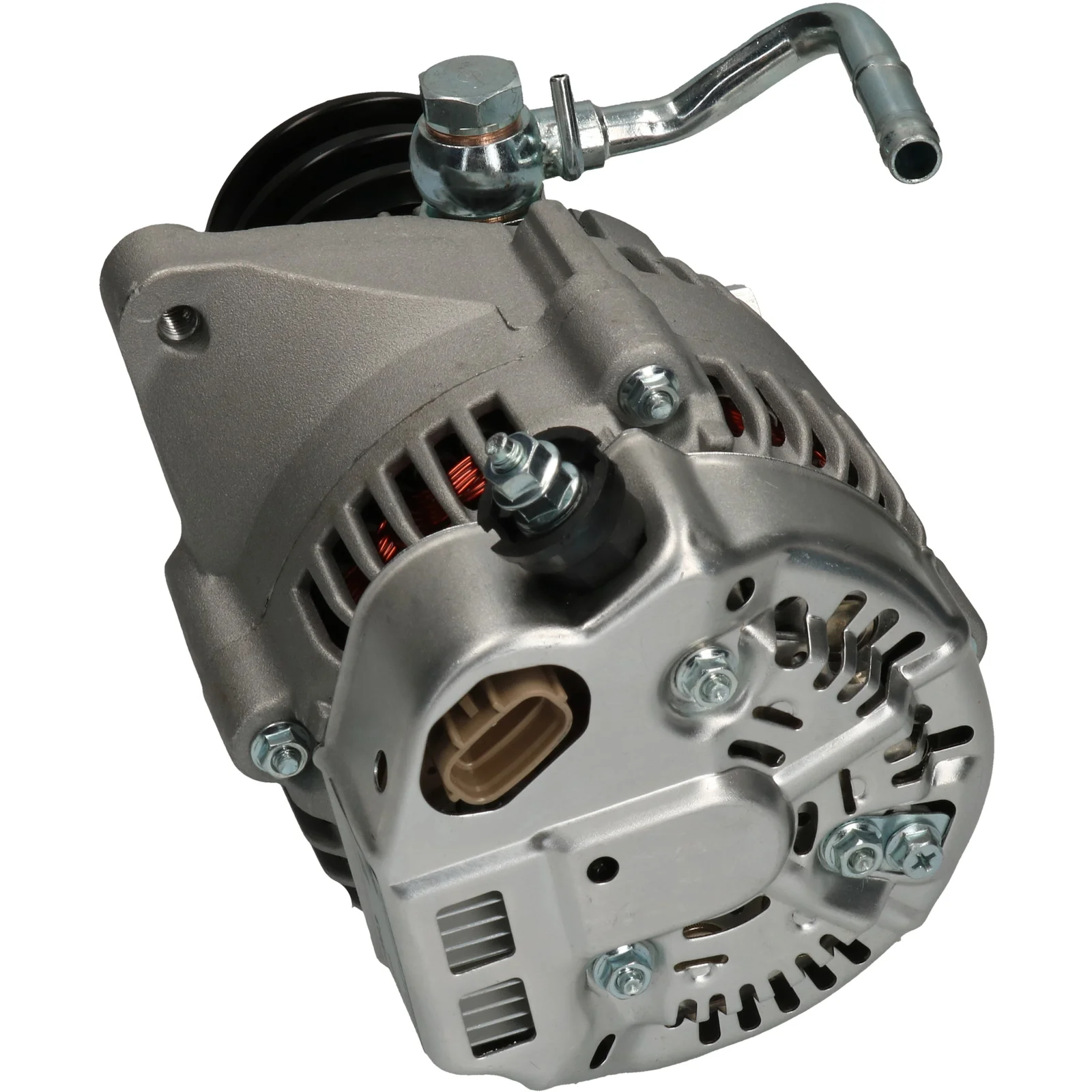

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley dia.: 74.50

Beskrivning

Generator 12V-70A 1995-2001 12V - 70A, 2V, (S, IG, L) För Yourex produkt order 90-555-2350

Voltage: 14
Amp: 70
Pulley dist.: 146.50
Width/holder arm: 70.20
Bracket hole: 10.30
Belt. adj. brackethole pos.: 2
Belt. adj. bracket hole 1: M8
Pulley dia.: 74.50
Grooves/pulley: 2
Radius: 80.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 230.00
Terminal type: L-IG-S
Pulley: DP
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Toyota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 2
Plug no. PL42
Bracket hole 10.30
Position/B+ in min. 5
Prod. info BN
Pulley DP
Pulley dia. 74.50
Pulley dist. 146.50
Radius 80.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 2
Terminal type L-IG-S
Vac. pump Yes
Voltage 14
Total length 230.00 mm
Width/holder arm 70.20
Amp 70

  • OEM
    F032111963, ja1367ir, 0986 049 510, 27040-54280, 27040-54300, 27040-54310, 27040-54370, 27040-54380, 27040-54410, 27040-54440, 27040-54450, 27040-54500, 27040-54580, 27060-54140, 27060-54290, 27060-54330, 100213-1730, 100213-1770, 100213-2240, 100213-2241, 100213-2250, 100213-2350, 100213-2351, 100213-2352, 100213-2400, 100213-2470, 100213-2471, 100213-2480, 100213-2500, 100213-2580, 100213-2920, 111963, 9660218-537

  • Konkurrentreferens
    A6040, ALT-H072, CAL40132, F042A0H072, J5112111, LRA02710, LRB00308, 8EL012428-041, 8el737558-001, 28-2629, 28-2726, 235.155.702, 235.166.702, 6019, 23710N, 119708, 210267, 210267A, 401367RI, 12060768, 0986049510

  • Bilmärken
    Toyota

  • Normaliserat artikelnummer
    a6040, alth072, cal40132, f032111963, f042a0h072, j5112111, ja1367ir, lra02710, lrb00308, 8el012428041, 8el737558001, 6019, 23710n, 111963, 119708, 210267, 210267a, 282629, 282726, 401367ri, 12060768, 235155702, 235166702, 0986049510, 1002131730, 1002131770, 1002132240, 1002132241, 1002132250, 1002132350, 1002132351, 1002132352, 1002132400, 1002132470, 1002132471, 1002132480, 1002132500, 1002132580, 1002132920, 2704054280, 2704054300, 2704054310, 2704054370, 2704054380, 2704054410, 2704054440, 2704054450, 2704054500, 2704054580, 2706054140, 2706054290, 2706054330, 9660218537

  • Passar modeller
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: H18, 22 Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Bus From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Body: Bus From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Body: Pick Up From date: 01-08-1998 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Pickup Model type: 4WD Type of engine: Diesel Size of motor: 3.0 Brand of engine: 5L Type description: _N1_ Body: Pickup From date: 01-10-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
    Toyota Series: Hi Ace IV Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 08.95-08.01
    Toyota Series: Hi Ace IV Model: 2.4 TD 4WD Engine volume: 2.4 Engine type: 2L-T Year: 08.95-08.01
    Toyota Series: Hi Ace IV Model: 2.4 TD Engine volume: 2.4 Engine type: 2L-T Year: 08.95-08.01
    1 / 2
  • Beskrivning
    Generator 12V-70A 1995-2001 12V - 70A, 2V, (S, IG, L) För Yourex produkt order 90-555-2350

    Voltage: 14
    Amp: 70
    Pulley dist.: 146.50
    Width/holder arm: 70.20
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 2
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 74.50
    Grooves/pulley: 2
    Radius: 80.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 230.00
    Terminal type: L-IG-S
    Pulley: DP
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN
    Servicing: Toyota

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 2
    Plug no. PL42
    Bracket hole 10.30
    Position/B+ in min. 5
    Prod. info BN
    Pulley DP
    Pulley dia. 74.50
    Pulley dist. 146.50
    Radius 80.00
    D+ Size Plug
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 2
    Terminal type L-IG-S
    Vac. pump Yes
    Voltage 14
    Total length 230.00 mm
    Width/holder arm 70.20
    Amp 70
  • Fordonsmatchning

    • OEM
      F032111963, ja1367ir, 0986 049 510, 27040-54280, 27040-54300, 27040-54310, 27040-54370, 27040-54380, 27040-54410, 27040-54440, 27040-54450, 27040-54500, 27040-54580, 27060-54140, 27060-54290, 27060-54330, 100213-1730, 100213-1770, 100213-2240, 100213-2241, 100213-2250, 100213-2350, 100213-2351, 100213-2352, 100213-2400, 100213-2470, 100213-2471, 100213-2480, 100213-2500, 100213-2580, 100213-2920, 111963, 9660218-537

    • Konkurrentreferens
      A6040, ALT-H072, CAL40132, F042A0H072, J5112111, LRA02710, LRB00308, 8EL012428-041, 8el737558-001, 28-2629, 28-2726, 235.155.702, 235.166.702, 6019, 23710N, 119708, 210267, 210267A, 401367RI, 12060768, 0986049510

    • Bilmärken
      Toyota

    • Normaliserat artikelnummer
      a6040, alth072, cal40132, f032111963, f042a0h072, j5112111, ja1367ir, lra02710, lrb00308, 8el012428041, 8el737558001, 6019, 23710n, 111963, 119708, 210267, 210267a, 282629, 282726, 401367ri, 12060768, 235155702, 235166702, 0986049510, 1002131730, 1002131770, 1002132240, 1002132241, 1002132250, 1002132350, 1002132351, 1002132352, 1002132400, 1002132470, 1002132471, 1002132480, 1002132500, 1002132580, 1002132920, 2704054280, 2704054300, 2704054310, 2704054370, 2704054380, 2704054410, 2704054440, 2704054450, 2704054500, 2704054580, 2706054140, 2706054290, 2706054330, 9660218537

    • Passar modeller
      Toyota Model: Hiace Model series: Hiace Model type: 4WD Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: H18, 22 Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Bus From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Body: Bus From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Body: Pick Up From date: 01-08-1998 To date: 01-01-2002 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Pickup Model type: 4WD Type of engine: Diesel Size of motor: 3.0 Brand of engine: 5L Type description: _N1_ Body: Pickup From date: 01-10-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
      Toyota Series: Hi Ace IV Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 08.95-08.01
      Toyota Series: Hi Ace IV Model: 2.4 TD 4WD Engine volume: 2.4 Engine type: 2L-T Year: 08.95-08.01
      Toyota Series: Hi Ace IV Model: 2.4 TD Engine volume: 2.4 Engine type: 2L-T Year: 08.95-08.01
