Artikelnr: F032113406

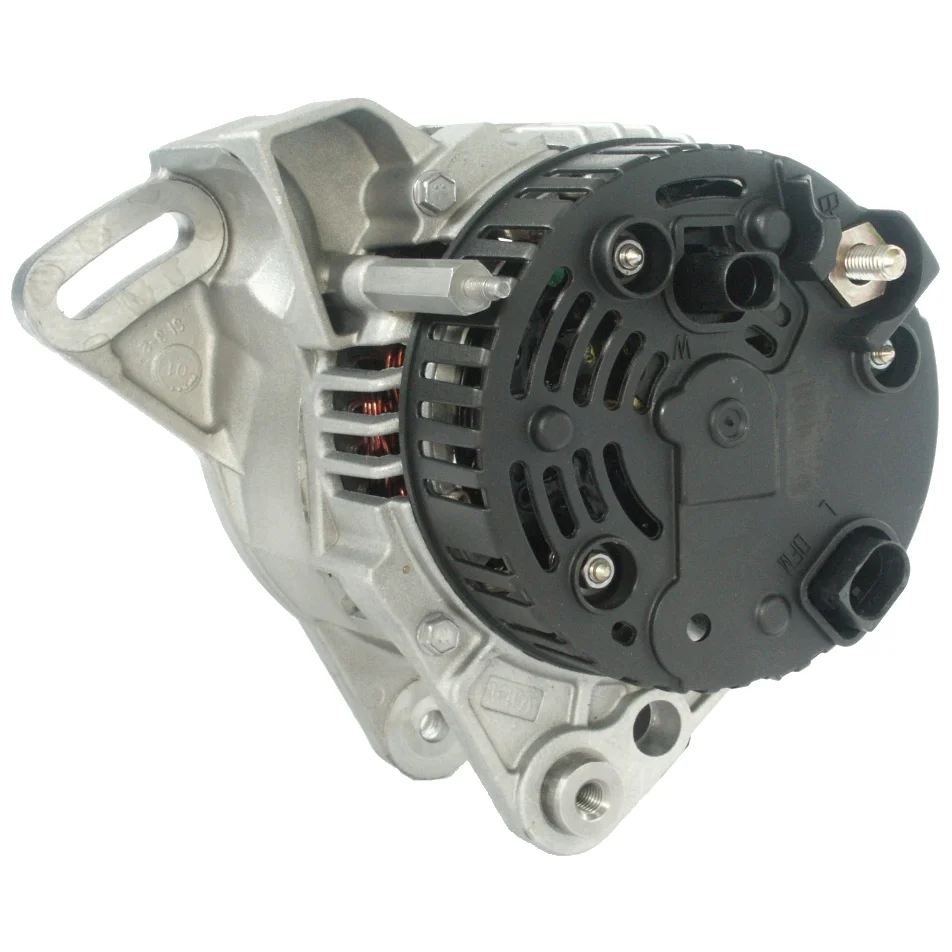

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 61.00

Beskrivning

VW Gen. 12V-90A 12V - 90A, 6gr, (L-DFM), W 12V - 90A, (L-DFM), W För Yourex produkt order 90-620-7172

Voltage: 14
Amp: 90
Terminal: W
Pulley dist.: 39.50
Width/holder arm: 14.00
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 14
Belt. adj. bracket hole 1: 9.50x38.50
Pulley dia.: 49.80
Grooves/pulley: 6
Radius: 90.00
B+: M8
Position/B+ in min.: 59
D+ Size: Plug
Rotation: CW
Plug no.: PL61
W plug type: Plug
Total length mm: 187.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: VW

Filer

Specifikation

B+ M8
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 9.50x38.50
Belt. adj. brackethole pos. 14
Plug no. PL61
Bracket hole 8.50
Position/B+ in min. 59
Prod. info BN
Pulley SP
Pulley dia. 49.80
Pulley dist. 39.50
Radius 90.00
D+ Size Plug
Regulator type IR
Rotation CW
Servicing VW
Grooves/pulley 6
Terminal W
Voltage 14
W plug type Plug
Total length 187.00 mm
Width/holder arm 14.00
Amp 90

  • OEM
    A13VI 241, a13vi241, F032113406, 028 903 029M, 1750ir, 113406, 437172, 439258, 2542294, 2542294A, 028903029m, 028903029MX

  • Konkurrentreferens
    A3083, ALT-H137, ALT14045, CAL15306, DRA4067, DRA9010, F042A0H137, LRA01819, S0692S, 8EL012428-341, 8EL738122-001, 28-3639, 211.188.902, 9418, 22819R, 111160, 200146, 210795, 210795A, 301750RI, 437172, 439258, 746061, 746861, 12090023, 32437172, 0986049640, 943355204010, 944390901090

  • Bilmärken
    VW, VW Trucks & Vans

  • Normaliserat artikelnummer
    a13vi241, a3083, alt14045, alth137, cal15306, dra4067, dra9010, f032113406, f042a0h137, lra01819, s0692s, 8el012428341, 8el738122001, 1750ir, 9418, 22819r, 111160, 113406, 200146, 210795, 210795a, 283639, 301750ri, 437172, 439258, 746061, 746861, 2542294, 2542294a, 12090023, 028903029m, 028903029mx, 32437172, 211188902, 0986049640, 943355204010, 944390901090

  • Passar modeller
    VW Model: California Model series: California T4 Camper Model type: TD Type of engine: TD Size of motor: 1.9 Brand of engine: ABL Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-07-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Bus From date: 01-09-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Platform / Chassis From date: 01-07-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Van From date: 01-07-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TD Size of motor: 1.9 Brand of engine: ABL Body: Bus From date: 01-10-1992 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TD Size of motor: 1.9 Brand of engine: ABL Body: Platform / Chassis From date: 01-10-1992 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TD Size of motor: 1.9 Brand of engine: ABL Body: Van From date: 01-10-1992 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Series: Golf IV Model: 1.9 SDI Engine volume: 1.9 Engine type: AGP / AQM Year: 10.97-
    VW Trucks & Vans Series: Transporter IV Buss Model: 1.9 D Turbo Obs! Ch.nr.! Engine volume: 1.9 Engine type: ABL (350W) Year: 10.92-04.03
    VW Trucks & Vans Series: Transporter IV Model: 2.0 Engine volume: 2.0 Engine type: AAC Year: 01.99-
    VW Trucks & Vans Series: Transporter IV Flak Model: 1.9 TD Ch.nr:70-X-075 001--> Engine volume: 1.9 TD Engine type: ABL Year: 11.98-04.03
    1 / 3
  • Beskrivning
    VW Gen. 12V-90A 12V - 90A, 6gr, (L-DFM), W 12V - 90A, (L-DFM), W För Yourex produkt order 90-620-7172

    Voltage: 14
    Amp: 90
    Terminal: W
    Pulley dist.: 39.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 14
    Belt. adj. bracket hole 1: 9.50x38.50
    Pulley dia.: 49.80
    Grooves/pulley: 6
    Radius: 90.00
    B+: M8
    Position/B+ in min.: 59
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    W plug type: Plug
    Total length mm: 187.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: VW

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 9.50x38.50
    Belt. adj. brackethole pos. 14
    Plug no. PL61
    Bracket hole 8.50
    Position/B+ in min. 59
    Prod. info BN
    Pulley SP
    Pulley dia. 49.80
    Pulley dist. 39.50
    Radius 90.00
    D+ Size Plug
    Regulator type IR
    Rotation CW
    Servicing VW
    Grooves/pulley 6
    Terminal W
    Voltage 14
    W plug type Plug
    Total length 187.00 mm
    Width/holder arm 14.00
    Amp 90
  • Fordonsmatchning

    • OEM
      A13VI 241, a13vi241, F032113406, 028 903 029M, 1750ir, 113406, 437172, 439258, 2542294, 2542294A, 028903029m, 028903029MX

    • Konkurrentreferens
      A3083, ALT-H137, ALT14045, CAL15306, DRA4067, DRA9010, F042A0H137, LRA01819, S0692S, 8EL012428-341, 8EL738122-001, 28-3639, 211.188.902, 9418, 22819R, 111160, 200146, 210795, 210795A, 301750RI, 437172, 439258, 746061, 746861, 12090023, 32437172, 0986049640, 943355204010, 944390901090

    • Bilmärken
      VW, VW Trucks & Vans

    • Normaliserat artikelnummer
      a13vi241, a3083, alt14045, alth137, cal15306, dra4067, dra9010, f032113406, f042a0h137, lra01819, s0692s, 8el012428341, 8el738122001, 1750ir, 9418, 22819r, 111160, 113406, 200146, 210795, 210795a, 283639, 301750ri, 437172, 439258, 746061, 746861, 2542294, 2542294a, 12090023, 028903029m, 028903029mx, 32437172, 211188902, 0986049640, 943355204010, 944390901090

    • Passar modeller
      VW Model: California Model series: California T4 Camper Model type: TD Type of engine: TD Size of motor: 1.9 Brand of engine: ABL Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-07-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Bus From date: 01-09-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Platform / Chassis From date: 01-07-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Van From date: 01-07-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TD Size of motor: 1.9 Brand of engine: ABL Body: Bus From date: 01-10-1992 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TD Size of motor: 1.9 Brand of engine: ABL Body: Platform / Chassis From date: 01-10-1992 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TD Size of motor: 1.9 Brand of engine: ABL Body: Van From date: 01-10-1992 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      VW Series: Golf IV Model: 1.9 SDI Engine volume: 1.9 Engine type: AGP / AQM Year: 10.97-
      VW Trucks & Vans Series: Transporter IV Buss Model: 1.9 D Turbo Obs! Ch.nr.! Engine volume: 1.9 Engine type: ABL (350W) Year: 10.92-04.03
      VW Trucks & Vans Series: Transporter IV Model: 2.0 Engine volume: 2.0 Engine type: AAC Year: 01.99-
      VW Trucks & Vans Series: Transporter IV Flak Model: 1.9 TD Ch.nr:70-X-075 001--> Engine volume: 1.9 TD Engine type: ABL Year: 11.98-04.03
