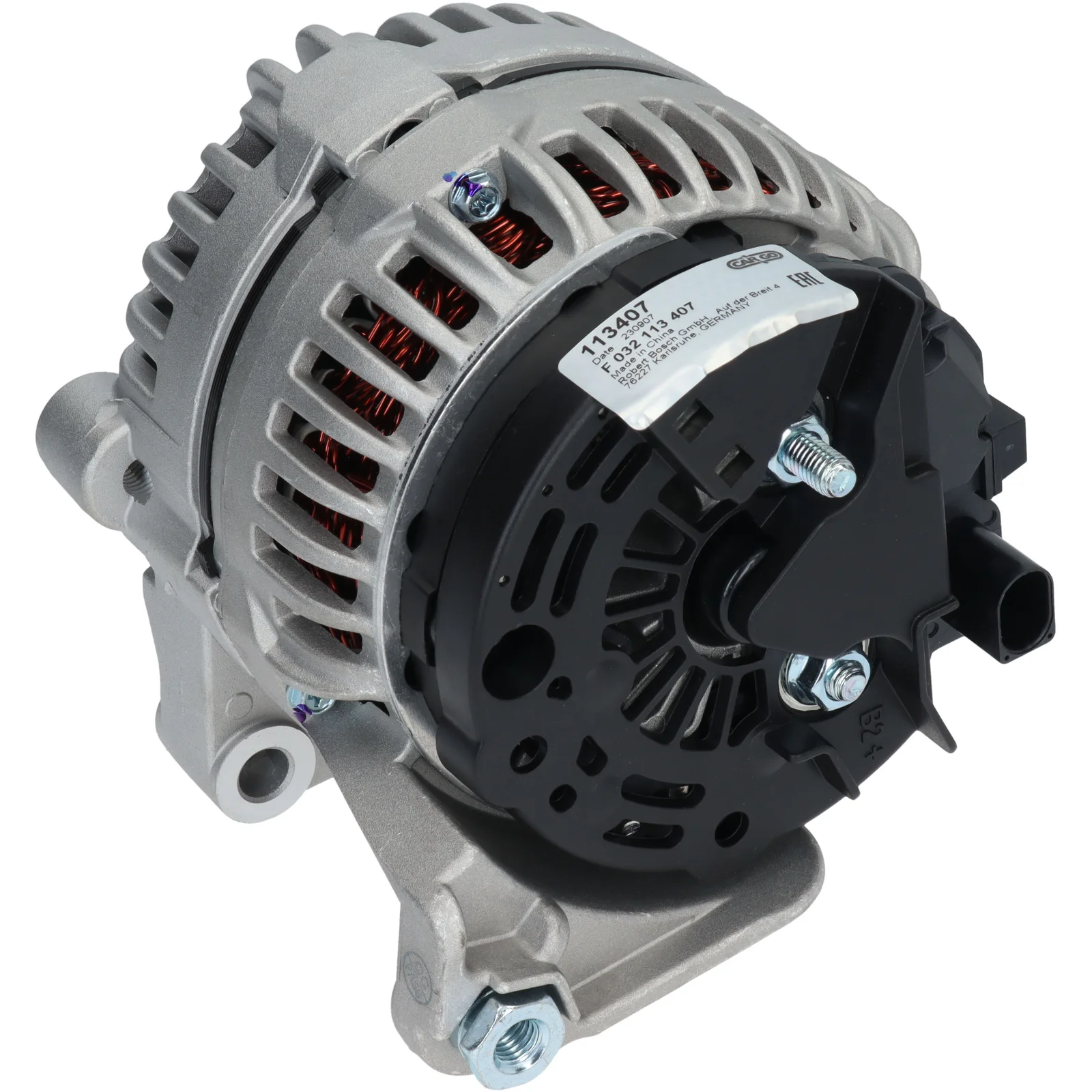

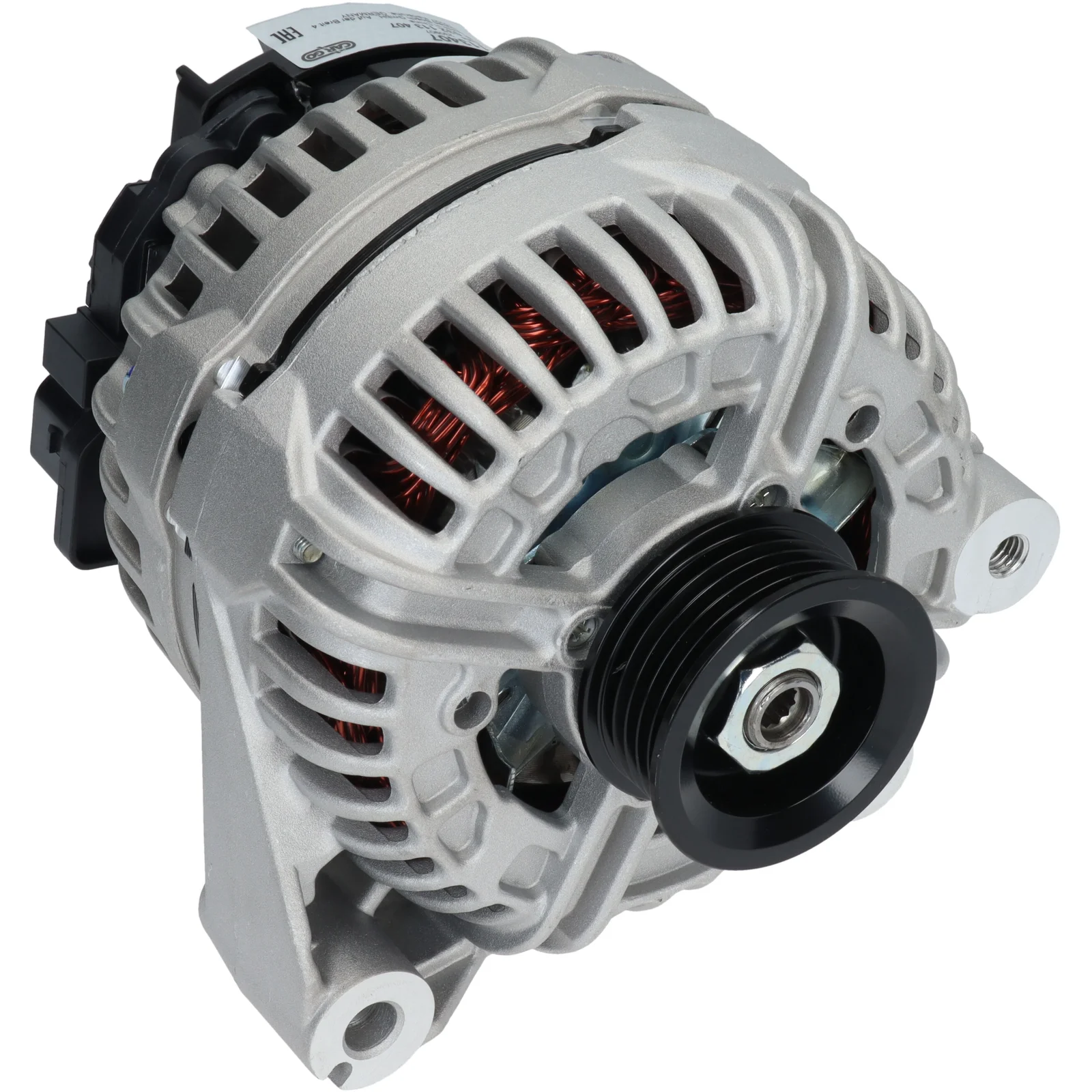

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113407

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 75.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 61.00
Width/holder arm: 28.00
Mount. bracket dist.: 75.00
Bracket hole: 10.60
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 10.40
Pulley dia.: 53.40
Grooves/pulley: 5
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 55
D+ Size: Plug
Rotation: CW
Plug no.: PL103
Total length mm: 192.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: BMW

Filer

Specifikation

B+ M8
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 10.40
Belt. adj. brackethole pos. 45
Plug no. PL103
Bracket hole 10.60
Position/B+ in min. 55
Prod. info BN
Pulley SP
Pulley dia. 53.40
Pulley dist. 61.00
Radius 93.00
D+ Size Plug
Radius 2 93.00
Regulator type IR
Rotation CW
Servicing BMW
Grooves/pulley 5
Voltage 14
Total length 192.00 mm
Width/holder arm 28.00
Amp 150

  • OEM
    A14VI26, A14VI34, A14VI45, a14vi46, A14VI47, F032113407, YLE000070, 1756ir, 1986A01185, 2249966, 2542343, 2542343A, 2542343B, 2542538, 2542538A, 2542538C, 2542602, 2542602A, 2542602C, 2542605, 2542605C, 7787346, 7788222, 7788223, 7788247, 12312249966, 12312249969, 12317787346, 12317788222, 12317788223, 12317788247, 12317788248

  • Konkurrentreferens
    A3087, A3393S, A3528S, ALT14006, CAL15161, DRA0009, DRA3808, DRA3808X, LEA0455, LRA01970, 8EL011360-901, 8EL011710-721, 28-3870, 215.141.1502, 215.157.1502, 455.507.120, 4776, 4777, 4831, 22968R, 23259R, 111607, 111615, 111719, 119037, 200032, 200235, 210260, 210260A, 210736, 210736A, 301756RI, 437309, 437410, 437417, 439305, 439450, 746121, 746921, 747054, 839058, 839080, 9090390, 12045250, 12090252, 32045251, 0986044840, 0986045251, 0986048601, 944390901510, 944390903900

  • Normaliserat artikelnummer
    a14vi26, a14vi34, a14vi45, a14vi46, a14vi47, a3087, a3393s, a3528s, alt14006, cal15161, dra0009, dra3808, dra3808x, f032113407, lea0455, lra01970, yle000070, 8el011360901, 8el011710721, 1756ir, 1986a01185, 4776, 4777, 4831, 22968r, 23259r, 111607, 111615, 111719, 119037, 200032, 200235, 210260, 210260a, 210736, 210736a, 283870, 301756ri, 437309, 437410, 437417, 439305, 439450, 746121, 746921, 747054, 839058, 839080, 2249966, 2542343, 2542343a, 2542343b, 2542538, 2542538a, 2542538c, 2542602, 2542602a, 2542602c, 2542605, 2542605c, 7787346, 7788222, 7788223, 7788247, 9090390, 12045250, 12090252, 32045251, 455507120, 0986044840, 0986045251, 0986048601, 2151411502, 2151571502, 12312249966, 12312249969, 12317787346, 12317788222, 12317788223, 12317788247, 12317788248, 944390901510, 944390903900

  • Passar modeller
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 Body: Estate From date: 01-10-2002 To date: 01-03-2003 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 From date: 01-09-2001 To date: 01-03-2003 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 Body: Estate From date: 01-10-2002 To date: 01-03-2003 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 From date: 01-09-2001 To date: 01-03-2003 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 From date: 01-02-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 From date: 01-04-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20(204D4) Type description: E46 From date: 01-09-2001 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: TD Size of motor: 2.0 Brand of engine: M47D20 (204D4) Type description: E46 Body: Hatchback From date: 01-09-2001 To date: 01-02-2005 Fuel: Diesel Approved: Yes Manufacture type: Compact
    BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 Type description: E46 Body: Estate From date: 01-01-2000 To date: 01-03-2003 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 Type description: E46 From date: 01-01-2000 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E46 Body: Estate From date: 01-10-1999 To date: 01-02-2005 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E46 From date: 01-10-1999 To date: 01-02-2005 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 Type description: E46 Body: Estate From date: 01-10-1999 To date: 01-02-2005 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 Type description: E46 From date: 01-10-1999 To date: 01-02-2005 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 61.00
    Width/holder arm: 28.00
    Mount. bracket dist.: 75.00
    Bracket hole: 10.60
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 10.40
    Pulley dia.: 53.40
    Grooves/pulley: 5
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 55
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL103
    Total length mm: 192.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: BMW

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 75.00
    Belt. adj. bracket hole 1 10.40
    Belt. adj. brackethole pos. 45
    Plug no. PL103
    Bracket hole 10.60
    Position/B+ in min. 55
    Prod. info BN
    Pulley SP
    Pulley dia. 53.40
    Pulley dist. 61.00
    Radius 93.00
    D+ Size Plug
    Radius 2 93.00
    Regulator type IR
    Rotation CW
    Servicing BMW
    Grooves/pulley 5
    Voltage 14
    Total length 192.00 mm
    Width/holder arm 28.00
    Amp 150
  • Fordonsmatchning

    • OEM
      A14VI26, A14VI34, A14VI45, a14vi46, A14VI47, F032113407, YLE000070, 1756ir, 1986A01185, 2249966, 2542343, 2542343A, 2542343B, 2542538, 2542538A, 2542538C, 2542602, 2542602A, 2542602C, 2542605, 2542605C, 7787346, 7788222, 7788223, 7788247, 12312249966, 12312249969, 12317787346, 12317788222, 12317788223, 12317788247, 12317788248

    • Konkurrentreferens
      A3087, A3393S, A3528S, ALT14006, CAL15161, DRA0009, DRA3808, DRA3808X, LEA0455, LRA01970, 8EL011360-901, 8EL011710-721, 28-3870, 215.141.1502, 215.157.1502, 455.507.120, 4776, 4777, 4831, 22968R, 23259R, 111607, 111615, 111719, 119037, 200032, 200235, 210260, 210260A, 210736, 210736A, 301756RI, 437309, 437410, 437417, 439305, 439450, 746121, 746921, 747054, 839058, 839080, 9090390, 12045250, 12090252, 32045251, 0986044840, 0986045251, 0986048601, 944390901510, 944390903900

    • Normaliserat artikelnummer
      a14vi26, a14vi34, a14vi45, a14vi46, a14vi47, a3087, a3393s, a3528s, alt14006, cal15161, dra0009, dra3808, dra3808x, f032113407, lea0455, lra01970, yle000070, 8el011360901, 8el011710721, 1756ir, 1986a01185, 4776, 4777, 4831, 22968r, 23259r, 111607, 111615, 111719, 119037, 200032, 200235, 210260, 210260a, 210736, 210736a, 283870, 301756ri, 437309, 437410, 437417, 439305, 439450, 746121, 746921, 747054, 839058, 839080, 2249966, 2542343, 2542343a, 2542343b, 2542538, 2542538a, 2542538c, 2542602, 2542602a, 2542602c, 2542605, 2542605c, 7787346, 7788222, 7788223, 7788247, 9090390, 12045250, 12090252, 32045251, 455507120, 0986044840, 0986045251, 0986048601, 2151411502, 2151571502, 12312249966, 12312249969, 12317787346, 12317788222, 12317788223, 12317788247, 12317788248, 944390901510, 944390903900

    • Passar modeller
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 Body: Estate From date: 01-10-2002 To date: 01-03-2003 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 From date: 01-09-2001 To date: 01-03-2003 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 Body: Estate From date: 01-10-2002 To date: 01-03-2003 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 From date: 01-09-2001 To date: 01-03-2003 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 From date: 01-02-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 From date: 01-04-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20(204D4) Type description: E46 From date: 01-09-2001 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Type of engine: TD Size of motor: 2.0 Brand of engine: M47D20 (204D4) Type description: E46 Body: Hatchback From date: 01-09-2001 To date: 01-02-2005 Fuel: Diesel Approved: Yes Manufacture type: Compact
      BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 Type description: E46 Body: Estate From date: 01-01-2000 To date: 01-03-2003 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 Type description: E46 From date: 01-01-2000 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E46 Body: Estate From date: 01-10-1999 To date: 01-02-2005 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E46 From date: 01-10-1999 To date: 01-02-2005 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 Type description: E46 Body: Estate From date: 01-10-1999 To date: 01-02-2005 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 Type description: E46 From date: 01-10-1999 To date: 01-02-2005 Fuel: Diesel Approved: Yes
