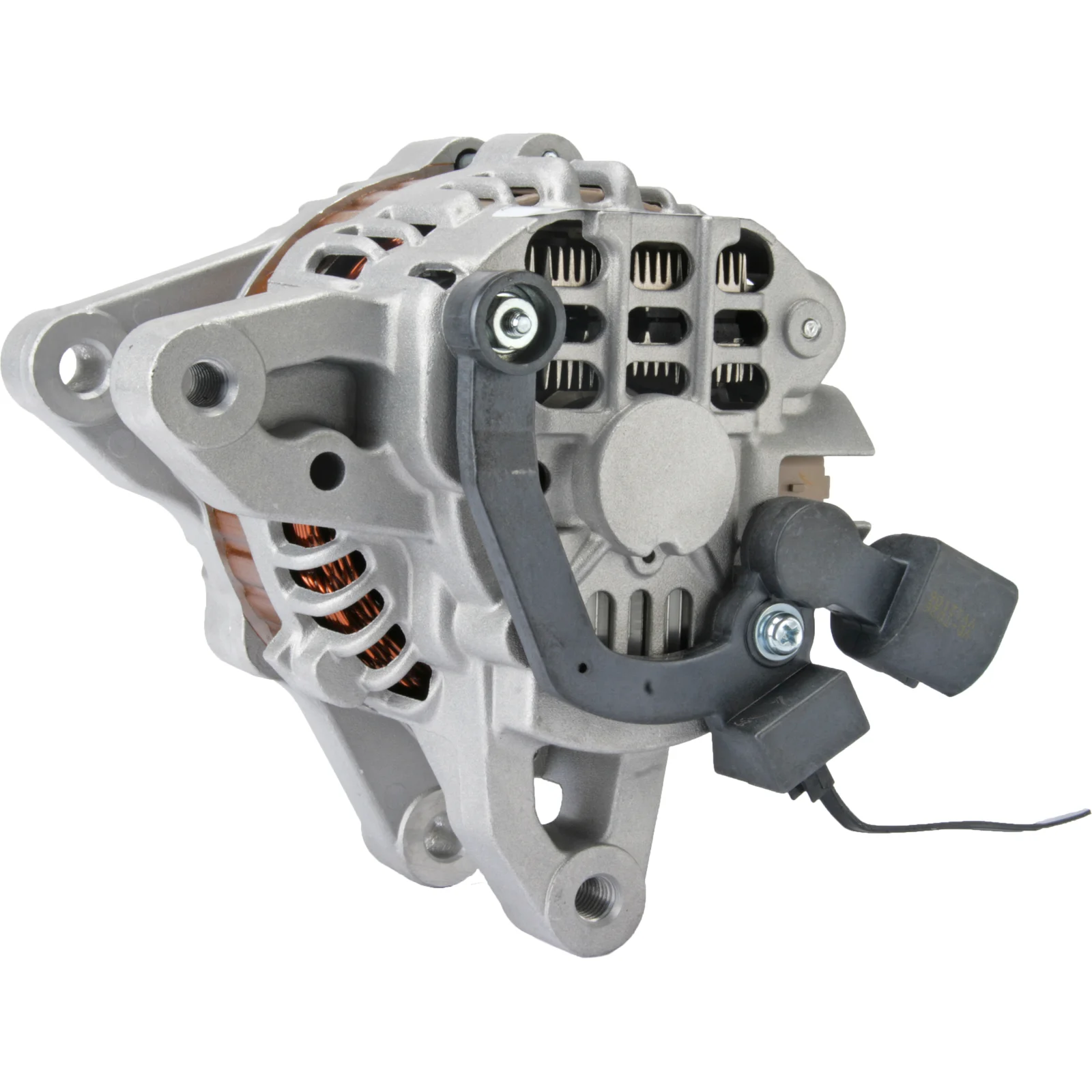

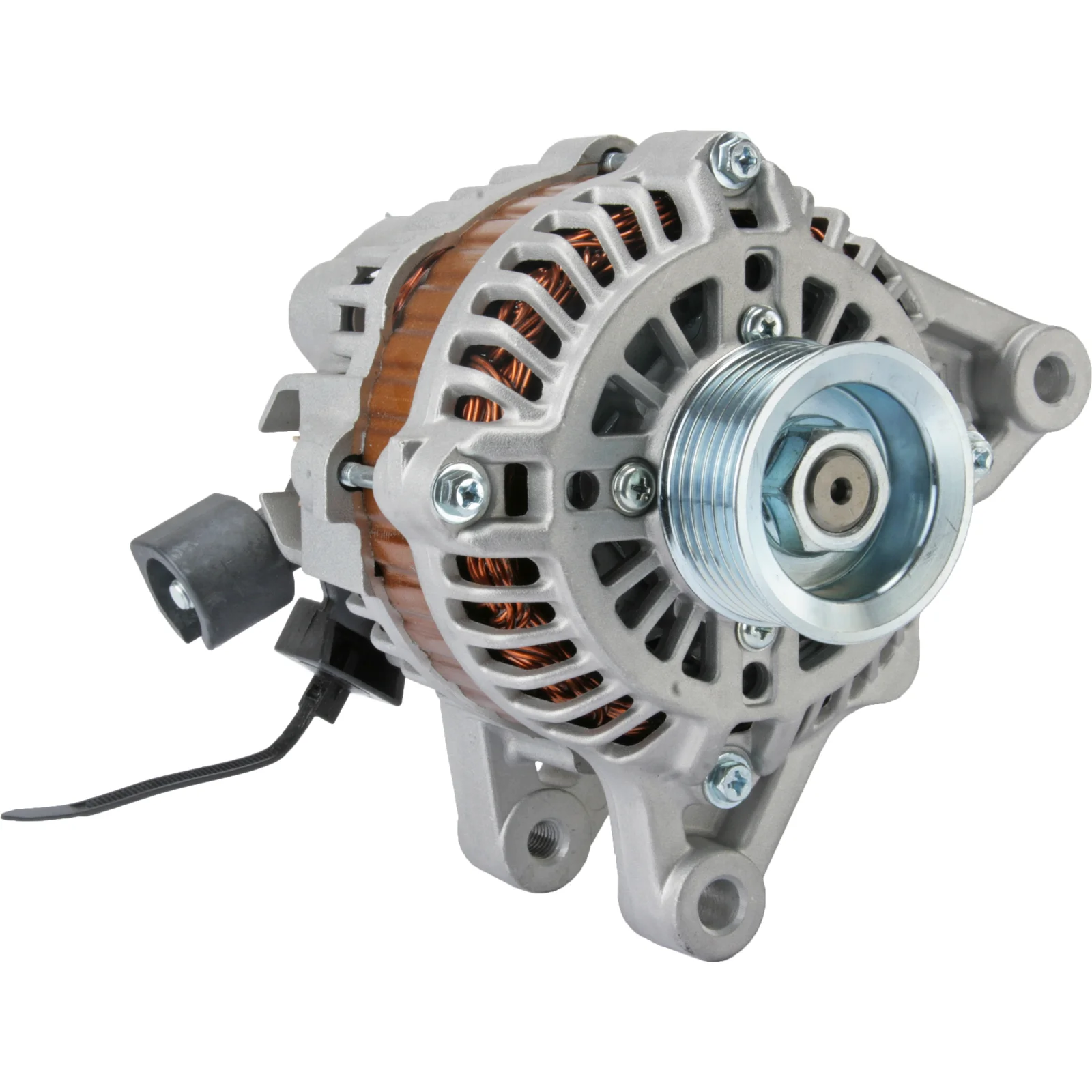

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114707

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 45.50

Beskrivning

Voltage: 14
Amp: 80
Pulley dist.: 42.50
Width/holder arm: 22.00
Mount. bracket dist.: 45.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 10.20
Pulley dia.: 50.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL129
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 45.50
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 47
Plug no. PL129
Bracket hole 10.50
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 50.00
Pulley dist. 42.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Width/holder arm 22.00
Amp 80

  • OEM
    A005TG0192, A005TG0192A, A005TG0192B, A005TG1392, A005TG1392A, A005TG1392B, A5TG0192, A5TG0192A, A5TG0192B, a5tg1392, A5TG1392A, A5TG1392B, A5TG192B, F032114707, 2110ir, 9651927480, 9660055080, 9666030280

  • Konkurrentreferens
    A3032, A5108, A5108PR, A5280, DRA0726, LRA03252, 8EL011360-921, 8EL011360-931, 8EL015630-051, 28-5864, 28-5981, 87EL011710-651, 225.559.080, 225.568.080, 229.149.802, 5702g0, 5702g1, 5705CW, 5705EG, 20574N, 111744, 118453, 209386, 209386A, 210545, 210545A, 210864, 210864A, 440881, 443282, 554341RI, 9213709, 0986082740

  • Normaliserat artikelnummer
    a005tg0192, a005tg0192a, a005tg0192b, a005tg1392, a005tg1392a, a005tg1392b, a3032, a5108, a5108pr, a5280, a5tg0192, a5tg0192a, a5tg0192b, a5tg1392, a5tg1392a, a5tg1392b, a5tg192b, dra0726, f032114707, lra03252, 8el011360921, 8el011360931, 8el015630051, 87el011710651, 2110ir, 5702g0, 5702g1, 5705cw, 5705eg, 20574n, 111744, 118453, 209386, 209386a, 210545, 210545a, 210864, 210864a, 285864, 285981, 440881, 443282, 554341ri, 9213709, 225559080, 225568080, 229149802, 0986082740, 9651927480, 9660055080, 9666030280

  • Passar modeller
    Citroen Model: C2 Model series: C2 Model type: Enterprise Size of motor: 1.1 Brand of engine: HFX (TU1JP) Type description: JG_ Body: Box From date: 01-11-2003 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Citroen Model: C2 Model series: C2 Size of motor: 1.1 Brand of engine: HFX (TU1JP) Type description: JM_ Body: Hatchback From date: 01-09-2003 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Citroen Model: C2 Model series: C2 Size of motor: 1.4 Brand of engine: KFV (TU3JP) Type description: JM_ Body: Hatchback From date: 01-09-2003 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: LPG Size of motor: 1.1 Brand of engine: HFX (TU1A) Type description: FC_, FN_ Body: Hatchback From date: 01-06-2006 To date: 01-12-2009 Fuel: Petrol/Liquified Pet Approved: Yes
    Citroen Model: C3 Model series: C3 Pluriel Size of motor: 1.4 Brand of engine: KFV (TU3A) Body: Convertible From date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Size of motor: 1.1 Brand of engine: HFV (TU1JP) Body: Hatchback From date: 01-11-2009 To date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Size of motor: 1.4 Brand of engine: KFT (TU3A) Type description: A51 Body: Hatchback From date: 01-11-2009 To date: 01-09-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Size of motor: 1.4 Brand of engine: KFV (TU3A) Type description: A51 Body: Hatchback From date: 01-11-2009 To date: 01-09-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Size of motor: 1.4 Brand of engine: KFV (TU3JP) Type description: HB_ Body: Convertible From date: 01-05-2003 Fuel: Gasoline Approved: Yes Manufacture type: PLURIEL
    Citroen Model: C3 Model series: C3 Type of engine: Flexfuel Size of motor: 1.1 Brand of engine: HFX (TU1A) Body: Hatchback From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Citroen Model: C3 Model series: C3 Type of engine: i Bivalent Size of motor: 1.4 Brand of engine: KFV (TU3JP) Type description: FC_ Body: Hatchback From date: 01-02-2002 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Type of engine: i Size of motor: 1.1 Brand of engine: HFX (TU1JP) Type description: FC_ Body: Hatchback From date: 01-02-2002 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Type of engine: i Size of motor: 1.4 Brand of engine: KFV (TU3A) Type description: FC_ Body: Hatchback From date: 01-02-2002 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Type of engine: i Size of motor: 1.4 Brand of engine: KFV (TU3JP) Type description: FC_ Body: Hatchback From date: 01-02-2002 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Type of engine: LPG Size of motor: 1.4 Brand of engine: KFT (TU3A) Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Dongfeng Citroen Model: C2 Model series: C2 Size of motor: 1.4 Brand of engine: TU3AF Body: Hatchback From date: 01-10-2006 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Peugeot Model: 1007 Model series: 1007 Size of motor: 1.4 Brand of engine: KFV (TU3JP) Type description: KM_ Body: Hatchback From date: 01-04-2005 Fuel: Gasoline Approved: Yes
    Peugeot Model: 207 Model series: 207 Size of motor: 1.4 Brand of engine: KFV (TU3A) Type description: WA_, WC_ Body: Hatchback From date: 01-02-2006 To date: 01-10-2013 Fuel: Gasoline Approved: Yes
    Peugeot Model: 207 Model series: 207 Size of motor: 1.4 Brand of engine: KFV (TU3A) Type description: WA_, WC_ Body: Hatchback From date: 01-04-2006 To date: 01-10-2013 Fuel: Gasoline Approved: Yes
    Peugeot Model: 207 Model series: 207 Size of motor: 1.4 Brand of engine: KFV (TU3A) Type description: WK_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes Manufacture type: SW
    Peugeot Model: 207 Model series: 207 Size of motor: 1.4 Brand of engine: KFV(TU3A) From date: 01-12-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Peugeot Model: 207 Model series: 207 Size of motor: 1.4 Brand of engine: KFW (TU3A) Type description: WA_, WC_ Body: Hatchback From date: 01-08-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Peugeot Model: 207 Model series: 207 SW Type of engine: LPG Size of motor: 1.4 Brand of engine: KFT (TU3A) Type description: WK_ Body: Estate From date: 01-08-2007 To date: 01-12-2012 Fuel: Electric/Gasoline Approved: Yes Manufacture type: Estate
    Peugeot Model: 207 Model series: 207 SW Type of engine: LPG Size of motor: 1.4 Brand of engine: KFV (TU3JP) Type description: WK_ Body: Estate From date: 01-08-2007 To date: 01-12-2012 Fuel: Electric/Gasoline Approved: Yes Manufacture type: Estate
    Peugeot Model: 207/207+ Model series: 207/207+ Type of engine: Bifuel Size of motor: 1.4 Brand of engine: KFV (TU3A) Type description: WA_, WC_ Body: Hatchback From date: 01-08-2007 To date: 01-12-2013 Fuel: Petrol/Electro Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 14
    Amp: 80
    Pulley dist.: 42.50
    Width/holder arm: 22.00
    Mount. bracket dist.: 45.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 47
    Belt. adj. bracket hole 1: 10.20
    Pulley dia.: 50.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 5
    Rotation: CW
    Plug no.: PL129
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 45.50
    Belt. adj. bracket hole 1 10.20
    Belt. adj. brackethole pos. 47
    Plug no. PL129
    Bracket hole 10.50
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 42.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Width/holder arm 22.00
    Amp 80
  • Fordonsmatchning

    • OEM
      A005TG0192, A005TG0192A, A005TG0192B, A005TG1392, A005TG1392A, A005TG1392B, A5TG0192, A5TG0192A, A5TG0192B, a5tg1392, A5TG1392A, A5TG1392B, A5TG192B, F032114707, 2110ir, 9651927480, 9660055080, 9666030280

    • Konkurrentreferens
      A3032, A5108, A5108PR, A5280, DRA0726, LRA03252, 8EL011360-921, 8EL011360-931, 8EL015630-051, 28-5864, 28-5981, 87EL011710-651, 225.559.080, 225.568.080, 229.149.802, 5702g0, 5702g1, 5705CW, 5705EG, 20574N, 111744, 118453, 209386, 209386A, 210545, 210545A, 210864, 210864A, 440881, 443282, 554341RI, 9213709, 0986082740

    • Normaliserat artikelnummer
      a005tg0192, a005tg0192a, a005tg0192b, a005tg1392, a005tg1392a, a005tg1392b, a3032, a5108, a5108pr, a5280, a5tg0192, a5tg0192a, a5tg0192b, a5tg1392, a5tg1392a, a5tg1392b, a5tg192b, dra0726, f032114707, lra03252, 8el011360921, 8el011360931, 8el015630051, 87el011710651, 2110ir, 5702g0, 5702g1, 5705cw, 5705eg, 20574n, 111744, 118453, 209386, 209386a, 210545, 210545a, 210864, 210864a, 285864, 285981, 440881, 443282, 554341ri, 9213709, 225559080, 225568080, 229149802, 0986082740, 9651927480, 9660055080, 9666030280

    • Passar modeller
      Citroen Model: C2 Model series: C2 Model type: Enterprise Size of motor: 1.1 Brand of engine: HFX (TU1JP) Type description: JG_ Body: Box From date: 01-11-2003 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
      Citroen Model: C2 Model series: C2 Size of motor: 1.1 Brand of engine: HFX (TU1JP) Type description: JM_ Body: Hatchback From date: 01-09-2003 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Citroen Model: C2 Model series: C2 Size of motor: 1.4 Brand of engine: KFV (TU3JP) Type description: JM_ Body: Hatchback From date: 01-09-2003 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Model type: LPG Size of motor: 1.1 Brand of engine: HFX (TU1A) Type description: FC_, FN_ Body: Hatchback From date: 01-06-2006 To date: 01-12-2009 Fuel: Petrol/Liquified Pet Approved: Yes
      Citroen Model: C3 Model series: C3 Pluriel Size of motor: 1.4 Brand of engine: KFV (TU3A) Body: Convertible From date: 01-07-2003 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Size of motor: 1.1 Brand of engine: HFV (TU1JP) Body: Hatchback From date: 01-11-2009 To date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Size of motor: 1.4 Brand of engine: KFT (TU3A) Type description: A51 Body: Hatchback From date: 01-11-2009 To date: 01-09-2016 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Size of motor: 1.4 Brand of engine: KFV (TU3A) Type description: A51 Body: Hatchback From date: 01-11-2009 To date: 01-09-2016 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Size of motor: 1.4 Brand of engine: KFV (TU3JP) Type description: HB_ Body: Convertible From date: 01-05-2003 Fuel: Gasoline Approved: Yes Manufacture type: PLURIEL
      Citroen Model: C3 Model series: C3 Type of engine: Flexfuel Size of motor: 1.1 Brand of engine: HFX (TU1A) Body: Hatchback From date: 01-11-2010 Fuel: Diesel Approved: Yes
      Citroen Model: C3 Model series: C3 Type of engine: i Bivalent Size of motor: 1.4 Brand of engine: KFV (TU3JP) Type description: FC_ Body: Hatchback From date: 01-02-2002 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Type of engine: i Size of motor: 1.1 Brand of engine: HFX (TU1JP) Type description: FC_ Body: Hatchback From date: 01-02-2002 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Type of engine: i Size of motor: 1.4 Brand of engine: KFV (TU3A) Type description: FC_ Body: Hatchback From date: 01-02-2002 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Type of engine: i Size of motor: 1.4 Brand of engine: KFV (TU3JP) Type description: FC_ Body: Hatchback From date: 01-02-2002 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
      Citroen Model: C3 Model series: C3 Type of engine: LPG Size of motor: 1.4 Brand of engine: KFT (TU3A) Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Dongfeng Citroen Model: C2 Model series: C2 Size of motor: 1.4 Brand of engine: TU3AF Body: Hatchback From date: 01-10-2006 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Peugeot Model: 1007 Model series: 1007 Size of motor: 1.4 Brand of engine: KFV (TU3JP) Type description: KM_ Body: Hatchback From date: 01-04-2005 Fuel: Gasoline Approved: Yes
      Peugeot Model: 207 Model series: 207 Size of motor: 1.4 Brand of engine: KFV (TU3A) Type description: WA_, WC_ Body: Hatchback From date: 01-02-2006 To date: 01-10-2013 Fuel: Gasoline Approved: Yes
      Peugeot Model: 207 Model series: 207 Size of motor: 1.4 Brand of engine: KFV (TU3A) Type description: WA_, WC_ Body: Hatchback From date: 01-04-2006 To date: 01-10-2013 Fuel: Gasoline Approved: Yes
      Peugeot Model: 207 Model series: 207 Size of motor: 1.4 Brand of engine: KFV (TU3A) Type description: WK_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes Manufacture type: SW
      Peugeot Model: 207 Model series: 207 Size of motor: 1.4 Brand of engine: KFV(TU3A) From date: 01-12-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Peugeot Model: 207 Model series: 207 Size of motor: 1.4 Brand of engine: KFW (TU3A) Type description: WA_, WC_ Body: Hatchback From date: 01-08-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Peugeot Model: 207 Model series: 207 SW Type of engine: LPG Size of motor: 1.4 Brand of engine: KFT (TU3A) Type description: WK_ Body: Estate From date: 01-08-2007 To date: 01-12-2012 Fuel: Electric/Gasoline Approved: Yes Manufacture type: Estate
      Peugeot Model: 207 Model series: 207 SW Type of engine: LPG Size of motor: 1.4 Brand of engine: KFV (TU3JP) Type description: WK_ Body: Estate From date: 01-08-2007 To date: 01-12-2012 Fuel: Electric/Gasoline Approved: Yes Manufacture type: Estate
      Peugeot Model: 207/207+ Model series: 207/207+ Type of engine: Bifuel Size of motor: 1.4 Brand of engine: KFV (TU3A) Type description: WA_, WC_ Body: Hatchback From date: 01-08-2007 To date: 01-12-2013 Fuel: Petrol/Electro Approved: Yes
      1 / 5
