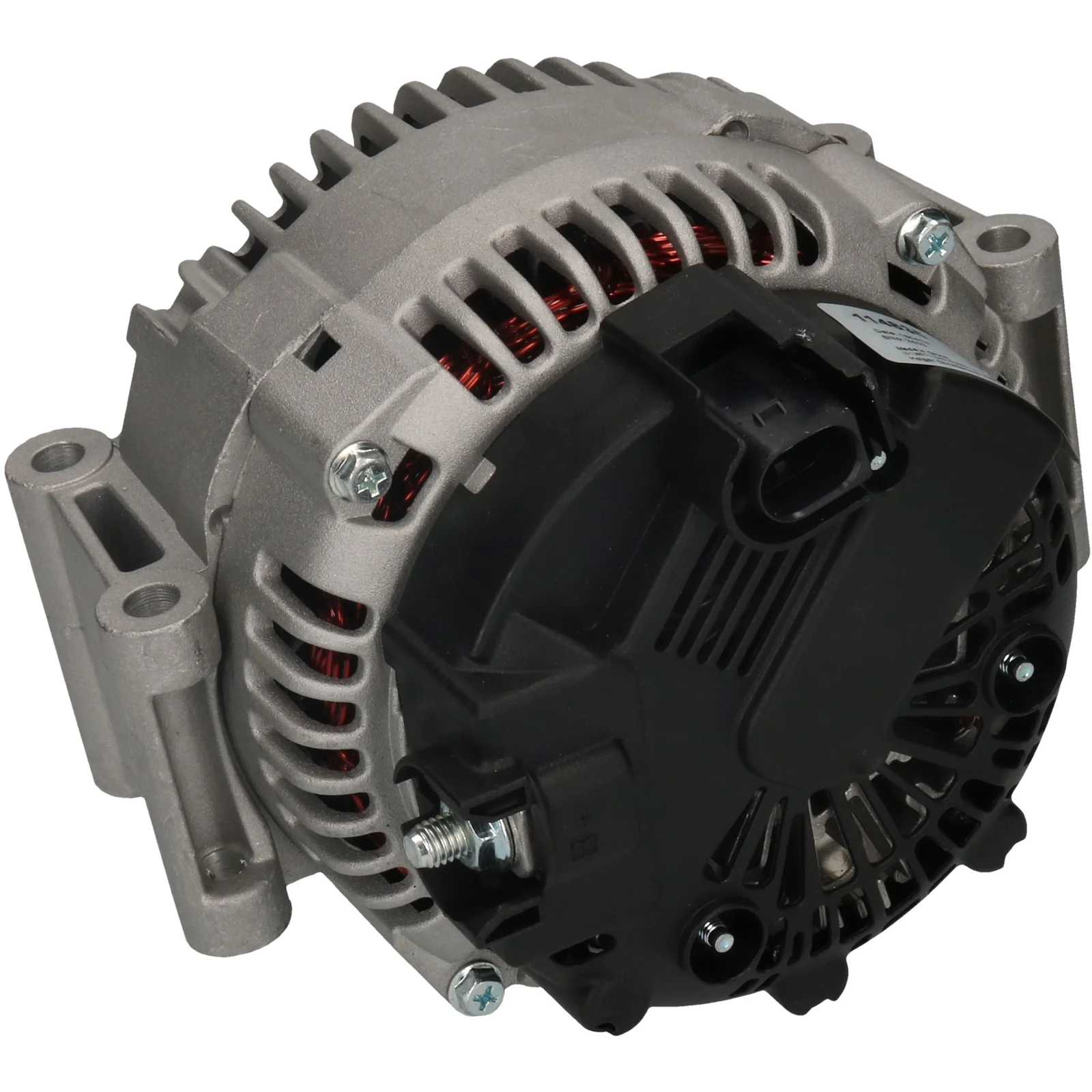

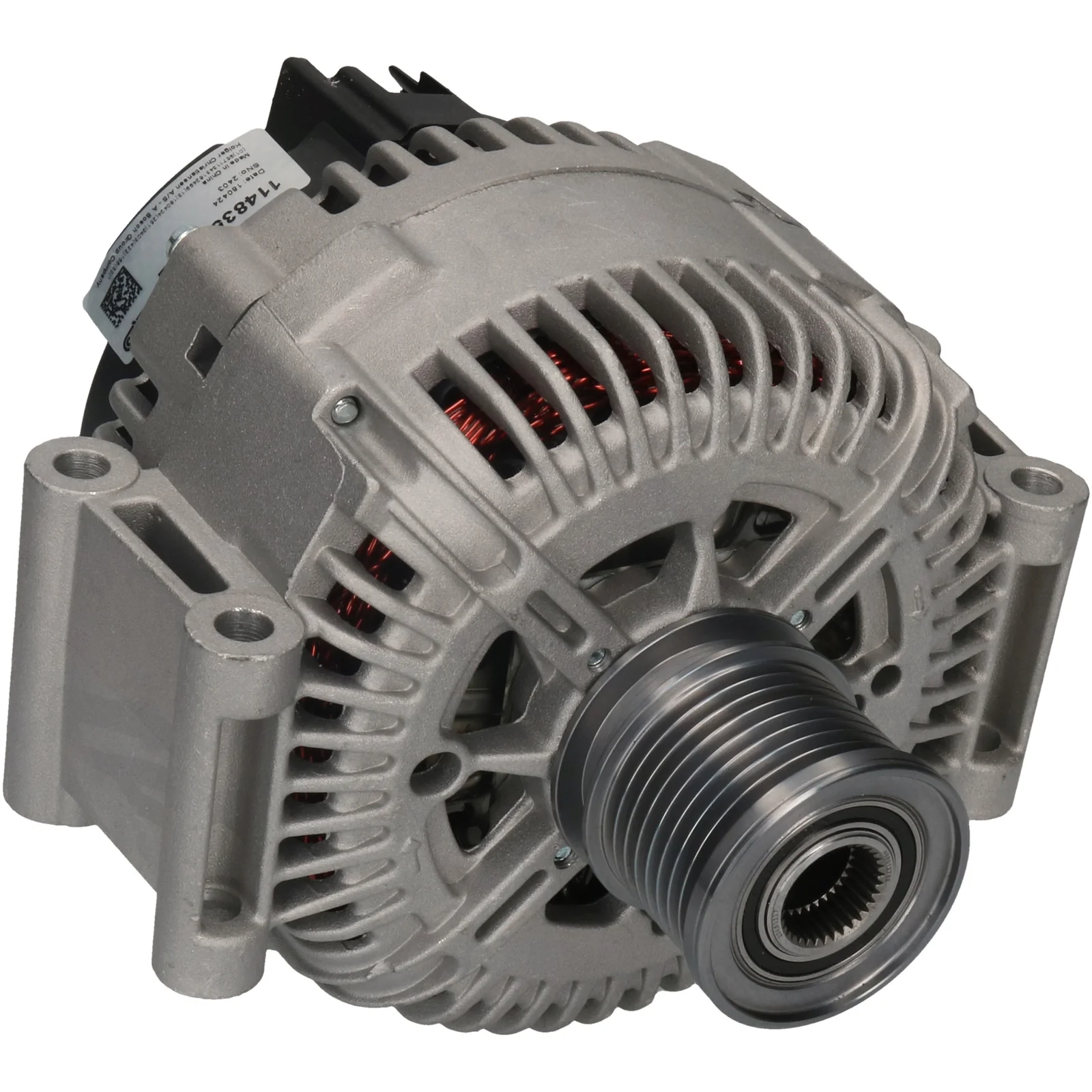

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114835

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

Voltage: 14
Amp: 180
Pulley dist.: 30.00
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.00
Belt. adj. bracket hole 1: 8.00
Belt. adj. bracket hole 2: 8.00x9.50
Pulley dia.: 50.00
Grooves/pulley: 8
Radius: 80.50
Radius 2: 82.50
B+: M8
Position/B+ in min.: 31
Rotation: CW
Plug no.: PL86
Total length mm: 199.00
Terminal type: COM
ID Code: 33
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 8.00
Belt. adj. bracket hole 2 8.00x9.50
Plug no. PL86
Bracket hole 9.00
Position/B+ in min. 31
Prod. info BN
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 30.00
Radius 80.50
Radius 2 82.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 8
ID Code 33
Terminal type COM
Voltage 14
Total length 199.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    a6421540502, F00E100549, F032114835, tg17c032, 2055ir, 2543290, 2543290B, 6421540502

  • Konkurrentreferens
    A3266, CAL15322, dra0204, 8EL012430-261, 8EL738213-261, 28-5683, 225.181.1802, 4819, 11309N, 200236, 210899, 210899A, 553249RI, 726202, 747116, 9090588, 12090286, 32002318, 0986085220

  • Normaliserat artikelnummer
    a3266, a6421540502, cal15322, dra0204, f00e100549, f032114835, tg17c032, 8el012430261, 8el738213261, 2055ir, 4819, 11309n, 200236, 210899, 210899a, 285683, 553249ri, 726202, 747116, 2543290, 2543290b, 9090588, 12090286, 32002318, 0986085220, 2251811802, 6421540502

  • Passar modeller
    Mercedes-Benz Model: 280 Model series: R 280 Model type: 4 Matic Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.950 Type description: 251 Body: MPV From date: 01-05-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: GL 320 Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.940 Type description: X164 From date: 01-09-2006 To date: 01-05-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: ML 320 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.940 Type description: W164 Body: SUV From date: 01-09-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: ML 320 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.940 Type description: W164 From date: 01-07-2005 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: R 320 Model type: 4 Matic Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.950 Type description: 251 Body: MPV From date: 01-01-2006 To date: 01-07-2010 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 180
    Pulley dist.: 30.00
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.00
    Belt. adj. bracket hole 1: 8.00
    Belt. adj. bracket hole 2: 8.00x9.50
    Pulley dia.: 50.00
    Grooves/pulley: 8
    Radius: 80.50
    Radius 2: 82.50
    B+: M8
    Position/B+ in min.: 31
    Rotation: CW
    Plug no.: PL86
    Total length mm: 199.00
    Terminal type: COM
    ID Code: 33
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 8.00
    Belt. adj. bracket hole 2 8.00x9.50
    Plug no. PL86
    Bracket hole 9.00
    Position/B+ in min. 31
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 30.00
    Radius 80.50
    Radius 2 82.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 8
    ID Code 33
    Terminal type COM
    Voltage 14
    Total length 199.00 mm
    Width/holder arm 70.00
    Amp 180
  • Fordonsmatchning

    • OEM
      a6421540502, F00E100549, F032114835, tg17c032, 2055ir, 2543290, 2543290B, 6421540502

    • Konkurrentreferens
      A3266, CAL15322, dra0204, 8EL012430-261, 8EL738213-261, 28-5683, 225.181.1802, 4819, 11309N, 200236, 210899, 210899A, 553249RI, 726202, 747116, 9090588, 12090286, 32002318, 0986085220

    • Normaliserat artikelnummer
      a3266, a6421540502, cal15322, dra0204, f00e100549, f032114835, tg17c032, 8el012430261, 8el738213261, 2055ir, 4819, 11309n, 200236, 210899, 210899a, 285683, 553249ri, 726202, 747116, 2543290, 2543290b, 9090588, 12090286, 32002318, 0986085220, 2251811802, 6421540502

    • Passar modeller
      Mercedes-Benz Model: 280 Model series: R 280 Model type: 4 Matic Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.950 Type description: 251 Body: MPV From date: 01-05-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: GL 320 Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.940 Type description: X164 From date: 01-09-2006 To date: 01-05-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: ML 320 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.940 Type description: W164 Body: SUV From date: 01-09-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: ML 320 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.940 Type description: W164 From date: 01-07-2005 To date: 01-07-2011 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: R 320 Model type: 4 Matic Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.950 Type description: 251 Body: MPV From date: 01-01-2006 To date: 01-07-2010 Fuel: Diesel Approved: Yes
