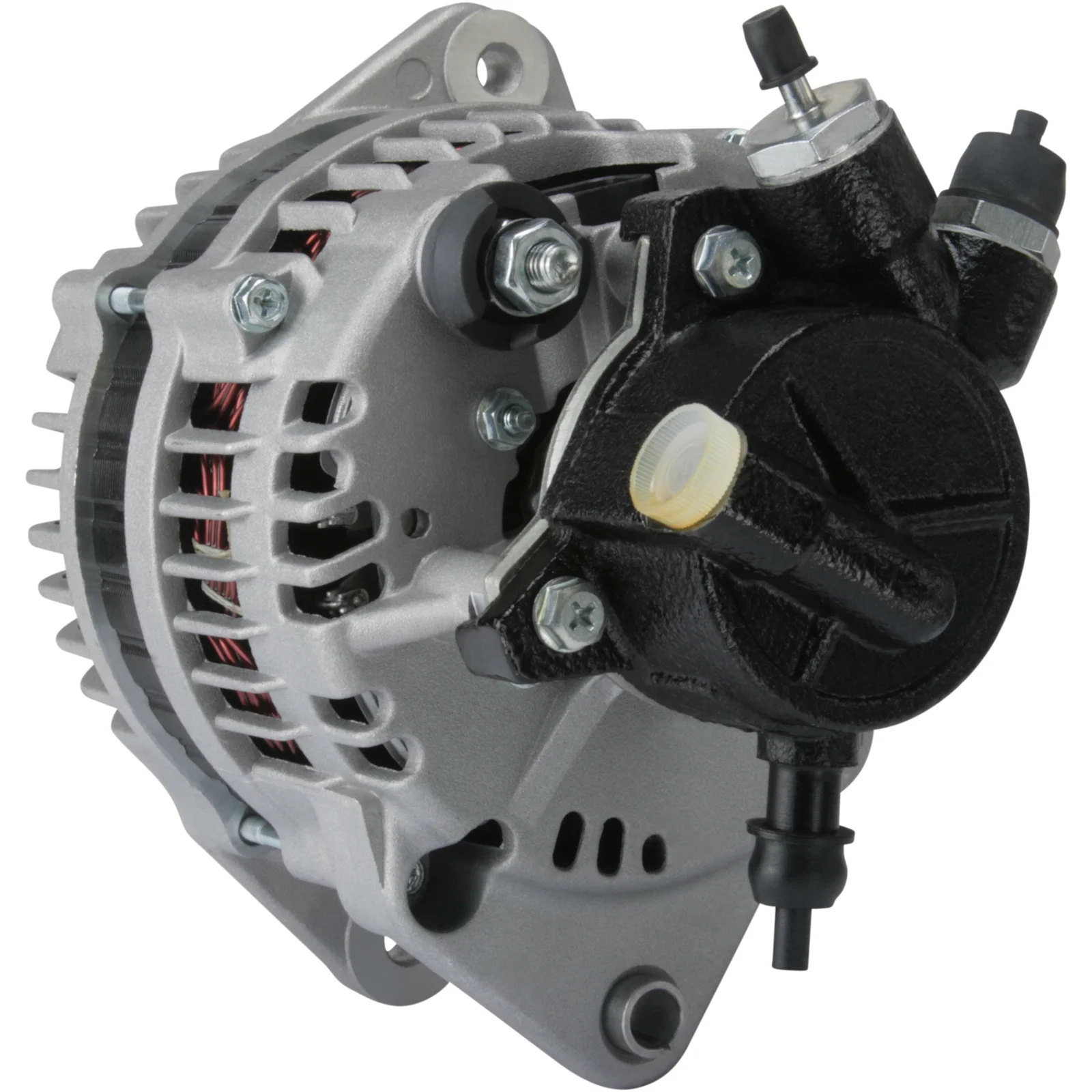

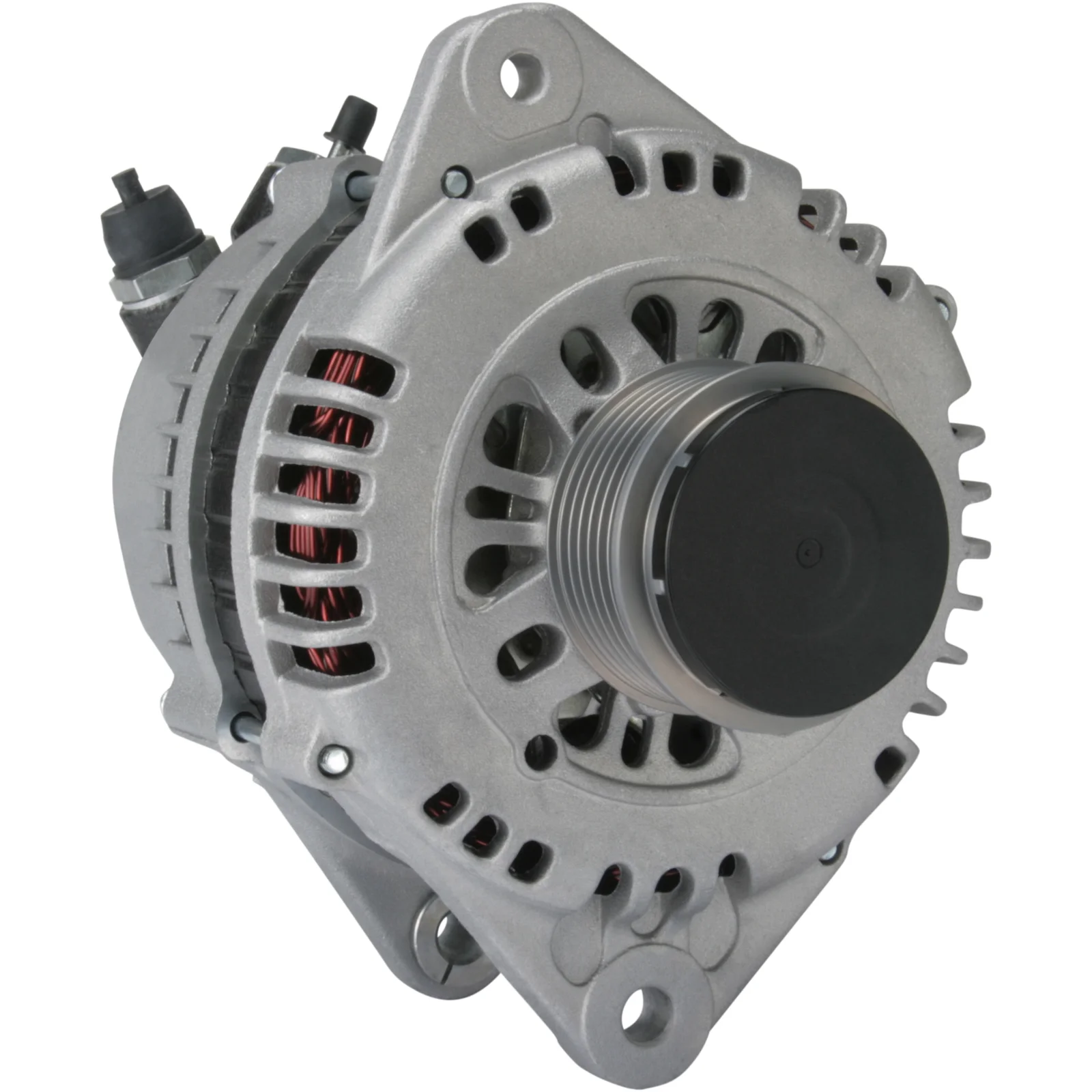

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113941

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 66.50

Beskrivning

Opel Diesel Gen. 12V-100A 12V - 100A, 6gr.frg, (W, L) För Yourex produkt order 90-430-1503

Voltage: 14
Amp: 100
Terminal: W
Pulley dist.: 35.50
Width/holder arm: 13.00
Mount. bracket dist.: 66.50
Bracket hole: 10.30
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: 8.20
Pulley dia.: 59.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 53
D+ Size: Plug
Rotation: CW
Plug no.: PL50
W plug type: Plug
Total length mm: 224.00
Pulley: SP/FW
Fan: IF
Regulator type: IR
Vac. pump: Yes
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 66.50
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 57
Plug no. PL50
Bracket hole 10.30
Position/B+ in min. 53
Prod. info BN
Pulley SP/FW
Pulley dia. 59.50
Pulley dist. 35.50
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal W
Vac. pump Yes
Voltage 14
W plug type Plug
Total length 224.00 mm
Width/holder arm 13.00
Amp 100

  • OEM
    F032113941, ja1901ir, LR 1100-503B, lr1100-503, LR1100-503A, LR1100-503B, LR1100-503C, LR1100-503D, LR1100-503E, LR1100-503F, LR1100-803B, R1530089, 113941, 6204183, 6204251, 9562188, 93189495, 93189501, 95520887, 97355198, 98056443, 8973551980, 8973551981, 8973551982, 8973554981, 8980564430

  • Konkurrentreferens
    A2038, A2038(P-INA), ALT-V023U, CAL20156, DRA0182, DRA0182X, F042305044, F042A05044, LRA03038, LRA03038WP, 8EL011360-331, 8EL012427-511, 8EL738211-601, 28-5650, 28-5650WP, 135.602.100, 528.164.1002, 9188, 21832N, 112341, 210890, 210890A, 401901RI, 440650, 747132, 9212779, 32048340, 0986048340, 0986048343

  • Bilmärken
    Opel, Vauxhall

  • Normaliserat artikelnummer
    a2038, a2038pina, altv023u, cal20156, dra0182, dra0182x, f032113941, f042305044, f042a05044, ja1901ir, lr1100503, lr1100503a, lr1100503b, lr1100503c, lr1100503d, lr1100503e, lr1100503f, lr1100803b, lra03038, lra03038wp, r1530089, 8el011360331, 8el012427511, 8el738211601, 9188, 21832n, 112341, 113941, 210890, 210890a, 285650, 285650wp, 401901ri, 440650, 747132, 6204183, 6204251, 9212779, 9562188, 32048340, 93189495, 93189501, 95520887, 97355198, 98056443, 135602100, 0986048340, 0986048343, 5281641002, 8973551980, 8973551981, 8973551982, 8973554981, 8980564430

  • Passar modeller
    Opel Model: Combo Model series: Combo Model type: Tour Type of engine: CDTi 16V Size of motor: 1.7 Brand of engine: Z17DTH Body: MPV From date: 01-07-2004 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Opel Model: Combo Model series: Combo Type of engine: CDTi 16V Size of motor: 1.7 Brand of engine: Z17DTH Body: Twin Cab From date: 01-12-2004 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa C Model type: SE Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTH Type description: F08, W5L Body: Van From date: 01-08-2003 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa C Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTH Type description: F08,F68 Body: Hatchback From date: 01-06-2003 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva A Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTH Body: MPV From date: 01-09-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Opel Series: Combo Skåp/Kombi Model: 1.7 CDTI 16V Engine volume: 1.7 Engine type: Z 17 DTH Year: 12.04-
    Opel Series: Combo Tour Model: 1.7 CDTI 16V Engine volume: 1.7 Engine type: Z 17 DTH Year: 12.04-
    Opel Series: Corsa C Model: 1.7 CDTI Engine volume: 1.7 Engine type: Z 17 DTH Year: 06.03-
    Opel Series: Meriva Model: 1.7 CDTI Engine volume: 1.7 Engine type: Z 17 DTH Year: 09.03-
    Vauxhall Model: Combo Model series: Combo Tour Mk II Type of engine: CDTI 16V Size of motor: 1.7 Brand of engine: Z17DTH Type description: C Body: Estate From date: 01-12-2004 To date: 01-09-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Combo Model series: Combo Type of engine: CDTi 16V Size of motor: 1.7 Brand of engine: Z17DTH Body: Van From date: 01-12-2004 To date: 01-11-2011 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa MK III Type of engine: CDTi 16V Size of motor: 1.7 Brand of engine: Z17DTH Body: Hatchback From date: 01-08-2000 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva A Type of engine: CDTi 16V Size of motor: 1.7 Brand of engine: Z17DTH Body: MPV From date: 01-09-2003 To date: 01-08-2005 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Opel Diesel Gen. 12V-100A 12V - 100A, 6gr.frg, (W, L) För Yourex produkt order 90-430-1503

    Voltage: 14
    Amp: 100
    Terminal: W
    Pulley dist.: 35.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 66.50
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 57
    Belt. adj. bracket hole 1: 8.20
    Pulley dia.: 59.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 53
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL50
    W plug type: Plug
    Total length mm: 224.00
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 66.50
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 57
    Plug no. PL50
    Bracket hole 10.30
    Position/B+ in min. 53
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 59.50
    Pulley dist. 35.50
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal W
    Vac. pump Yes
    Voltage 14
    W plug type Plug
    Total length 224.00 mm
    Width/holder arm 13.00
    Amp 100
  • Fordonsmatchning

    • OEM
      F032113941, ja1901ir, LR 1100-503B, lr1100-503, LR1100-503A, LR1100-503B, LR1100-503C, LR1100-503D, LR1100-503E, LR1100-503F, LR1100-803B, R1530089, 113941, 6204183, 6204251, 9562188, 93189495, 93189501, 95520887, 97355198, 98056443, 8973551980, 8973551981, 8973551982, 8973554981, 8980564430

    • Konkurrentreferens
      A2038, A2038(P-INA), ALT-V023U, CAL20156, DRA0182, DRA0182X, F042305044, F042A05044, LRA03038, LRA03038WP, 8EL011360-331, 8EL012427-511, 8EL738211-601, 28-5650, 28-5650WP, 135.602.100, 528.164.1002, 9188, 21832N, 112341, 210890, 210890A, 401901RI, 440650, 747132, 9212779, 32048340, 0986048340, 0986048343

    • Bilmärken
      Opel, Vauxhall

    • Normaliserat artikelnummer
      a2038, a2038pina, altv023u, cal20156, dra0182, dra0182x, f032113941, f042305044, f042a05044, ja1901ir, lr1100503, lr1100503a, lr1100503b, lr1100503c, lr1100503d, lr1100503e, lr1100503f, lr1100803b, lra03038, lra03038wp, r1530089, 8el011360331, 8el012427511, 8el738211601, 9188, 21832n, 112341, 113941, 210890, 210890a, 285650, 285650wp, 401901ri, 440650, 747132, 6204183, 6204251, 9212779, 9562188, 32048340, 93189495, 93189501, 95520887, 97355198, 98056443, 135602100, 0986048340, 0986048343, 5281641002, 8973551980, 8973551981, 8973551982, 8973554981, 8980564430

    • Passar modeller
      Opel Model: Combo Model series: Combo Model type: Tour Type of engine: CDTi 16V Size of motor: 1.7 Brand of engine: Z17DTH Body: MPV From date: 01-07-2004 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Opel Model: Combo Model series: Combo Type of engine: CDTi 16V Size of motor: 1.7 Brand of engine: Z17DTH Body: Twin Cab From date: 01-12-2004 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa C Model type: SE Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTH Type description: F08, W5L Body: Van From date: 01-08-2003 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa C Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTH Type description: F08,F68 Body: Hatchback From date: 01-06-2003 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      Opel Model: Meriva Model series: Meriva A Type of engine: CDTi Size of motor: 1.7 Brand of engine: Z17DTH Body: MPV From date: 01-09-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Opel Series: Combo Skåp/Kombi Model: 1.7 CDTI 16V Engine volume: 1.7 Engine type: Z 17 DTH Year: 12.04-
      Opel Series: Combo Tour Model: 1.7 CDTI 16V Engine volume: 1.7 Engine type: Z 17 DTH Year: 12.04-
      Opel Series: Corsa C Model: 1.7 CDTI Engine volume: 1.7 Engine type: Z 17 DTH Year: 06.03-
      Opel Series: Meriva Model: 1.7 CDTI Engine volume: 1.7 Engine type: Z 17 DTH Year: 09.03-
      Vauxhall Model: Combo Model series: Combo Tour Mk II Type of engine: CDTI 16V Size of motor: 1.7 Brand of engine: Z17DTH Type description: C Body: Estate From date: 01-12-2004 To date: 01-09-2010 Fuel: Diesel Approved: Yes
      Vauxhall Model: Combo Model series: Combo Type of engine: CDTi 16V Size of motor: 1.7 Brand of engine: Z17DTH Body: Van From date: 01-12-2004 To date: 01-11-2011 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsa Model series: Corsa MK III Type of engine: CDTi 16V Size of motor: 1.7 Brand of engine: Z17DTH Body: Hatchback From date: 01-08-2000 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Vauxhall Model: Meriva Model series: Meriva A Type of engine: CDTi 16V Size of motor: 1.7 Brand of engine: Z17DTH Body: MPV From date: 01-09-2003 To date: 01-08-2005 Fuel: Diesel Approved: Yes
