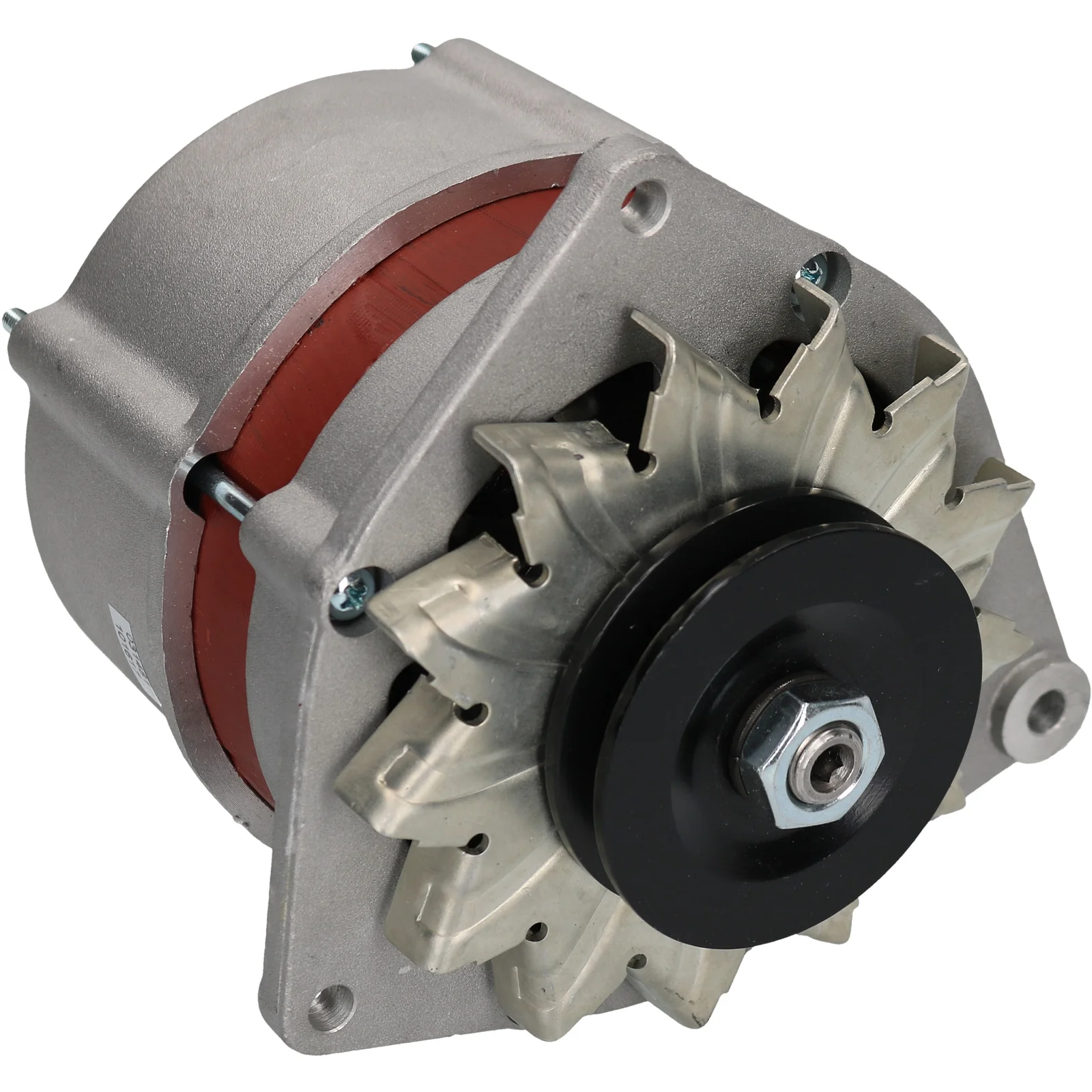

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112736

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 65, Rotation: CW, Pulley dia.: 80.00

Beskrivning

Iveco/KHD Generator 12V-65A 12V - 65A A - 56mm Samma fast i 95A = 90-255-4184 För Yourex produkt order 90-255-3133

Voltage: 14
Amp: 65
Terminal: W
Pulley dist.: 76.50
Width/holder arm: 56.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 50
Belt. adj. brackethole pos. 2: 10
Belt. adj. bracket hole 1: 8.20
Belt. adj. bracket hole 2: 8.20
Pulley dia.: 80.00
Grooves/pulley: 1
Radius: 86.00
Radius 2: 80.00
Radius 3: 80.00
B+: M6
Position/B+ in min.: 60
D+ Size: M4
Rotation: CW
W plug type: M5
Total length mm: 166.00
Pulley: P
Fan: EF
Regulator type: IR
Prod. info: BN
Servicing: Iveco

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 8.20
Belt. adj. bracket hole 2 8.20
Belt. adj. brackethole pos. 50
Belt. adj. brackethole pos. 2 10
Bracket hole 8.50
Position/B+ in min. 60
Prod. info BN
Pulley P
Pulley dia. 80.00
Pulley dist. 76.50
Radius 86.00
D+ Size M4
Radius 2 80.00
Radius 3 80.00
Regulator type IR
Rotation CW
Servicing Iveco
Fan EF
Grooves/pulley 1
Terminal W
Voltage 14
W plug type M5
Total length 166.00 mm
Width/holder arm 56.00
Amp 65

  • OEM
    AAK1378, C000900010130, F032112736, 11.201.570, 0120 489 756, 340ir, 0570, 0986 031 330, 1986A00751, 112736, 01172857, 1172857, 1516565R, 9515230, 0120489756, 311090025, 0986031330, 31100090025

  • Konkurrentreferens
    A0084, ALT20021, dra1330, ia0570, LRA01346, MG659, MG718, 8el725743-001, 28-1724, 99-31.330, 200.114.652, 3573, 13203, 13203N, 30340RI, 75649, 202056, 436272, 12031330, 32031330, 943356766, 943356766010

  • Bilmärken
    Iveco, John Deere - (EU), K.H.D. (Deutz), Zetor

  • Normaliserat artikelnummer
    a0084, aak1378, alt20021, c000900010130, dra1330, f032112736, ia0570, lra01346, mg659, mg718, 8el725743001, 340ir, 0570, 1986a00751, 3573, 13203, 13203n, 30340ri, 75649, 112736, 202056, 281724, 436272, 01172857, 1172857, 1516565r, 9515230, 9931330, 11201570, 12031330, 32031330, 0120489756, 200114652, 311090025, 943356766, 0986031330, 31100090025, 943356766010

  • Passar modeller
    Deutz - Fahr Series: M Model: 1320 Engine volume: 6.1 Engine type: F 6 L 913 Year: 01.80-12.87
    Deutz - Fahr Series: M Model: 1322 Engine volume: 6.1 Engine type: BF 6 L 913 Year: 01.80-12.87
    Deutz - Fahr Series: M Model: 2385 Engine volume: 5.7 Engine type: F 6 L 912 Year: 01.82-07.93
    Deutz - Fahr Series: M Model: 2480 Engine volume: 5.7 Engine type: F 6 L 912 Year: 01.79-12.87
    Deutz - Fahr Series: M Model: 2580 Engine volume: 6.1 Engine type: F 6 L 913 Year: 01.79-12.87
    Deutz - Fahr Series: M Model: 2680 Engine volume: 6.1 Engine type: F 6 L 913 Year: 01.79-12.87
    Deutz - Fahr Series: M Model: 2780 Engine volume: 6.1 Engine type: BF 6 L 913 Year: 01.83-12.87
    Deutz-Fahr Model: DX Model series: DX7 - Various Models Approved: Yes
    Deutz-Fahr Model: Intrac Model series: Intrac 6.30 Size of motor: 6.0 Brand of engine: BF6L913 From date: 01-01-1989 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: Intrac Model series: Intrac 6.60 Size of motor: 6.0 Brand of engine: BF6L913 From date: 01-01-1988 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: M Series Model series: M 2385 Size of motor: 5.7 Brand of engine: F6L912 From date: 01-01-1982 Fuel: Diesel Approved: Yes
    Fahr Model: M Series Model series: M1000 Series Body: Combine Approved: Yes
    Fahr Model: M Series Model series: M2000 Series Body: Combine Approved: Yes
    Iveco Model: MK Series Model series: MK 110-13 Size of motor: 6.1 Brand of engine: BF6L913T Body: Dump Truck From date: 01-01-1983 To date: 01-12-1985 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 110-13 Size of motor: 6.1 Brand of engine: BF6L913T Body: Platform / Chassis From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 110-13 Size of motor: 6.1 Brand of engine: F6L913 Body: Dump Truck From date: 01-01-1983 To date: 01-12-1985 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 110-13 Size of motor: 6.1 Brand of engine: F6L913 Body: Platform / Chassis From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 110-16 Size of motor: 6.1 Brand of engine: BF6L913 Body: Dump Truck From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 110-16 Size of motor: 6.1 Brand of engine: BF6L913 Body: Platform / Chassis From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 110-16 Size of motor: 6.1 Brand of engine: BF6L913T Body: Semi-Trailer From date: 01-01-1983 To date: 01-12-1985 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 110-16 Size of motor: 6.1 Brand of engine: F6L913 Body: Semi-Trailer From date: 01-01-1983 To date: 01-12-1985 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 130-13 Size of motor: 6.1 Brand of engine: BF6L913T Body: Dump Truck From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 130-13 Size of motor: 6.1 Brand of engine: BF6L913T Body: Platform / Chassis From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 130-13 Size of motor: 6.1 Brand of engine: F6L913 Body: Dump Truck From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 130-13 Size of motor: 6.1 Brand of engine: F6L913 Body: Platform / Chassis From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 130-16 Size of motor: 6.1 Brand of engine: BF6L913 Body: Dump Truck From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 130-16 Size of motor: 6.1 Brand of engine: BF6L913 Body: Platform / Chassis From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 75-9 Size of motor: 4.1 Brand of engine: F4L913 Body: Dump Truck From date: 01-01-1983 To date: 01-08-1985 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 75-9 Size of motor: 4.1 Brand of engine: F4L913 Body: Platform / Chassis From date: 01-01-1983 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 80-13 Size of motor: 6.1 Brand of engine: BF6L913T Body: Dump Truck From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 80-13 Size of motor: 6.1 Brand of engine: BF6L913T Body: Platform / Chassis From date: 01-01-1983 To date: 01-12-1989 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 80-13 Size of motor: 6.1 Brand of engine: BF6L913T Body: Platform / Chassis From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 80-13 Size of motor: 6.1 Brand of engine: BF6L913T Body: Semi-Trailer From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 80-16 Size of motor: 6.1 Brand of engine: BF6L913 Body: Platform / Chassis From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 80-16 Size of motor: 6.1 Brand of engine: BF6L913 Body: Platform / Chassis From date: 01-01-1986 To date: 01-12-1989 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 80-9 Size of motor: 4.1 Brand of engine: F4L913 Body: Dump Truck From date: 01-01-1983 To date: 01-02-1986 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 80-9 Size of motor: 4.1 Brand of engine: F4L913 Body: Platform / Chassis From date: 01-01-1983 To date: 01-02-1986 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 90-13 Size of motor: 6.1 Brand of engine: BF6L913T Body: Dump Truck From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Model: MK Series Model series: MK 90-13 Size of motor: 6.1 Brand of engine: BF6L913T Body: Platform / Chassis From date: 01-01-1983 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Iveco Series: MK Model: 110-13A Engine volume: 6.1 Year: 01.83-03.85
    Iveco Series: MK Model: 130-13A Engine volume: 6.1 Year: 04.85-02.86
    Iveco Series: MK Model: 75-9A Engine volume: 4.1 Year: 01.83-02.86
    Iveco Series: MK Model: 80-13A Engine volume: 6.1 Year: 01.83-03.85
    Iveco Series: MK Model: 80-9A Engine volume: 4.1 Engine type: F4L 913 Year: 00.83-02.86
    Volvo Series: 740 Kombi Model: 2.4 D Engine volume: 2.4 Engine type: D 24 Year: 08.85-07.88
