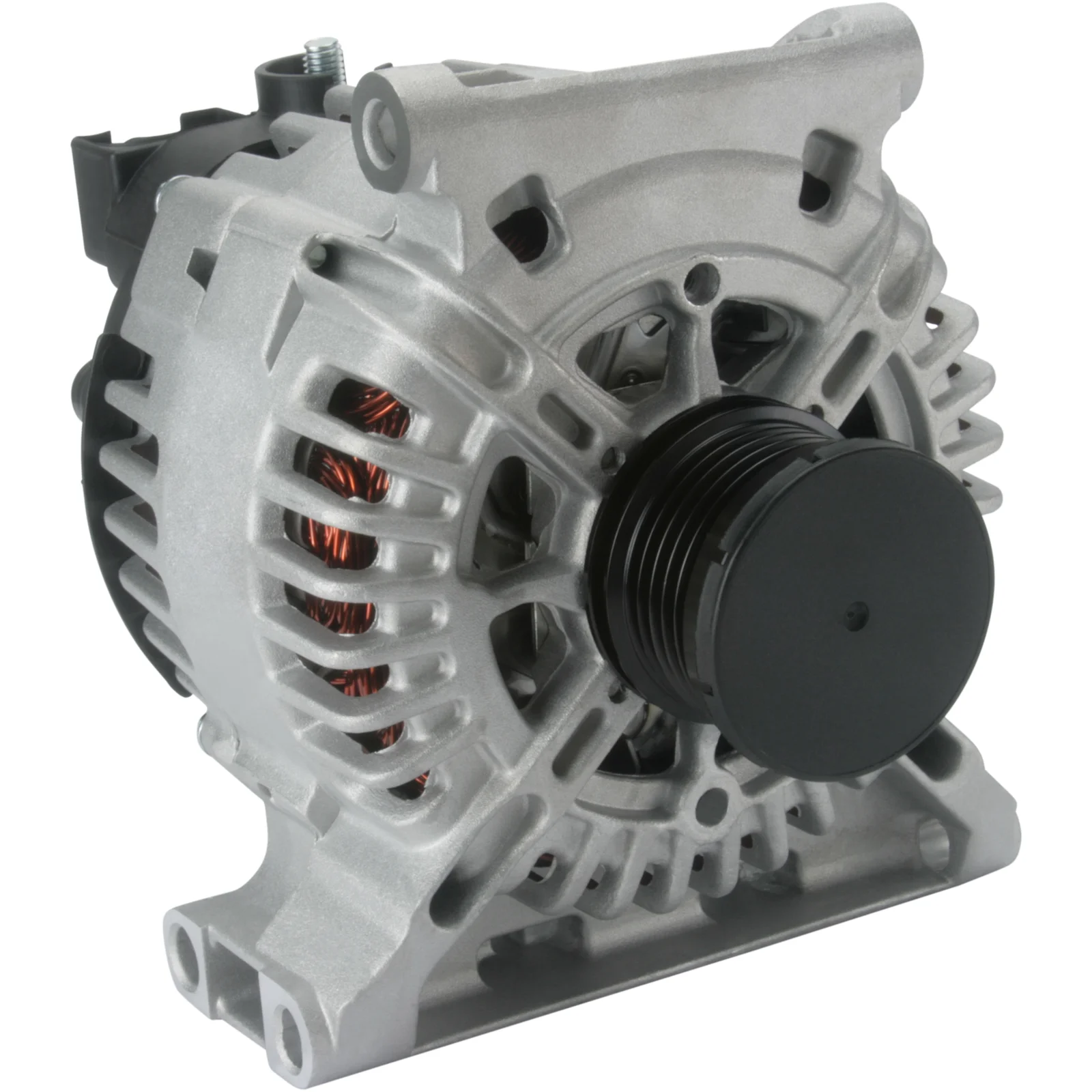

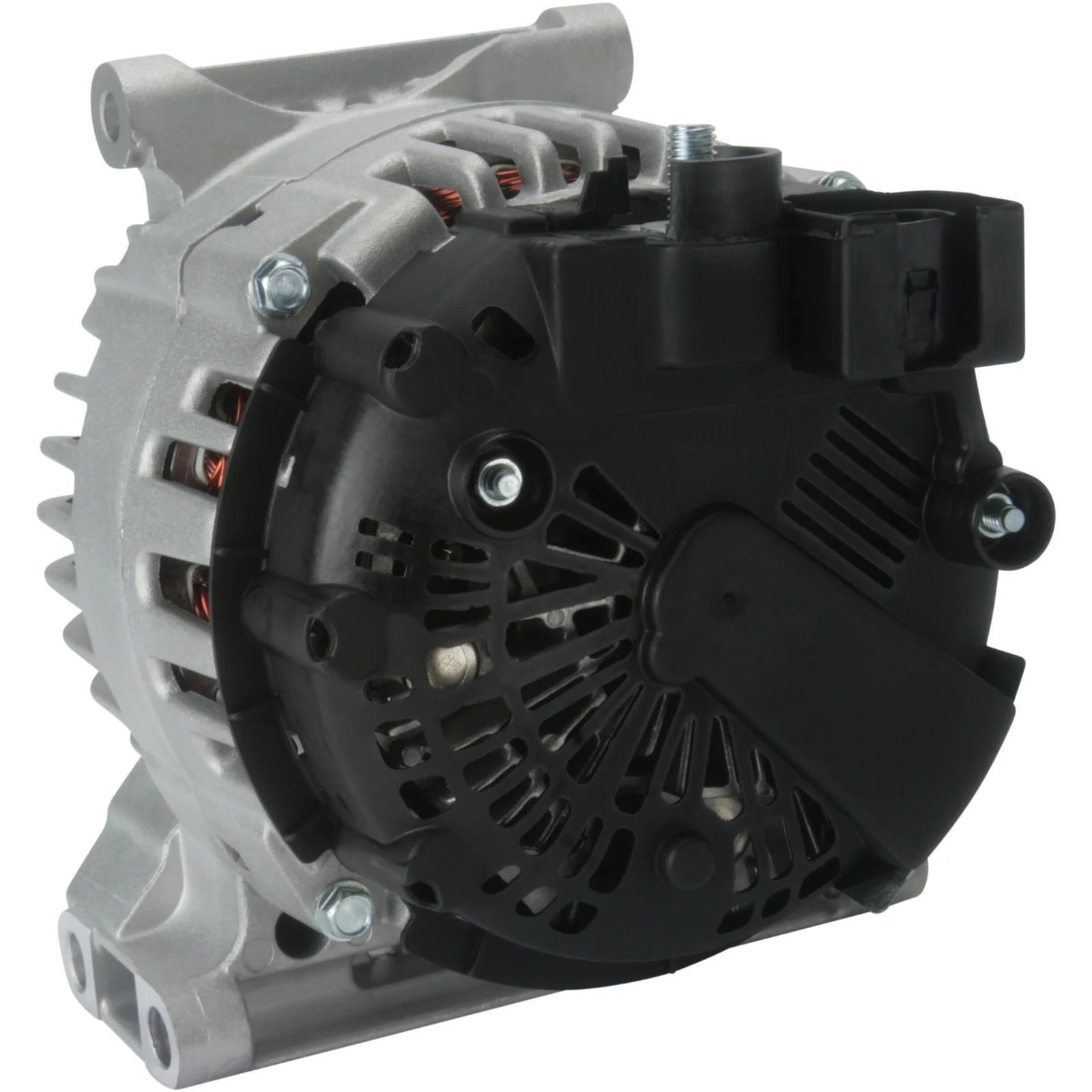

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116069

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Pulley dia.: 50.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 30.00
Width/holder arm: 151.00
Bracket hole: 10.00
Belt. adj. bracket hole 1: 9.50
Pulley dia.: 50.00
Grooves/pulley: 5
B+: M8
Position/B+ in min.: 60
Rotation: CW
Plug no.: PL125
Total length mm: 183.00
Terminal type: COM
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 9.50
Plug no. PL125
Bracket hole 10.00
Position/B+ in min. 60
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 30.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 5
Terminal type COM
Voltage 14
Total length 183.00 mm
Width/holder arm 151.00
Amp 150

  • OEM
    F032114130, F032116069, TG15C034, TG15C056, TG15C057, TG15C121, 114130, 116069, 437545, 2542952, 2543363, 2543412, 903657545, 0986080040, 6401540202, 6401540302, 6401540402

  • Konkurrentreferens
    A3158, ALT-H197, CAL15286, DRA4273, DRA4273X, F042A0H197, LRA02885, 8EL012429-401, 8EL738211-421, 28-5502, 225.152.1502, 4797, 112515, 200028, 210395, 210395A, 301873RI, 437545, 439552, 747095, 747895, 839033, 9212962, 12090177, 32437545, 0986080040, 944390903740

  • Bilmärken
    MERCEDES-BENZ

  • Normaliserat artikelnummer
    f032114130, f032116069, tg15c034, tg15c056, tg15c057, tg15c121, 114130, 116069, 437545, 2542952, 2543363, 2543412, 903657545, 0986080040, 6401540202, 6401540302, 6401540402

  • Passar modeller
    MERCEDES-BENZ A-KLASS (W169) A 160 CDI (169.006, 169.306) Engine volume: 2.0 Engine type: OM 640.942 Year: 09.04-06.12
    MERCEDES-BENZ A-KLASS (W169) A 180 CDI (169.007, 169.307) Engine volume: 2.0 Engine type: OM 640.940 Year: 09.04-06.12
    MERCEDES-BENZ A-KLASS (W169) A 200 CDI (169.008, 169.308) Engine volume: 2.0 Engine type: OM 640.941 Year: 09.04-06.12
    MERCEDES-BENZ A-KLASS (W169) A 200 CDI (169.308, 169.008) Engine volume: 2.0 Engine type: OM 640.941 Year: 09.04-06.12
    MERCEDES-BENZ B-KLASS Sports Tourer (W245) B 180 CDI (245.207) Engine volume: 2.0 Engine type: OM 640.940 Year: 03.05-11.11
    MERCEDES-BENZ B-KLASS Sports Tourer (W245) B 200 CDI (245.208) Engine volume: 2.0 Engine type: OM 640.941 Year: 03.05-11.11
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 30.00
    Width/holder arm: 151.00
    Bracket hole: 10.00
    Belt. adj. bracket hole 1: 9.50
    Pulley dia.: 50.00
    Grooves/pulley: 5
    B+: M8
    Position/B+ in min.: 60
    Rotation: CW
    Plug no.: PL125
    Total length mm: 183.00
    Terminal type: COM
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 9.50
    Plug no. PL125
    Bracket hole 10.00
    Position/B+ in min. 60
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 30.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 5
    Terminal type COM
    Voltage 14
    Total length 183.00 mm
    Width/holder arm 151.00
    Amp 150
  • Fordonsmatchning

    • OEM
      F032114130, F032116069, TG15C034, TG15C056, TG15C057, TG15C121, 114130, 116069, 437545, 2542952, 2543363, 2543412, 903657545, 0986080040, 6401540202, 6401540302, 6401540402

    • Konkurrentreferens
      A3158, ALT-H197, CAL15286, DRA4273, DRA4273X, F042A0H197, LRA02885, 8EL012429-401, 8EL738211-421, 28-5502, 225.152.1502, 4797, 112515, 200028, 210395, 210395A, 301873RI, 437545, 439552, 747095, 747895, 839033, 9212962, 12090177, 32437545, 0986080040, 944390903740

    • Bilmärken
      MERCEDES-BENZ

    • Normaliserat artikelnummer
      f032114130, f032116069, tg15c034, tg15c056, tg15c057, tg15c121, 114130, 116069, 437545, 2542952, 2543363, 2543412, 903657545, 0986080040, 6401540202, 6401540302, 6401540402

    • Passar modeller
      MERCEDES-BENZ A-KLASS (W169) A 160 CDI (169.006, 169.306) Engine volume: 2.0 Engine type: OM 640.942 Year: 09.04-06.12
      MERCEDES-BENZ A-KLASS (W169) A 180 CDI (169.007, 169.307) Engine volume: 2.0 Engine type: OM 640.940 Year: 09.04-06.12
      MERCEDES-BENZ A-KLASS (W169) A 200 CDI (169.008, 169.308) Engine volume: 2.0 Engine type: OM 640.941 Year: 09.04-06.12
      MERCEDES-BENZ A-KLASS (W169) A 200 CDI (169.308, 169.008) Engine volume: 2.0 Engine type: OM 640.941 Year: 09.04-06.12
      MERCEDES-BENZ B-KLASS Sports Tourer (W245) B 180 CDI (245.207) Engine volume: 2.0 Engine type: OM 640.940 Year: 03.05-11.11
      MERCEDES-BENZ B-KLASS Sports Tourer (W245) B 200 CDI (245.208) Engine volume: 2.0 Engine type: OM 640.941 Year: 03.05-11.11
      1 / 2
