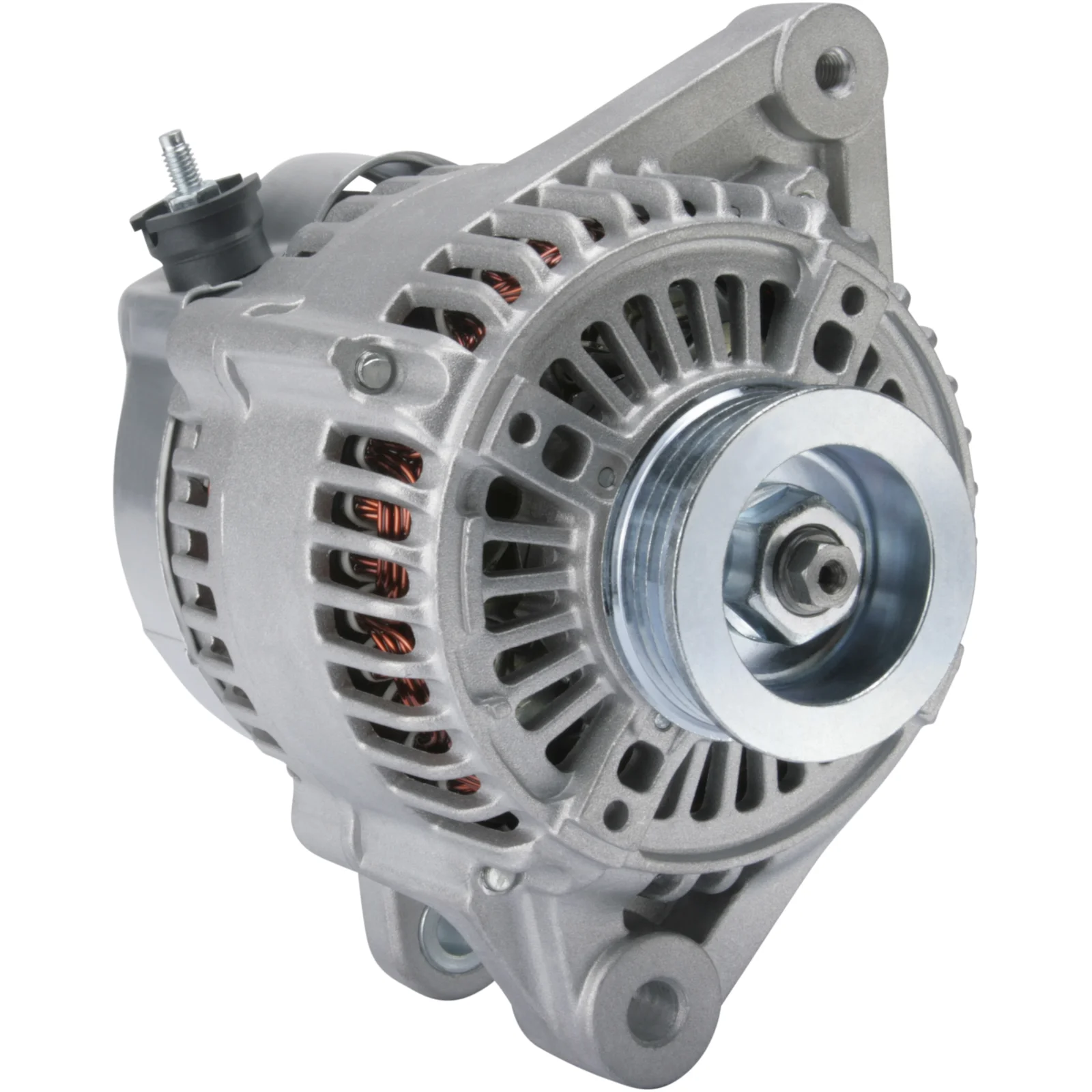

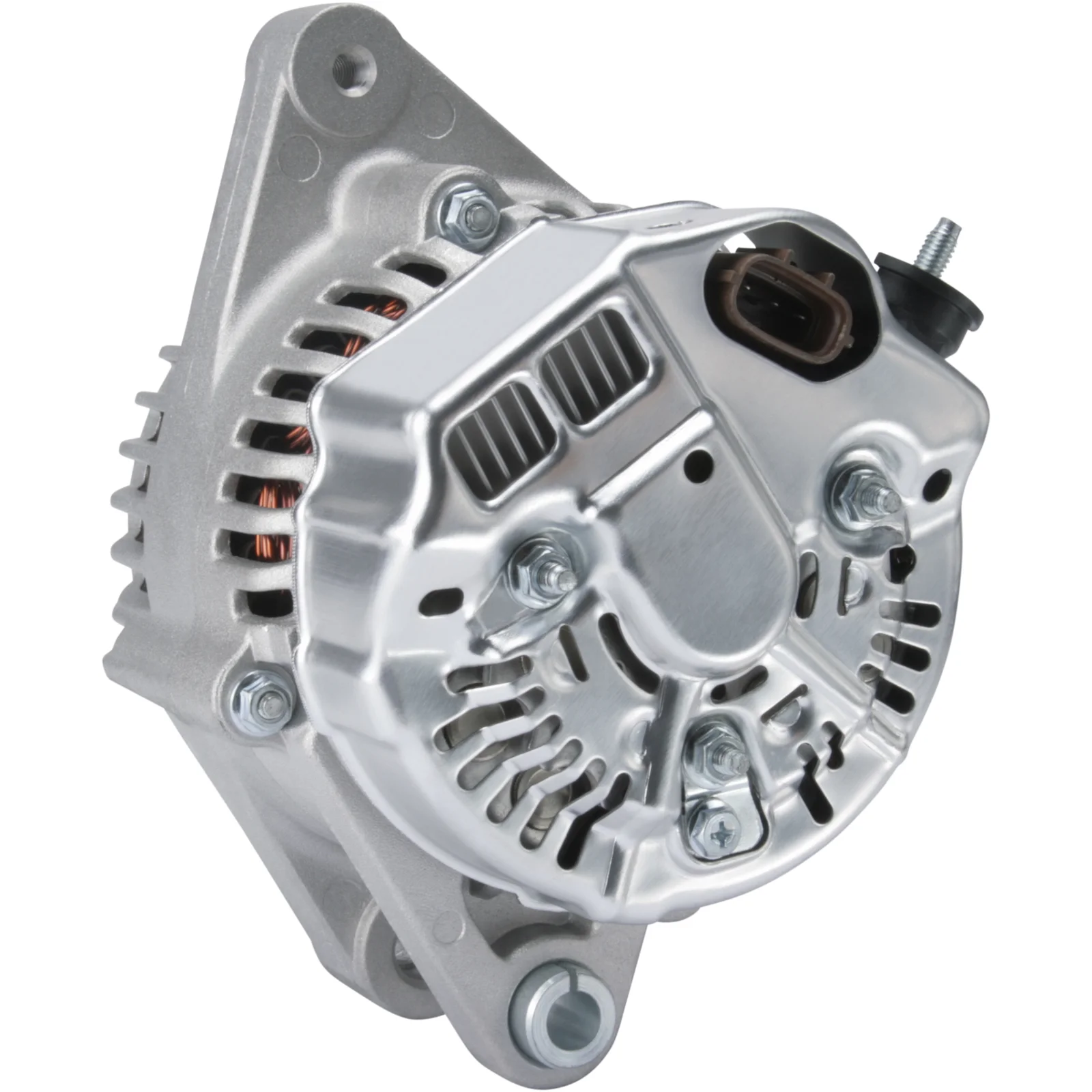

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114231

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 39.00

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 48.00
Width/holder arm: 26.50
Mount. bracket dist.: 39.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 4
Belt. adj. bracket hole 1: M8
Pulley dia.: 54.50
Grooves/pulley: 4
Radius: 80.00
Radius 2: 90.00
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL67
Pulley: SP
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 39.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 4
Plug no. PL67
Bracket hole 11.00
Position/B+ in min. 50
Pulley SP
Pulley dia. 54.50
Pulley dist. 48.00
Radius 80.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Width/holder arm 26.50
Amp 90

  • OEM
    F032114231, ja1517ir, 27060-23010, 27060-23020, 27060-23030, 102211-1670, 102211-1680, 102211-5250

  • Konkurrentreferens
    A6001, A6229, A6657(DENSO), ALT-H204, CAL40174, CAL40364, DAN961, DENDAN961, DRA4106, DRB5861, F042A0H204, 8EL012429-731, 8EL738133-001, 28-3846, 28-3947, 235.167.902, 21472N, 21472R, 111539, 210932, 210932A, 401517RI, 439995, 440784, 440786, 440866, 443136, 12060804, 12060818, 063377440, 0986045851, 0986045861, 063377440010

  • Normaliserat artikelnummer
    a6001, a6229, a6657denso, alth204, cal40174, cal40364, dan961, dendan961, dra4106, drb5861, f032114231, f042a0h204, ja1517ir, 8el012429731, 8el738133001, 21472n, 21472r, 111539, 210932, 210932a, 283846, 283947, 401517ri, 439995, 440784, 440786, 440866, 443136, 12060804, 12060818, 063377440, 235167902, 0986045851, 0986045861, 1022111670, 1022111680, 1022115250, 2706023010, 2706023020, 2706023030, 063377440010

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 48.00
    Width/holder arm: 26.50
    Mount. bracket dist.: 39.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 4
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 54.50
    Grooves/pulley: 4
    Radius: 80.00
    Radius 2: 90.00
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL67
    Pulley: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 39.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 4
    Plug no. PL67
    Bracket hole 11.00
    Position/B+ in min. 50
    Pulley SP
    Pulley dia. 54.50
    Pulley dist. 48.00
    Radius 80.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Width/holder arm 26.50
    Amp 90
  • Fordonsmatchning

    • OEM
      F032114231, ja1517ir, 27060-23010, 27060-23020, 27060-23030, 102211-1670, 102211-1680, 102211-5250

    • Konkurrentreferens
      A6001, A6229, A6657(DENSO), ALT-H204, CAL40174, CAL40364, DAN961, DENDAN961, DRA4106, DRB5861, F042A0H204, 8EL012429-731, 8EL738133-001, 28-3846, 28-3947, 235.167.902, 21472N, 21472R, 111539, 210932, 210932A, 401517RI, 439995, 440784, 440786, 440866, 443136, 12060804, 12060818, 063377440, 0986045851, 0986045861, 063377440010

    • Normaliserat artikelnummer
      a6001, a6229, a6657denso, alth204, cal40174, cal40364, dan961, dendan961, dra4106, drb5861, f032114231, f042a0h204, ja1517ir, 8el012429731, 8el738133001, 21472n, 21472r, 111539, 210932, 210932a, 283846, 283947, 401517ri, 439995, 440784, 440786, 440866, 443136, 12060804, 12060818, 063377440, 235167902, 0986045851, 0986045861, 1022111670, 1022111680, 1022115250, 2706023010, 2706023020, 2706023030, 063377440010

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
