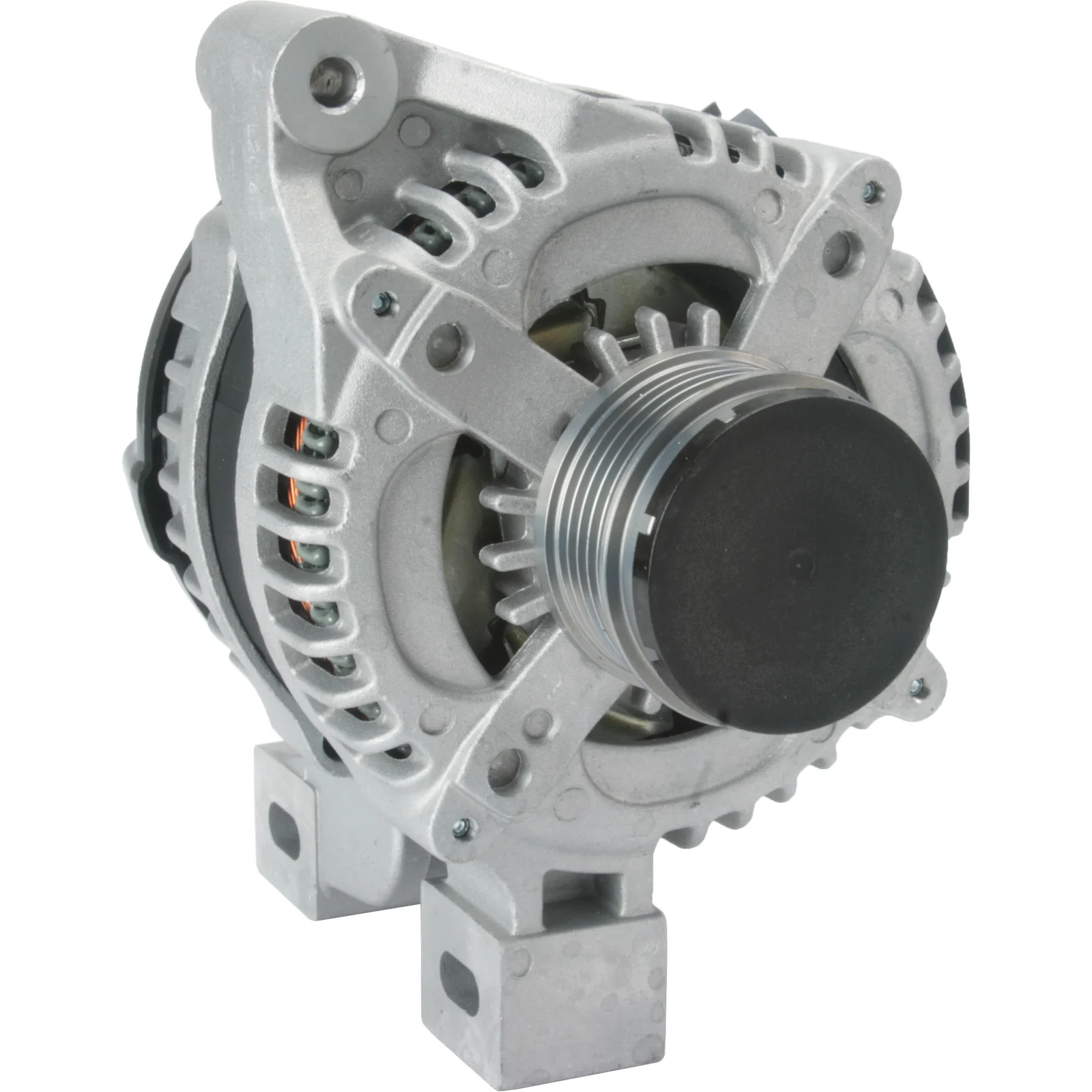

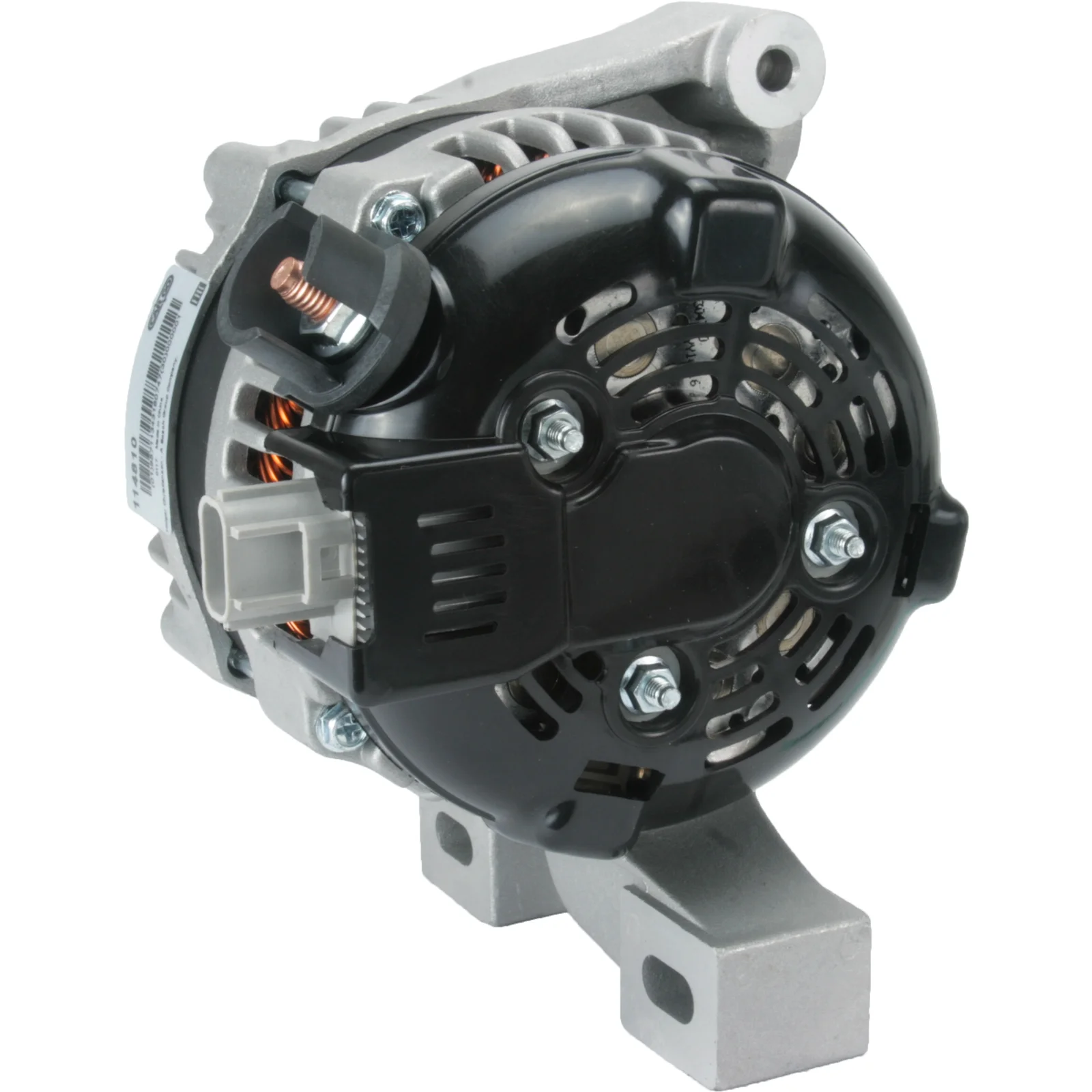

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114810

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Mount. bracket dist.: 91.50, Pulley dia.: 55.50

Beskrivning

Gen. 12V-150A passar Volvo 12V - 150A, 5gr.frg, ( -, LIN, -) ID-60 OBS! chassinummer! S40 , V50 Chassinr. 45204-250052. Kontaktstycke/Repair Lead : 54-101-0111 För Yourex produkt order 90-600-5150

Voltage: 14
Amp: 150
Pulley dist.: 33.50
Width/holder arm: 33.00
Mount. bracket dist.: 91.50
Bracket hole: 8.50
Belt. adj. brackethole pos.: 54
Belt. adj. bracket hole 1: 8.00
Pulley dia.: 55.50
Grooves/pulley: 5
B+: M8
Position/B+ in min.: 50
Plug no.: PL154
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 91.50
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 54
Plug no. PL154
Bracket hole 8.50
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 55.50
Pulley dist. 33.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Grooves/pulley 5
Terminal type COM
Voltage 14
Width/holder arm 33.00
Amp 150

  • OEM
    A6133, A6133(DENSO), CAL40274, DAN1059, DRA0391, F032114810, 3M5T-10300SC, 3M5T-10300SD, 3M5T10300JC, 3M5T10300JD, 3M5T10300SC, 3m5t10300sd, 8EL011713-251, 8EL738212-951, 28-5548, 1966ir, 11054N, 11054R, 104210-3560, 104210-4640, 113030, 114810, 209396, 209396A, 301966RI, 1684865, 8603496, 12090376, 30659346, 30659369, 30667103, 30737529, 36001463, 0986083070

  • Konkurrentreferens
    A6133, A6133(DENSO), CAL40274, DAN1059, DRA0391, 8EL011713-251, 8EL738212-951, 28-5548, 11054N, 11054R, 113030, 209396, 209396A, 301966RI, 12090376, 0986083070

  • Bilmärken
    FORD, VOLVO

  • Normaliserat artikelnummer
    a6133, a6133denso, cal40274, dan1059, dra0391, f032114810, 3m5t10300jc, 3m5t10300jd, 3m5t10300sc, 3m5t10300sd, 8el011713251, 8el738212951, 1966ir, 11054n, 11054r, 113030, 114810, 209396, 209396a, 285548, 301966ri, 1684865, 8603496, 12090376, 30659346, 30659369, 30667103, 30737529, 36001463, 0986083070, 1042103560, 1042104640

  • Passar modeller
    FORD FOCUS II (DA_, HCP, DP) 2.5 RS 500 Engine volume: 2.5 Engine type: JZDA Year: 05.10-07.11
    FORD FOCUS II (DA_, HCP, DP) 2.5 RS Engine volume: 2.5 Engine type: JZDA Year: 01.09-07.11
    FORD FOCUS II (DA_, HCP, DP) 2.5 ST Engine volume: 2.5 Engine type: HYDA Year: 10.05-09.12
    VOLVO C70 II Cabriolet (542) 2.4 Engine volume: 2.4 Engine type: B 5244 S5 Year: 03.06-10.09
    VOLVO C70 II Cabriolet (542) 2.4 i Engine volume: 2.4 Engine type: B 5244 S4 Year: 03.06-10.09
    VOLVO C70 II Cabriolet (542) T5 Engine volume: 2.5 Engine type: B 5254 T3 Year: 03.06-02.07
    VOLVO C70 II Cabriolet (542) T5 Engine volume: 2.5 Engine type: B 5254 T7 Year: 03.07-06.13
    VOLVO S40 II (544) 2.4 CDI Engine volume: 2.4 Engine type: D 5244 T9 Year: 03.07-12.10
    VOLVO S40 II (544) 2.4 Engine volume: 2.4 Engine type: B 5244 S4 Year: 01.04-12.12
    VOLVO S40 II (544) 2.4 Engine volume: 2.4 Engine type: B 5244 S5 Year: 01.04-12.10
    VOLVO S40 II (544) D5 Engine volume: 2.4 Engine type: D 5244 T13, D 5244 T8 Year: 03.06-12.10
    VOLVO S40 II (544) T5 AWD Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-12.07
    VOLVO S40 II (544) T5 Engine volume: 2.5 Engine type: B 5254 T3 Year: 01.04-12.07
    VOLVO V50 (545) 2.4 Engine volume: 2.4 Engine type: B 5244 S5 Year: 04.04-12.10
    VOLVO V50 (545) 2.4 Tdi Engine volume: 2.4 Engine type: D 5244 T9 Year: 05.07-12.10
    VOLVO V50 (545) D4 Engine volume: 2.0 Engine type: D 5204 T Year: 10.10-12.12
    VOLVO V50 (545) D5 Engine volume: 2.4 Engine type: D 5244 T13, D 5244 T8 Year: 03.06-12.10
    VOLVO V50 (545) T5 AWD Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-12.07
    VOLVO V50 (545) T5 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-12.07
    1 / 4
  • Beskrivning
    Gen. 12V-150A passar Volvo 12V - 150A, 5gr.frg, ( -, LIN, -) ID-60 OBS! chassinummer! S40 , V50 Chassinr. 45204-250052. Kontaktstycke/Repair Lead : 54-101-0111 För Yourex produkt order 90-600-5150

    Voltage: 14
    Amp: 150
    Pulley dist.: 33.50
    Width/holder arm: 33.00
    Mount. bracket dist.: 91.50
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 54
    Belt. adj. bracket hole 1: 8.00
    Pulley dia.: 55.50
    Grooves/pulley: 5
    B+: M8
    Position/B+ in min.: 50
    Plug no.: PL154
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 91.50
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 54
    Plug no. PL154
    Bracket hole 8.50
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 55.50
    Pulley dist. 33.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Grooves/pulley 5
    Terminal type COM
    Voltage 14
    Width/holder arm 33.00
    Amp 150
  • Fordonsmatchning

    • OEM
      A6133, A6133(DENSO), CAL40274, DAN1059, DRA0391, F032114810, 3M5T-10300SC, 3M5T-10300SD, 3M5T10300JC, 3M5T10300JD, 3M5T10300SC, 3m5t10300sd, 8EL011713-251, 8EL738212-951, 28-5548, 1966ir, 11054N, 11054R, 104210-3560, 104210-4640, 113030, 114810, 209396, 209396A, 301966RI, 1684865, 8603496, 12090376, 30659346, 30659369, 30667103, 30737529, 36001463, 0986083070

    • Konkurrentreferens
      A6133, A6133(DENSO), CAL40274, DAN1059, DRA0391, 8EL011713-251, 8EL738212-951, 28-5548, 11054N, 11054R, 113030, 209396, 209396A, 301966RI, 12090376, 0986083070

    • Bilmärken
      FORD, VOLVO

    • Normaliserat artikelnummer
      a6133, a6133denso, cal40274, dan1059, dra0391, f032114810, 3m5t10300jc, 3m5t10300jd, 3m5t10300sc, 3m5t10300sd, 8el011713251, 8el738212951, 1966ir, 11054n, 11054r, 113030, 114810, 209396, 209396a, 285548, 301966ri, 1684865, 8603496, 12090376, 30659346, 30659369, 30667103, 30737529, 36001463, 0986083070, 1042103560, 1042104640

    • Passar modeller
      FORD FOCUS II (DA_, HCP, DP) 2.5 RS 500 Engine volume: 2.5 Engine type: JZDA Year: 05.10-07.11
      FORD FOCUS II (DA_, HCP, DP) 2.5 RS Engine volume: 2.5 Engine type: JZDA Year: 01.09-07.11
      FORD FOCUS II (DA_, HCP, DP) 2.5 ST Engine volume: 2.5 Engine type: HYDA Year: 10.05-09.12
      VOLVO C70 II Cabriolet (542) 2.4 Engine volume: 2.4 Engine type: B 5244 S5 Year: 03.06-10.09
      VOLVO C70 II Cabriolet (542) 2.4 i Engine volume: 2.4 Engine type: B 5244 S4 Year: 03.06-10.09
      VOLVO C70 II Cabriolet (542) T5 Engine volume: 2.5 Engine type: B 5254 T3 Year: 03.06-02.07
      VOLVO C70 II Cabriolet (542) T5 Engine volume: 2.5 Engine type: B 5254 T7 Year: 03.07-06.13
      VOLVO S40 II (544) 2.4 CDI Engine volume: 2.4 Engine type: D 5244 T9 Year: 03.07-12.10
      VOLVO S40 II (544) 2.4 Engine volume: 2.4 Engine type: B 5244 S4 Year: 01.04-12.12
      VOLVO S40 II (544) 2.4 Engine volume: 2.4 Engine type: B 5244 S5 Year: 01.04-12.10
      VOLVO S40 II (544) D5 Engine volume: 2.4 Engine type: D 5244 T13, D 5244 T8 Year: 03.06-12.10
      VOLVO S40 II (544) T5 AWD Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-12.07
      VOLVO S40 II (544) T5 Engine volume: 2.5 Engine type: B 5254 T3 Year: 01.04-12.07
      VOLVO V50 (545) 2.4 Engine volume: 2.4 Engine type: B 5244 S5 Year: 04.04-12.10
      VOLVO V50 (545) 2.4 Tdi Engine volume: 2.4 Engine type: D 5244 T9 Year: 05.07-12.10
      VOLVO V50 (545) D4 Engine volume: 2.0 Engine type: D 5204 T Year: 10.10-12.12
      VOLVO V50 (545) D5 Engine volume: 2.4 Engine type: D 5244 T13, D 5244 T8 Year: 03.06-12.10
      VOLVO V50 (545) T5 AWD Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-12.07
      VOLVO V50 (545) T5 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-12.07
