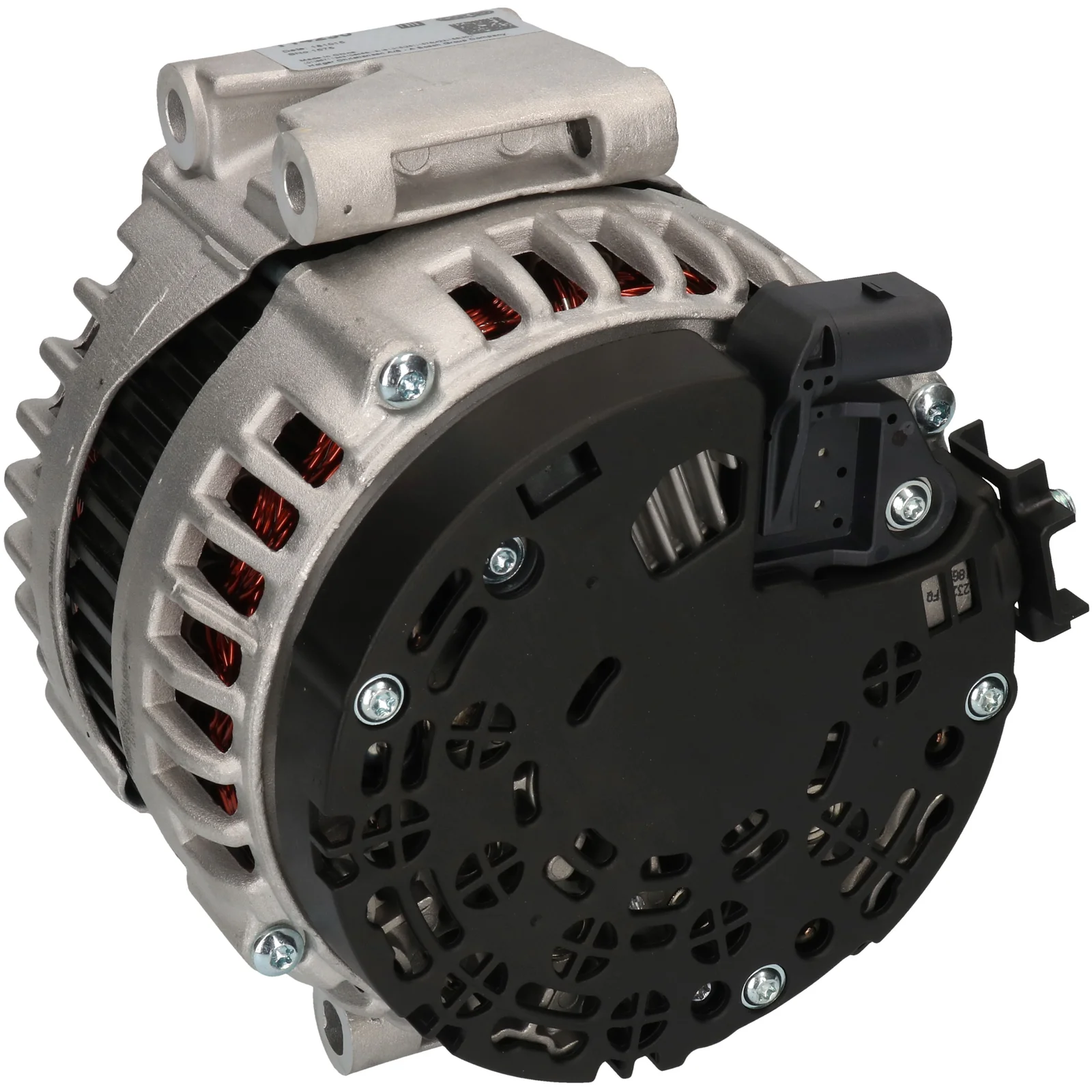

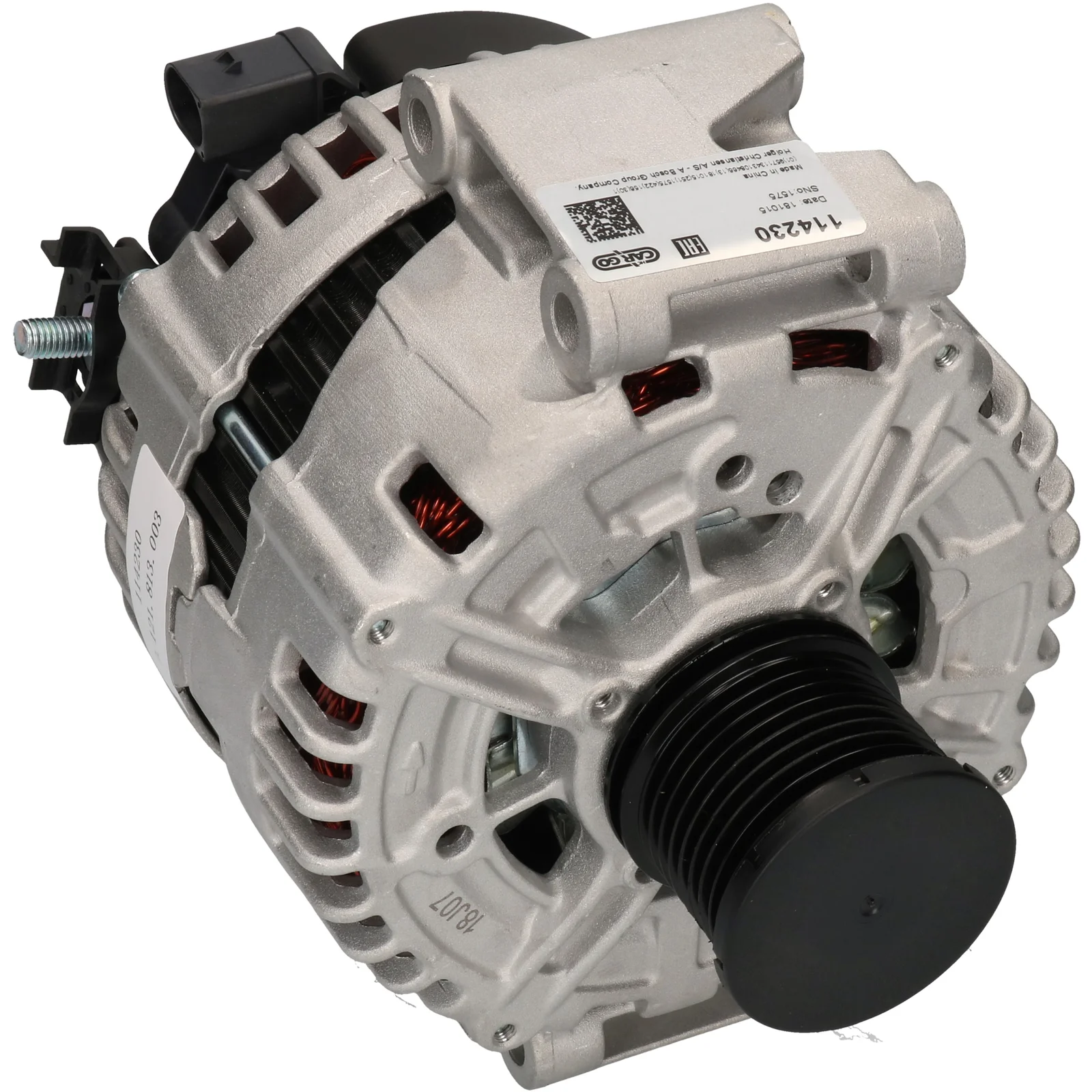

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114230

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 220, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

Voltage: 14
Amp: 220
Pulley dist.: 31.50
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.00
Bracket hole 2: 9.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 9.00
Belt. adj. bracket hole 2: 9.00
Pulley dia.: 50.00
Grooves/pulley: 8
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 43
Rotation: CW
Plug no.: PL86
Total length mm: 194.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.00
Belt. adj. bracket hole 2 9.00
Belt. adj. brackethole pos. 60
Plug no. PL86
Bracket hole 9.00
Bracket hole 2 9.00
Position/B+ in min. 43
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 31.50
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 8
Terminal type COM
Voltage 14
Total length 194.00 mm
Width/holder arm 70.00
Amp 220

  • OEM
    a0131540902, A013154090280, F032114230, 1986A01264, 0121813003, 0121813103, 0131540902, 013154090280

  • Konkurrentreferens
    A0431, A0431PR, CAL10363, DRB7800, 28-5907, 11308N, 209039, 209039A, 9047800, 12047800, 32047800, 0986047800, 0986047803, 0986047807

  • Normaliserat artikelnummer
    a0131540902, a013154090280, a0431, a0431pr, cal10363, drb7800, f032114230, 1986a01264, 11308n, 209039, 209039a, 285907, 9047800, 12047800, 32047800, 0121813003, 0121813103, 0131540902, 0986047800, 0986047803, 0986047807, 013154090280

  • Passar modeller
    Mercedes-Benz Model: 280 Model series: R 280 Model type: 4 Matic Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.950 Type description: 251 Body: MPV From date: 01-05-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: GL 320 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.940 Type description: X164 Body: SUV From date: 01-09-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: ML 320 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.940 Type description: W164 Body: SUV From date: 01-09-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: ML 320 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.940 Type description: W164 From date: 01-07-2005 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: R 320 Model type: 4 Matic Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.950 Type description: 251 Body: MPV From date: 01-01-2006 To date: 01-07-2010 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: S 320 Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.930 Type description: W221 From date: 01-10-2005 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 220
    Pulley dist.: 31.50
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.00
    Bracket hole 2: 9.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 9.00
    Belt. adj. bracket hole 2: 9.00
    Pulley dia.: 50.00
    Grooves/pulley: 8
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 43
    Rotation: CW
    Plug no.: PL86
    Total length mm: 194.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.00
    Belt. adj. bracket hole 2 9.00
    Belt. adj. brackethole pos. 60
    Plug no. PL86
    Bracket hole 9.00
    Bracket hole 2 9.00
    Position/B+ in min. 43
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 31.50
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 8
    Terminal type COM
    Voltage 14
    Total length 194.00 mm
    Width/holder arm 70.00
    Amp 220
  • Fordonsmatchning

    • OEM
      a0131540902, A013154090280, F032114230, 1986A01264, 0121813003, 0121813103, 0131540902, 013154090280

    • Konkurrentreferens
      A0431, A0431PR, CAL10363, DRB7800, 28-5907, 11308N, 209039, 209039A, 9047800, 12047800, 32047800, 0986047800, 0986047803, 0986047807

    • Normaliserat artikelnummer
      a0131540902, a013154090280, a0431, a0431pr, cal10363, drb7800, f032114230, 1986a01264, 11308n, 209039, 209039a, 285907, 9047800, 12047800, 32047800, 0121813003, 0121813103, 0131540902, 0986047800, 0986047803, 0986047807, 013154090280

    • Passar modeller
      Mercedes-Benz Model: 280 Model series: R 280 Model type: 4 Matic Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.950 Type description: 251 Body: MPV From date: 01-05-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: GL 320 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.940 Type description: X164 Body: SUV From date: 01-09-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: ML 320 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.940 Type description: W164 Body: SUV From date: 01-09-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: ML 320 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.940 Type description: W164 From date: 01-07-2005 To date: 01-07-2011 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: R 320 Model type: 4 Matic Type of engine: CDi Size of motor: 3.0 Brand of engine: OM642.950 Type description: 251 Body: MPV From date: 01-01-2006 To date: 01-07-2010 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: S 320 Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.930 Type description: W221 From date: 01-10-2005 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      1 / 2
