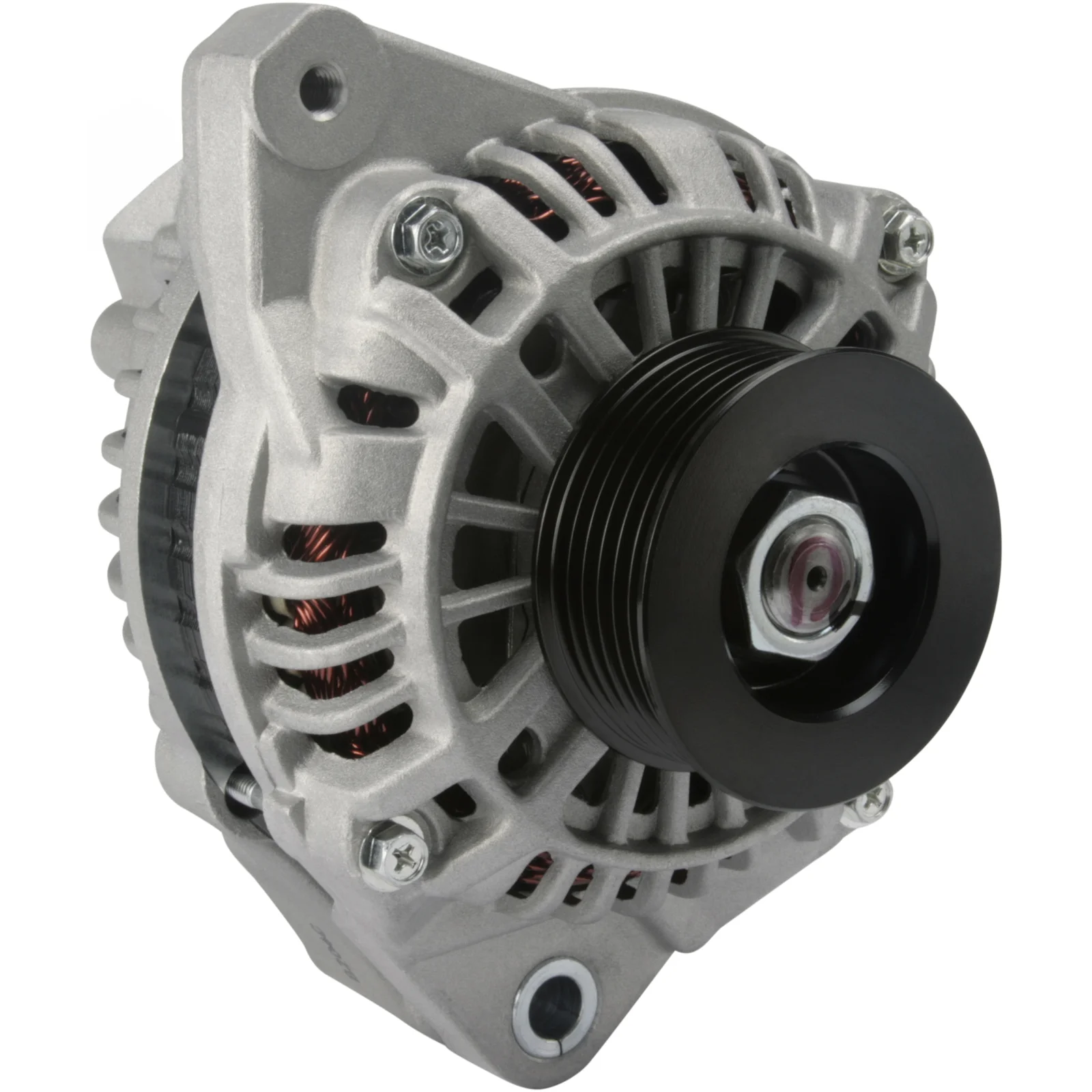

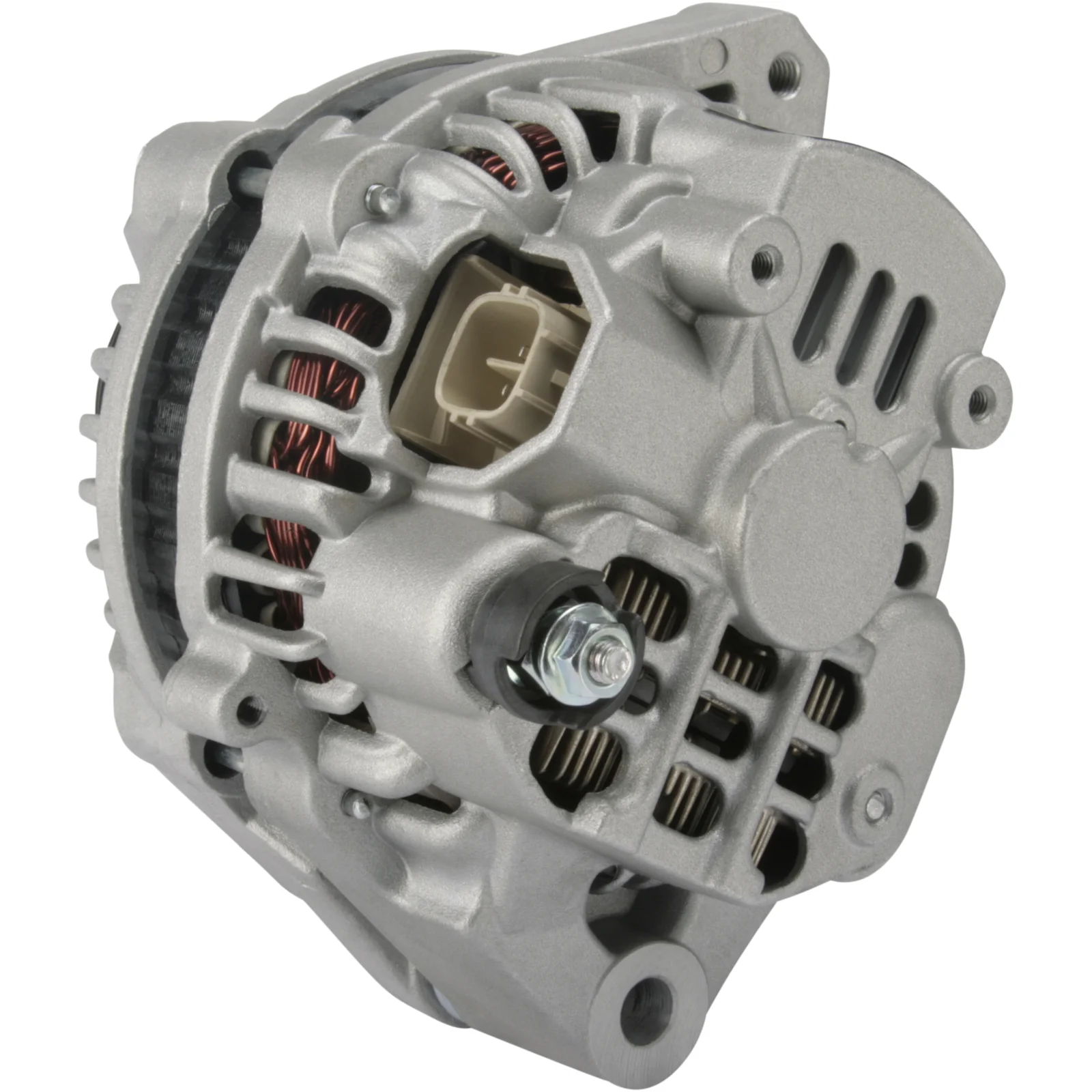

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113954

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley dia.: 62.50

Beskrivning

Voltage: 14
Amp: 70
Pulley dist.: 94.50
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 53
Belt. adj. bracket hole 1: M8
Pulley dia.: 62.50
Grooves/pulley: 6
Radius: 82.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 43
D+ Size: Plug
Rotation: CW
Plug no.: PL60
Pulley: SP
Regulator type: IR

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 53
Plug no. PL60
Bracket hole 10.50
Position/B+ in min. 43
Pulley SP
Pulley dia. 62.50
Pulley dist. 94.50
Radius 82.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Width/holder arm 58.00
Amp 70

  • OEM
    A005TA7091, A005TA7091ZC, A005TA7091ZE, A005TA7191ZC, A5TA6991, A5TA6991A, a5ta7091, A5TA7091ZC, A5TA7091ZE, A5TA7191, A5TA7191ZC, ahga50, AHGA51, AHGA64, F032113954, ja1727ir, 06311PLM505RM, 31100-PLM-A01, 31100-PLM-A02, 31100-rjh-004

  • Konkurrentreferens
    A5076, ALT-3710, CAL35199, DRA0017, F042303090, F042A03090, J5114037, lea0722, LRA02287, 8EL012426-441, 28-4768, 125.518.060, 125.518.070, 222.141.652, 13893, 13893N, 13893R, 112111, 209008, 209008A, 401727RI, 440552, 12060831, 0986080240, 944390903480

  • Normaliserat artikelnummer
    a005ta7091, a005ta7091zc, a005ta7091ze, a005ta7191zc, a5076, a5ta6991, a5ta6991a, a5ta7091, a5ta7091zc, a5ta7091ze, a5ta7191, a5ta7191zc, ahga50, ahga51, ahga64, alt3710, cal35199, dra0017, f032113954, f042303090, f042a03090, j5114037, ja1727ir, lea0722, lra02287, 8el012426441, 06311plm505rm, 13893, 13893n, 13893r, 31100plma01, 31100plma02, 31100rjh004, 112111, 209008, 209008a, 284768, 401727ri, 440552, 12060831, 125518060, 125518070, 222141652, 0986080240, 944390903480

  • Passar modeller
    Honda Model: Civic Model series: Civic Coupe Size of motor: 1.7 Brand of engine: D17A2 Type description: EM2 Body: Coupe From date: 01-09-2001 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    Honda Model: Civic Model series: Civic Model type: (ES1) Size of motor: 1.7 Brand of engine: D17Z1 Type description: ES, ET Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Honda Model: Civic Model series: Civic Model type: S Type of engine: i S Size of motor: 1.4 Brand of engine: D14Z5 Type description: EU, EP Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Model type: S Type of engine: i S Size of motor: 1.4 Brand of engine: D14Z6 Type description: EU, EP Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.4 Brand of engine: D14Z5 From date: 01-12-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.6 Brand of engine: D16V1 From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.6 Brand of engine: R16A1 From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.6 Brand of engine: R16A1 Type description: FD_ Body: Hatchback From date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.6 Brand of engine: R16A1 Type description: FD_ From date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.7 Brand of engine: D17A6 From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18A1 Type description: FD_ From date: 01-09-2005 To date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.4 Brand of engine: D14Z6 Type description: EU_, EP_ Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.6 Brand of engine: D16V1 Type description: EM Body: Coupe From date: 01-02-2001 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.6 Brand of engine: D16V1 Type description: EU, EP Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.7 Brand of engine: D17A5 Type description: EM2 Body: Coupe From date: 01-05-2001 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.7 Brand of engine: D17A8 Type description: EM Body: Coupe From date: 01-05-2001 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.7 Brand of engine: D17A9 Type description: EM2 Body: Coupe From date: 01-05-2001 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Honda Model: FR-V Model series: FR-V Size of motor: 1.7 Brand of engine: D17A2 Body: Hatchback From date: 01-08-2004 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 14
    Amp: 70
    Pulley dist.: 94.50
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 53
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 62.50
    Grooves/pulley: 6
    Radius: 82.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 43
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL60
    Pulley: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 53
    Plug no. PL60
    Bracket hole 10.50
    Position/B+ in min. 43
    Pulley SP
    Pulley dia. 62.50
    Pulley dist. 94.50
    Radius 82.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Width/holder arm 58.00
    Amp 70
  • Fordonsmatchning

    • OEM
      A005TA7091, A005TA7091ZC, A005TA7091ZE, A005TA7191ZC, A5TA6991, A5TA6991A, a5ta7091, A5TA7091ZC, A5TA7091ZE, A5TA7191, A5TA7191ZC, ahga50, AHGA51, AHGA64, F032113954, ja1727ir, 06311PLM505RM, 31100-PLM-A01, 31100-PLM-A02, 31100-rjh-004

    • Konkurrentreferens
      A5076, ALT-3710, CAL35199, DRA0017, F042303090, F042A03090, J5114037, lea0722, LRA02287, 8EL012426-441, 28-4768, 125.518.060, 125.518.070, 222.141.652, 13893, 13893N, 13893R, 112111, 209008, 209008A, 401727RI, 440552, 12060831, 0986080240, 944390903480

    • Normaliserat artikelnummer
      a005ta7091, a005ta7091zc, a005ta7091ze, a005ta7191zc, a5076, a5ta6991, a5ta6991a, a5ta7091, a5ta7091zc, a5ta7091ze, a5ta7191, a5ta7191zc, ahga50, ahga51, ahga64, alt3710, cal35199, dra0017, f032113954, f042303090, f042a03090, j5114037, ja1727ir, lea0722, lra02287, 8el012426441, 06311plm505rm, 13893, 13893n, 13893r, 31100plma01, 31100plma02, 31100rjh004, 112111, 209008, 209008a, 284768, 401727ri, 440552, 12060831, 125518060, 125518070, 222141652, 0986080240, 944390903480

    • Passar modeller
      Honda Model: Civic Model series: Civic Coupe Size of motor: 1.7 Brand of engine: D17A2 Type description: EM2 Body: Coupe From date: 01-09-2001 To date: 01-12-2005 Fuel: Petrol Approved: Yes
      Honda Model: Civic Model series: Civic Model type: (ES1) Size of motor: 1.7 Brand of engine: D17Z1 Type description: ES, ET Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Honda Model: Civic Model series: Civic Model type: S Type of engine: i S Size of motor: 1.4 Brand of engine: D14Z5 Type description: EU, EP Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Model type: S Type of engine: i S Size of motor: 1.4 Brand of engine: D14Z6 Type description: EU, EP Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Size of motor: 1.4 Brand of engine: D14Z5 From date: 01-12-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Size of motor: 1.6 Brand of engine: D16V1 From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Size of motor: 1.6 Brand of engine: R16A1 From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Size of motor: 1.6 Brand of engine: R16A1 Type description: FD_ Body: Hatchback From date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Size of motor: 1.6 Brand of engine: R16A1 Type description: FD_ From date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Size of motor: 1.7 Brand of engine: D17A6 From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18A1 Type description: FD_ From date: 01-09-2005 To date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.4 Brand of engine: D14Z6 Type description: EU_, EP_ Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.6 Brand of engine: D16V1 Type description: EM Body: Coupe From date: 01-02-2001 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.6 Brand of engine: D16V1 Type description: EU, EP Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.7 Brand of engine: D17A5 Type description: EM2 Body: Coupe From date: 01-05-2001 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.7 Brand of engine: D17A8 Type description: EM Body: Coupe From date: 01-05-2001 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.7 Brand of engine: D17A9 Type description: EM2 Body: Coupe From date: 01-05-2001 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Honda Model: FR-V Model series: FR-V Size of motor: 1.7 Brand of engine: D17A2 Body: Hatchback From date: 01-08-2004 Fuel: Gasoline Approved: Yes
