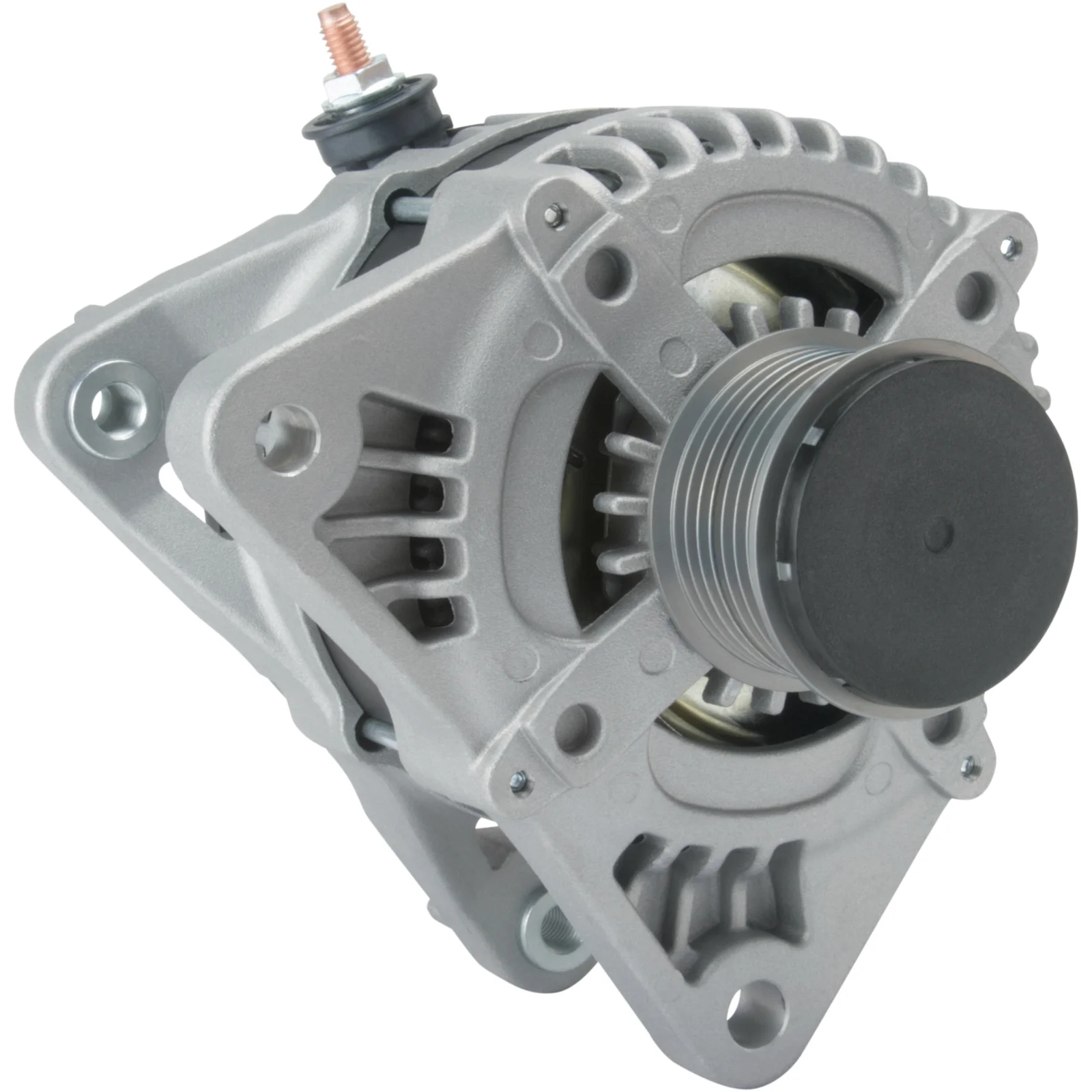

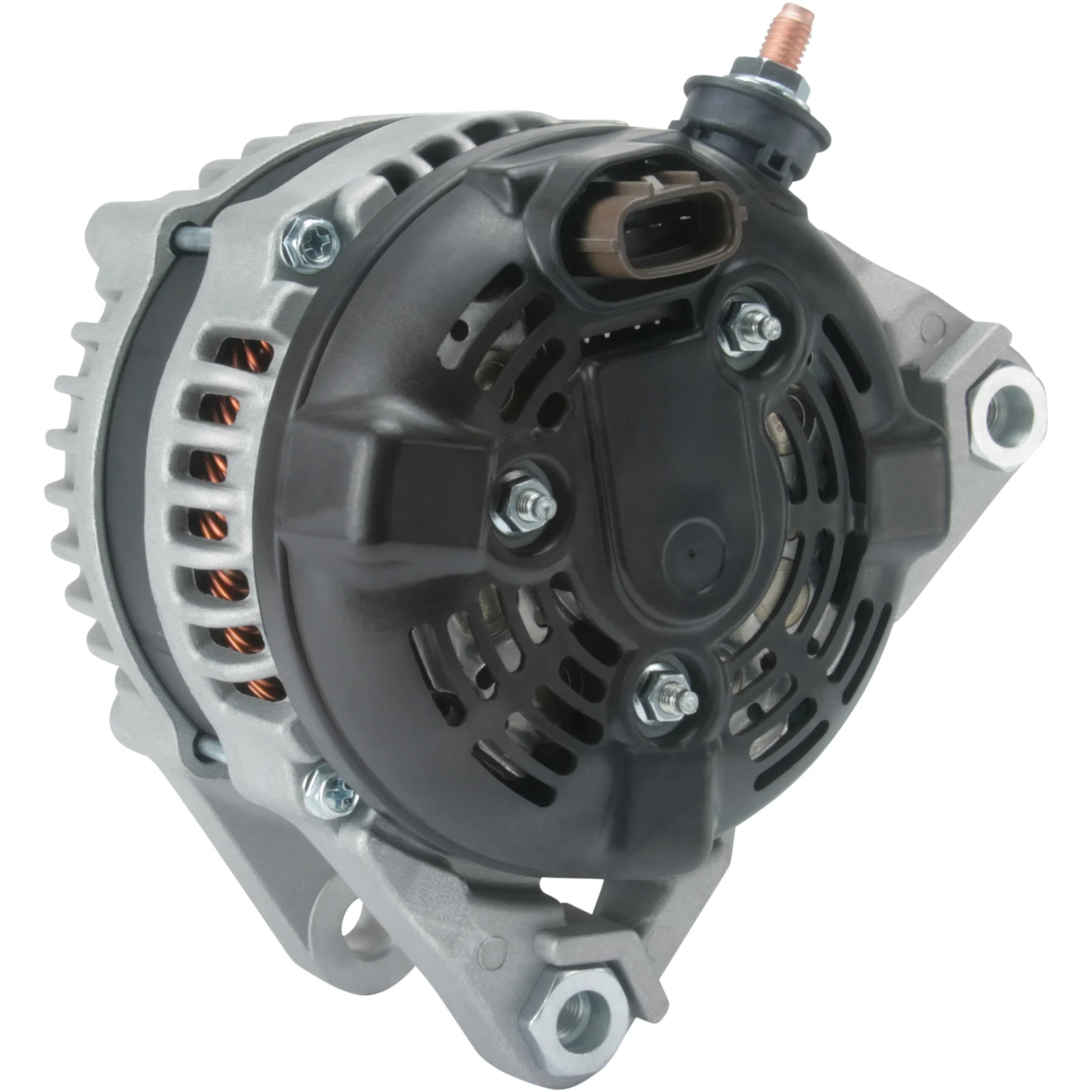

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115305

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 140, Rotation: CW, Mount. bracket dist.: 55.00

Beskrivning

Voltage: 14
Amp: 140
Pulley dist.: 32.50
Width/holder arm: 16.00
Mount. bracket dist.: 55.00
Bracket hole: 12.00
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 10.50
Belt. adj. bracket hole 2: M10
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 4
D+ Size: Plug
Rotation: CW
Plug no.: PL58
Total length mm: 175.00
Terminal type: L-IG
Pulley: SP/FW
Fan: IF
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 10.50
Belt. adj. bracket hole 2 M10
Belt. adj. brackethole pos. 47
Plug no. PL58
Bracket hole 12.00
Position/B+ in min. 4
Prod. info BN
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 32.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L-IG
Voltage 14
Total length 175.00 mm
Width/holder arm 16.00
Amp 140

  • OEM
    F032115305, 1991ir, 31400-67j00, 104210-4660

  • Konkurrentreferens
    A6125, CAL40258, DRA0617, LRA03031, 8EL738213-011, 28-5643, 245.127.1402, 24020, 24020R, 113346, 209369, 209369A, 440974, 9090867, 12060966, 0986082290

  • Normaliserat artikelnummer
    a6125, cal40258, dra0617, f032115305, lra03031, 8el738213011, 1991ir, 24020, 24020r, 113346, 209369, 209369a, 285643, 440974, 3140067j00, 9090867, 12060966, 0986082290, 1042104660, 2451271402

  • Passar modeller
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: DDiS Size of motor: 1.9 Brand of engine: F9QB From date: 01-03-2006 To date: 01-08-2008 Fuel: Diesel Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: DDiS Size of motor: 1.9 Brand of engine: F9QB Type description: JT From date: 01-10-2005 To date: 01-02-2015 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 140
    Pulley dist.: 32.50
    Width/holder arm: 16.00
    Mount. bracket dist.: 55.00
    Bracket hole: 12.00
    Belt. adj. brackethole pos.: 47
    Belt. adj. bracket hole 1: 10.50
    Belt. adj. bracket hole 2: M10
    Pulley dia.: 55.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 4
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL58
    Total length mm: 175.00
    Terminal type: L-IG
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 55.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. bracket hole 2 M10
    Belt. adj. brackethole pos. 47
    Plug no. PL58
    Bracket hole 12.00
    Position/B+ in min. 4
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 32.50
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type L-IG
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 16.00
    Amp 140
  • Fordonsmatchning

    • OEM
      F032115305, 1991ir, 31400-67j00, 104210-4660

    • Konkurrentreferens
      A6125, CAL40258, DRA0617, LRA03031, 8EL738213-011, 28-5643, 245.127.1402, 24020, 24020R, 113346, 209369, 209369A, 440974, 9090867, 12060966, 0986082290

    • Normaliserat artikelnummer
      a6125, cal40258, dra0617, f032115305, lra03031, 8el738213011, 1991ir, 24020, 24020r, 113346, 209369, 209369a, 285643, 440974, 3140067j00, 9090867, 12060966, 0986082290, 1042104660, 2451271402

    • Passar modeller
      Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: DDiS Size of motor: 1.9 Brand of engine: F9QB From date: 01-03-2006 To date: 01-08-2008 Fuel: Diesel Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: DDiS Size of motor: 1.9 Brand of engine: F9QB Type description: JT From date: 01-10-2005 To date: 01-02-2015 Fuel: Diesel Approved: Yes
