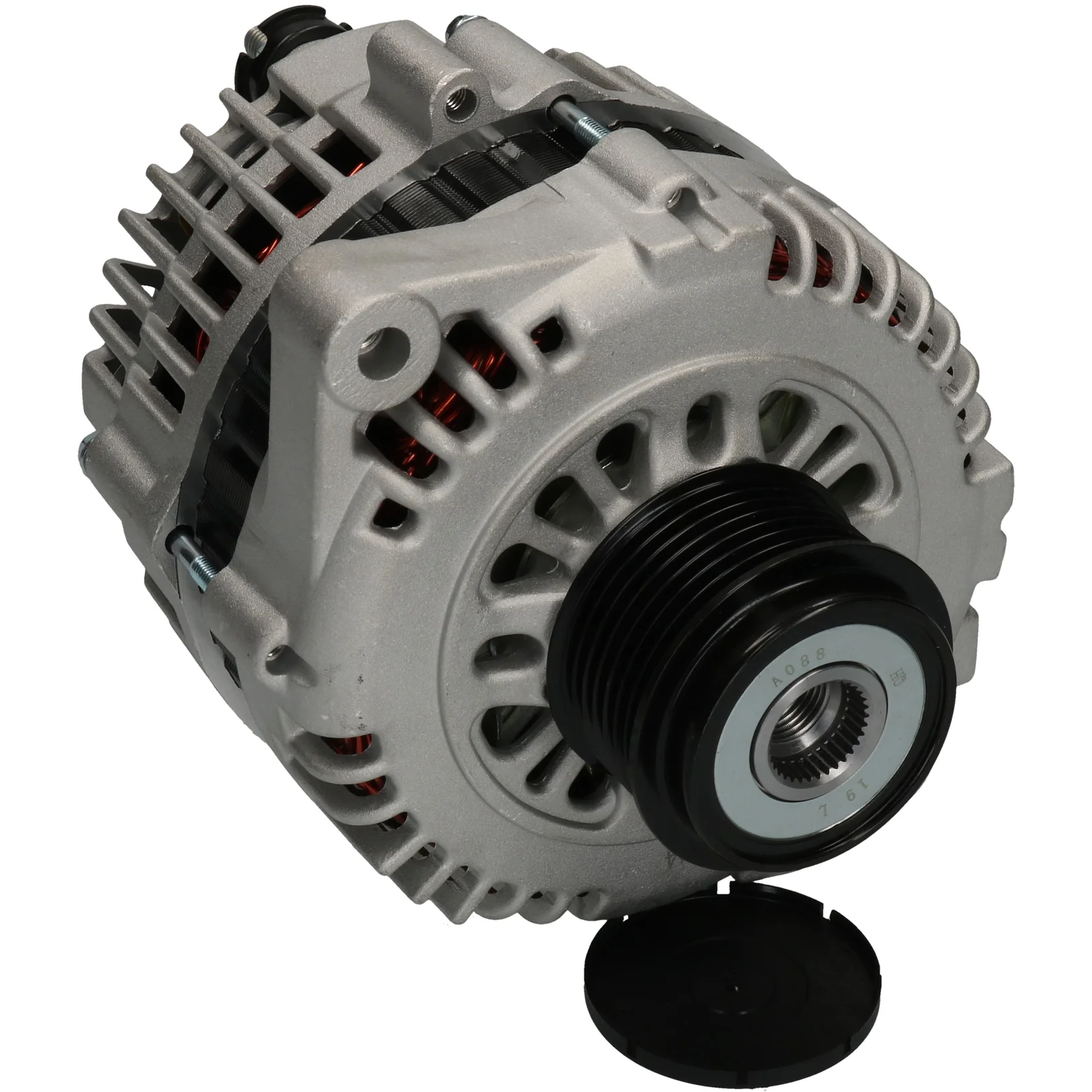

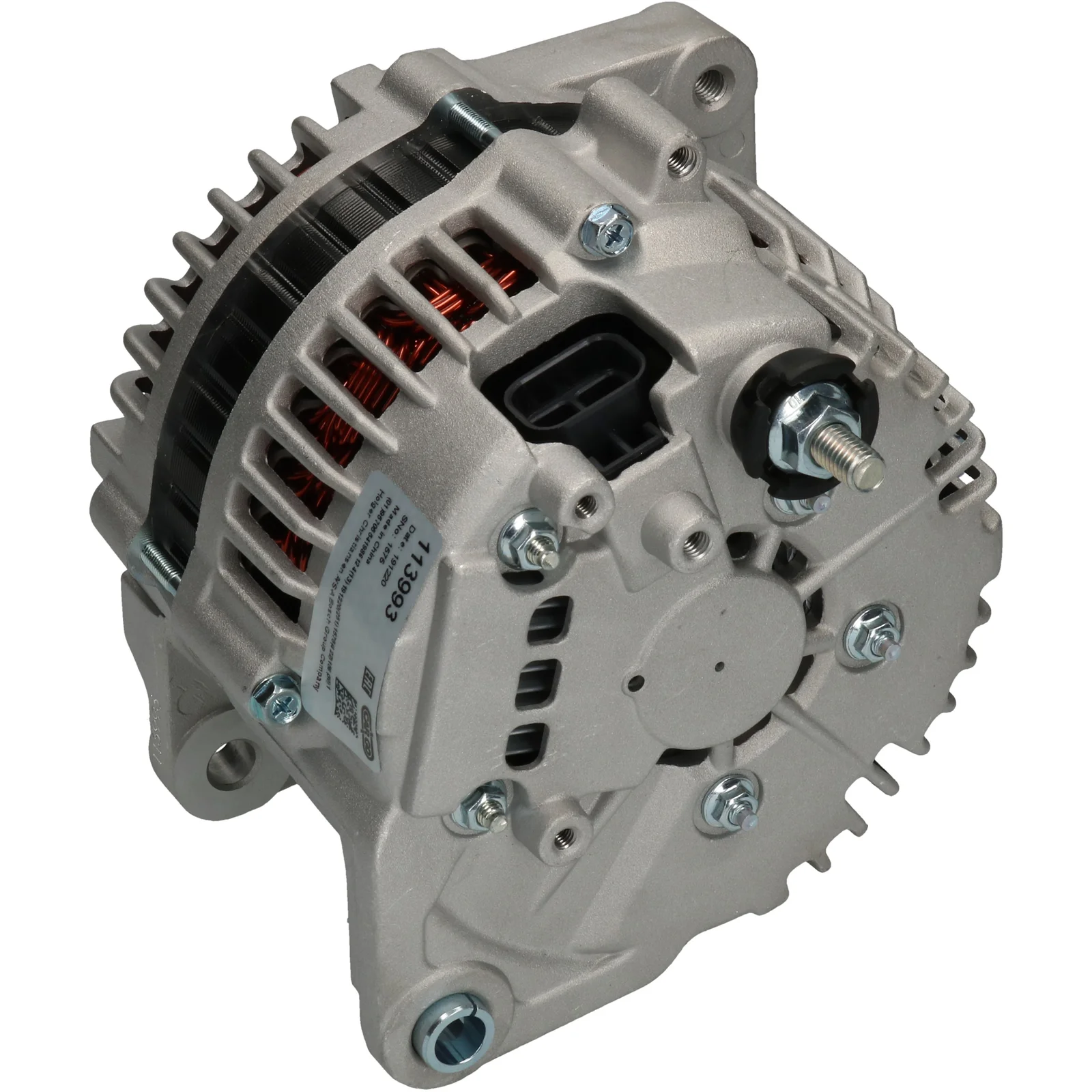

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113993

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 135, Mount. bracket dist.: 81.00, Pulley dia.: 59.50

Beskrivning

Voltage: 14
Amp: 135
Pulley dist.: 38.50
Width/holder arm: 13.00
Mount. bracket dist.: 81.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 59.50
Grooves/pulley: 7
Radius: 85.00
Radius 2: 84.00
B+: M8
Position/B+ in min.: 55
D+ Size: Plug
Plug no.: PL07
Total length mm: 195.00
Pulley: SP/FW
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 55
Prod. info BN
Pulley SP/FW
Pulley dia. 59.50
Pulley dist. 38.50
Radius 85.00
D+ Size Plug
Radius 2 84.00
Grooves/pulley 7
Voltage 14
Total length 195.00 mm
Width/holder arm 13.00
Amp 135

  • OEM
    F032113993, LR1130-702, LR1130-702B, LR1130-702C, LR1130-702E, LR1130-702F, 1986A01857, 2082ir, 23100-DB000, 23100-db00a, 23100-DB00B, 4419036, 4419088, 93196984, 5010437730, 7485129965, 7711135920

  • Konkurrentreferens
    A2039, CAL20162, DRA0231, LRA02873, 8EL015630-741, 28-4989, 228.162.1352, 575.517.135, 23873R, 112340, 210871, 210871A, 444237, 553109RI, 12060860, 0986082190

  • Normaliserat artikelnummer
    a2039, cal20162, dra0231, f032113993, lr1130702, lr1130702b, lr1130702c, lr1130702e, lr1130702f, lra02873, 8el015630741, 1986a01857, 2082ir, 23100db000, 23100db00a, 23100db00b, 23873r, 112340, 210871, 210871a, 284989, 444237, 553109ri, 4419036, 4419088, 12060860, 93196984, 575517135, 0986082190, 2281621352, 5010437730, 7485129965, 7711135920

  • Passar modeller
    Nissan Model: Atleon Model series: 35.15 Size of motor: 3.0 Brand of engine: ZD30DDTi Body: Platform / Chassis From date: 01-10-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 56.15 Size of motor: 3.0 Body: Platform / Chassis From date: 01-10-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 56.15 Size of motor: 3.0 Brand of engine: ZD30DDTi Type description: Atleon Body: Truck Tractor From date: 01-10-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Interstar Model series: Interstar Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD30 Body: Bus From date: 01-11-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Interstar Model series: Interstar Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD30 Body: Platform / Chassis From date: 01-11-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Interstar Model series: Interstar Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD30 Body: Van From date: 01-11-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: F9 Body: Van From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: J9 Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: U9, E9 Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: F9 Body: Van From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: J9 Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: U9, E9 Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3200 Type description: JD Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3202 Type description: ED, UD Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3202 Type description: HD, FD Body: Van From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3202 Type description: JD Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 160.35 Size of motor: 3.0 Brand of engine: DXi3 Type description: Mascott Body: Platform / Chassis From date: 01-05-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 160.35 Size of motor: 3.0 Brand of engine: ZD3A604 Type description: Mascott Body: Platform / Chassis From date: 01-05-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Maxity Model series: 150.35 Size of motor: 3.0 Brand of engine: DXi3 Type description: Mascott Body: Dump Truck From date: 01-03-2007 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Maxity Model series: 150.35 Size of motor: 3.0 Brand of engine: DXi3 Type description: Maxity Body: Platform / Chassis From date: 01-03-2007 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Maxity Model series: 150.45 Size of motor: 3.0 Brand of engine: DXi3 Type description: Mascott Body: Dump Truck From date: 01-03-2007 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Maxity Model series: 150.45 Size of motor: 3.0 Brand of engine: DXi3 Type description: Mascott Body: Platform / Chassis From date: 01-03-2007 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: JD Body: Bus From date: 01-10-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: ED,UD,HD Body: Platform / Chassis From date: 01-10-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: FD Body: Van From date: 01-10-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 14
    Amp: 135
    Pulley dist.: 38.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 59.50
    Grooves/pulley: 7
    Radius: 85.00
    Radius 2: 84.00
    B+: M8
    Position/B+ in min.: 55
    D+ Size: Plug
    Plug no.: PL07
    Total length mm: 195.00
    Pulley: SP/FW
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 55
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 59.50
    Pulley dist. 38.50
    Radius 85.00
    D+ Size Plug
    Radius 2 84.00
    Grooves/pulley 7
    Voltage 14
    Total length 195.00 mm
    Width/holder arm 13.00
    Amp 135
  • Fordonsmatchning

    • OEM
      F032113993, LR1130-702, LR1130-702B, LR1130-702C, LR1130-702E, LR1130-702F, 1986A01857, 2082ir, 23100-DB000, 23100-db00a, 23100-DB00B, 4419036, 4419088, 93196984, 5010437730, 7485129965, 7711135920

    • Konkurrentreferens
      A2039, CAL20162, DRA0231, LRA02873, 8EL015630-741, 28-4989, 228.162.1352, 575.517.135, 23873R, 112340, 210871, 210871A, 444237, 553109RI, 12060860, 0986082190

    • Normaliserat artikelnummer
      a2039, cal20162, dra0231, f032113993, lr1130702, lr1130702b, lr1130702c, lr1130702e, lr1130702f, lra02873, 8el015630741, 1986a01857, 2082ir, 23100db000, 23100db00a, 23100db00b, 23873r, 112340, 210871, 210871a, 284989, 444237, 553109ri, 4419036, 4419088, 12060860, 93196984, 575517135, 0986082190, 2281621352, 5010437730, 7485129965, 7711135920

    • Passar modeller
      Nissan Model: Atleon Model series: 35.15 Size of motor: 3.0 Brand of engine: ZD30DDTi Body: Platform / Chassis From date: 01-10-2006 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 56.15 Size of motor: 3.0 Body: Platform / Chassis From date: 01-10-2006 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 56.15 Size of motor: 3.0 Brand of engine: ZD30DDTi Type description: Atleon Body: Truck Tractor From date: 01-10-2006 Fuel: Diesel Approved: Yes
      Nissan Model: Interstar Model series: Interstar Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD30 Body: Bus From date: 01-11-2003 Fuel: Diesel Approved: Yes
      Nissan Model: Interstar Model series: Interstar Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD30 Body: Platform / Chassis From date: 01-11-2003 Fuel: Diesel Approved: Yes
      Nissan Model: Interstar Model series: Interstar Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD30 Body: Van From date: 01-11-2003 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: F9 Body: Van From date: 01-10-2003 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: J9 Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: U9, E9 Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: F9 Body: Van From date: 01-10-2003 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: J9 Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: U9, E9 Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3200 Type description: JD Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3202 Type description: ED, UD Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3202 Type description: HD, FD Body: Van From date: 01-10-2003 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3202 Type description: JD Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 160.35 Size of motor: 3.0 Brand of engine: DXi3 Type description: Mascott Body: Platform / Chassis From date: 01-05-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Mascott Model series: 160.35 Size of motor: 3.0 Brand of engine: ZD3A604 Type description: Mascott Body: Platform / Chassis From date: 01-05-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Maxity Model series: 150.35 Size of motor: 3.0 Brand of engine: DXi3 Type description: Mascott Body: Dump Truck From date: 01-03-2007 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Maxity Model series: 150.35 Size of motor: 3.0 Brand of engine: DXi3 Type description: Maxity Body: Platform / Chassis From date: 01-03-2007 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Maxity Model series: 150.45 Size of motor: 3.0 Brand of engine: DXi3 Type description: Mascott Body: Dump Truck From date: 01-03-2007 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Maxity Model series: 150.45 Size of motor: 3.0 Brand of engine: DXi3 Type description: Mascott Body: Platform / Chassis From date: 01-03-2007 Fuel: Diesel Approved: Yes
      Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: JD Body: Bus From date: 01-10-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: ED,UD,HD Body: Platform / Chassis From date: 01-10-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: FD Body: Van From date: 01-10-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      1 / 5
