Artikelnr: F032111950

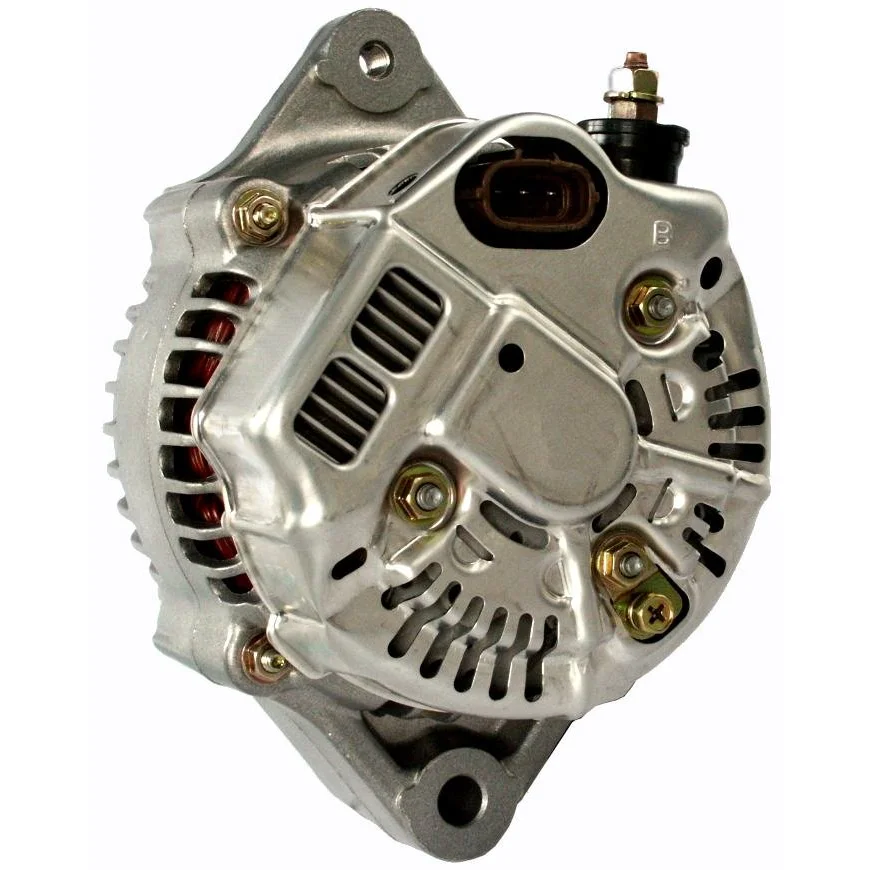

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 85, Rotation: CW, Pulley dia.: 60.00

Beskrivning

Suzuki Generator 12V-80A 12V - 80A, 4gr, ( -, IG, L) För Yourex produkt order 90-528-4578

Voltage: 14
Amp: 85
Pulley dist.: 90.00
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 60.00
Grooves/pulley: 4
Radius: 77.50
Radius 2: 83.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL58
Total length mm: 160.00
Pulley: SP
Regulator type: IR
Prod. info: Reman
Servicing: Suzuki

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL58
Bracket hole 10.50
Position/B+ in min. 5
Prod. info Reman
Pulley SP
Pulley dia. 60.00
Pulley dist. 90.00
Radius 77.50
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Servicing Suzuki
Grooves/pulley 4
Voltage 14
Total length 160.00 mm
Width/holder arm 58.00
Amp 85

  • OEM
    F032111950, ja1356ir, 0986 045 781, 31400-52D10, 31400-77E10, 31400-77e10, 31400-77E10-000, 31400-77E11, 31400-77E12, 31400-77e12, 101211-9180, 102211-1430, 102211-2430, 104210-8140, 111950

  • Konkurrentreferens
    A6185, ALT-H071, CAL47101, DAN1006, DENDAN1006, DRA1014, DRA3927, F042A0H071, J5118020, LRA02058, 8el737524-001, 28-3956, 28-3986, 245.112.852, 245.117.852, 5994, 11164R, 13795N, 13982N, 23037N, 111599, 111600, 209488, 209488A, 401356RI, 437726, 9212143, 12060745, 0986045771, 0986045781, 063377529010, 944390518120

  • Bilmärken
    Suzuki

  • Normaliserat artikelnummer
    a6185, alth071, cal47101, dan1006, dendan1006, dra1014, dra3927, f032111950, f042a0h071, j5118020, ja1356ir, lra02058, 8el737524001, 5994, 11164r, 13795n, 13982n, 23037n, 111599, 111600, 111950, 209488, 209488a, 283956, 283986, 401356ri, 437726, 3140052d10, 3140077e10, 3140077e10000, 3140077e11, 3140077e12, 9212143, 12060745, 245112852, 245117852, 0986045771, 0986045781, 1012119180, 1022111430, 1022112430, 1042108140, 063377529010, 944390518120

  • Passar modeller
    Suzuki Model: Baleno Model series: Baleno Type of engine: i 16V Size of motor: 1.6 Brand of engine: G16B Body: Estate From date: 01-08-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
    Suzuki Model: Baleno Model series: Baleno Type of engine: i 16V Size of motor: 1.6 Brand of engine: G16B Body: Hatchback From date: 01-07-1995 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
    Suzuki Model: Baleno Model series: Baleno Type of engine: i 16V Size of motor: 1.6 Brand of engine: G16B From date: 01-07-1995 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: All-wheel Drive (JB627) Size of motor: 2.7 Brand of engine: H27A Type description: JT, TE, TD Body: Closed Off-Road Vehicle From date: 01-10-2006 To date: 01-11-2007 Fuel: Petrol Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Model type: Lang Type of engine: i Size of motor: 2.0 Brand of engine: H20A From date: 01-12-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Type of engine: i 24V Size of motor: 2.5 Brand of engine: H25A Type description: ET From date: 01-12-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Suzuki Model: Wagon Model series: Wagon R+ Model type: 4WD Size of motor: 1.3 Brand of engine: G13BB Type description: MM Body: MPV From date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Suzuki Model: Wagon Model series: Wagon R+ Size of motor: 1.3 Brand of engine: G13BB Type description: MM Body: MPV From date: 01-05-2000 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Suzuki Model: Wagon Model series: Wagon R+ Size of motor: 1.3 Brand of engine: M13A Type description: MM Body: MPV From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Suzuki Series: Grand Vitara Model: 2.5 V6 24V Engine volume: 2.5 Engine type: H 25 A Year: 04.01-07.04
    Suzuki Series: Grand Vitara Model: 2.5 V6 24V Engine volume: 2.5 Engine type: H 25 A Year: 04.98-03.01
    Suzuki Series: Grand Vitara XL-7 I Model: 2.7 4x4 Engine volume: 2.7 Year: 09.01-
    Suzuki Series: Vitara Model: 2.0 V6 24V Engine volume: 2.0 Engine type: H 20 A Year: 03.95-03.98
    Suzuki Series: Wagon R+ Model: 1.3 Engine volume: 1.3 Engine type: G13BB Year: 05.00-12.04
    1 / 3
  • Beskrivning
    Suzuki Generator 12V-80A 12V - 80A, 4gr, ( -, IG, L) För Yourex produkt order 90-528-4578

    Voltage: 14
    Amp: 85
    Pulley dist.: 90.00
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 60.00
    Grooves/pulley: 4
    Radius: 77.50
    Radius 2: 83.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL58
    Total length mm: 160.00
    Pulley: SP
    Regulator type: IR
    Prod. info: Reman
    Servicing: Suzuki

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL58
    Bracket hole 10.50
    Position/B+ in min. 5
    Prod. info Reman
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 90.00
    Radius 77.50
    D+ Size Plug
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Servicing Suzuki
    Grooves/pulley 4
    Voltage 14
    Total length 160.00 mm
    Width/holder arm 58.00
    Amp 85
  • Fordonsmatchning

    • OEM
      F032111950, ja1356ir, 0986 045 781, 31400-52D10, 31400-77E10, 31400-77e10, 31400-77E10-000, 31400-77E11, 31400-77E12, 31400-77e12, 101211-9180, 102211-1430, 102211-2430, 104210-8140, 111950

    • Konkurrentreferens
      A6185, ALT-H071, CAL47101, DAN1006, DENDAN1006, DRA1014, DRA3927, F042A0H071, J5118020, LRA02058, 8el737524-001, 28-3956, 28-3986, 245.112.852, 245.117.852, 5994, 11164R, 13795N, 13982N, 23037N, 111599, 111600, 209488, 209488A, 401356RI, 437726, 9212143, 12060745, 0986045771, 0986045781, 063377529010, 944390518120

    • Bilmärken
      Suzuki

    • Normaliserat artikelnummer
      a6185, alth071, cal47101, dan1006, dendan1006, dra1014, dra3927, f032111950, f042a0h071, j5118020, ja1356ir, lra02058, 8el737524001, 5994, 11164r, 13795n, 13982n, 23037n, 111599, 111600, 111950, 209488, 209488a, 283956, 283986, 401356ri, 437726, 3140052d10, 3140077e10, 3140077e10000, 3140077e11, 3140077e12, 9212143, 12060745, 245112852, 245117852, 0986045771, 0986045781, 1012119180, 1022111430, 1022112430, 1042108140, 063377529010, 944390518120

    • Passar modeller
      Suzuki Model: Baleno Model series: Baleno Type of engine: i 16V Size of motor: 1.6 Brand of engine: G16B Body: Estate From date: 01-08-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
      Suzuki Model: Baleno Model series: Baleno Type of engine: i 16V Size of motor: 1.6 Brand of engine: G16B Body: Hatchback From date: 01-07-1995 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
      Suzuki Model: Baleno Model series: Baleno Type of engine: i 16V Size of motor: 1.6 Brand of engine: G16B From date: 01-07-1995 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: All-wheel Drive (JB627) Size of motor: 2.7 Brand of engine: H27A Type description: JT, TE, TD Body: Closed Off-Road Vehicle From date: 01-10-2006 To date: 01-11-2007 Fuel: Petrol Approved: Yes
      Suzuki Model: Vitara Model series: Vitara Model type: Lang Type of engine: i Size of motor: 2.0 Brand of engine: H20A From date: 01-12-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Suzuki Model: Vitara Model series: Vitara Type of engine: i 24V Size of motor: 2.5 Brand of engine: H25A Type description: ET From date: 01-12-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Suzuki Model: Wagon Model series: Wagon R+ Model type: 4WD Size of motor: 1.3 Brand of engine: G13BB Type description: MM Body: MPV From date: 01-10-2001 Fuel: Gasoline Approved: Yes
      Suzuki Model: Wagon Model series: Wagon R+ Size of motor: 1.3 Brand of engine: G13BB Type description: MM Body: MPV From date: 01-05-2000 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Suzuki Model: Wagon Model series: Wagon R+ Size of motor: 1.3 Brand of engine: M13A Type description: MM Body: MPV From date: 01-09-2003 Fuel: Gasoline Approved: Yes
      Suzuki Series: Grand Vitara Model: 2.5 V6 24V Engine volume: 2.5 Engine type: H 25 A Year: 04.01-07.04
      Suzuki Series: Grand Vitara Model: 2.5 V6 24V Engine volume: 2.5 Engine type: H 25 A Year: 04.98-03.01
      Suzuki Series: Grand Vitara XL-7 I Model: 2.7 4x4 Engine volume: 2.7 Year: 09.01-
      Suzuki Series: Vitara Model: 2.0 V6 24V Engine volume: 2.0 Engine type: H 20 A Year: 03.95-03.98
      Suzuki Series: Wagon R+ Model: 1.3 Engine volume: 1.3 Engine type: G13BB Year: 05.00-12.04
