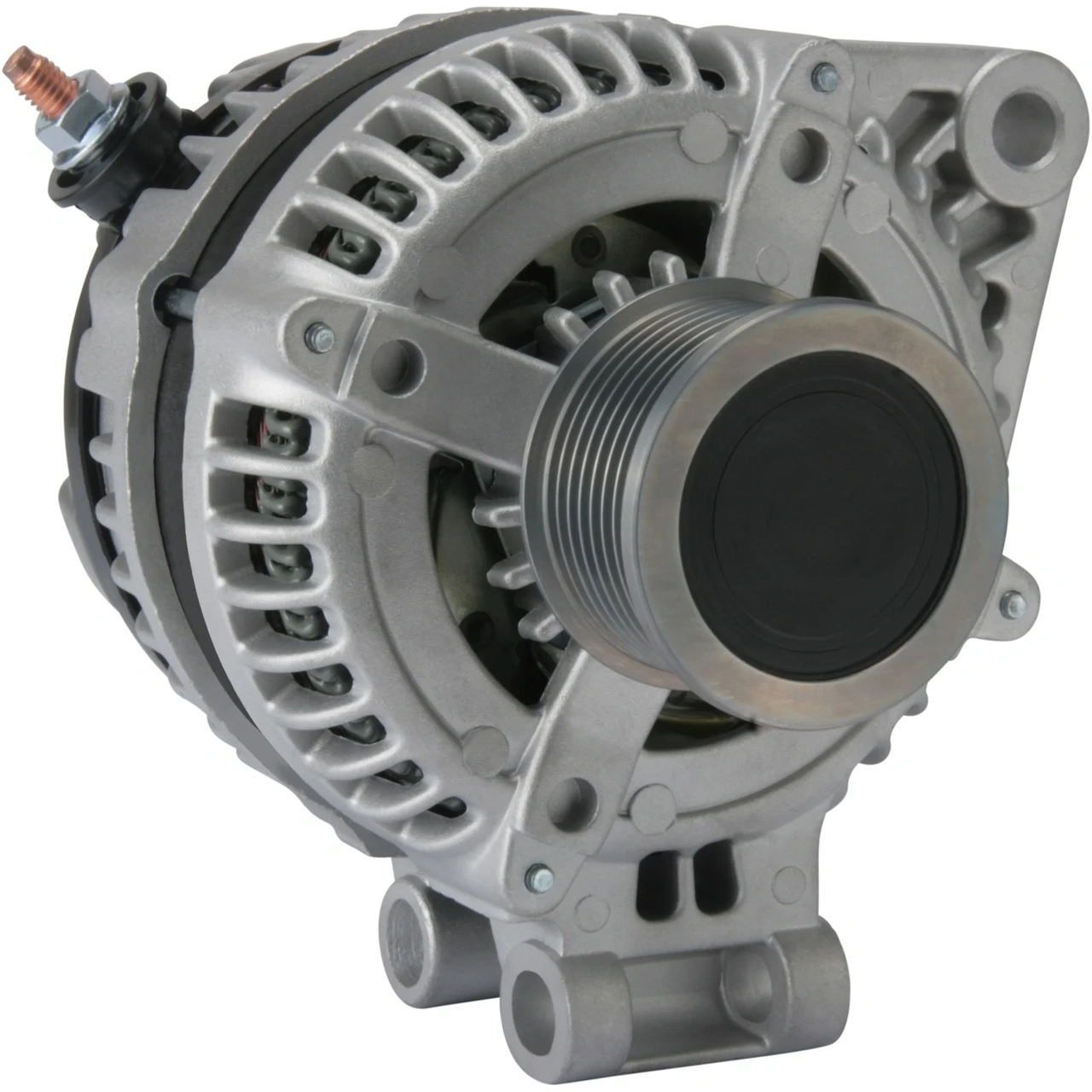

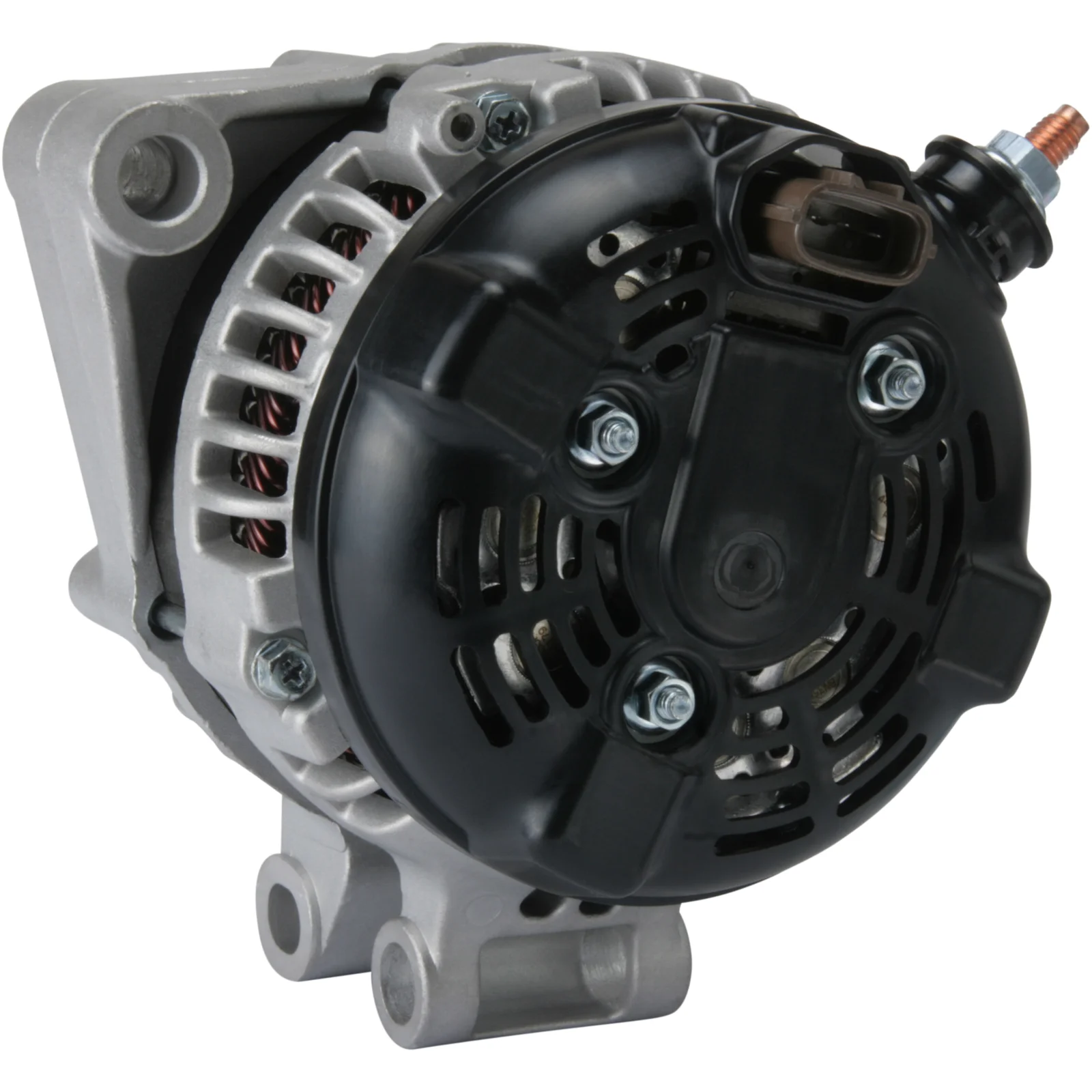

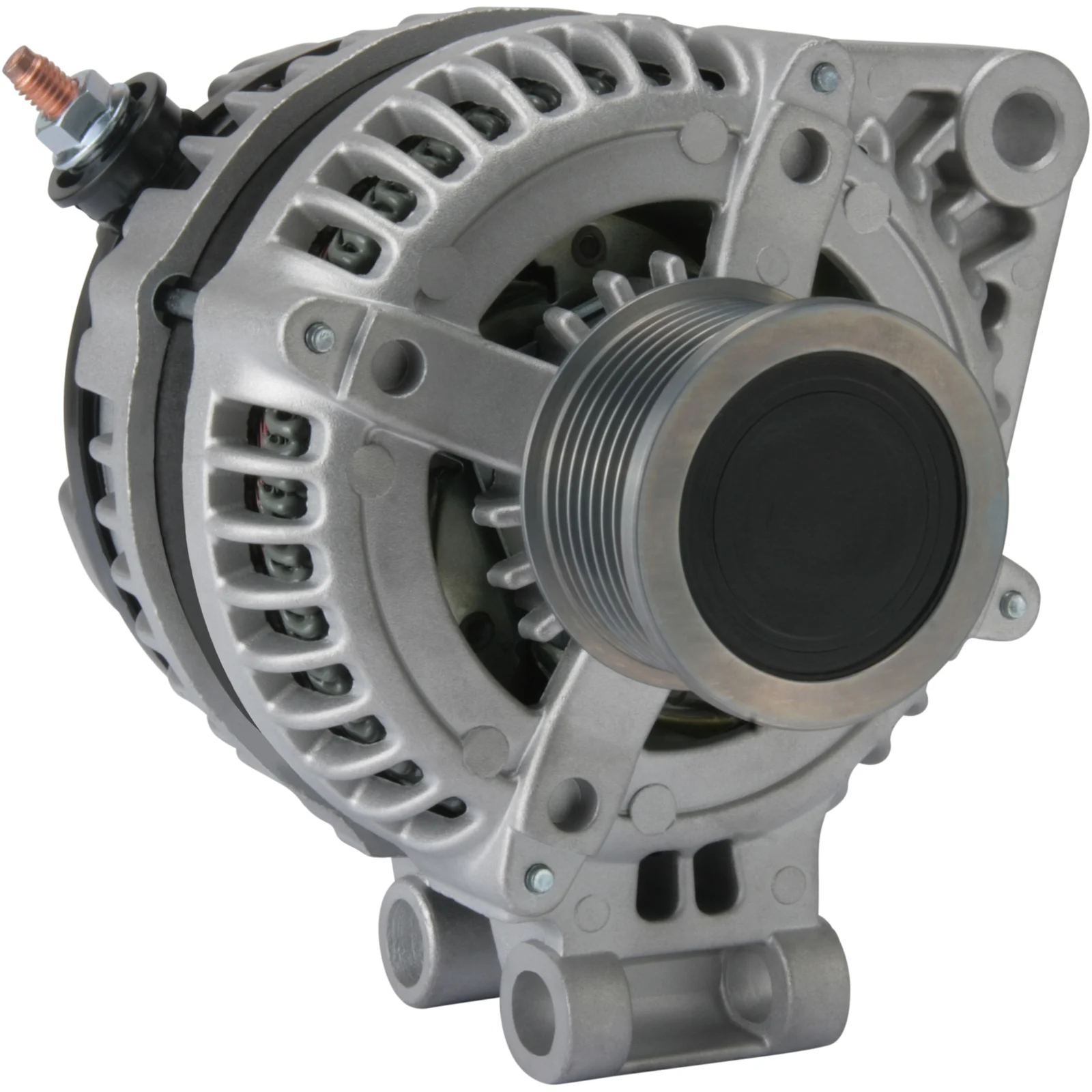

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114704

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 47.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 22.00
Width/holder arm: 50.00
Mount. bracket dist.: 47.00
Bracket hole: 12.00x14.00
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 11.00
Belt. adj. bracket hole 2: 11.40
Pulley dia.: 57.30
Grooves/pulley: 8
Radius: 84.50
Radius 2: 86.00
B+: M8
Position/B+ in min.: 7
D+ Size: Plug
Rotation: CW
Plug no.: PL136
Total length mm: 173.00
Terminal type: LI-RC-BVS
Lamp type: Inactive
Pulley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 47.00
Belt. adj. bracket hole 1 11.00
Belt. adj. bracket hole 2 11.40
Belt. adj. brackethole pos. 10
Plug no. PL136
Bracket hole 12.00x14.00
Position/B+ in min. 7
Pulley SP/FW
Pulley dia. 57.30
Pulley dist. 22.00
Radius 84.50
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 8
Lamp type Inactive
Terminal type LI-RC-BVS
Voltage 14
Total length 173.00 mm
Width/holder arm 50.00
Amp 150

  • OEM
    A6080, A6080(DENSO), CAL40254, CAL40308, DAN987, DENDAN987, F032114704, F042205268, LR008861, LR078806, LRA03028, YLE500200, YLE500200E, YLE500400, 8EL012426-021, 8EL738212-901, 28-5640, 214.162.1502, 1986A01346, 9454, 24028CT-WB, 24028R, 104210-3710, 104210-3711, 112684, 210902, 210902A, 301958RI, 439984, 440765, 12090357, 32082400, 51993599, 0986082400, 5801837072, 063377525010

  • Konkurrentreferens
    A6080, A6080(DENSO), CAL40254, CAL40308, DAN987, DENDAN987, dra0342, F042205268, lea0700, LRA03028, 8EL012426-021, 8EL738212-901, 28-5640, 214.162.1502, 9454, 24028CT-WB, 24028R, 112684, 210902, 210902A, 301958RI, 439984, 440765, 12090357, 32082400, 0986082400, 063377525010

  • Bilmärken
    FIAT, LAND ROVER

  • Normaliserat artikelnummer
    a6080, a6080denso, cal40254, cal40308, dan987, dendan987, f032114704, f042205268, lr008861, lr078806, lra03028, yle500200, yle500200e, yle500400, 8el012426021, 8el738212901, 1986a01346, 9454, 24028ctwb, 24028r, 112684, 210902, 210902a, 285640, 301958ri, 439984, 440765, 12090357, 32082400, 51993599, 0986082400, 1042103710, 1042103711, 2141621502, 5801837072, 063377525010

  • Passar modeller
    FIAT DUCATO Flak/chassi (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411C Year: 12.15-
    FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
    LAND ROVER DISCOVERY III (L319) 2.7 TD 4x4 Engine volume: 2.7 Engine type: 276DT(TDV6) Year: 07.04-09.09
    LAND ROVER DISCOVERY III (L319) 4.0 V6 4x4 Engine volume: 4.0 Engine type: 406PN(COLOGNE V6) Year: 10.04-09.09
    LAND ROVER DISCOVERY III VAN (L319) 2.7 TD 4x4 Engine volume: 2.7 Engine type: 276DT(TDV6) Year: 01.07-07.09
    LAND ROVER RANGE ROVER SPORT I (L320) 2.7 D 4x4 Engine volume: 2.7 Engine type: 276DT(TDV6) Year: 02.05-03.13
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 22.00
    Width/holder arm: 50.00
    Mount. bracket dist.: 47.00
    Bracket hole: 12.00x14.00
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 11.00
    Belt. adj. bracket hole 2: 11.40
    Pulley dia.: 57.30
    Grooves/pulley: 8
    Radius: 84.50
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 7
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL136
    Total length mm: 173.00
    Terminal type: LI-RC-BVS
    Lamp type: Inactive
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 47.00
    Belt. adj. bracket hole 1 11.00
    Belt. adj. bracket hole 2 11.40
    Belt. adj. brackethole pos. 10
    Plug no. PL136
    Bracket hole 12.00x14.00
    Position/B+ in min. 7
    Pulley SP/FW
    Pulley dia. 57.30
    Pulley dist. 22.00
    Radius 84.50
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 8
    Lamp type Inactive
    Terminal type LI-RC-BVS
    Voltage 14
    Total length 173.00 mm
    Width/holder arm 50.00
    Amp 150
  • Fordonsmatchning

    • OEM
      A6080, A6080(DENSO), CAL40254, CAL40308, DAN987, DENDAN987, F032114704, F042205268, LR008861, LR078806, LRA03028, YLE500200, YLE500200E, YLE500400, 8EL012426-021, 8EL738212-901, 28-5640, 214.162.1502, 1986A01346, 9454, 24028CT-WB, 24028R, 104210-3710, 104210-3711, 112684, 210902, 210902A, 301958RI, 439984, 440765, 12090357, 32082400, 51993599, 0986082400, 5801837072, 063377525010

    • Konkurrentreferens
      A6080, A6080(DENSO), CAL40254, CAL40308, DAN987, DENDAN987, dra0342, F042205268, lea0700, LRA03028, 8EL012426-021, 8EL738212-901, 28-5640, 214.162.1502, 9454, 24028CT-WB, 24028R, 112684, 210902, 210902A, 301958RI, 439984, 440765, 12090357, 32082400, 0986082400, 063377525010

    • Bilmärken
      FIAT, LAND ROVER

    • Normaliserat artikelnummer
      a6080, a6080denso, cal40254, cal40308, dan987, dendan987, f032114704, f042205268, lr008861, lr078806, lra03028, yle500200, yle500200e, yle500400, 8el012426021, 8el738212901, 1986a01346, 9454, 24028ctwb, 24028r, 112684, 210902, 210902a, 285640, 301958ri, 439984, 440765, 12090357, 32082400, 51993599, 0986082400, 1042103710, 1042103711, 2141621502, 5801837072, 063377525010

    • Passar modeller
      FIAT DUCATO Flak/chassi (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411C Year: 12.15-
      FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
      LAND ROVER DISCOVERY III (L319) 2.7 TD 4x4 Engine volume: 2.7 Engine type: 276DT(TDV6) Year: 07.04-09.09
      LAND ROVER DISCOVERY III (L319) 4.0 V6 4x4 Engine volume: 4.0 Engine type: 406PN(COLOGNE V6) Year: 10.04-09.09
      LAND ROVER DISCOVERY III VAN (L319) 2.7 TD 4x4 Engine volume: 2.7 Engine type: 276DT(TDV6) Year: 01.07-07.09
      LAND ROVER RANGE ROVER SPORT I (L320) 2.7 D 4x4 Engine volume: 2.7 Engine type: 276DT(TDV6) Year: 02.05-03.13
