Artikelnr: F032113697

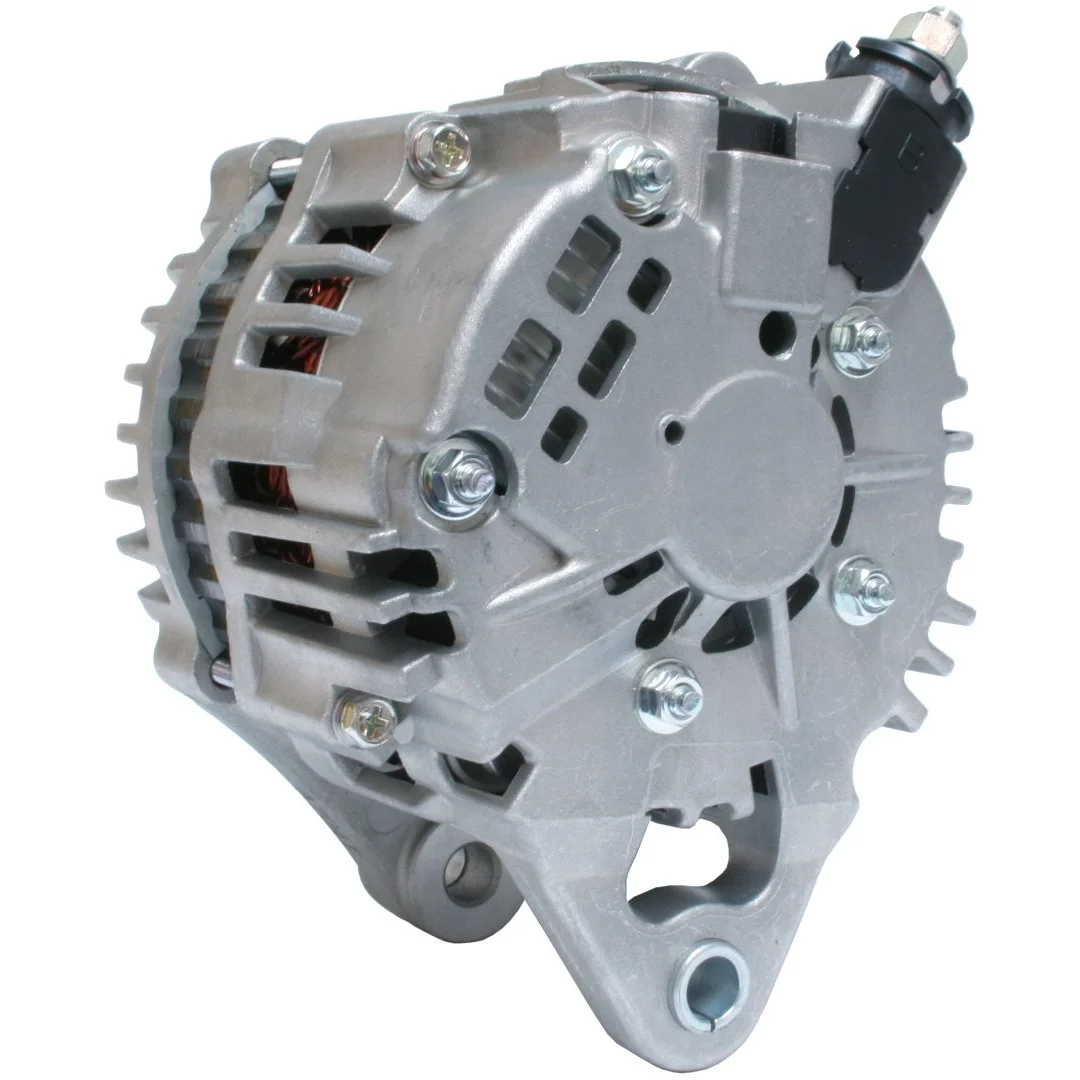

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 65, Rotation: CCW, Mount. bracket dist.: 66.50

Beskrivning

Voltage: 14
Amp: 65
Pulley dist.: 38.00
Width/holder arm: 24.50
Mount. bracket dist.: 66.50
Bracket hole: 10.40
Belt. adj. brackethole pos.: 55
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 50.00
Grooves/pulley: 6
Radius: 83.50
Radius 2: 91.50
B+: M8
Position/B+ in min.: 10
Rotation: CCW
Plug no.: PL07
Total length mm: 158.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Nissan

Filer

Specifikation

B+ M8
Mount. bracket dist. 66.50
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 55
Plug no. PL07
Bracket hole 10.40
Position/B+ in min. 10
Prod. info BN
Pulley SP
Pulley dia. 50.00
Pulley dist. 38.00
Radius 83.50
Radius 2 91.50
Regulator type IR
Rotation CCW
Servicing Nissan
Grooves/pulley 6
Voltage 14
Total length 158.00 mm
Width/holder arm 24.50
Amp 65

  • OEM
    F032113697, ja1790ir, lr165-714, lr170-768, 23100-AN000, 23100-ap000, 23100-AP00A

  • Konkurrentreferens
    A2030, ALT-3729, CAL20116, DRA3947, DRA3947X, F042208015, F042A05063, J5111096, LRA02152, 8EL011711-321, 28-4602, 227.180.702, 23155N, 23155R, 111712, 401790RI, 440116, 9212794, 12060821, 0986080210, 944390903760

  • Normaliserat artikelnummer
    a2030, alt3729, cal20116, dra3947, dra3947x, f032113697, f042208015, f042a05063, j5111096, ja1790ir, lr165714, lr170768, lra02152, 8el011711321, 23100an000, 23100ap000, 23100ap00a, 23155n, 23155r, 111712, 284602, 401790ri, 440116, 9212794, 12060821, 227180702, 0986080210, 944390903760

  • Passar modeller
    Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K11 Body: Hatchback From date: 01-08-1992 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K11 Body: Hatchback From date: 01-09-2000 To date: 01-02-2003 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.4 Brand of engine: CGA3DE Type description: K11 Body: Hatchback From date: 01-09-2000 To date: 01-02-2003 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 65
    Pulley dist.: 38.00
    Width/holder arm: 24.50
    Mount. bracket dist.: 66.50
    Bracket hole: 10.40
    Belt. adj. brackethole pos.: 55
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 50.00
    Grooves/pulley: 6
    Radius: 83.50
    Radius 2: 91.50
    B+: M8
    Position/B+ in min.: 10
    Rotation: CCW
    Plug no.: PL07
    Total length mm: 158.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Nissan

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 66.50
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 55
    Plug no. PL07
    Bracket hole 10.40
    Position/B+ in min. 10
    Prod. info BN
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 38.00
    Radius 83.50
    Radius 2 91.50
    Regulator type IR
    Rotation CCW
    Servicing Nissan
    Grooves/pulley 6
    Voltage 14
    Total length 158.00 mm
    Width/holder arm 24.50
    Amp 65
  • Fordonsmatchning

    • OEM
      F032113697, ja1790ir, lr165-714, lr170-768, 23100-AN000, 23100-ap000, 23100-AP00A

    • Konkurrentreferens
      A2030, ALT-3729, CAL20116, DRA3947, DRA3947X, F042208015, F042A05063, J5111096, LRA02152, 8EL011711-321, 28-4602, 227.180.702, 23155N, 23155R, 111712, 401790RI, 440116, 9212794, 12060821, 0986080210, 944390903760

    • Normaliserat artikelnummer
      a2030, alt3729, cal20116, dra3947, dra3947x, f032113697, f042208015, f042a05063, j5111096, ja1790ir, lr165714, lr170768, lra02152, 8el011711321, 23100an000, 23100ap000, 23100ap00a, 23155n, 23155r, 111712, 284602, 401790ri, 440116, 9212794, 12060821, 227180702, 0986080210, 944390903760

    • Passar modeller
      Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K11 Body: Hatchback From date: 01-08-1992 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K11 Body: Hatchback From date: 01-09-2000 To date: 01-02-2003 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.4 Brand of engine: CGA3DE Type description: K11 Body: Hatchback From date: 01-09-2000 To date: 01-02-2003 Fuel: Gasoline Approved: Yes
