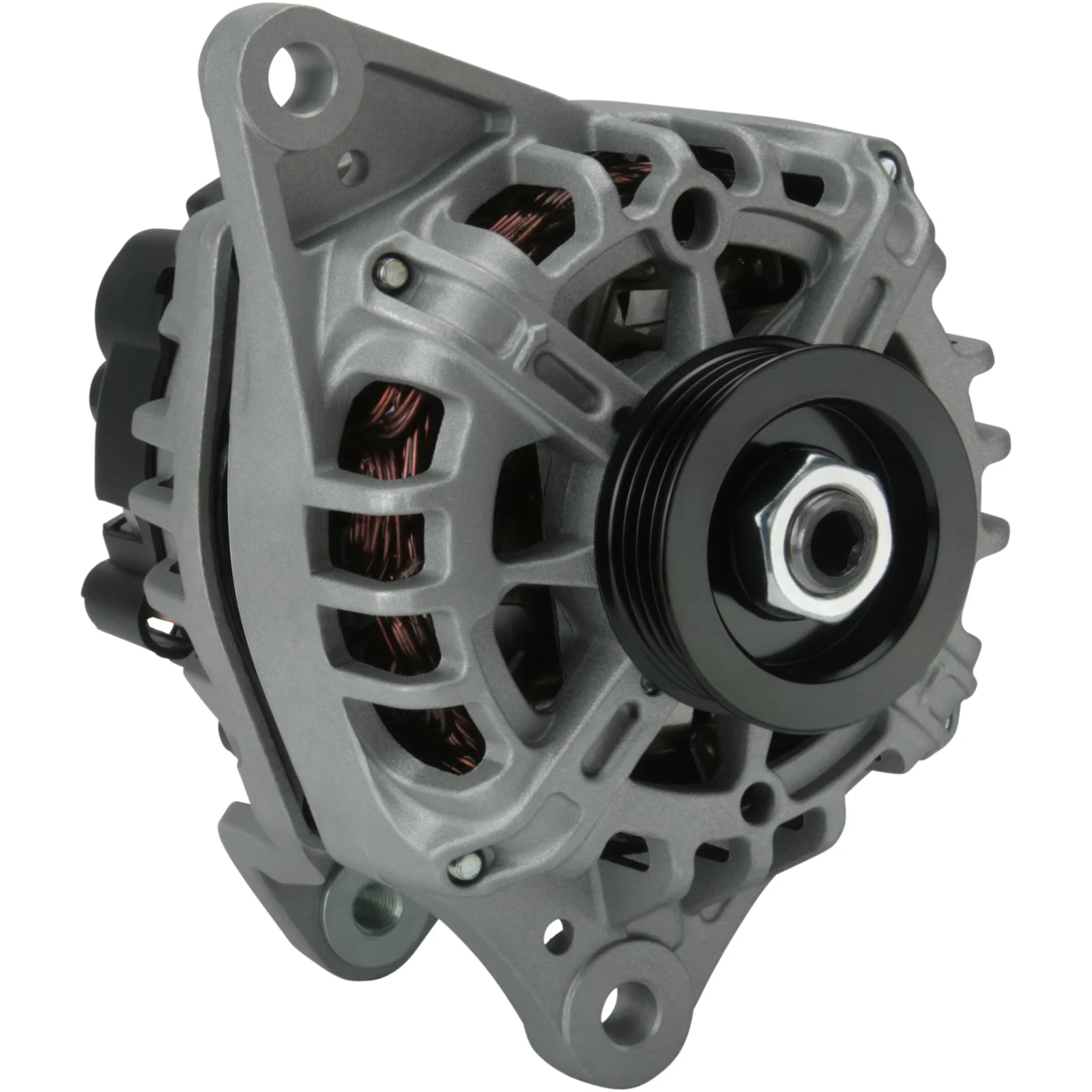

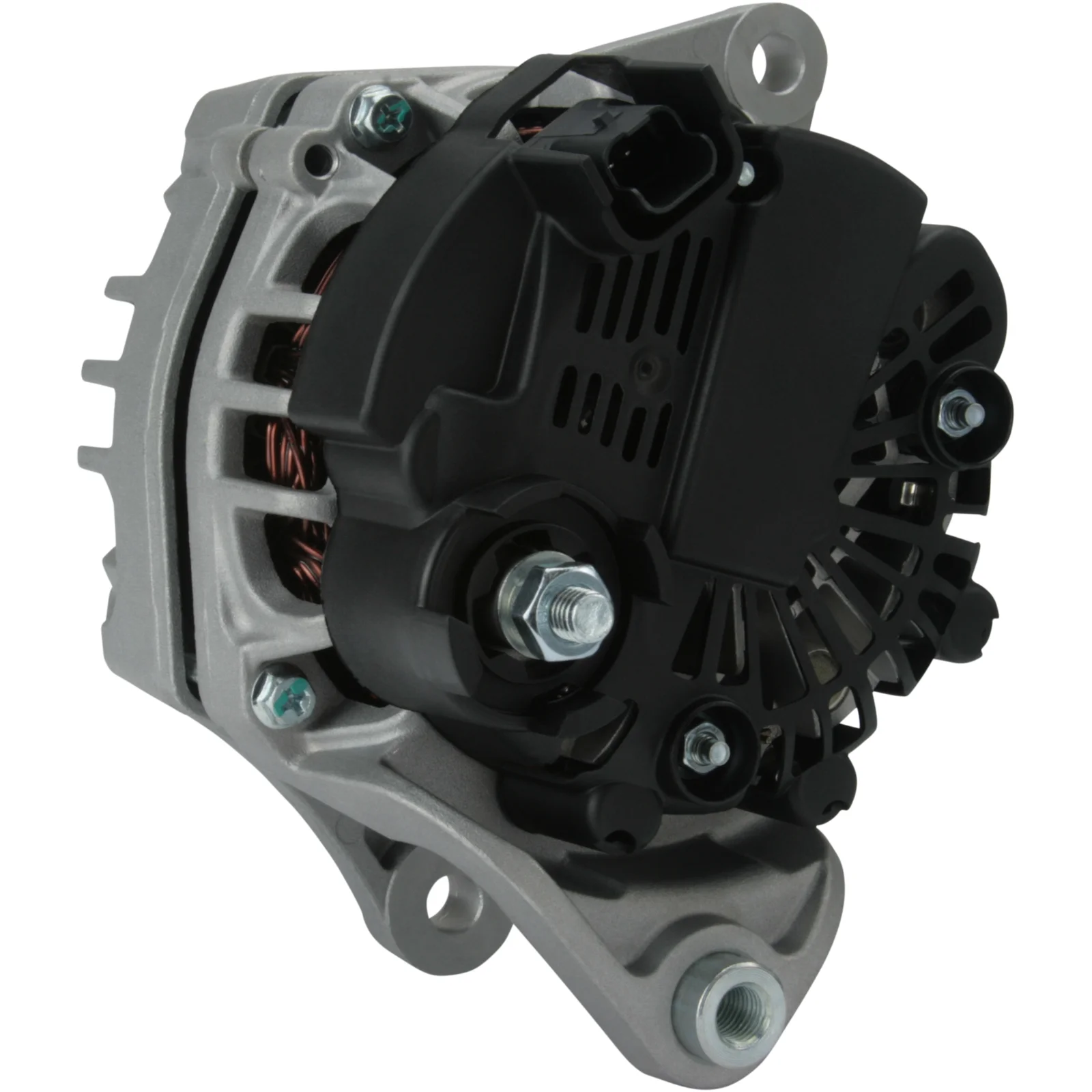

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115531

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 67.50

Beskrivning

Voltage: 14
Amp: 80
Pulley dist.: 44.50
Width/holder arm: 13.00
Mount. bracket dist.: 67.50
Bracket hole: 10.00
Belt. adj. brackethole pos.: 53
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 55.00
Grooves/pulley: 4
Radius: 83.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 40
Rotation: CW
Plug no.: PL55
Total length mm: 170.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 67.50
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 53
Plug no. PL55
Bracket hole 10.00
Position/B+ in min. 40
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 44.50
Radius 83.00
Radius 2 93.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 170.00 mm
Width/holder arm 13.00
Amp 80

  • OEM
    F032115531, TG8C018, TG8S019, 1963ir, 23100-AX610, 23100-ax62a, 2542926, 2542926A, 2542927, 2542927A

  • Konkurrentreferens
    A3220, A3220PR, A3331, CAL15318, DRA0206, 8EL012430-031, 8EL738211-941, 28-4903, 165.502.080, 23559N, 23560N, 209143, 209143A, 301963RI, 437543, 439550, 747136, 12060836, 0986080680

  • Normaliserat artikelnummer
    a3220, a3220pr, a3331, cal15318, dra0206, f032115531, tg8c018, tg8s019, 8el012430031, 8el738211941, 1963ir, 23100ax610, 23100ax62a, 23559n, 23560n, 209143, 209143a, 284903, 301963ri, 437543, 439550, 747136, 2542926, 2542926a, 2542927, 2542927a, 12060836, 165502080, 0986080680

  • Passar modeller
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CG12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CR12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.4 Brand of engine: CR14DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.4 Brand of engine: CR14DE Type description: K12E Body: Convertible From date: 01-08-2005 Fuel: Gasoline Approved: Yes Manufacture type: C+C
    Nissan Model: Note Model series: Note Model type: LPG Type of engine: LPG Size of motor: 1.4 Brand of engine: CR14DE Type description: E11, NE11 Body: MPV From date: 01-01-2006 To date: 01-08-2013 Fuel: Petrol/Electro Approved: Yes
    Nissan Model: Note Model series: Note Size of motor: 1.4 Brand of engine: CR14DE Type description: E11 Body: MPV From date: 01-03-2006 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 80
    Pulley dist.: 44.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 67.50
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 53
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 55.00
    Grooves/pulley: 4
    Radius: 83.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 40
    Rotation: CW
    Plug no.: PL55
    Total length mm: 170.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 67.50
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 53
    Plug no. PL55
    Bracket hole 10.00
    Position/B+ in min. 40
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 44.50
    Radius 83.00
    Radius 2 93.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 13.00
    Amp 80
  • Fordonsmatchning

    • OEM
      F032115531, TG8C018, TG8S019, 1963ir, 23100-AX610, 23100-ax62a, 2542926, 2542926A, 2542927, 2542927A

    • Konkurrentreferens
      A3220, A3220PR, A3331, CAL15318, DRA0206, 8EL012430-031, 8EL738211-941, 28-4903, 165.502.080, 23559N, 23560N, 209143, 209143A, 301963RI, 437543, 439550, 747136, 12060836, 0986080680

    • Normaliserat artikelnummer
      a3220, a3220pr, a3331, cal15318, dra0206, f032115531, tg8c018, tg8s019, 8el012430031, 8el738211941, 1963ir, 23100ax610, 23100ax62a, 23559n, 23560n, 209143, 209143a, 284903, 301963ri, 437543, 439550, 747136, 2542926, 2542926a, 2542927, 2542927a, 12060836, 165502080, 0986080680

    • Passar modeller
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CG12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CR12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.4 Brand of engine: CR14DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.4 Brand of engine: CR14DE Type description: K12E Body: Convertible From date: 01-08-2005 Fuel: Gasoline Approved: Yes Manufacture type: C+C
      Nissan Model: Note Model series: Note Model type: LPG Type of engine: LPG Size of motor: 1.4 Brand of engine: CR14DE Type description: E11, NE11 Body: MPV From date: 01-01-2006 To date: 01-08-2013 Fuel: Petrol/Electro Approved: Yes
      Nissan Model: Note Model series: Note Size of motor: 1.4 Brand of engine: CR14DE Type description: E11 Body: MPV From date: 01-03-2006 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
      1 / 2
