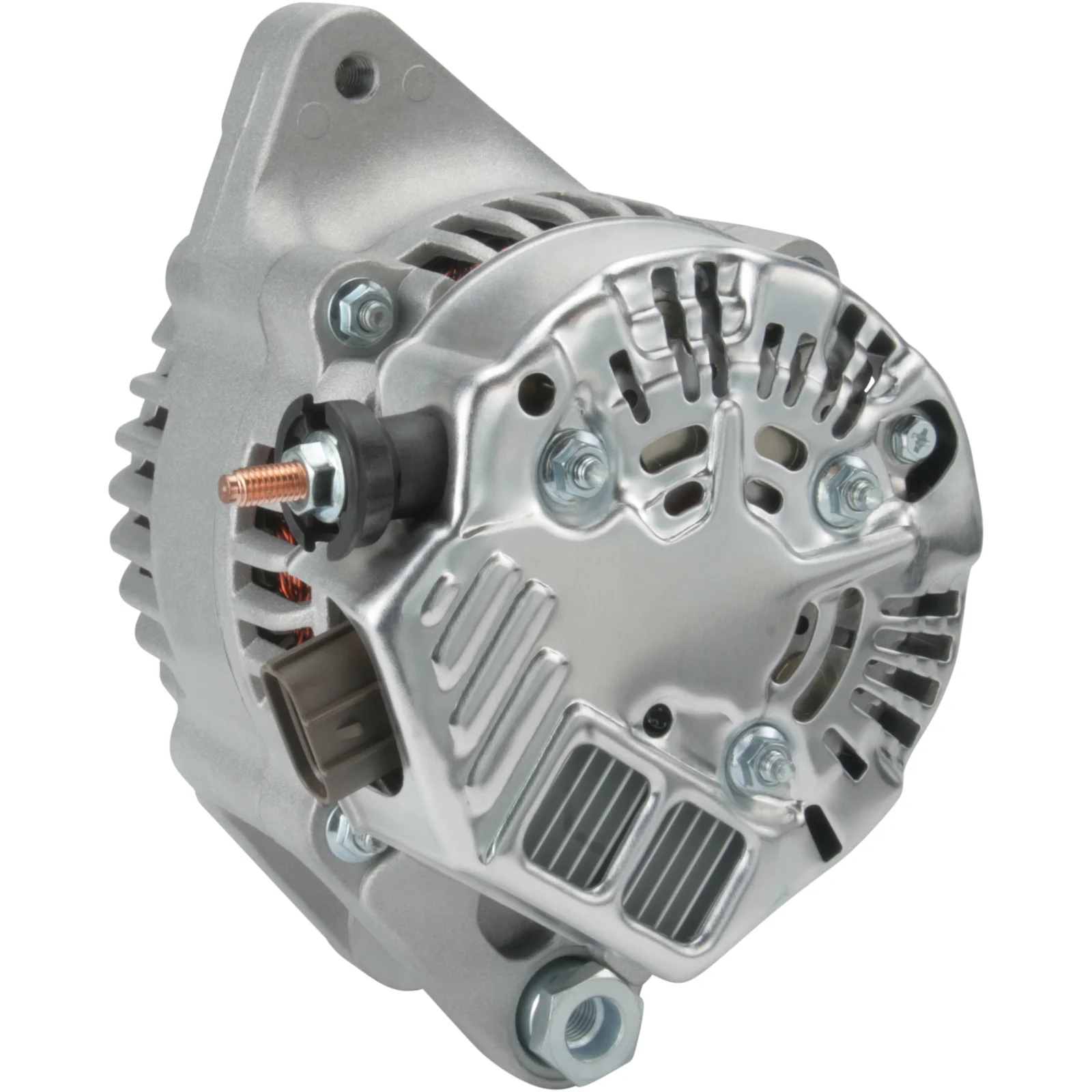

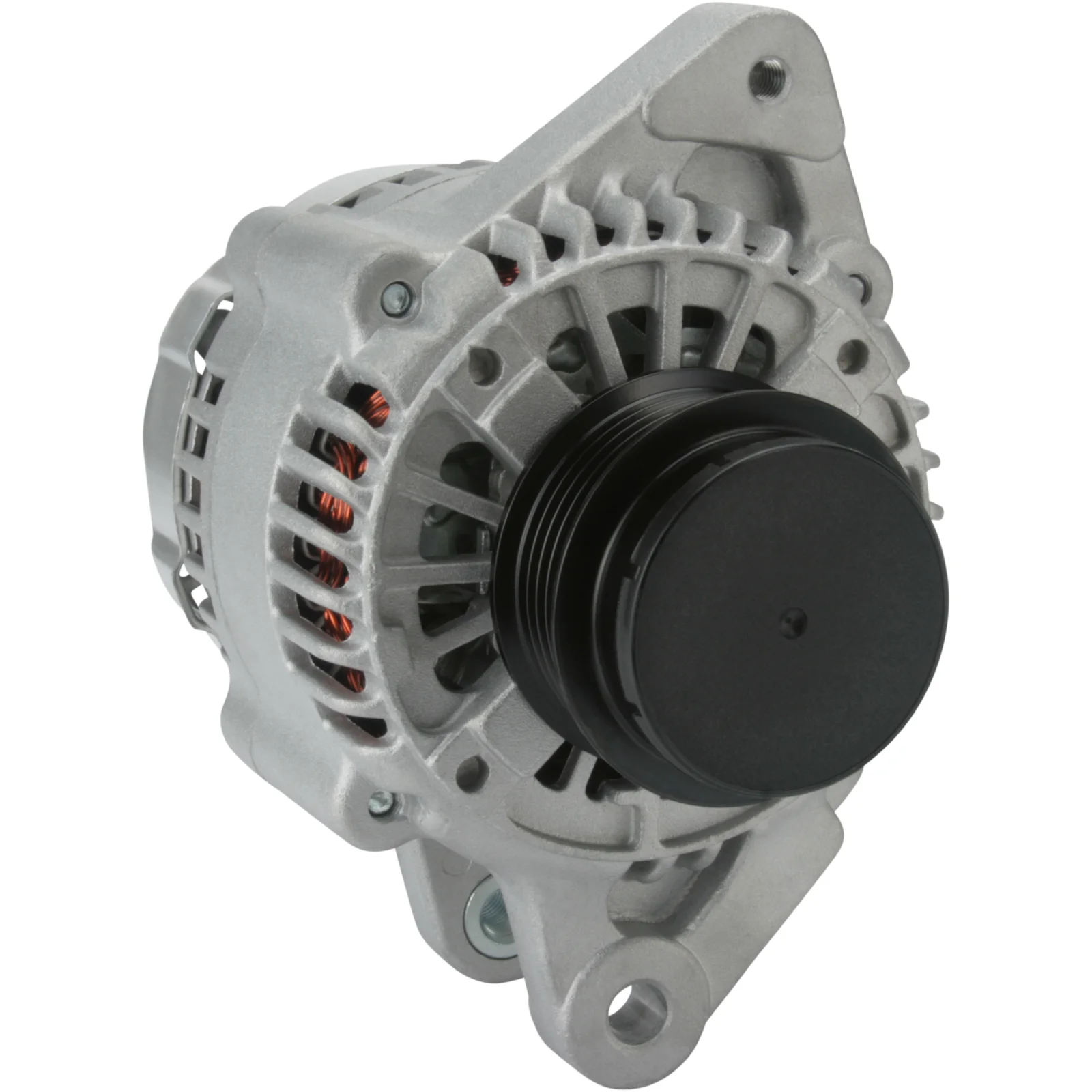

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114041

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 40.50

Beskrivning

Voltage: 14
Amp: 70
Pulley dist.: 31.50
Width/holder arm: 16.00
Mount. bracket dist.: 40.50
Bracket hole: 11.00
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 60.00
Grooves/pulley: 5
Radius: 81.50
Radius 2: 81.00
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL67
Total length mm: 150.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 40.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL67
Bracket hole 11.00
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 60.00
Pulley dist. 31.50
Radius 81.50
D+ Size Plug
Radius 2 81.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Voltage 14
Total length 150.00 mm
Width/holder arm 16.00
Amp 70

  • OEM
    F032114041, ja1893ir, 27060-33020, 102211-5660

  • Konkurrentreferens
    A6037, CAL40144, DAN964, DENDAN964, 8EL011711-371, 28-4910, 235.191.702, 112710, 210392, 210392A, 401893RI, 440293, 12060839, 063377504010, 944390904130

  • Normaliserat artikelnummer
    a6037, cal40144, dan964, dendan964, f032114041, ja1893ir, 8el011711371, 112710, 210392, 210392a, 284910, 401893ri, 440293, 12060839, 235191702, 1022115660, 2706033020, 063377504010, 944390904130

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP10 Body: Hatchback From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP22 Body: MPV From date: 01-09-2000 To date: 01-09-2005 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 70
    Pulley dist.: 31.50
    Width/holder arm: 16.00
    Mount. bracket dist.: 40.50
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 60.00
    Grooves/pulley: 5
    Radius: 81.50
    Radius 2: 81.00
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL67
    Total length mm: 150.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 40.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL67
    Bracket hole 11.00
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 60.00
    Pulley dist. 31.50
    Radius 81.50
    D+ Size Plug
    Radius 2 81.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Voltage 14
    Total length 150.00 mm
    Width/holder arm 16.00
    Amp 70
  • Fordonsmatchning

    • OEM
      F032114041, ja1893ir, 27060-33020, 102211-5660

    • Konkurrentreferens
      A6037, CAL40144, DAN964, DENDAN964, 8EL011711-371, 28-4910, 235.191.702, 112710, 210392, 210392A, 401893RI, 440293, 12060839, 063377504010, 944390904130

    • Normaliserat artikelnummer
      a6037, cal40144, dan964, dendan964, f032114041, ja1893ir, 8el011711371, 112710, 210392, 210392a, 284910, 401893ri, 440293, 12060839, 235191702, 1022115660, 2706033020, 063377504010, 944390904130

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP10 Body: Hatchback From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP22 Body: MPV From date: 01-09-2000 To date: 01-09-2005 Fuel: Diesel Approved: Yes
