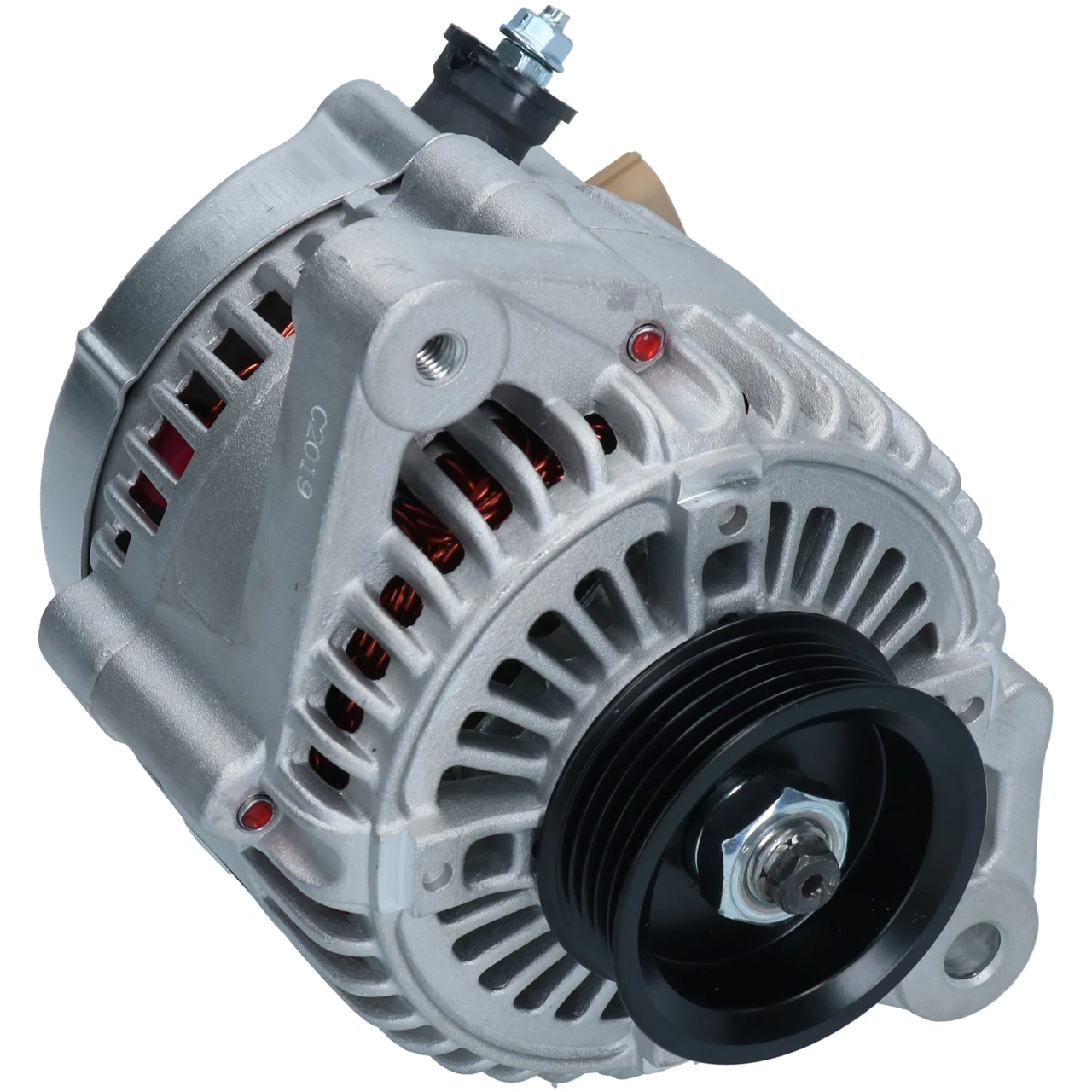

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114012

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 41.70

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 31.00
Width/holder arm: 18.20
Mount. bracket dist.: 41.70
Bracket hole: 10.50
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 59.50
Grooves/pulley: 5
Radius: 80.00
Radius 2: 79.00
B+: M6
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL67
Total length mm: 162.00
Pulley: SP
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 41.70
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL67
Bracket hole 10.50
Position/B+ in min. 50
Pulley SP
Pulley dia. 59.50
Pulley dist. 31.00
Radius 80.00
Radius 2 79.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Voltage 14
Total length 162.00 mm
Width/holder arm 18.20
Amp 90

  • OEM
    F032114012, ja1892ir, 27060-33030, 102211-2770

  • Konkurrentreferens
    ALT-H184, CAL40175, DAN965, DRA0013, F042A0H184, 8EL012429-441, 28-4976, 235.317.902, 112609, 210677, 210677A, 401892RI, 440521, 9090567, 12060841, 0986084300

  • Normaliserat artikelnummer
    alth184, cal40175, dan965, dra0013, f032114012, f042a0h184, ja1892ir, 8el012429441, 112609, 210677, 210677a, 284976, 401892ri, 440521, 9090567, 12060841, 235317902, 0986084300, 1022112770, 2706033030

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP10 Body: Hatchback From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP22 Body: MPV From date: 01-09-2000 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P2_ Body: Box From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 31.00
    Width/holder arm: 18.20
    Mount. bracket dist.: 41.70
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 59.50
    Grooves/pulley: 5
    Radius: 80.00
    Radius 2: 79.00
    B+: M6
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL67
    Total length mm: 162.00
    Pulley: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 41.70
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL67
    Bracket hole 10.50
    Position/B+ in min. 50
    Pulley SP
    Pulley dia. 59.50
    Pulley dist. 31.00
    Radius 80.00
    Radius 2 79.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Voltage 14
    Total length 162.00 mm
    Width/holder arm 18.20
    Amp 90
  • Fordonsmatchning

    • OEM
      F032114012, ja1892ir, 27060-33030, 102211-2770

    • Konkurrentreferens
      ALT-H184, CAL40175, DAN965, DRA0013, F042A0H184, 8EL012429-441, 28-4976, 235.317.902, 112609, 210677, 210677A, 401892RI, 440521, 9090567, 12060841, 0986084300

    • Normaliserat artikelnummer
      alth184, cal40175, dan965, dra0013, f032114012, f042a0h184, ja1892ir, 8el012429441, 112609, 210677, 210677a, 284976, 401892ri, 440521, 9090567, 12060841, 235317902, 0986084300, 1022112770, 2706033030

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP10 Body: Hatchback From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP22 Body: MPV From date: 01-09-2000 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P2_ Body: Box From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
