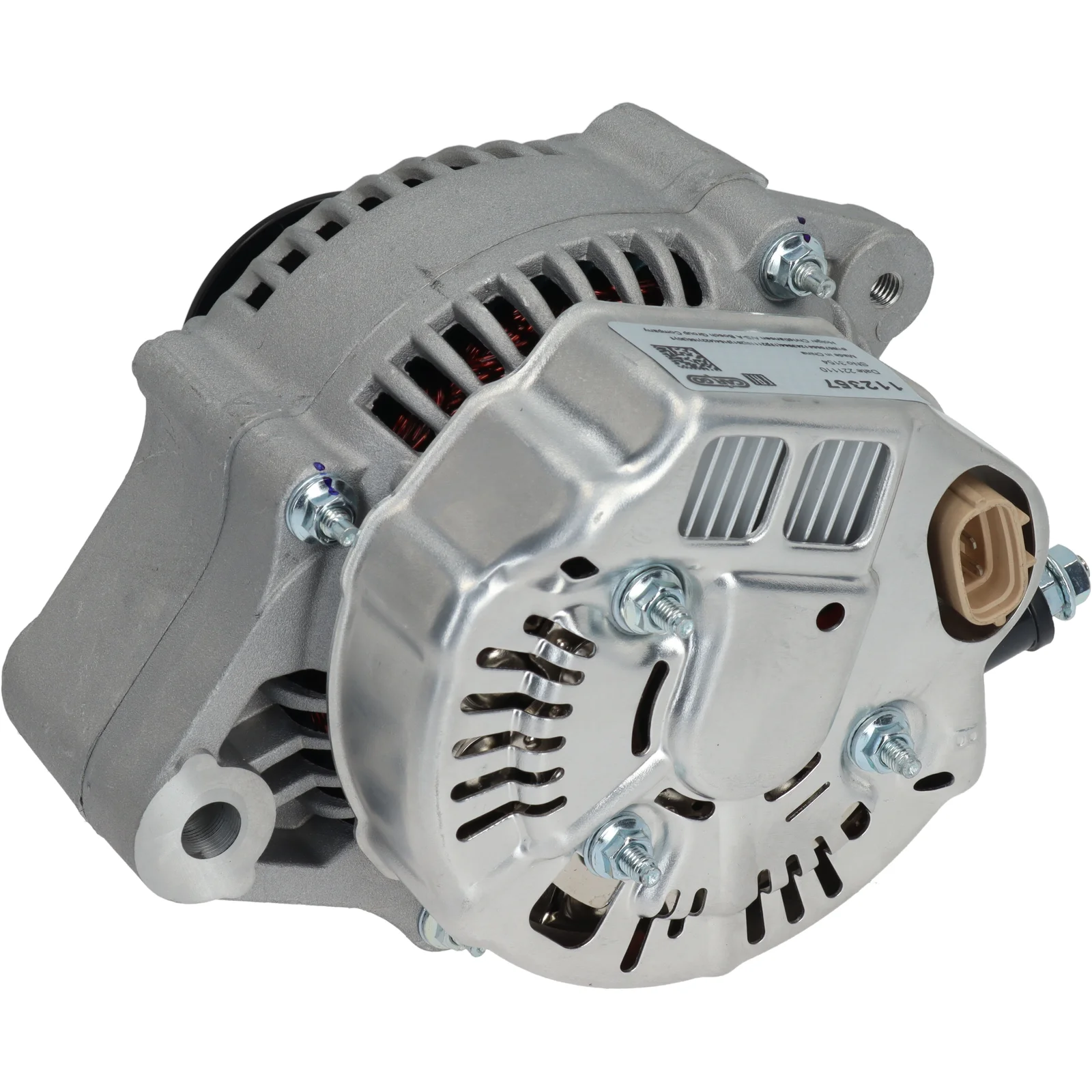

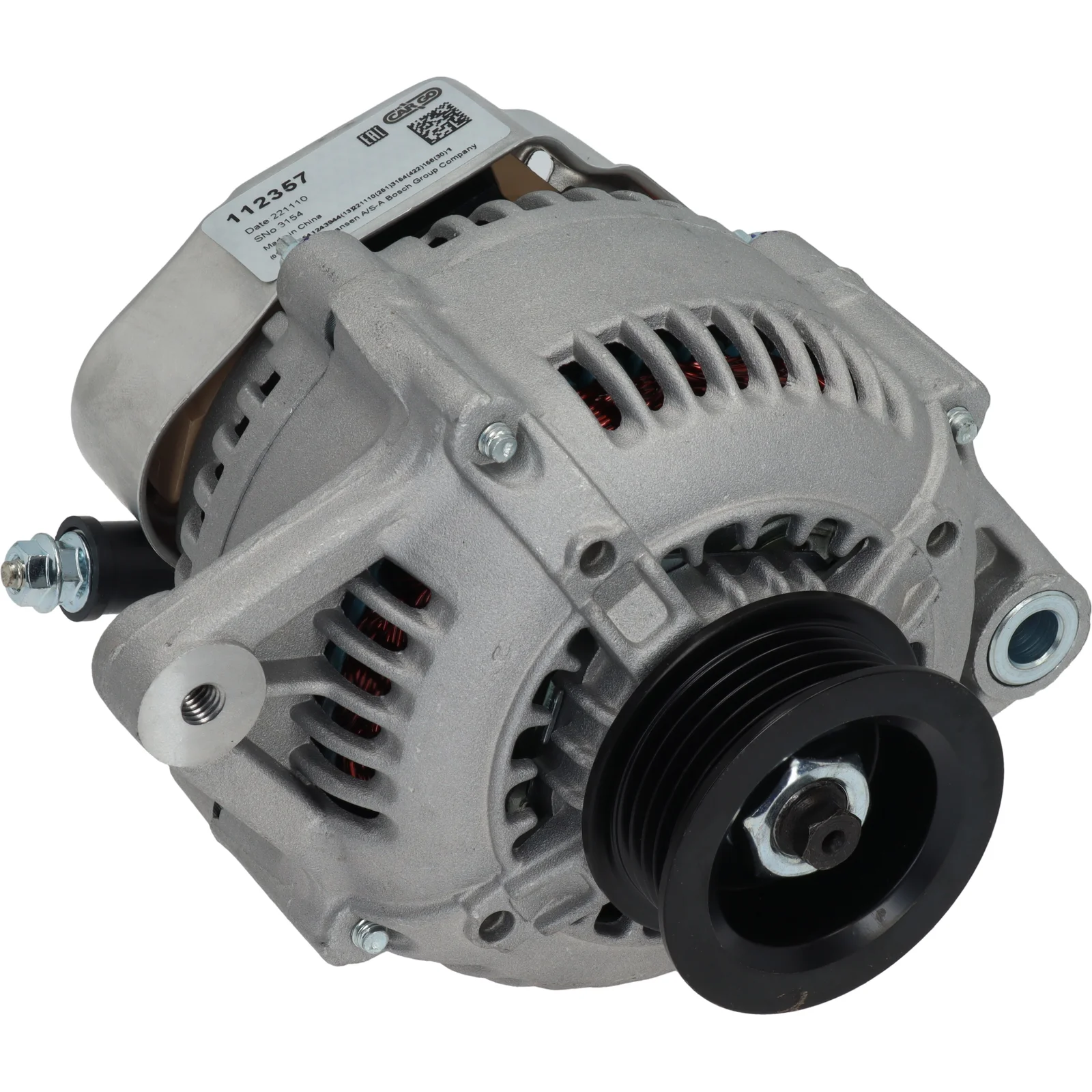

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112357

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley dia.: 55.00

Beskrivning

Voltage: 14
Amp: 70
Pulley dist.: 90.00
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 59
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 5
Radius: 78.00
Radius 2: 83.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 167.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Toyota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 59
Plug no. PL42
Bracket hole 10.50
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 90.00
Radius 78.00
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 5
Voltage 14
Total length 167.00 mm
Width/holder arm 58.00
Amp 70

  • OEM
    F032112357, ja1535ir, 1986A01820, 27060-75100, 27060-75150, 101211-0520, 101211-0521, 101211-0522, 102211-5050, 102211-5051, 102211-5052

  • Konkurrentreferens
    A6350, ALT-H097, ALT30066, DRA0278, F042A0H097, J5112098, LRA01816, 8EL737838-001, 28-3635, 235.157.702, 13673N, 119949, 209141, 209141A, 401535RI, 9051298, 9213251, 12060422, 0986080010, 944390512980

  • Normaliserat artikelnummer
    a6350, alt30066, alth097, dra0278, f032112357, f042a0h097, j5112098, ja1535ir, lra01816, 8el737838001, 1986a01820, 13673n, 119949, 209141, 209141a, 283635, 401535ri, 9051298, 9213251, 12060422, 235157702, 0986080010, 1012110520, 1012110521, 1012110522, 1022115050, 1022115051, 1022115052, 2706075100, 2706075150, 944390512980

  • Passar modeller
    Toyota Model: 4 Runner Model series: 4 Runner Model type: 4WD Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: _N18_ Body: SUV From date: 01-11-1995 To date: 01-08-2002 Fuel: Petrol Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.4 Brand of engine: 2RZ-E Type description: H12, 22 Body: Van From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.4 Brand of engine: 2RZ-E Type description: H18, 22 Body: Bus From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.7 Brand of engine: 3RZ-FE Body: Bus From date: 01-07-1998 To date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: H19, 29 Body: Bus From date: 01-04-1998 To date: 01-08-2006 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: H19, 29 Body: Van From date: 01-07-1998 To date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Size of motor: 2.4 Brand of engine: 2RZ-E Body: Bus From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Size of motor: 2.4 Brand of engine: 2RZ-E Body: Van From date: 01-08-1995 To date: 01-11-2003 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: H12 Body: Van From date: 01-04-1998 To date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: H12G Body: Bus From date: 01-04-1998 To date: 01-11-2001 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 70
    Pulley dist.: 90.00
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 59
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 5
    Radius: 78.00
    Radius 2: 83.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 167.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Toyota

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 59
    Plug no. PL42
    Bracket hole 10.50
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 90.00
    Radius 78.00
    D+ Size Plug
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 5
    Voltage 14
    Total length 167.00 mm
    Width/holder arm 58.00
    Amp 70
  • Fordonsmatchning

    • OEM
      F032112357, ja1535ir, 1986A01820, 27060-75100, 27060-75150, 101211-0520, 101211-0521, 101211-0522, 102211-5050, 102211-5051, 102211-5052

    • Konkurrentreferens
      A6350, ALT-H097, ALT30066, DRA0278, F042A0H097, J5112098, LRA01816, 8EL737838-001, 28-3635, 235.157.702, 13673N, 119949, 209141, 209141A, 401535RI, 9051298, 9213251, 12060422, 0986080010, 944390512980

    • Normaliserat artikelnummer
      a6350, alt30066, alth097, dra0278, f032112357, f042a0h097, j5112098, ja1535ir, lra01816, 8el737838001, 1986a01820, 13673n, 119949, 209141, 209141a, 283635, 401535ri, 9051298, 9213251, 12060422, 235157702, 0986080010, 1012110520, 1012110521, 1012110522, 1022115050, 1022115051, 1022115052, 2706075100, 2706075150, 944390512980

    • Passar modeller
      Toyota Model: 4 Runner Model series: 4 Runner Model type: 4WD Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: _N18_ Body: SUV From date: 01-11-1995 To date: 01-08-2002 Fuel: Petrol Approved: Yes
      Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.4 Brand of engine: 2RZ-E Type description: H12, 22 Body: Van From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
      Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.4 Brand of engine: 2RZ-E Type description: H18, 22 Body: Bus From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
      Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.7 Brand of engine: 3RZ-FE Body: Bus From date: 01-07-1998 To date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: H19, 29 Body: Bus From date: 01-04-1998 To date: 01-08-2006 Fuel: Gasoline Approved: Yes
      Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: H19, 29 Body: Van From date: 01-07-1998 To date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Hiace Model series: Hiace Size of motor: 2.4 Brand of engine: 2RZ-E Body: Bus From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
      Toyota Model: Hiace Model series: Hiace Size of motor: 2.4 Brand of engine: 2RZ-E Body: Van From date: 01-08-1995 To date: 01-11-2003 Fuel: Gasoline Approved: Yes
      Toyota Model: Hiace Model series: Hiace Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: H12 Body: Van From date: 01-04-1998 To date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Hiace Model series: Hiace Size of motor: 2.7 Brand of engine: 3RZ-FE Type description: H12G Body: Bus From date: 01-04-1998 To date: 01-11-2001 Fuel: Gasoline Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      1 / 3
