Artikelnr: F032112394

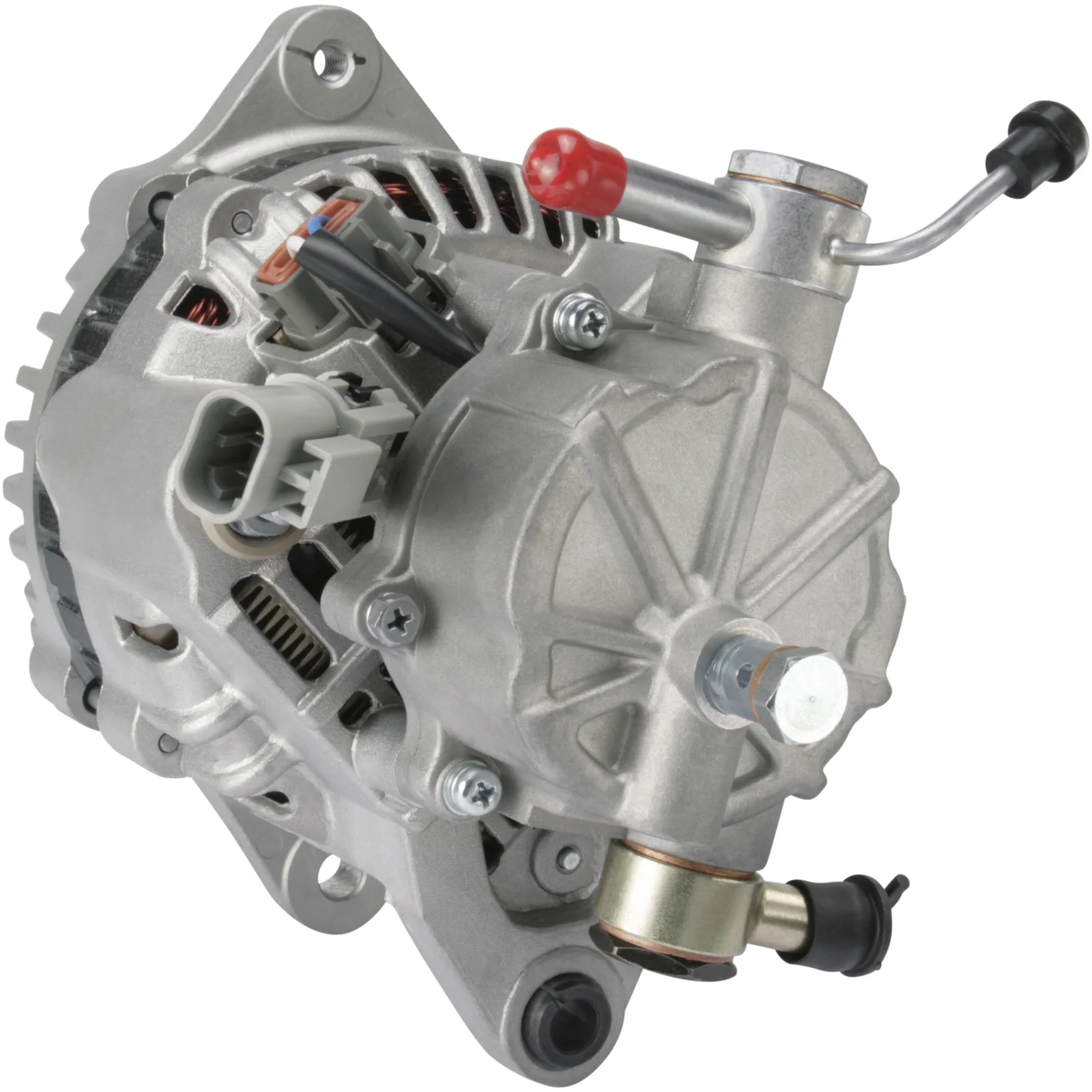

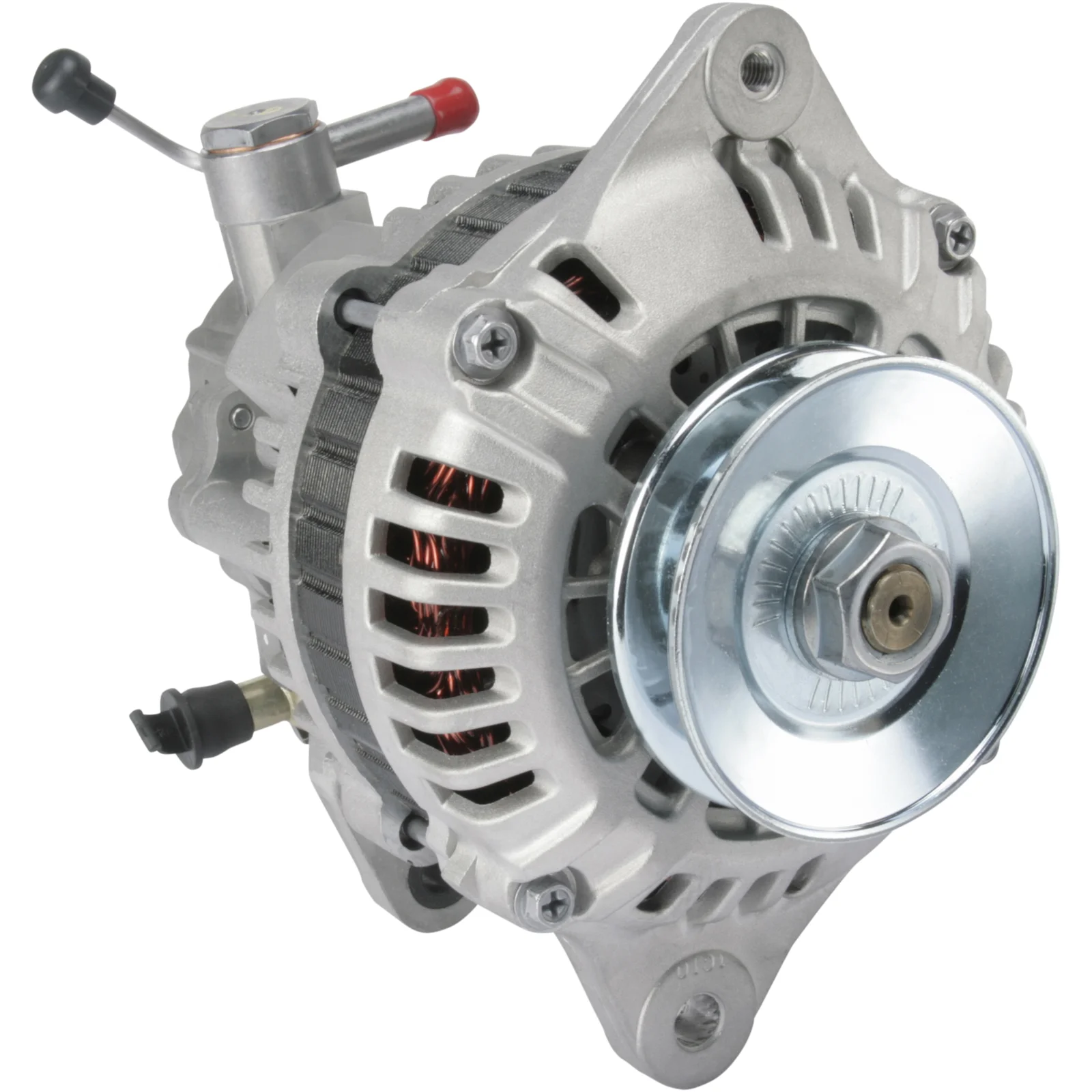

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 80.00

Beskrivning

Voltage: 14
Amp: 70
Pulley dist.: 42.00
Width/holder arm: 13.50
Mount. bracket dist.: 80.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 80.60
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 48
D+ Size: Plug
Rotation: CW
Plug no.: PL121
W plug type: M5
Total length mm: 234.00
Terminal type: L-W
Pulley: P
Fan: IF
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Nissan

Specifikation

B+ M6
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL121
Bracket hole 10.50
Position/B+ in min. 48
Prod. info BN
Pulley P
Pulley dia. 80.60
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Nissan
Fan IF
Grooves/pulley 1
Terminal type L-W
Vac. pump Yes
Voltage 14
W plug type M5
Total length 234.00 mm
Width/holder arm 13.50
Amp 70
  • OEM

    F032112394, ja1603ir, 6033gb4018, 23100-69t10, 23100-69t20, 1516879R, 9120334642
  • Konkurrentreferens

    A3612S, CAL45116, DRA0343, LRA01880, 8EL011711-741, 28-3745, 527.117.702, 22880R, 119966, 210456, 210456A, 401603RI, 9990441, 12060875, 0986049730
  • Normaliserat artikelnummer

    a3612s, cal45116, dra0343, f032112394, ja1603ir, lra01880, 8el011711741, 6033gb4018, 22880r, 119966, 210456, 210456a, 283745, 401603ri, 1516879r, 2310069t10, 2310069t20, 9990441, 12060875, 527117702, 0986049730, 9120334642
  • Passar modeller

    Nissan Model: Atleon Model series: 110.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 110.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 120.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Nissan Model: ECO-T Model series: 100.45 Size of motor: 3.0 Brand of engine: BD-30Ti Body: Platform / Chassis From date: 01-01-1997 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    Nissan Model: ECO-T Model series: 100.56 Size of motor: 3.0 Brand of engine: BD-30Ti Body: Platform / Chassis From date: 01-01-1997 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Trade Model series: Trade Size of motor: 3.0 Brand of engine: BD-30Ti Body: Platform / Chassis From date: 01-01-1996 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Nissan Model: Trade Model series: Trade Size of motor: 3.0 Brand of engine: BD-30Ti Body: Twin Cab From date: 01-01-1996 To date: 01-12-1998 Fuel: Diesel Approved: Yes
