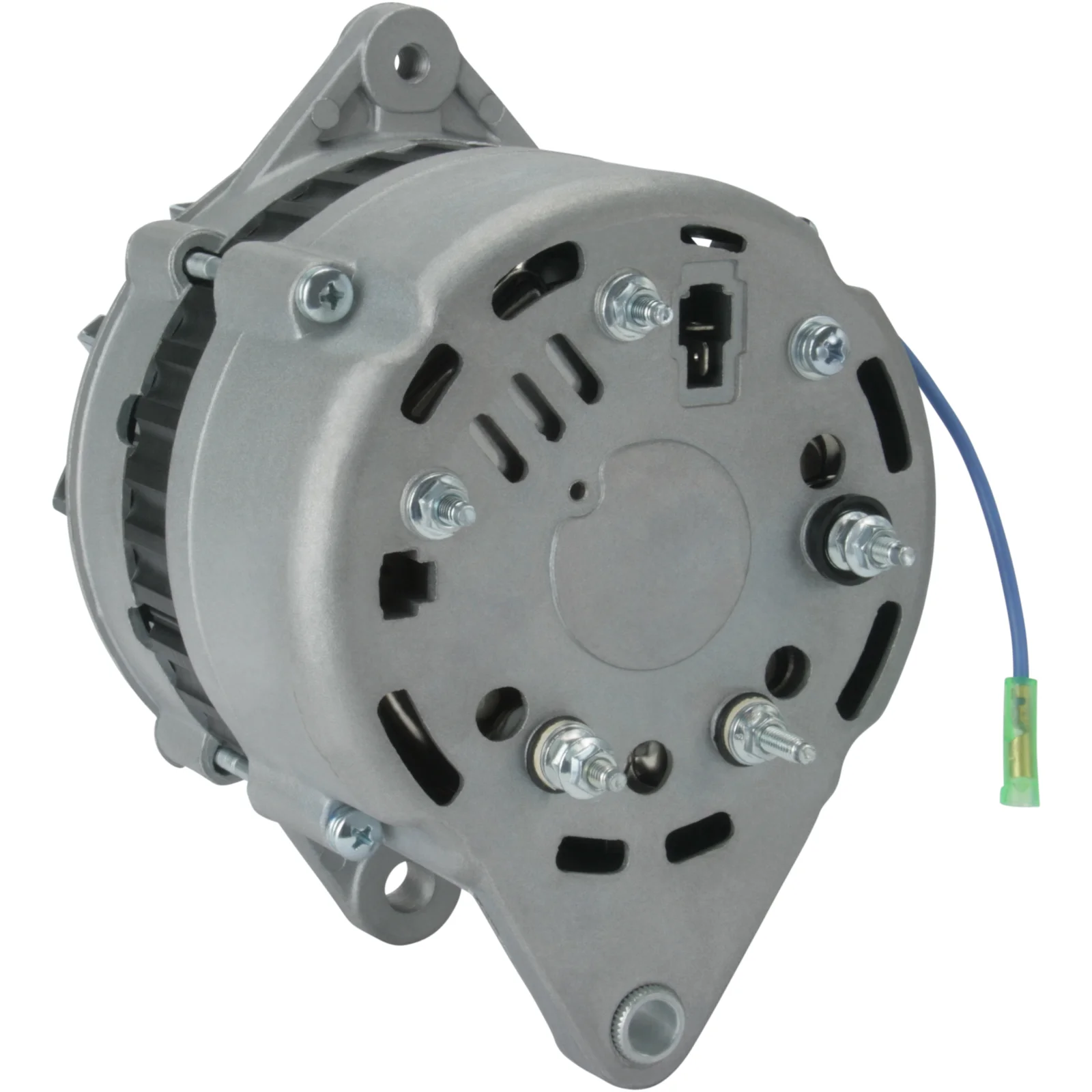

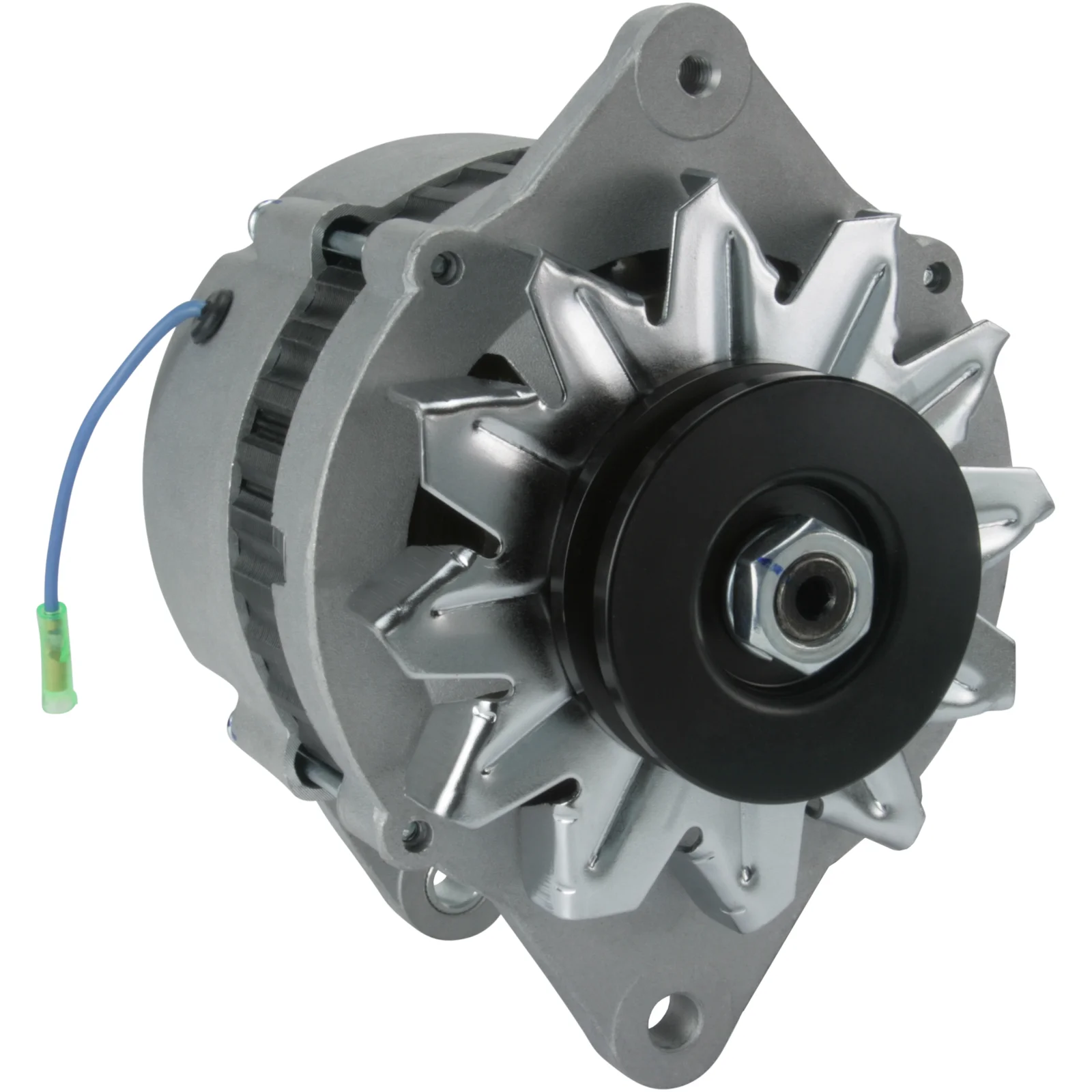

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112375

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 82.00

Beskrivning

Yanmar Marin Gen. 12V-80A 12V - 80A, insulated return, (R/L) För Yourex produkt order 90-678-8003

Voltage: 14
Amp: 80
Insulated return: Yes
Terminal: W
Pulley dist.: 42.50
Width/holder arm: 13.20
Mount. bracket dist.: 82.00
Bracket hole: 10.40
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 73.60
Grooves/pulley: 1
Radius: 89.00
Radius 2: 85.00
B+: M5
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL09
W plug type: Plug
Total length mm: 167.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Yanmar

Filer

Specifikation

B+ M5
Mount. bracket dist. 82.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL09
Bracket hole 10.40
Position/B+ in min. 15
Prod. info BN
Pulley P
Pulley dia. 73.60
Pulley dist. 42.50
Radius 89.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Yanmar
Grooves/pulley 1
Terminal W
Insulated return Yes
Voltage 14
W plug type Plug
Total length 167.00 mm
Width/holder arm 13.20
Amp 80

  • OEM
    F032112375, LR 180-03A, LR 180-03B, LR 180-03C, LR180-03, lr180-03, LR180-03A, LR180-03B, lr180-03c, 119573-77200, 119573-77201, 129470-77200

  • Konkurrentreferens
    A2120S, ALT32087, CAL20163, LRA01632, 28-2811, 582.112.802, 12272, 12272N, 13866N, 553242RI, 12060990

  • Bilmärken
    Yanmar, Yanmar Marine

  • Normaliserat artikelnummer
    a2120s, alt32087, cal20163, f032112375, lr18003, lr18003a, lr18003b, lr18003c, lra01632, 12272, 12272n, 13866n, 282811, 553242ri, 12060990, 582112802, 11957377200, 11957377201, 12947077200

  • Passar modeller
    Yanmar Model: 4LH Model series: 4LH Approved: Yes
    Yanmar Series: Marin Model: 4LH-TE / DTE / HTE / STE
  • Beskrivning
    Yanmar Marin Gen. 12V-80A 12V - 80A, insulated return, (R/L) För Yourex produkt order 90-678-8003

    Voltage: 14
    Amp: 80
    Insulated return: Yes
    Terminal: W
    Pulley dist.: 42.50
    Width/holder arm: 13.20
    Mount. bracket dist.: 82.00
    Bracket hole: 10.40
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 73.60
    Grooves/pulley: 1
    Radius: 89.00
    Radius 2: 85.00
    B+: M5
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL09
    W plug type: Plug
    Total length mm: 167.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Yanmar

    Filer

  • Specifikation
    B+ M5
    Mount. bracket dist. 82.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL09
    Bracket hole 10.40
    Position/B+ in min. 15
    Prod. info BN
    Pulley P
    Pulley dia. 73.60
    Pulley dist. 42.50
    Radius 89.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Yanmar
    Grooves/pulley 1
    Terminal W
    Insulated return Yes
    Voltage 14
    W plug type Plug
    Total length 167.00 mm
    Width/holder arm 13.20
    Amp 80
  • Fordonsmatchning

    • OEM
      F032112375, LR 180-03A, LR 180-03B, LR 180-03C, LR180-03, lr180-03, LR180-03A, LR180-03B, lr180-03c, 119573-77200, 119573-77201, 129470-77200

    • Konkurrentreferens
      A2120S, ALT32087, CAL20163, LRA01632, 28-2811, 582.112.802, 12272, 12272N, 13866N, 553242RI, 12060990

    • Bilmärken
      Yanmar, Yanmar Marine

    • Normaliserat artikelnummer
      a2120s, alt32087, cal20163, f032112375, lr18003, lr18003a, lr18003b, lr18003c, lra01632, 12272, 12272n, 13866n, 282811, 553242ri, 12060990, 582112802, 11957377200, 11957377201, 12947077200

    • Passar modeller
      Yanmar Model: 4LH Model series: 4LH Approved: Yes
      Yanmar Series: Marin Model: 4LH-TE / DTE / HTE / STE
