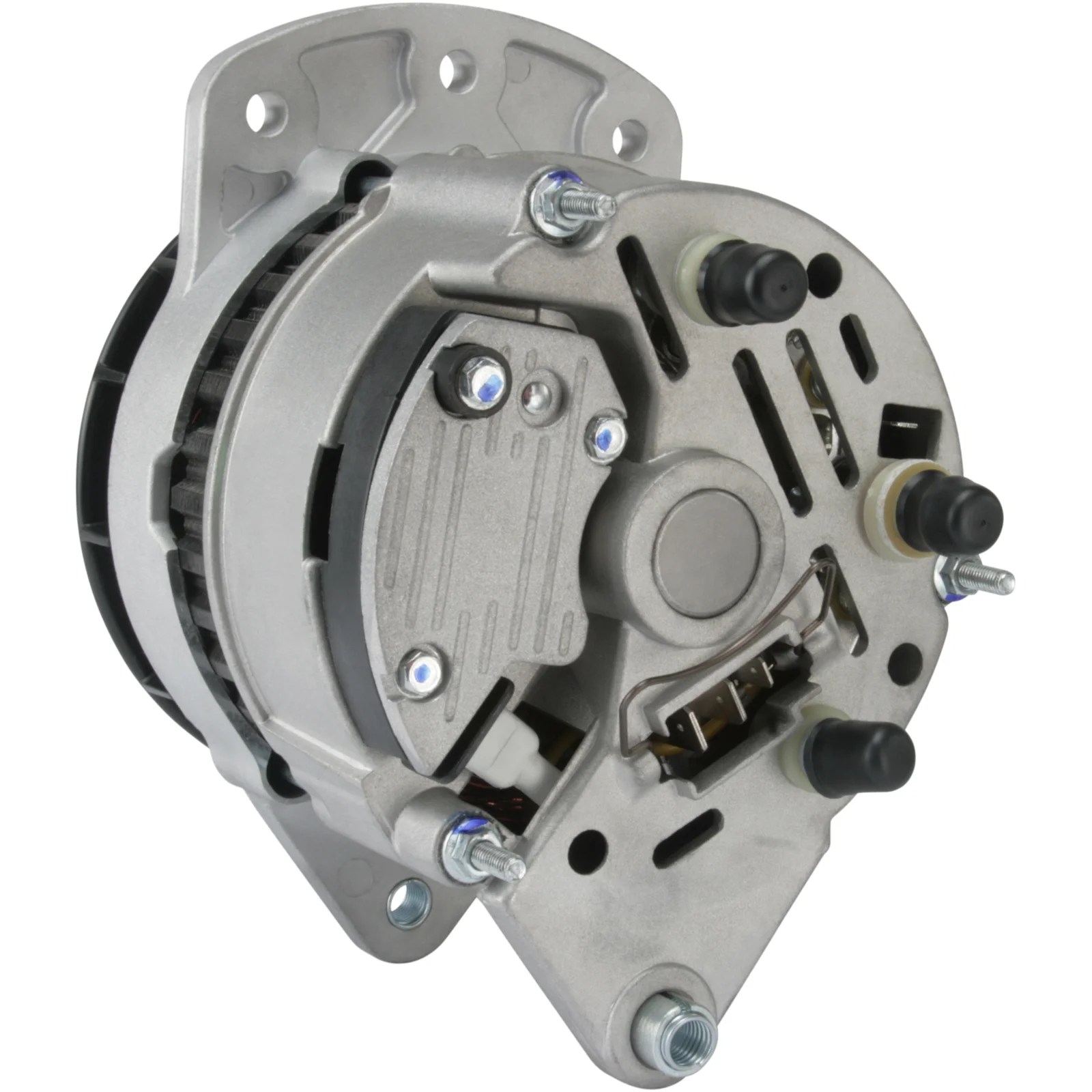

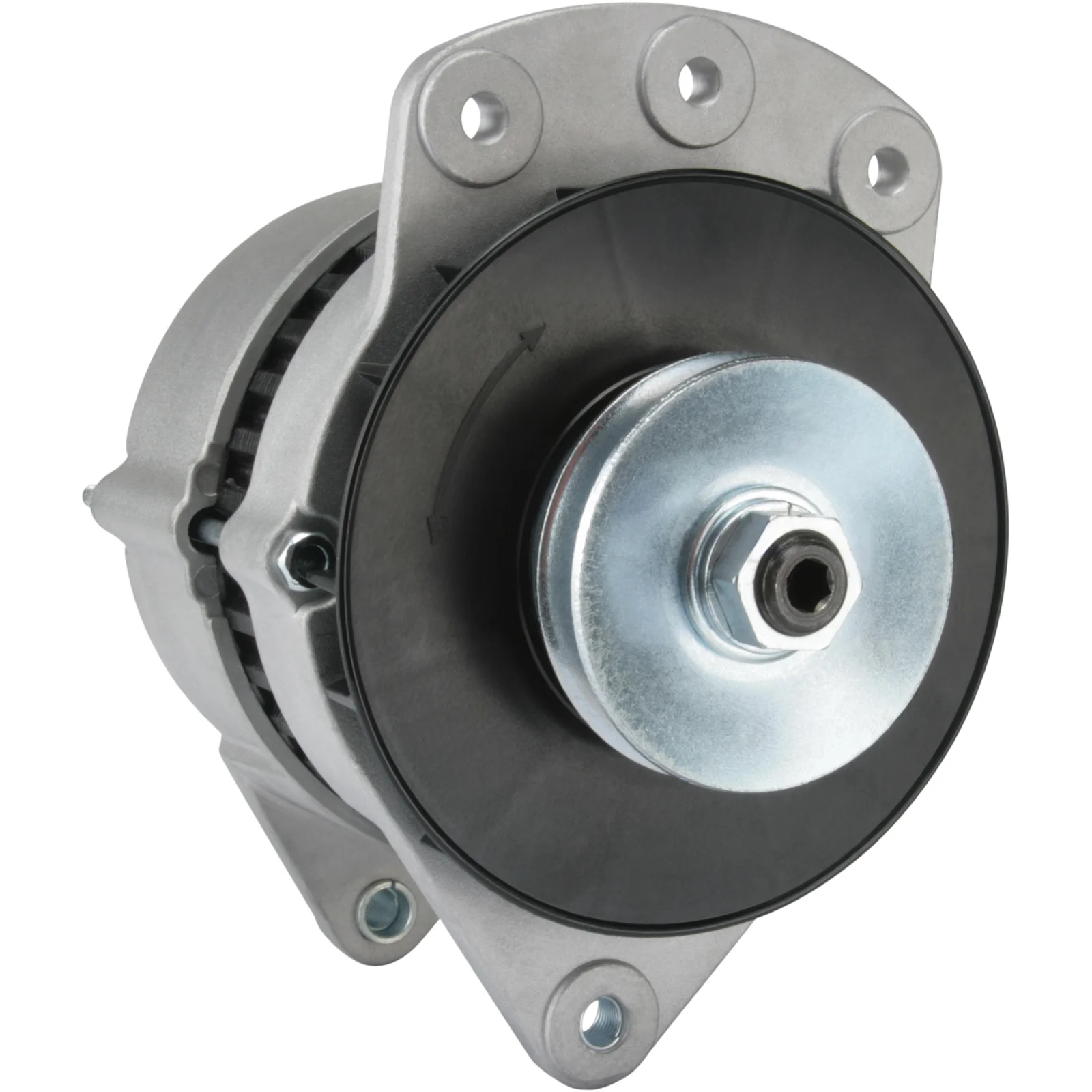

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112237

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW/CCW, Mount. bracket dist.: 84.00

Beskrivning

Voltage: 14
Amp: 70
Insulated return: Yes
Terminal: W
Pulley dist.: 34.00
Width/holder arm: 11.00
Mount. bracket dist.: 84.00
Bracket hole: 8.00
Belt. adj. brackethole pos.: 55
Belt. adj. brackethole pos. 3: 5
Belt. adj. brackethole pos. 2: 60
Belt. adj. bracket hole 1: 8.00
Pulley dia.: 68.00
Grooves/pulley: 1
Radius: 87.00
Radius 2: 82.00
B+: M6
Position/B+ in min.: 14
D+ Size: Plug
Rotation: CW/CCW
Plug no.: PL22
W plug type: M5
Total length mm: 175.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Marine
Remarks: Pulley distance is ok from 34.00 to 43.00 mm.

Filer

Specifikation

B+ M6
Mount. bracket dist. 84.00
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 55
Belt. adj. brackethole pos. 2 60
Belt. adj. brackethole pos. 3 5
Plug no. PL22
Bracket hole 8.00
Position/B+ in min. 14
Prod. info BN
Pulley P
Pulley dia. 68.00
Pulley dist. 34.00
Radius 87.00
D+ Size Plug
Radius 2 82.00
Regulator type IR
Remarks Pulley distance is ok from 34.00 to 43.00 mm.
Rotation CW/CCW
Servicing Marine
Grooves/pulley 1
Terminal W
Insulated return Yes
Voltage 14
W plug type M5
Total length 175.00 mm
Width/holder arm 11.00
Amp 70

  • OEM
    F032112237, nab900m, 1550ir

  • Konkurrentreferens
    A4066, ALT-4036A, F042306031, F042A06031, lea0295, LEA0441, 12526N, 12526N-OE, 66021126M

  • Normaliserat artikelnummer
    a4066, alt4036a, f032112237, f042306031, f042a06031, lea0295, lea0441, nab900m, 1550ir, 12526n, 12526noe, 66021126m

  • Passar modeller
    Various Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 70
    Insulated return: Yes
    Terminal: W
    Pulley dist.: 34.00
    Width/holder arm: 11.00
    Mount. bracket dist.: 84.00
    Bracket hole: 8.00
    Belt. adj. brackethole pos.: 55
    Belt. adj. brackethole pos. 3: 5
    Belt. adj. brackethole pos. 2: 60
    Belt. adj. bracket hole 1: 8.00
    Pulley dia.: 68.00
    Grooves/pulley: 1
    Radius: 87.00
    Radius 2: 82.00
    B+: M6
    Position/B+ in min.: 14
    D+ Size: Plug
    Rotation: CW/CCW
    Plug no.: PL22
    W plug type: M5
    Total length mm: 175.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Marine
    Remarks: Pulley distance is ok from 34.00 to 43.00 mm.

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 84.00
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 55
    Belt. adj. brackethole pos. 2 60
    Belt. adj. brackethole pos. 3 5
    Plug no. PL22
    Bracket hole 8.00
    Position/B+ in min. 14
    Prod. info BN
    Pulley P
    Pulley dia. 68.00
    Pulley dist. 34.00
    Radius 87.00
    D+ Size Plug
    Radius 2 82.00
    Regulator type IR
    Remarks Pulley distance is ok from 34.00 to 43.00 mm.
    Rotation CW/CCW
    Servicing Marine
    Grooves/pulley 1
    Terminal W
    Insulated return Yes
    Voltage 14
    W plug type M5
    Total length 175.00 mm
    Width/holder arm 11.00
    Amp 70
  • Fordonsmatchning

    • OEM
      F032112237, nab900m, 1550ir

    • Konkurrentreferens
      A4066, ALT-4036A, F042306031, F042A06031, lea0295, LEA0441, 12526N, 12526N-OE, 66021126M

    • Normaliserat artikelnummer
      a4066, alt4036a, f032112237, f042306031, f042a06031, lea0295, lea0441, nab900m, 1550ir, 12526n, 12526noe, 66021126m

    • Passar modeller
      Various Model: Various Models Model series: Various Models Approved: Yes
