Artikelnr: F032112228

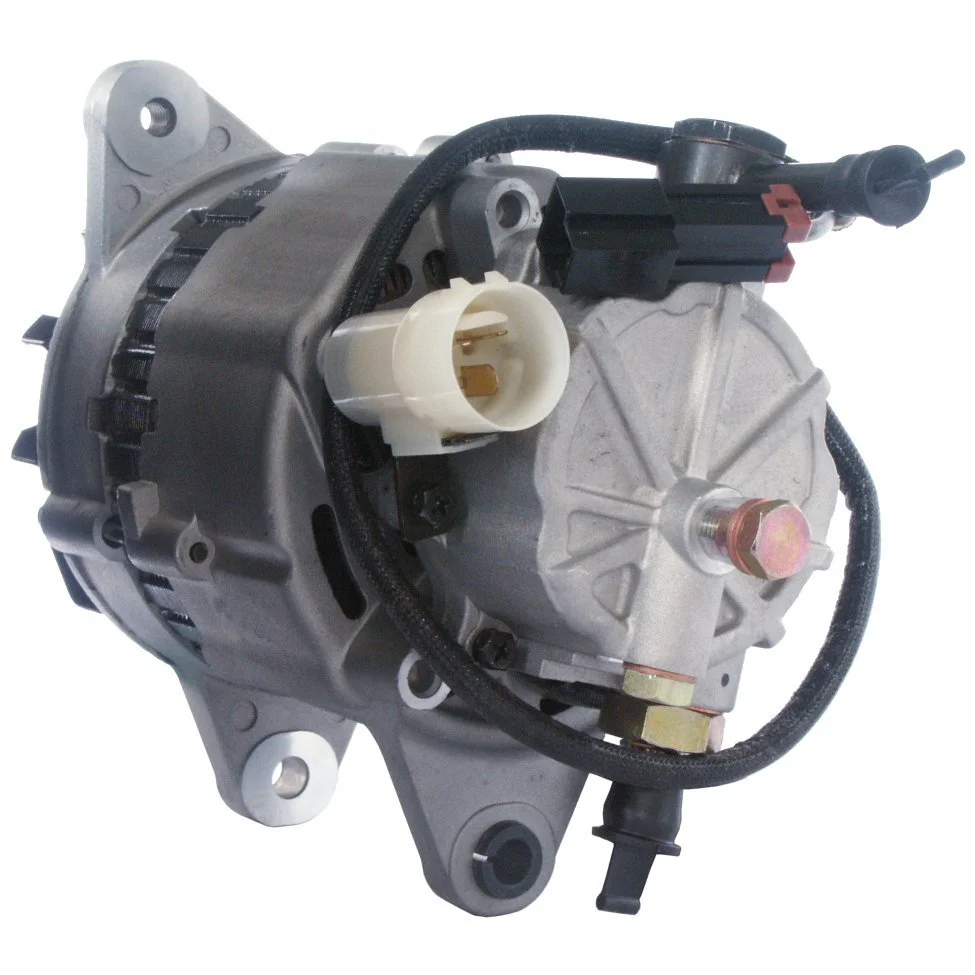

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 60, Rotation: CW, Mount. bracket dist.: 80.50

Beskrivning

Voltage: 14
Amp: 60
Pulley dist.: 48.00
Width/holder arm: 13.00
Mount. bracket dist.: 80.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 82.70
Grooves/pulley: 1
Radius: 89.00
Radius 2: 86.00
B+: M5-9.40
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL32
Total length mm: 242.50
Pulley: P
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Isuzu

Filer

Specifikation

B+ M5-9.40
Mount. bracket dist. 80.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL32
Bracket hole 10.50
Position/B+ in min. 10
Prod. info BN
Pulley P
Pulley dia. 82.70
Pulley dist. 48.00
Radius 89.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Isuzu
Grooves/pulley 1
Vac. pump Yes
Voltage 14
Total length 242.50 mm
Width/holder arm 13.00
Amp 60

  • OEM
    F032112228, ja873ir, lr160-446, lr160-446b, lr160-446c, lr160-446e, R1030083, 09120578, 9120606, 9512324, 94332581, 97037724, 97074611, 97134762, 97134781, 97147851, 97187655, 8970716110, 8970746110, 8971347620, 8971347810, 8971478510, 8971876550

  • Konkurrentreferens
    A2025, ALTV118, CAL20115, dra3483, DRA3483N, F042305059, J5119017, 8EL012427-811, 8el732719-001, 28-2786, 135.804.070, 243.120.602, 5447, 22243R, 40873RI, 119754, 437130, 437881, 12060304, 0986045001, 0986045003

  • Normaliserat artikelnummer
    a2025, altv118, cal20115, dra3483, dra3483n, f032112228, f042305059, j5119017, ja873ir, lr160446, lr160446b, lr160446c, lr160446e, r1030083, 8el012427811, 8el732719001, 5447, 22243r, 40873ri, 119754, 282786, 437130, 437881, 09120578, 9120606, 9512324, 12060304, 94332581, 97037724, 97074611, 97134762, 97134781, 97147851, 97187655, 135804070, 243120602, 0986045001, 0986045003, 8970716110, 8970746110, 8971347620, 8971347810, 8971478510, 8971876550

  • Passar modeller
    Isuzu Model: Rodeo Model series: Rodeo Type of engine: TD Size of motor: 3.1 Brand of engine: C4JG2 From date: 01-10-1993 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Opel Model: Campo Model series: Campo Model type: 4x4 Type of engine: TD Size of motor: 3.1 Brand of engine: 4JG2T Body: Pick Up From date: 01-12-1992 To date: 01-06-2001 Fuel: Diesel Approved: Yes
    Opel Model: Campo Model series: Campo Type of engine: TD Size of motor: 3.1 Brand of engine: 4JG2T Body: Pick Up From date: 01-12-1992 To date: 01-06-2001 Fuel: Diesel Approved: Yes
    Opel Model: Commodore Model series: Commodore A Type of engine: GS Size of motor: 2.5 Brand of engine: 25H Body: Coupe From date: 01-08-1967 To date: 01-01-1972 Fuel: Gasoline Approved: Yes
    Opel Model: Monterey Model series: Monterey A Type of engine: TD Size of motor: 3.1 Brand of engine: 4JG2TC From date: 01-09-1991 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Vauxhall Model: Monterey Model series: Monterey A Model type: 4x4 Type of engine: TD Size of motor: 3.1 Brand of engine: 4JG2TC From date: 01-09-1991 To date: 01-07-1998 Fuel: Diesel Approved: Yes
