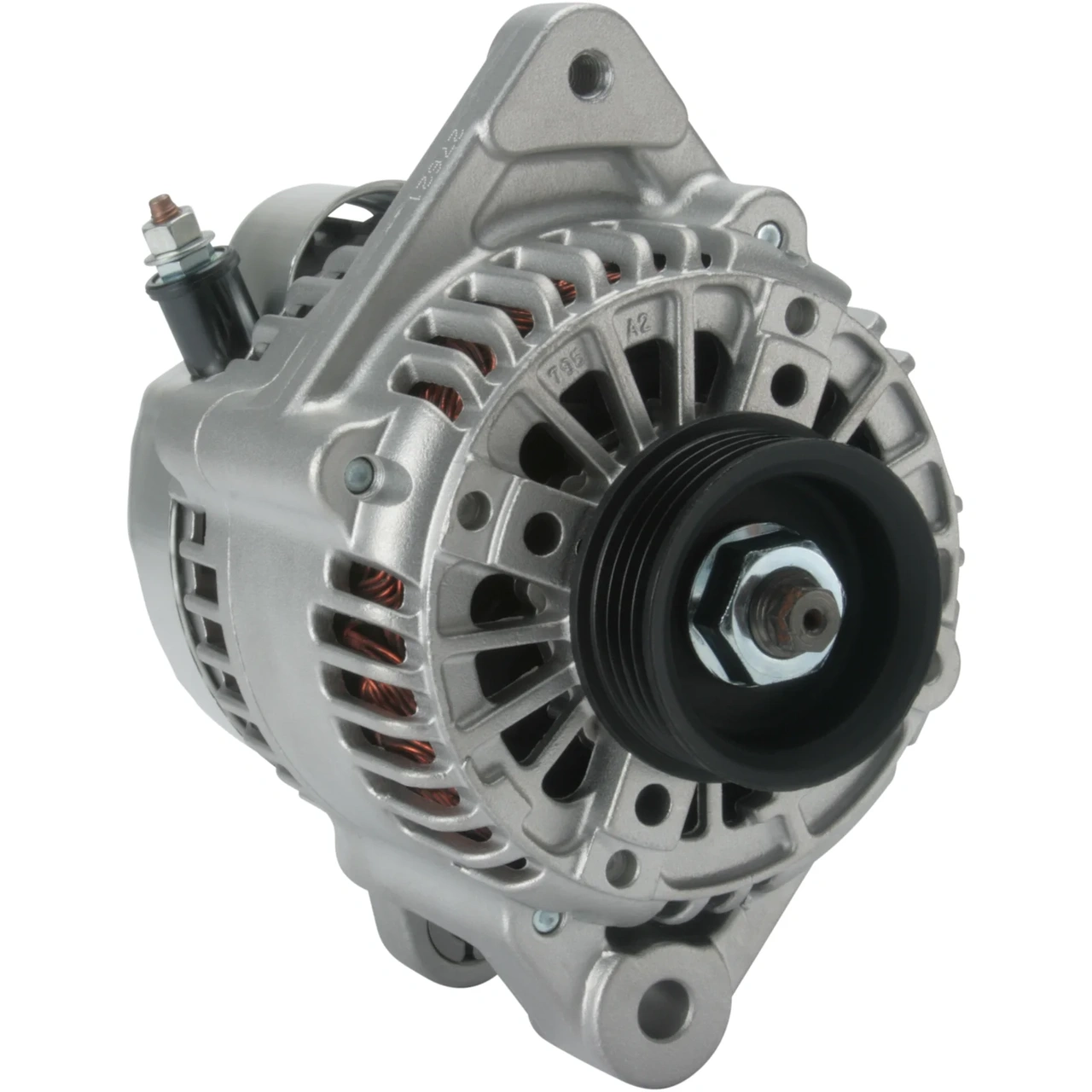

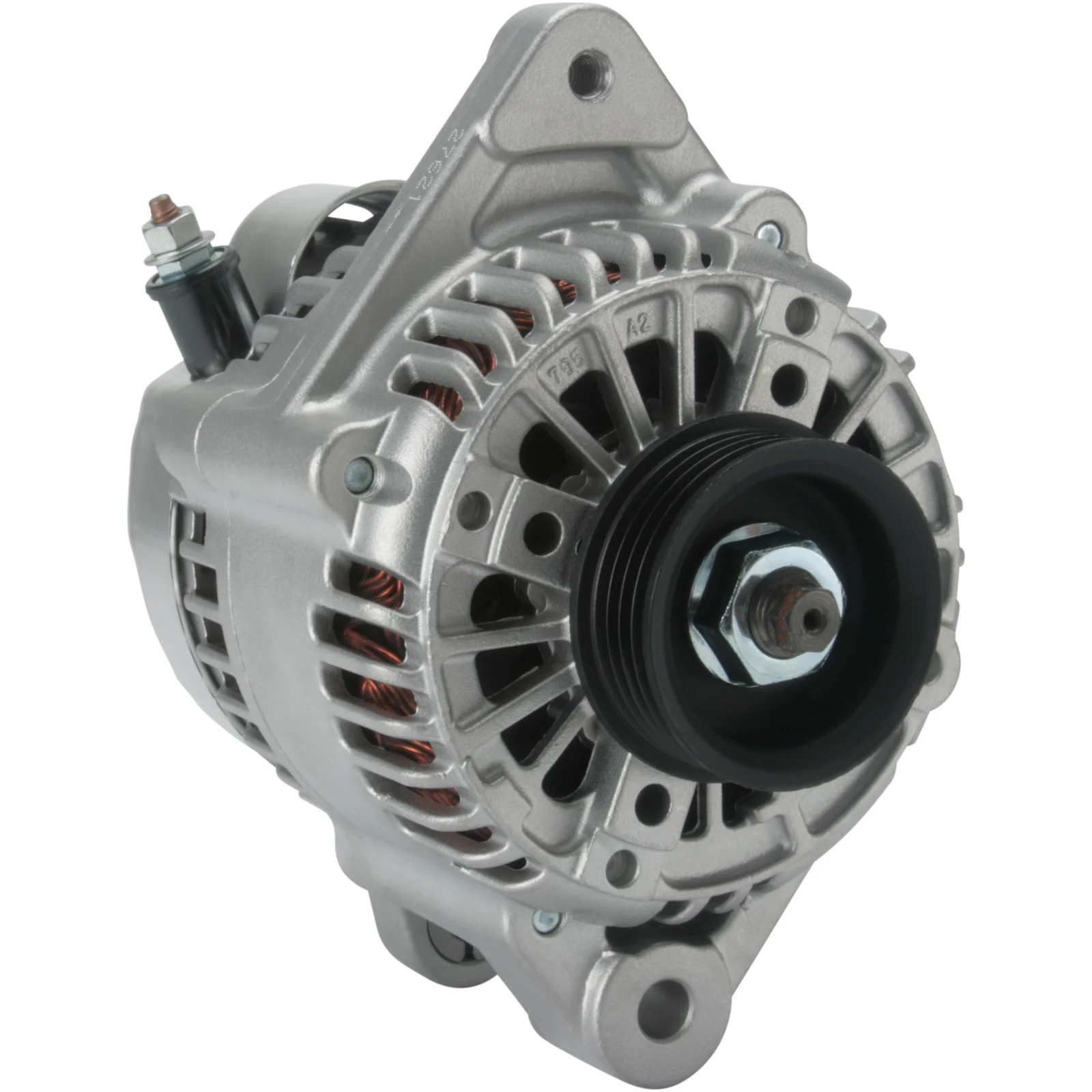

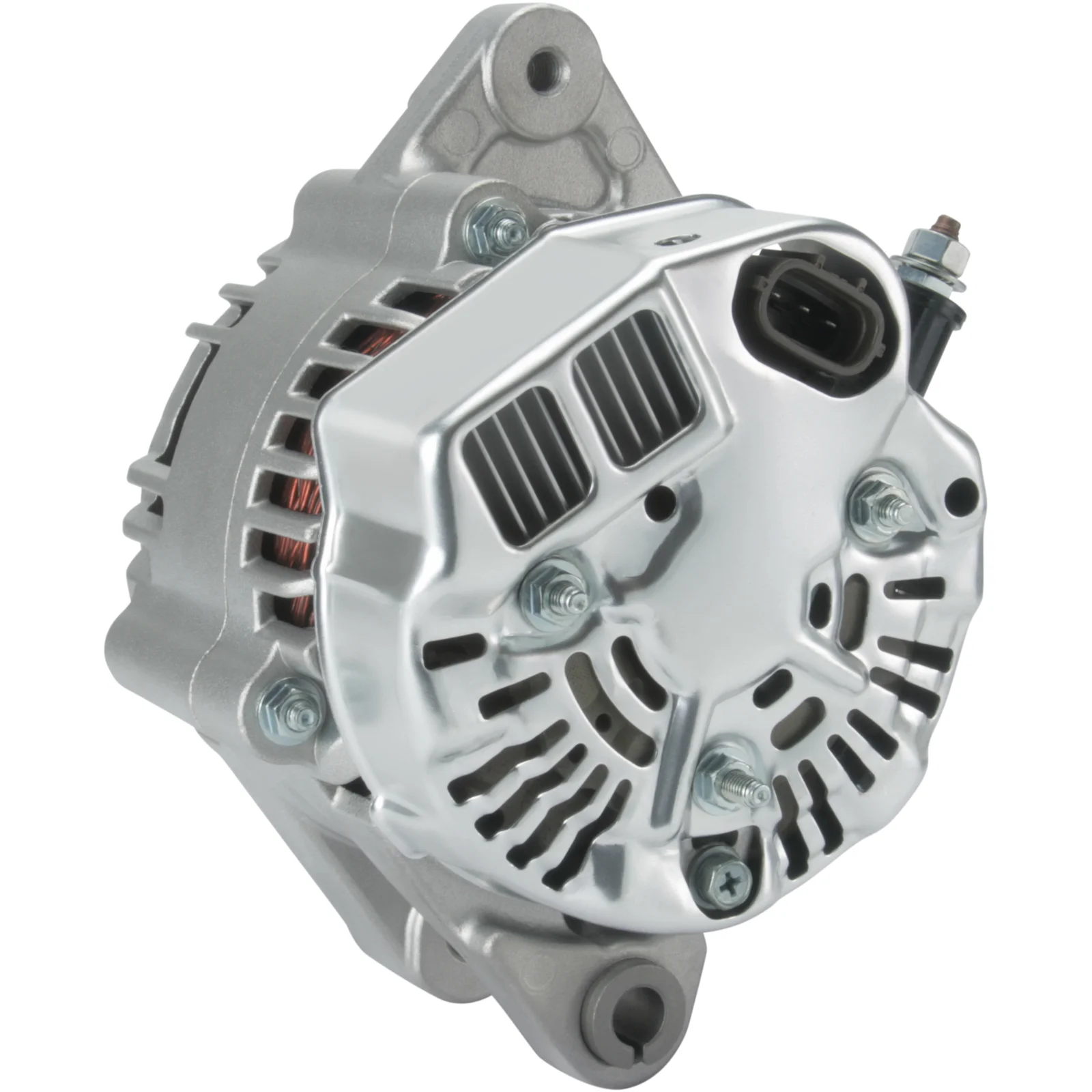

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115929

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 39.50

Beskrivning

Voltage: 14
Amp: 70
Pulley dist.: 48.00
Width/holder arm: 27.00
Mount. bracket dist.: 39.50
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 4
Radius: 74.00
Radius 2: 82.00
B+: M6
Position/B+ in min.: 7
D+ Size: Plug
Rotation: CW
Plug no.: PL58
Total length mm: 153.00
Terminal type: L-IG
Pulley: SP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 39.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL58
Bracket hole 10.20
Position/B+ in min. 7
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 48.00
Radius 74.00
D+ Size Plug
Radius 2 82.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Terminal type L-IG
Voltage 14
Total length 153.00 mm
Width/holder arm 27.00
Amp 70

  • OEM
    A2TC0291, F032115929, 27060-97401, 27060-97401-000, 27060-97402, 27060-97402-000, 102211-5450, 102211-547, 102211-5470, 102211-5880

  • Konkurrentreferens
    A6057, A6057(DENSO), A6085, A6085(DENSO), CAL40182, CAL40295, DAN976, DAN977, DRA0348, DRA0709, J5116029, LRA02040, MAN7515, MAN7516, 28-3959, 28-5870, 115.509.070, 115.526.070, 217.117.702, 217.125.702, 23040R, 112832, 210843, 210843A, 9090515, 12060881, 12061155, 063377515010, 063377516010

  • Normaliserat artikelnummer
    a2tc0291, a6057, a6057denso, a6085, a6085denso, cal40182, cal40295, dan976, dan977, dra0348, dra0709, f032115929, j5116029, lra02040, man7515, man7516, 23040r, 112832, 210843, 210843a, 283959, 285870, 9090515, 12060881, 12061155, 102211547, 115509070, 115526070, 217117702, 217125702, 1022115450, 1022115470, 1022115880, 2706097401, 2706097402, 063377515010, 063377516010, 2706097401000, 2706097402000

  • Passar modeller
    Daihatsu Model: Sirion Model series: Sirion Model type: Sport Size of motor: 1.3 Brand of engine: K3-VE2 Type description: M1 Body: Hatchback From date: 01-08-2000 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Sirion Model series: Sirion Model type: Sport, 4WD Size of motor: 1.3 Brand of engine: K3-VE2 Type description: M1 Body: Hatchback From date: 01-08-2000 To date: 01-03-2005 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Terios Model series: Terios Model type: 4WD Size of motor: 1.3 Brand of engine: K3-VE Type description: J1 From date: 01-10-2000 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Terios Model series: Terios Size of motor: 1.3 Brand of engine: K3-VE Type description: J1 From date: 01-09-2001 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Daihatsu Model: YRV Model series: YRV Model type: 4WD Size of motor: 1.3 Brand of engine: K3-VE Type description: M2 Body: Estate From date: 01-02-2001 Fuel: Gasoline Approved: Yes
    Daihatsu Model: YRV Model series: YRV Size of motor: 1.3 Brand of engine: K3-VE Type description: M2 Body: Estate From date: 01-02-2001 Fuel: Gasoline Approved: Yes
    Daihatsu Model: YRV Model series: YRV Type of engine: Turbo Size of motor: 1.3 Brand of engine: K3-VET Type description: M2 Body: Estate From date: 01-07-2002 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 70
    Pulley dist.: 48.00
    Width/holder arm: 27.00
    Mount. bracket dist.: 39.50
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 4
    Radius: 74.00
    Radius 2: 82.00
    B+: M6
    Position/B+ in min.: 7
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL58
    Total length mm: 153.00
    Terminal type: L-IG
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 39.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL58
    Bracket hole 10.20
    Position/B+ in min. 7
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 48.00
    Radius 74.00
    D+ Size Plug
    Radius 2 82.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Terminal type L-IG
    Voltage 14
    Total length 153.00 mm
    Width/holder arm 27.00
    Amp 70
  • Fordonsmatchning

    • OEM
      A2TC0291, F032115929, 27060-97401, 27060-97401-000, 27060-97402, 27060-97402-000, 102211-5450, 102211-547, 102211-5470, 102211-5880

    • Konkurrentreferens
      A6057, A6057(DENSO), A6085, A6085(DENSO), CAL40182, CAL40295, DAN976, DAN977, DRA0348, DRA0709, J5116029, LRA02040, MAN7515, MAN7516, 28-3959, 28-5870, 115.509.070, 115.526.070, 217.117.702, 217.125.702, 23040R, 112832, 210843, 210843A, 9090515, 12060881, 12061155, 063377515010, 063377516010

    • Normaliserat artikelnummer
      a2tc0291, a6057, a6057denso, a6085, a6085denso, cal40182, cal40295, dan976, dan977, dra0348, dra0709, f032115929, j5116029, lra02040, man7515, man7516, 23040r, 112832, 210843, 210843a, 283959, 285870, 9090515, 12060881, 12061155, 102211547, 115509070, 115526070, 217117702, 217125702, 1022115450, 1022115470, 1022115880, 2706097401, 2706097402, 063377515010, 063377516010, 2706097401000, 2706097402000

    • Passar modeller
      Daihatsu Model: Sirion Model series: Sirion Model type: Sport Size of motor: 1.3 Brand of engine: K3-VE2 Type description: M1 Body: Hatchback From date: 01-08-2000 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Sirion Model series: Sirion Model type: Sport, 4WD Size of motor: 1.3 Brand of engine: K3-VE2 Type description: M1 Body: Hatchback From date: 01-08-2000 To date: 01-03-2005 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Terios Model series: Terios Model type: 4WD Size of motor: 1.3 Brand of engine: K3-VE Type description: J1 From date: 01-10-2000 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Terios Model series: Terios Size of motor: 1.3 Brand of engine: K3-VE Type description: J1 From date: 01-09-2001 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      Daihatsu Model: YRV Model series: YRV Model type: 4WD Size of motor: 1.3 Brand of engine: K3-VE Type description: M2 Body: Estate From date: 01-02-2001 Fuel: Gasoline Approved: Yes
      Daihatsu Model: YRV Model series: YRV Size of motor: 1.3 Brand of engine: K3-VE Type description: M2 Body: Estate From date: 01-02-2001 Fuel: Gasoline Approved: Yes
      Daihatsu Model: YRV Model series: YRV Type of engine: Turbo Size of motor: 1.3 Brand of engine: K3-VET Type description: M2 Body: Estate From date: 01-07-2002 Fuel: Gasoline Approved: Yes
