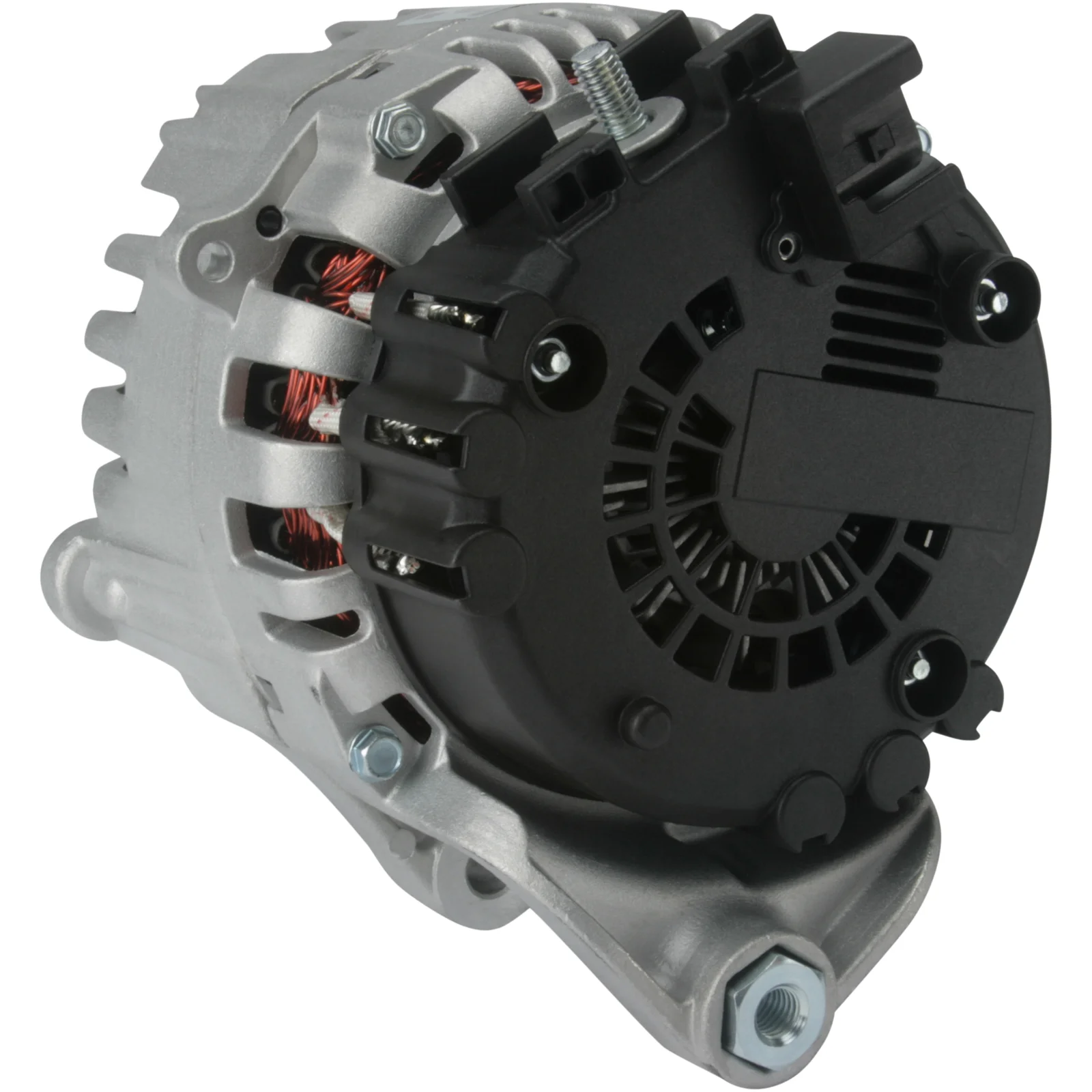

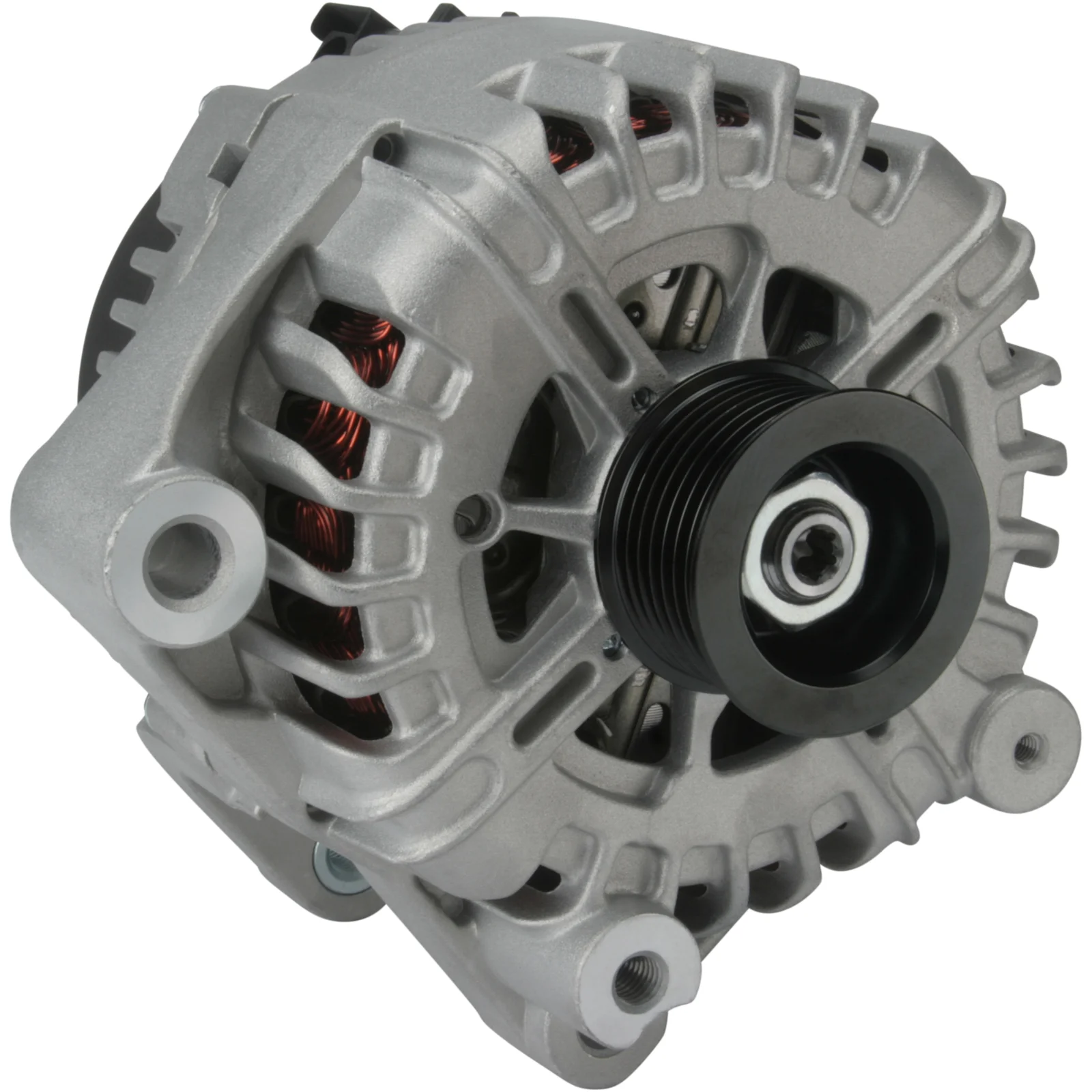

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115923

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 75.50

Beskrivning

Voltage: 14
Amp: 180
Pulley dist.: 57.00
Width/holder arm: 28.50
Mount. bracket dist.: 75.50
Bracket hole: 10.30
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 12.00
Pulley dia.: 51.00
Grooves/pulley: 7
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 55
Rotation: CW
Plug no.: PL125
Total length mm: 185.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 75.50
Belt. adj. bracket hole 1 12.00
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 10.30
Position/B+ in min. 55
Prod. info BN
Pulley SP
Pulley dia. 51.00
Pulley dist. 57.00
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 28.50
Amp 180

  • OEM
    F032115923, TG17C036, 12317561003, 12317561004

  • Konkurrentreferens
    A3230, CAL15487, DRA0592, LRA03162, 28-5774, 215.184.1702, 215.542.170, 215.542.180, 11396N, 112535, 209236, 209236A, 439601, 440097, 9090473, 12090524

  • Normaliserat artikelnummer
    a3230, cal15487, dra0592, f032115923, lra03162, tg17c036, 11396n, 112535, 209236, 209236a, 285774, 439601, 440097, 9090473, 12090524, 215542170, 215542180, 2151841702, 12317561003, 12317561004

  • Passar modeller
    BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: i Size of motor: 4.8 Brand of engine: N62B48B Type description: E70 From date: 01-10-2008 To date: 01-03-2010 Fuel: Gasoline Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: i Size of motor: 4.8 Brand of engine: N62B48B Type description: E70 From date: 01-10-2006 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 180
    Pulley dist.: 57.00
    Width/holder arm: 28.50
    Mount. bracket dist.: 75.50
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 12.00
    Pulley dia.: 51.00
    Grooves/pulley: 7
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 55
    Rotation: CW
    Plug no.: PL125
    Total length mm: 185.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 75.50
    Belt. adj. bracket hole 1 12.00
    Belt. adj. brackethole pos. 45
    Plug no. PL125
    Bracket hole 10.30
    Position/B+ in min. 55
    Prod. info BN
    Pulley SP
    Pulley dia. 51.00
    Pulley dist. 57.00
    Radius 93.00
    Radius 2 93.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 185.00 mm
    Width/holder arm 28.50
    Amp 180
  • Fordonsmatchning

    • OEM
      F032115923, TG17C036, 12317561003, 12317561004

    • Konkurrentreferens
      A3230, CAL15487, DRA0592, LRA03162, 28-5774, 215.184.1702, 215.542.170, 215.542.180, 11396N, 112535, 209236, 209236A, 439601, 440097, 9090473, 12090524

    • Normaliserat artikelnummer
      a3230, cal15487, dra0592, f032115923, lra03162, tg17c036, 11396n, 112535, 209236, 209236a, 285774, 439601, 440097, 9090473, 12090524, 215542170, 215542180, 2151841702, 12317561003, 12317561004

    • Passar modeller
      BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: i Size of motor: 4.8 Brand of engine: N62B48B Type description: E70 From date: 01-10-2008 To date: 01-03-2010 Fuel: Gasoline Approved: Yes
      BMW Model: X5 Model series: X5 Type of engine: i Size of motor: 4.8 Brand of engine: N62B48B Type description: E70 From date: 01-10-2006 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
