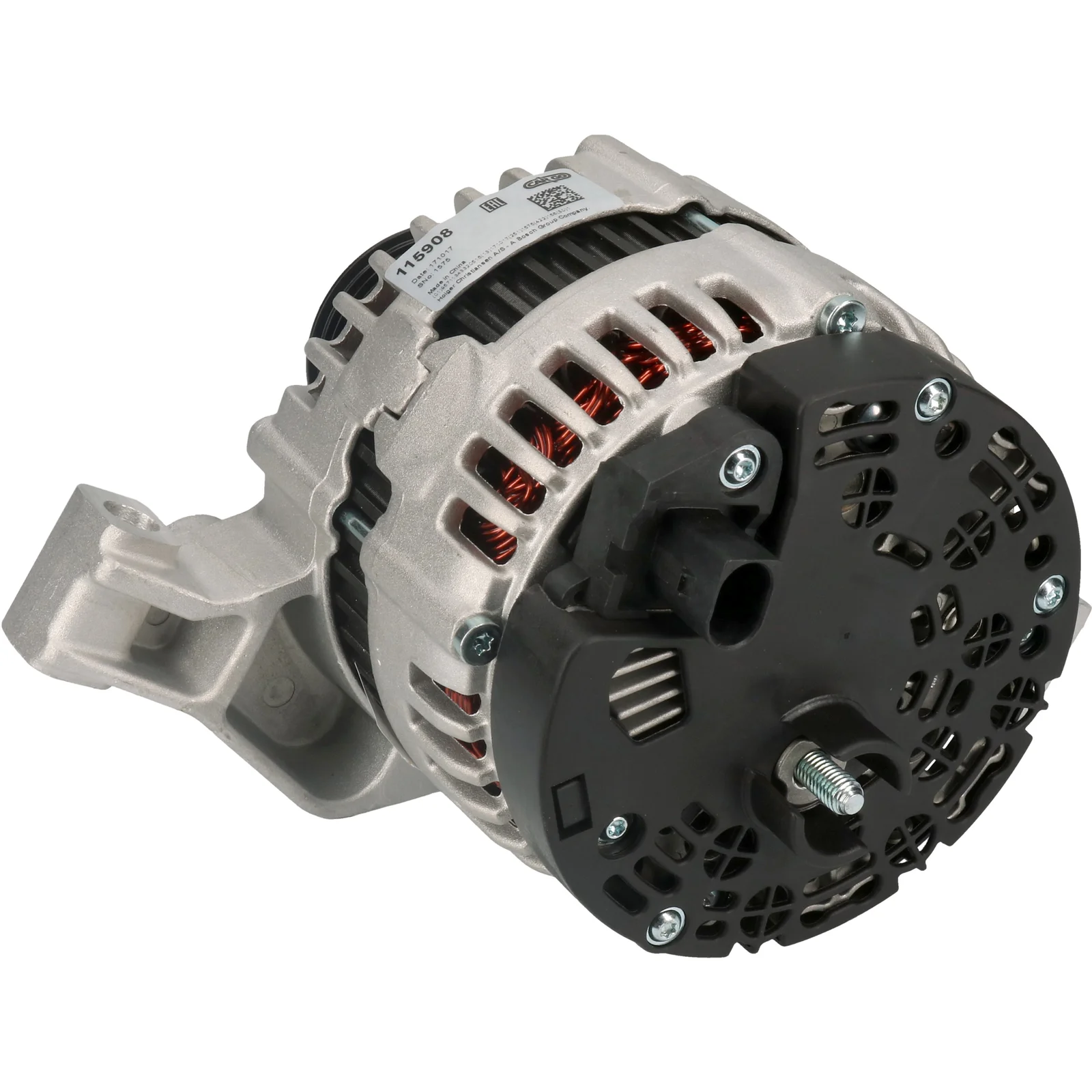

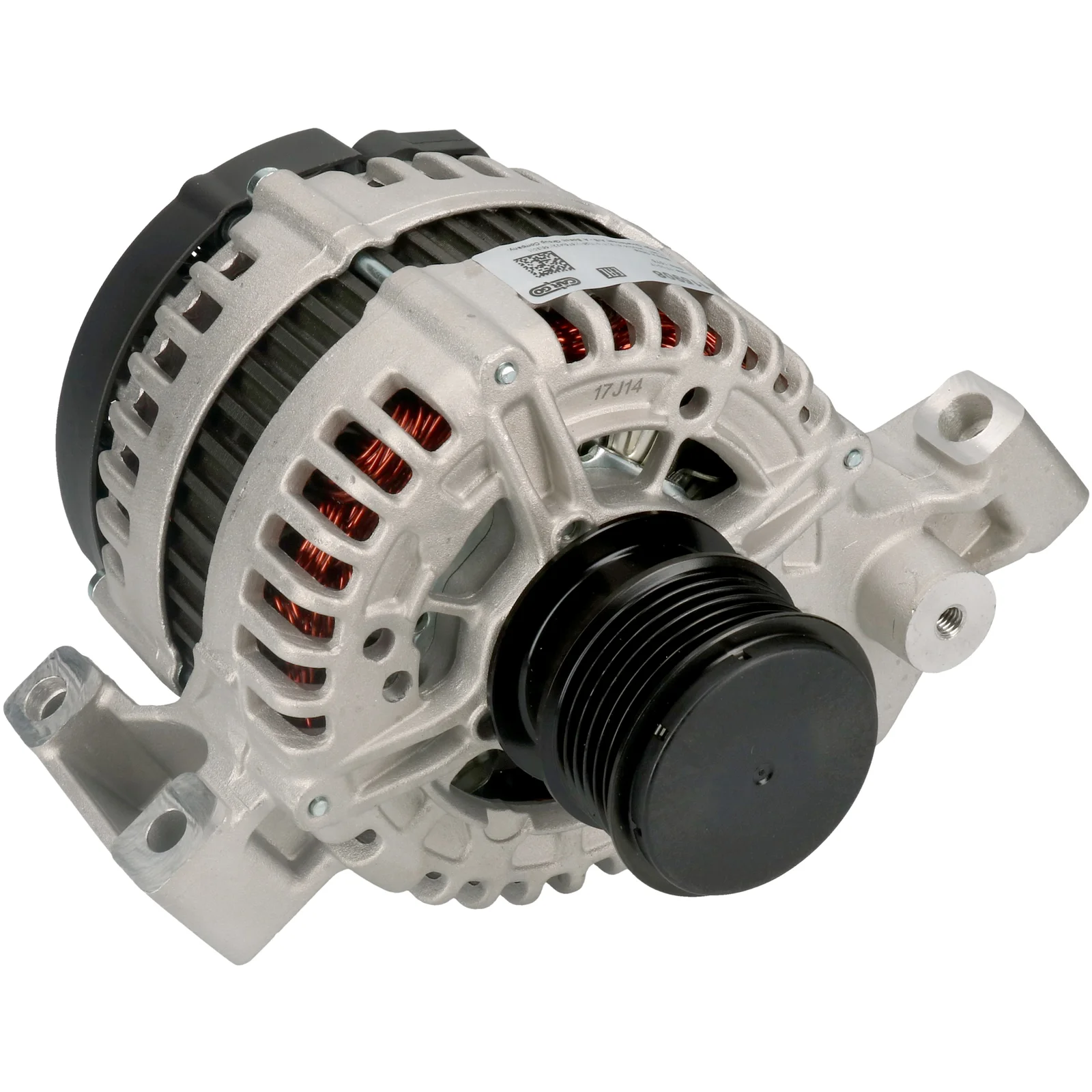

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115908

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CCW, Mount. bracket dist.: 58.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 55.00
Width/holder arm: 34.00
Mount. bracket dist.: 58.00
Bracket hole: 9.00
Belt. adj. bracket hole 1: 9.50
Pulley dia.: 58.30
Grooves/pulley: 6
Radius: 91.00
B+: M8
Position/B+ in min.: 43
Rotation: CCW
Plug no.: PL174
Total length mm: 199.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 58.00
Belt. adj. bracket hole 1 9.50
Plug no. PL174
Bracket hole 9.00
Position/B+ in min. 43
Prod. info BN
Pulley SP/FW
Pulley dia. 58.30
Pulley dist. 55.00
Radius 91.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CCW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 199.00 mm
Width/holder arm 34.00
Amp 150

  • OEM
    F032115908, 6G9N10300AA, 9G9J10300AA, 9g9n10300aa, 1682130, 2099467, 31260072, 36002584, 0121615032, 0121615132

  • Konkurrentreferens
    A0404, CAL10573, DRA0474, LRA03574, 28-6684, 238.158.1502, 815.536.150, 443406, 444272, 12090501

  • Normaliserat artikelnummer
    a0404, cal10573, dra0474, f032115908, lra03574, 6g9n10300aa, 9g9j10300aa, 9g9n10300aa, 286684, 443406, 444272, 1682130, 2099467, 12090501, 31260072, 36002584, 0121615032, 0121615132, 815536150, 2381581502

  • Passar modeller
    Changan Volvo Model: S80L Model series: S80L Type of engine: Turbo Size of motor: 2.0 From date: 01-12-2010 To date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Volvo Model: S60 Model series: S60 Model type: T5 DRIVe Size of motor: 2.0 Brand of engine: B4204T7 Type description: 134 From date: 01-09-2014 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Volvo Model: S60 Model series: S60 Model type: T5 Size of motor: 2.0 Brand of engine: B4204T7 From date: 01-04-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Volvo Model: S60 Model series: S60 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B4204T6 From date: 01-04-2010 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Volvo Model: S80 Model series: S80 Model type: T5 Size of motor: 2.0 Brand of engine: B4204T7 From date: 01-10-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Volvo Model: S80 Model series: S80 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B4204T6 From date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V60 Model series: V60 Model type: T5 Size of motor: 2.0 Brand of engine: B4204T7 Body: Estate From date: 01-09-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Volvo Model: V60 Model series: V60 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B4204T6 Body: Estate From date: 01-07-2010 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: V70 Model series: V70 Model type: T6 AWD Size of motor: 2.0 Brand of engine: B4204T7 Body: Estate From date: 01-01-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Volvo Model: V70 Model series: V70 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B4204T6 Body: Estate From date: 01-09-2009 To date: 01-12-2011 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Volvo Model: XC60 Model series: XC60 Model type: T5 Size of motor: 2.0 Brand of engine: B4204T7 Body: Estate From date: 01-09-2010 To date: 01-02-2017 Fuel: Gasoline Approved: Yes
    Volvo Model: XC60 Model series: XC60 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B4204T6 Body: Estate From date: 01-12-2009 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 55.00
    Width/holder arm: 34.00
    Mount. bracket dist.: 58.00
    Bracket hole: 9.00
    Belt. adj. bracket hole 1: 9.50
    Pulley dia.: 58.30
    Grooves/pulley: 6
    Radius: 91.00
    B+: M8
    Position/B+ in min.: 43
    Rotation: CCW
    Plug no.: PL174
    Total length mm: 199.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 58.00
    Belt. adj. bracket hole 1 9.50
    Plug no. PL174
    Bracket hole 9.00
    Position/B+ in min. 43
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 58.30
    Pulley dist. 55.00
    Radius 91.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CCW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 199.00 mm
    Width/holder arm 34.00
    Amp 150
  • Fordonsmatchning

    • OEM
      F032115908, 6G9N10300AA, 9G9J10300AA, 9g9n10300aa, 1682130, 2099467, 31260072, 36002584, 0121615032, 0121615132

    • Konkurrentreferens
      A0404, CAL10573, DRA0474, LRA03574, 28-6684, 238.158.1502, 815.536.150, 443406, 444272, 12090501

    • Normaliserat artikelnummer
      a0404, cal10573, dra0474, f032115908, lra03574, 6g9n10300aa, 9g9j10300aa, 9g9n10300aa, 286684, 443406, 444272, 1682130, 2099467, 12090501, 31260072, 36002584, 0121615032, 0121615132, 815536150, 2381581502

    • Passar modeller
      Changan Volvo Model: S80L Model series: S80L Type of engine: Turbo Size of motor: 2.0 From date: 01-12-2010 To date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Volvo Model: S60 Model series: S60 Model type: T5 DRIVe Size of motor: 2.0 Brand of engine: B4204T7 Type description: 134 From date: 01-09-2014 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Volvo Model: S60 Model series: S60 Model type: T5 Size of motor: 2.0 Brand of engine: B4204T7 From date: 01-04-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Volvo Model: S60 Model series: S60 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B4204T6 From date: 01-04-2010 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Volvo Model: S80 Model series: S80 Model type: T5 Size of motor: 2.0 Brand of engine: B4204T7 From date: 01-10-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Volvo Model: S80 Model series: S80 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B4204T6 From date: 01-01-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: V60 Model series: V60 Model type: T5 Size of motor: 2.0 Brand of engine: B4204T7 Body: Estate From date: 01-09-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Volvo Model: V60 Model series: V60 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B4204T6 Body: Estate From date: 01-07-2010 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Volvo Model: V70 Model series: V70 Model type: T6 AWD Size of motor: 2.0 Brand of engine: B4204T7 Body: Estate From date: 01-01-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Volvo Model: V70 Model series: V70 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B4204T6 Body: Estate From date: 01-09-2009 To date: 01-12-2011 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Volvo Model: XC60 Model series: XC60 Model type: T5 Size of motor: 2.0 Brand of engine: B4204T7 Body: Estate From date: 01-09-2010 To date: 01-02-2017 Fuel: Gasoline Approved: Yes
      Volvo Model: XC60 Model series: XC60 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B4204T6 Body: Estate From date: 01-12-2009 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      1 / 3
