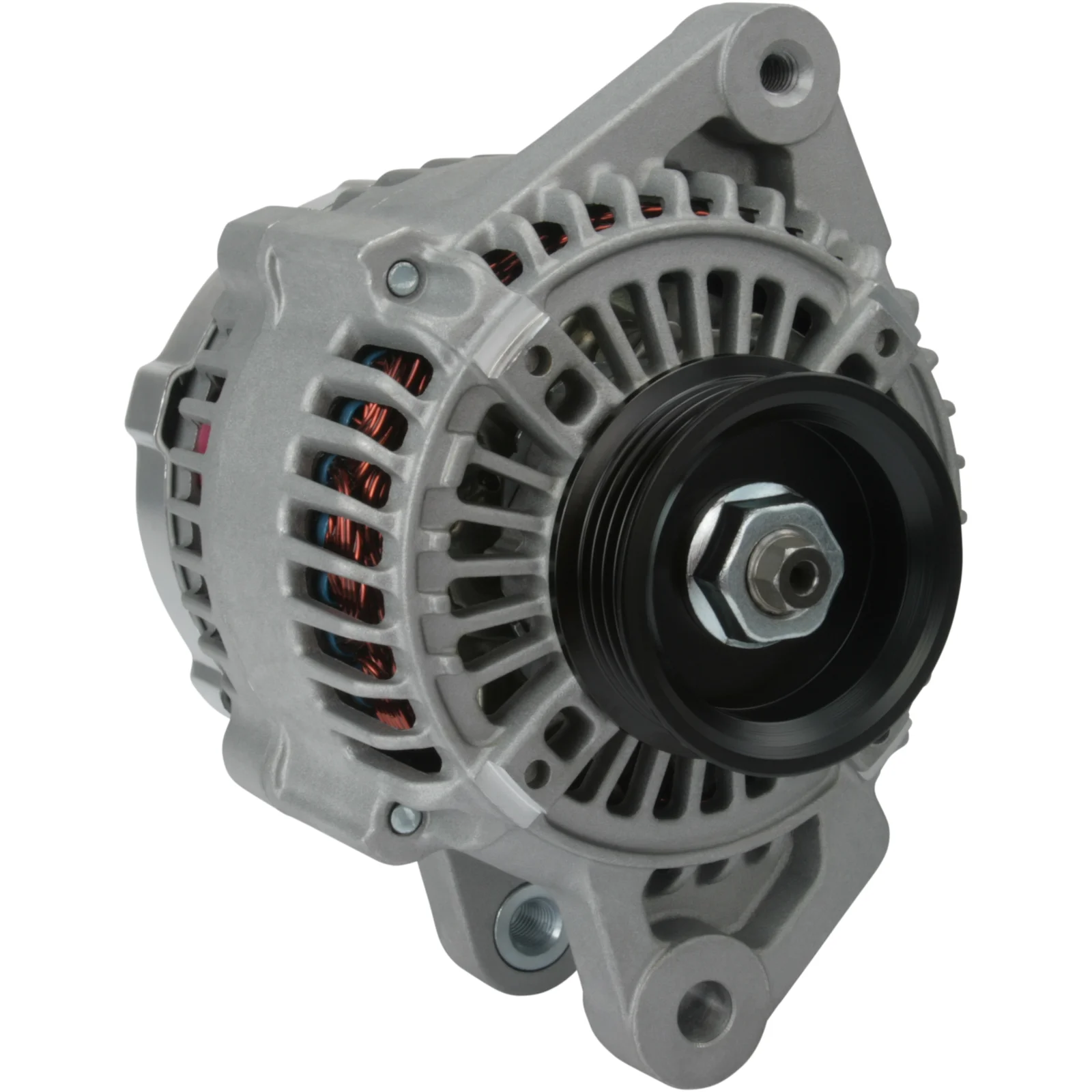

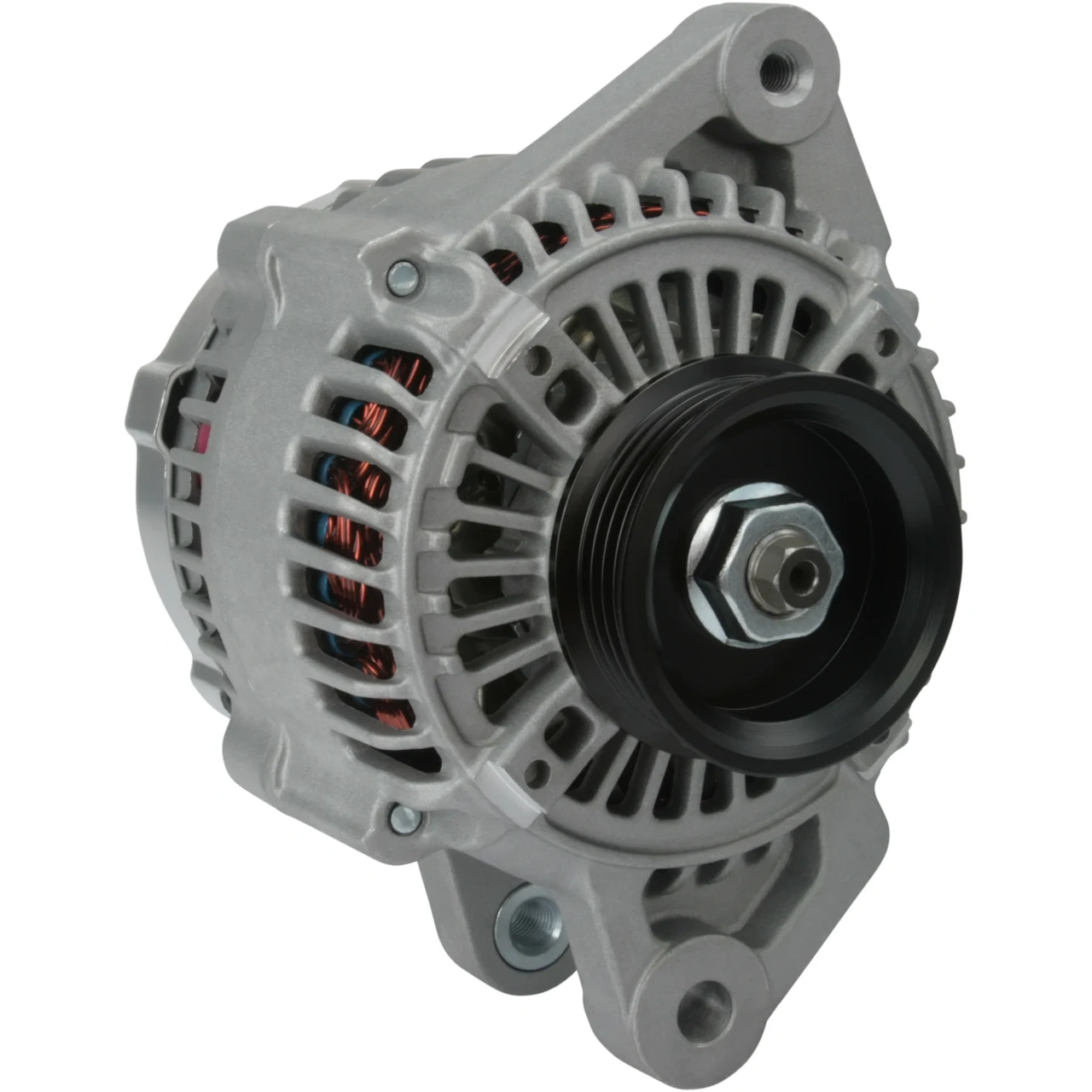

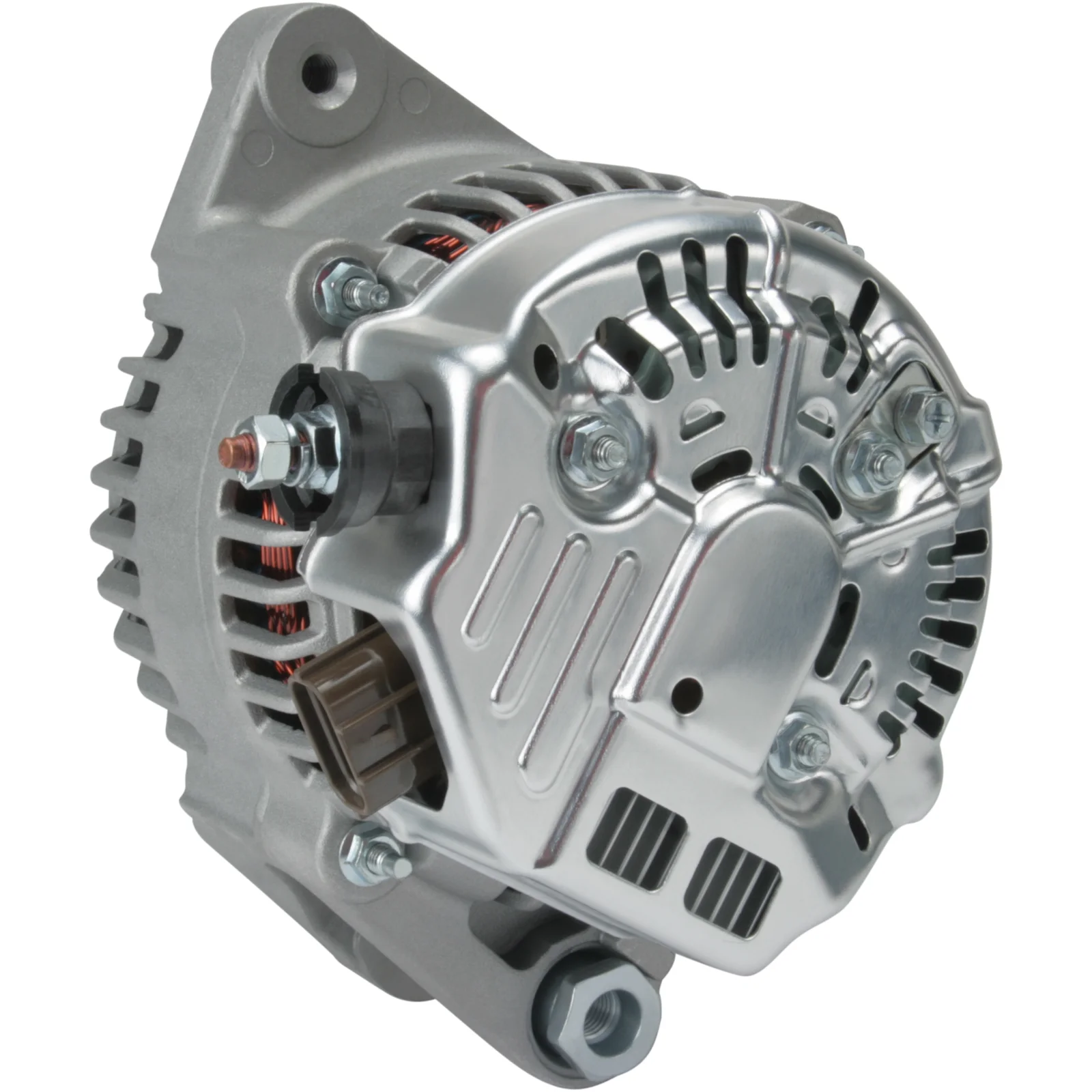

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115791

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 41.60

Beskrivning

Toyota Yaris Generator 12V-90A 12V - 90A, 4gr, (M, IG, L) För Yourex produkt order 90-555-2102

Voltage: 14
Amp: 90
Pulley dist.: 33.00
Width/holder arm: 18.00
Mount. bracket dist.: 41.60
Bracket hole: 11.00
Belt. adj. brackethole pos.: 3
Belt. adj. bracket hole 1: M8
Pulley dia.: 60.00
Grooves/pulley: 4
Radius: 81.50
Radius 2: 81.00
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL67
Pulley: SP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 41.60
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL67
Bracket hole 11.00
Position/B+ in min. 50
Prod. info BN
Pulley SP
Pulley dia. 60.00
Pulley dist. 33.00
Radius 81.50
D+ Size Plug
Radius 2 81.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Width/holder arm 18.00
Amp 90

  • OEM
    F032115791, ja1595ir, 0986 045 821, 1986A01570, 27060-21020, 27060-21030, 27060-21031, 27060-21040, 27060-21140, 102211-1950, 102211-1960, 102211-5380, 102211-9030, 102211-9070, 115791

  • Konkurrentreferens
    A6028, A6033, ALT30375, CAL40143, DAN959, DRA1206, DRB5821, DRB5821X, DRB5831, F042205004, J5112114, LRA01945, MAR5742, 8EL011711-191, 8EL012426-531, 8EL737883-001, 28-3838, 195.540.090, 235.168.902, 11085N, 11085R, 13857, 13857N, 111537, 209371, 209371A, 209377, 209377A, 440290, 440294, 9045821, 12060747, 12060880, 944390458, 0986045821, 0986045831, 944390458210

  • Bilmärken
    Toyota

  • Normaliserat artikelnummer
    a6028, a6033, alt30375, cal40143, dan959, dra1206, drb5821, drb5821x, drb5831, f032115791, f042205004, j5112114, ja1595ir, lra01945, mar5742, 8el011711191, 8el012426531, 8el737883001, 1986a01570, 11085n, 11085r, 13857, 13857n, 111537, 115791, 209371, 209371a, 209377, 209377a, 283838, 440290, 440294, 9045821, 12060747, 12060880, 195540090, 235168902, 944390458, 0986045821, 0986045831, 1022111950, 1022111960, 1022115380, 1022119030, 1022119070, 2706021020, 2706021030, 2706021031, 2706021040, 2706021140, 944390458210

  • Passar modeller
    Toyota Model: Echo Model series: Echo Saloon Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _P1_ Body: Saloon From date: 01-08-1999 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.5 Brand of engine: 1NZ-FE Body: Hatchback From date: 01-11-2005 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP10 Body: Hatchback From date: 01-11-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: i 16V Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP13 Body: Hatchback From date: 01-04-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _CP10_ Body: Hatchback From date: 01-01-2003 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _CP10 Body: Hatchback From date: 01-03-2000 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Model type: 4WD Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _NLP2_, _NCP2_ Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP2_ Body: MPV From date: 01-08-1999 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP2_ Body: MPV From date: 01-11-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Type of engine: 16V Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP21 Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Type of engine: TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP2_ Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Series: Yaris (_CP10) Model: 1.3 16V Engine volume: 1.3 Engine type: 2NZ-FE Year: 11.99-12.02
    Toyota Series: Yaris (_CP10) Model: 1.5 VVT-i TS Engine volume: 1.5 Engine type: 1NZ-FE Year: 04.01-12.02
    Toyota Series: Yaris (_CP13) Model: 1.5 Engine volume: 1.5 Engine type: 1NZ-FE Year: 01.03-
    Toyota Series: Yaris Verso (NC/LP2) Model: 1.3 Engine volume: 1.3 Engine type: 2NZ-FE Year: 01.03-09.05
    Toyota Series: Yaris Verso (NC/LP2) Model: 1.3 Engine volume: 1.3 Engine type: 2NZ-FE Year: 11.99-12.02
    Toyota Series: Yaris Verso (NC/LP2) Model: 1.5 Engine volume: 1.5 Engine type: 1NZ-FE Year: 03.00-09.05
    Toyota Series: Yaris Verso (NC/LP2) Model: 1.5 Engine volume: 1.5 Engine type: 1NZ-FE Year: 05.03-09.05
    1 / 4
  • Beskrivning
    Toyota Yaris Generator 12V-90A 12V - 90A, 4gr, (M, IG, L) För Yourex produkt order 90-555-2102

    Voltage: 14
    Amp: 90
    Pulley dist.: 33.00
    Width/holder arm: 18.00
    Mount. bracket dist.: 41.60
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 3
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 60.00
    Grooves/pulley: 4
    Radius: 81.50
    Radius 2: 81.00
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL67
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 41.60
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 3
    Plug no. PL67
    Bracket hole 11.00
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 33.00
    Radius 81.50
    D+ Size Plug
    Radius 2 81.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Width/holder arm 18.00
    Amp 90
  • Fordonsmatchning

    • OEM
      F032115791, ja1595ir, 0986 045 821, 1986A01570, 27060-21020, 27060-21030, 27060-21031, 27060-21040, 27060-21140, 102211-1950, 102211-1960, 102211-5380, 102211-9030, 102211-9070, 115791

    • Konkurrentreferens
      A6028, A6033, ALT30375, CAL40143, DAN959, DRA1206, DRB5821, DRB5821X, DRB5831, F042205004, J5112114, LRA01945, MAR5742, 8EL011711-191, 8EL012426-531, 8EL737883-001, 28-3838, 195.540.090, 235.168.902, 11085N, 11085R, 13857, 13857N, 111537, 209371, 209371A, 209377, 209377A, 440290, 440294, 9045821, 12060747, 12060880, 944390458, 0986045821, 0986045831, 944390458210

    • Bilmärken
      Toyota

    • Normaliserat artikelnummer
      a6028, a6033, alt30375, cal40143, dan959, dra1206, drb5821, drb5821x, drb5831, f032115791, f042205004, j5112114, ja1595ir, lra01945, mar5742, 8el011711191, 8el012426531, 8el737883001, 1986a01570, 11085n, 11085r, 13857, 13857n, 111537, 115791, 209371, 209371a, 209377, 209377a, 283838, 440290, 440294, 9045821, 12060747, 12060880, 195540090, 235168902, 944390458, 0986045821, 0986045831, 1022111950, 1022111960, 1022115380, 1022119030, 1022119070, 2706021020, 2706021030, 2706021031, 2706021040, 2706021140, 944390458210

    • Passar modeller
      Toyota Model: Echo Model series: Echo Saloon Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _P1_ Body: Saloon From date: 01-08-1999 To date: 01-12-2005 Fuel: Petrol Approved: Yes
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.5 Brand of engine: 1NZ-FE Body: Hatchback From date: 01-11-2005 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP10 Body: Hatchback From date: 01-11-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: i 16V Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP13 Body: Hatchback From date: 01-04-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _CP10_ Body: Hatchback From date: 01-01-2003 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _CP10 Body: Hatchback From date: 01-03-2000 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Model type: 4WD Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _NLP2_, _NCP2_ Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP2_ Body: MPV From date: 01-08-1999 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP2_ Body: MPV From date: 01-11-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Type of engine: 16V Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP21 Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Type of engine: TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP2_ Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Series: Yaris (_CP10) Model: 1.3 16V Engine volume: 1.3 Engine type: 2NZ-FE Year: 11.99-12.02
      Toyota Series: Yaris (_CP10) Model: 1.5 VVT-i TS Engine volume: 1.5 Engine type: 1NZ-FE Year: 04.01-12.02
      Toyota Series: Yaris (_CP13) Model: 1.5 Engine volume: 1.5 Engine type: 1NZ-FE Year: 01.03-
      Toyota Series: Yaris Verso (NC/LP2) Model: 1.3 Engine volume: 1.3 Engine type: 2NZ-FE Year: 01.03-09.05
      Toyota Series: Yaris Verso (NC/LP2) Model: 1.3 Engine volume: 1.3 Engine type: 2NZ-FE Year: 11.99-12.02
      Toyota Series: Yaris Verso (NC/LP2) Model: 1.5 Engine volume: 1.5 Engine type: 1NZ-FE Year: 03.00-09.05
      Toyota Series: Yaris Verso (NC/LP2) Model: 1.5 Engine volume: 1.5 Engine type: 1NZ-FE Year: 05.03-09.05
