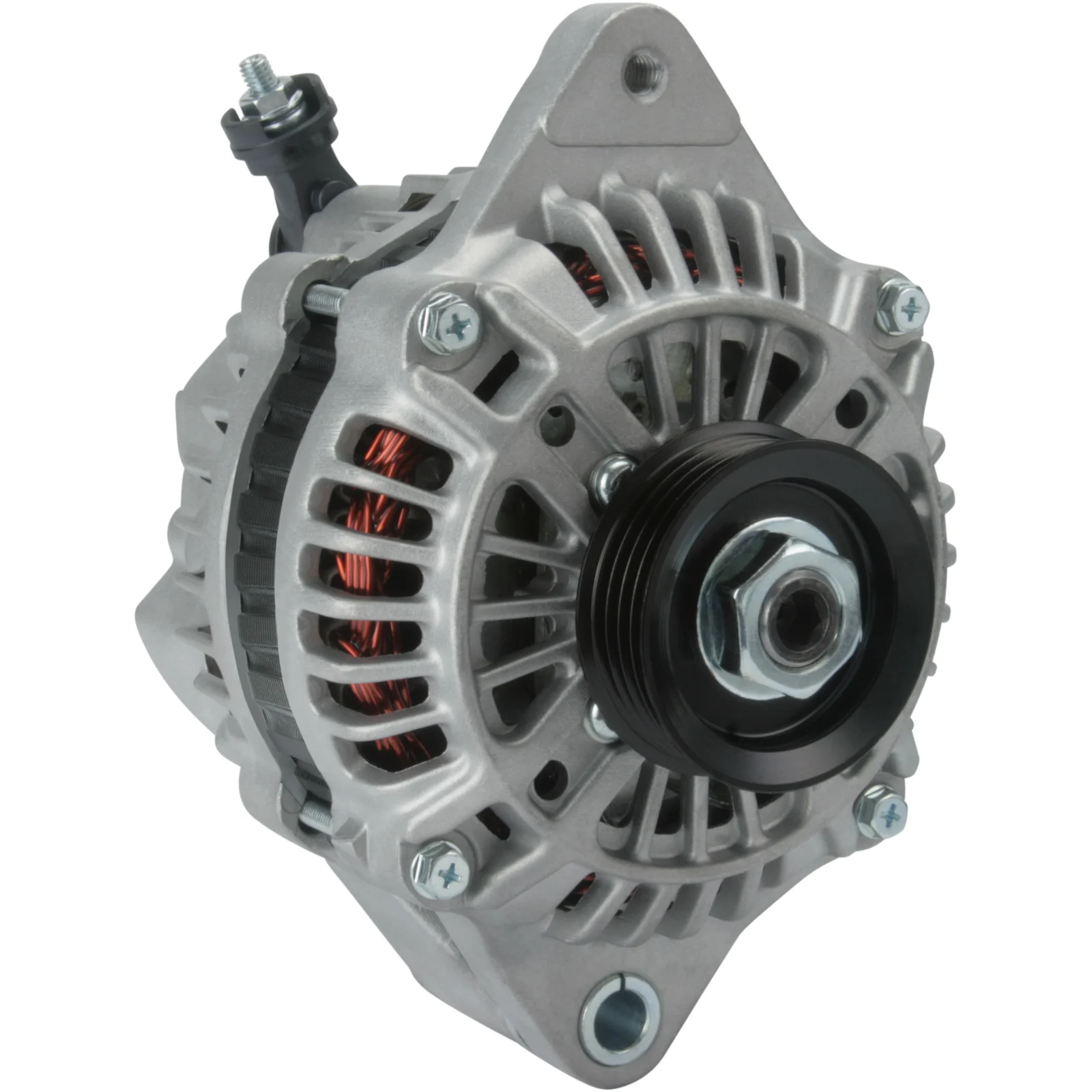

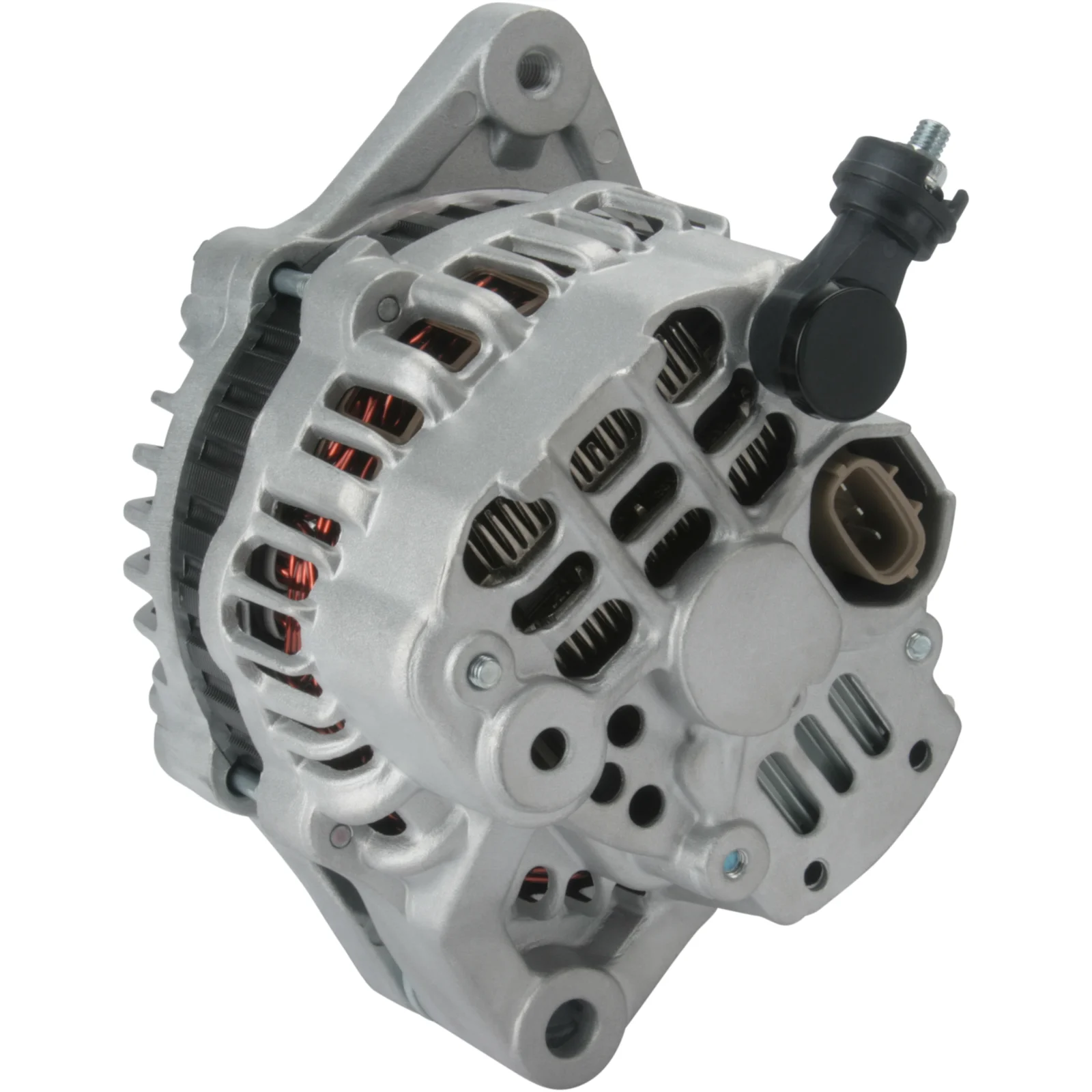

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114245

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 75, Rotation: CW, Pulley dia.: 54.50

Beskrivning

Generator 12V-75A 12V - 75A, 4gr, (D, IG, L) För Yourex produkt order 90-528-8440

Voltage: 14
Amp: 75
Pulley dist.: 90.50
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 54.50
Grooves/pulley: 4
Radius: 84.00
Radius 2: 80.00
B+: M6
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL58
Total length mm: 155.00
Pulley: SP

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL58
Bracket hole 10.50
Position/B+ in min. 5
Pulley SP
Pulley dia. 54.50
Pulley dist. 90.50
Radius 84.00
Radius 2 80.00
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 155.00 mm
Width/holder arm 58.00
Amp 75

  • OEM
    A005TB0891, A005TB0891ZE, A005TB1291, A005TB1291ZE, A5T-B0891ZE, A5T-B1291ZE, A5TB0891, a5tb0891ze, A5TB1291, A5TB1291AE, A5TB1291ZE, F032114245, 0986 081 950, 1943ir, 1986A01486, 31400-84E00, 31400-84E01, 114245

  • Konkurrentreferens
    A5052, ALT-H208, CAL35254, DRA0154, F042200112, F042205112, F042A0H208, J5118016, LRA02954, 8EL015630-591, 8EL738212-831, 28-3525, 28-3672, 28-5568, 185.535.075, 245.125.752, 23927R, 209367, 209367A, 301943RI, 446536, 12060948, 0986081950

  • Bilmärken
    Suzuki

  • Normaliserat artikelnummer
    a005tb0891, a005tb0891ze, a005tb1291, a005tb1291ze, a5052, a5tb0891, a5tb0891ze, a5tb1291, a5tb1291ae, a5tb1291ze, alth208, cal35254, dra0154, f032114245, f042200112, f042205112, f042a0h208, j5118016, lra02954, 8el015630591, 8el738212831, 1943ir, 1986a01486, 23927r, 114245, 209367, 209367a, 283525, 283672, 285568, 301943ri, 446536, 3140084e00, 3140084e01, 12060948, 185535075, 245125752, 0986081950

  • Passar modeller
    Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: M13A Type description: ME, EZ Body: Hatchback From date: 01-02-2005 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: M13A Type description: SG Body: Hatchback From date: 01-02-2005 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.5 Brand of engine: M15A Type description: ME, EZ Body: Hatchback From date: 01-02-2005 Fuel: Gasoline Approved: Yes
    Suzuki Model: Wagon Model series: Wagon R MPV Size of motor: 1.3 Brand of engine: M13A Type description: RB413 Body: Hatchback From date: 01-09-2003 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: Wagon Model series: Wagon R+ Model type: 4WD Type of engine: VVT Size of motor: 1.3 Brand of engine: M13A Type description: MM Body: MPV From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Wagon Model series: Wagon R+ Size of motor: 1.3 Brand of engine: M13A Type description: MM Body: MPV From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Suzuki Series: Swift III Model: 1.3 Engine volume: 1.3 Engine type: M 13 A Year: 02.05-
    1 / 2
  • Beskrivning
    Generator 12V-75A 12V - 75A, 4gr, (D, IG, L) För Yourex produkt order 90-528-8440

    Voltage: 14
    Amp: 75
    Pulley dist.: 90.50
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 54.50
    Grooves/pulley: 4
    Radius: 84.00
    Radius 2: 80.00
    B+: M6
    Position/B+ in min.: 5
    Rotation: CW
    Plug no.: PL58
    Total length mm: 155.00
    Pulley: SP

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL58
    Bracket hole 10.50
    Position/B+ in min. 5
    Pulley SP
    Pulley dia. 54.50
    Pulley dist. 90.50
    Radius 84.00
    Radius 2 80.00
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 155.00 mm
    Width/holder arm 58.00
    Amp 75
  • Fordonsmatchning

    • OEM
      A005TB0891, A005TB0891ZE, A005TB1291, A005TB1291ZE, A5T-B0891ZE, A5T-B1291ZE, A5TB0891, a5tb0891ze, A5TB1291, A5TB1291AE, A5TB1291ZE, F032114245, 0986 081 950, 1943ir, 1986A01486, 31400-84E00, 31400-84E01, 114245

    • Konkurrentreferens
      A5052, ALT-H208, CAL35254, DRA0154, F042200112, F042205112, F042A0H208, J5118016, LRA02954, 8EL015630-591, 8EL738212-831, 28-3525, 28-3672, 28-5568, 185.535.075, 245.125.752, 23927R, 209367, 209367A, 301943RI, 446536, 12060948, 0986081950

    • Bilmärken
      Suzuki

    • Normaliserat artikelnummer
      a005tb0891, a005tb0891ze, a005tb1291, a005tb1291ze, a5052, a5tb0891, a5tb0891ze, a5tb1291, a5tb1291ae, a5tb1291ze, alth208, cal35254, dra0154, f032114245, f042200112, f042205112, f042a0h208, j5118016, lra02954, 8el015630591, 8el738212831, 1943ir, 1986a01486, 23927r, 114245, 209367, 209367a, 283525, 283672, 285568, 301943ri, 446536, 3140084e00, 3140084e01, 12060948, 185535075, 245125752, 0986081950

    • Passar modeller
      Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: M13A Type description: ME, EZ Body: Hatchback From date: 01-02-2005 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: M13A Type description: SG Body: Hatchback From date: 01-02-2005 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.5 Brand of engine: M15A Type description: ME, EZ Body: Hatchback From date: 01-02-2005 Fuel: Gasoline Approved: Yes
      Suzuki Model: Wagon Model series: Wagon R MPV Size of motor: 1.3 Brand of engine: M13A Type description: RB413 Body: Hatchback From date: 01-09-2003 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Suzuki Model: Wagon Model series: Wagon R+ Model type: 4WD Type of engine: VVT Size of motor: 1.3 Brand of engine: M13A Type description: MM Body: MPV From date: 01-09-2003 Fuel: Gasoline Approved: Yes
      Suzuki Model: Wagon Model series: Wagon R+ Size of motor: 1.3 Brand of engine: M13A Type description: MM Body: MPV From date: 01-09-2003 Fuel: Gasoline Approved: Yes
      Suzuki Series: Swift III Model: 1.3 Engine volume: 1.3 Engine type: M 13 A Year: 02.05-
