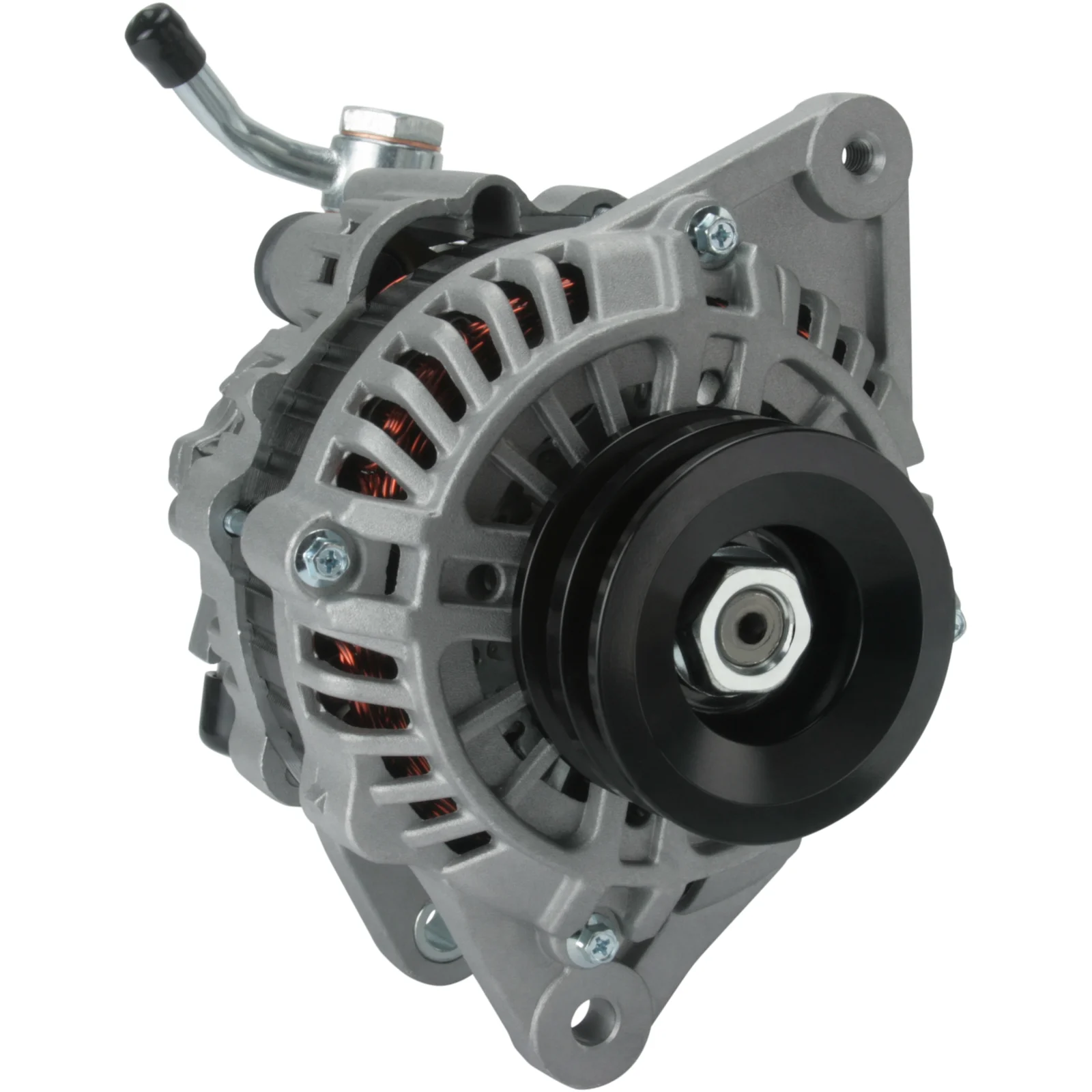

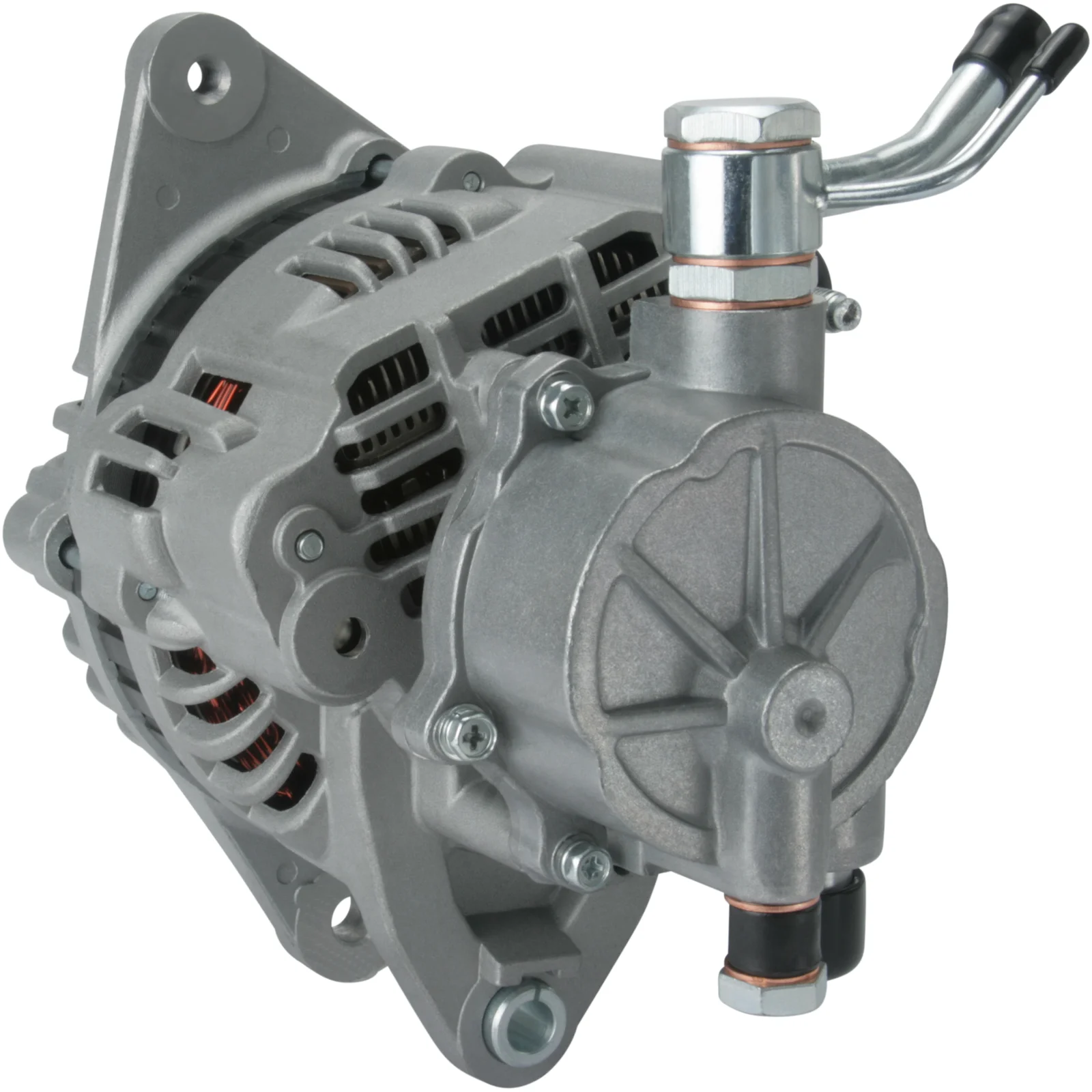

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112128

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 75, Rotation: CW, Mount. bracket dist.: 55.00

Beskrivning

Voltage: 14
Amp: 75
Pulley dist.: 42.00
Width/holder arm: 13.00
Mount. bracket dist.: 55.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 4
Belt. adj. bracket hole 1: M8
Pulley dia.: 80.00
Grooves/pulley: 2
Radius: 90.00
Radius 2: 97.50
B+: M8
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 226.00
Terminal type: L-S
Pulley: DP
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Mitsubishi

Filer

Specifikation

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 4
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 10
Prod. info BN
Pulley DP
Pulley dia. 80.00
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 97.50
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 2
Terminal type L-S
Vac. pump Yes
Voltage 14
Total length 226.00 mm
Width/holder arm 13.00
Amp 75

  • OEM
    A002TN1199, A002TN1199A, A002TN1199AT, A002TN1199ZT, A003T15099, A003TN0399, A003TN0499, a2tn1199, a2tn1199a, a2tn1199at, a2tn1199zt, a3t15099, a3tn0399, a3tn0499, F032112128, ja1271ir, md306834, md313940, md313942, MD315432, md327514, md366051, 54021851, 61920334, 61920401

  • Konkurrentreferens
    A5072, A5417S, ALT31077, ALT31078, BAO3238, CAL35101, dra3474, DRA3474N, DRA4226, GA15128, lra00382, LRA01995, LRA02205, QA4126, va165, 8EL011360-721, 8EL011711-091, 8el737375-001, 28-2844, 28-3899, 28-4671, 526.119.752, 526.123.752, 526.134.752, 526.135.752, 5695, 9372, 12643R, 12667N, 119065, 210018, 210018A, 401271RI, 437706, 600054, 600184, 746994, 12060517, 0986042291

  • Normaliserat artikelnummer
    a002tn1199, a002tn1199a, a002tn1199at, a002tn1199zt, a003t15099, a003tn0399, a003tn0499, a2tn1199, a2tn1199a, a2tn1199at, a2tn1199zt, a3t15099, a3tn0399, a3tn0499, a5072, a5417s, alt31077, alt31078, bao3238, cal35101, dra3474, dra3474n, dra4226, f032112128, ga15128, ja1271ir, lra00382, lra01995, lra02205, md306834, md313940, md313942, md315432, md327514, md366051, qa4126, va165, 8el011360721, 8el011711091, 8el737375001, 5695, 9372, 12643r, 12667n, 119065, 210018, 210018a, 282844, 283899, 284671, 401271ri, 437706, 600054, 600184, 746994, 12060517, 54021851, 61920334, 61920401, 526119752, 526123752, 526134752, 526135752, 0986042291

  • Passar modeller
    Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K6_T Body: Pick Up From date: 01-08-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K74T Body: Pick Up From date: 01-09-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Body: Pick Up From date: 01-06-1996 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Body: Pick Up From date: 01-06-1996 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 400 Model series: L 400 Model type: 2500 Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: PA5V Body: Van From date: 01-09-1996 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 400 Model series: L 400 Model type: 2500 Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: PA5W Body: Bus From date: 01-05-1995 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Model type: 4x4 Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56-T Type description: K7_T, K6_T, K5_T Body: Pickup From date: 01-01-2004 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Model type: DI-D 4x4 (K74T, K34T) Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56-TC Type description: K7_T, K6_T, K5_T Body: Pickup Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56-TD Type description: K7_T, K6_T, K5_T Body: Pickup From date: 01-07-1997 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Type of engine: TDiC Size of motor: 2.5 Brand of engine: 4D56-T Type description: K7_T, K6_T, K5_T Body: Pickup From date: 01-08-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Model type: Sport Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K9_ From date: 01-07-2002 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Model type: Sport Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K9_ From date: 01-11-1998 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W Body: Convertible From date: 01-12-1990 To date: 01-04-2000 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W From date: 01-12-1990 To date: 01-10-1999 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TDi Size of motor: 2.5 Brand of engine: 4D56T Type description: V60 Body: Convertible From date: 01-04-2000 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 75
    Pulley dist.: 42.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 55.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 4
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 80.00
    Grooves/pulley: 2
    Radius: 90.00
    Radius 2: 97.50
    B+: M8
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 226.00
    Terminal type: L-S
    Pulley: DP
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN
    Servicing: Mitsubishi

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 55.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 4
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 10
    Prod. info BN
    Pulley DP
    Pulley dia. 80.00
    Pulley dist. 42.00
    Radius 90.00
    D+ Size Plug
    Radius 2 97.50
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 2
    Terminal type L-S
    Vac. pump Yes
    Voltage 14
    Total length 226.00 mm
    Width/holder arm 13.00
    Amp 75
  • Fordonsmatchning

    • OEM
      A002TN1199, A002TN1199A, A002TN1199AT, A002TN1199ZT, A003T15099, A003TN0399, A003TN0499, a2tn1199, a2tn1199a, a2tn1199at, a2tn1199zt, a3t15099, a3tn0399, a3tn0499, F032112128, ja1271ir, md306834, md313940, md313942, MD315432, md327514, md366051, 54021851, 61920334, 61920401

    • Konkurrentreferens
      A5072, A5417S, ALT31077, ALT31078, BAO3238, CAL35101, dra3474, DRA3474N, DRA4226, GA15128, lra00382, LRA01995, LRA02205, QA4126, va165, 8EL011360-721, 8EL011711-091, 8el737375-001, 28-2844, 28-3899, 28-4671, 526.119.752, 526.123.752, 526.134.752, 526.135.752, 5695, 9372, 12643R, 12667N, 119065, 210018, 210018A, 401271RI, 437706, 600054, 600184, 746994, 12060517, 0986042291

    • Normaliserat artikelnummer
      a002tn1199, a002tn1199a, a002tn1199at, a002tn1199zt, a003t15099, a003tn0399, a003tn0499, a2tn1199, a2tn1199a, a2tn1199at, a2tn1199zt, a3t15099, a3tn0399, a3tn0499, a5072, a5417s, alt31077, alt31078, bao3238, cal35101, dra3474, dra3474n, dra4226, f032112128, ga15128, ja1271ir, lra00382, lra01995, lra02205, md306834, md313940, md313942, md315432, md327514, md366051, qa4126, va165, 8el011360721, 8el011711091, 8el737375001, 5695, 9372, 12643r, 12667n, 119065, 210018, 210018a, 282844, 283899, 284671, 401271ri, 437706, 600054, 600184, 746994, 12060517, 54021851, 61920334, 61920401, 526119752, 526123752, 526134752, 526135752, 0986042291

    • Passar modeller
      Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K6_T Body: Pick Up From date: 01-08-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K74T Body: Pick Up From date: 01-09-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Body: Pick Up From date: 01-06-1996 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Body: Pick Up From date: 01-06-1996 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 400 Model series: L 400 Model type: 2500 Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: PA5V Body: Van From date: 01-09-1996 To date: 01-06-2005 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 400 Model series: L 400 Model type: 2500 Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: PA5W Body: Bus From date: 01-05-1995 To date: 01-06-2005 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 Model series: L200 Model type: 4x4 Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56-T Type description: K7_T, K6_T, K5_T Body: Pickup From date: 01-01-2004 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 Model series: L200 Model type: DI-D 4x4 (K74T, K34T) Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56-TC Type description: K7_T, K6_T, K5_T Body: Pickup Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 Model series: L200 Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56-TD Type description: K7_T, K6_T, K5_T Body: Pickup From date: 01-07-1997 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 Model series: L200 Type of engine: TDiC Size of motor: 2.5 Brand of engine: 4D56-T Type description: K7_T, K6_T, K5_T Body: Pickup From date: 01-08-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Model type: Sport Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K9_ From date: 01-07-2002 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Model type: Sport Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K9_ From date: 01-11-1998 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W Body: Convertible From date: 01-12-1990 To date: 01-04-2000 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W From date: 01-12-1990 To date: 01-10-1999 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TDi Size of motor: 2.5 Brand of engine: 4D56T Type description: V60 Body: Convertible From date: 01-04-2000 To date: 01-12-2006 Fuel: Diesel Approved: Yes
