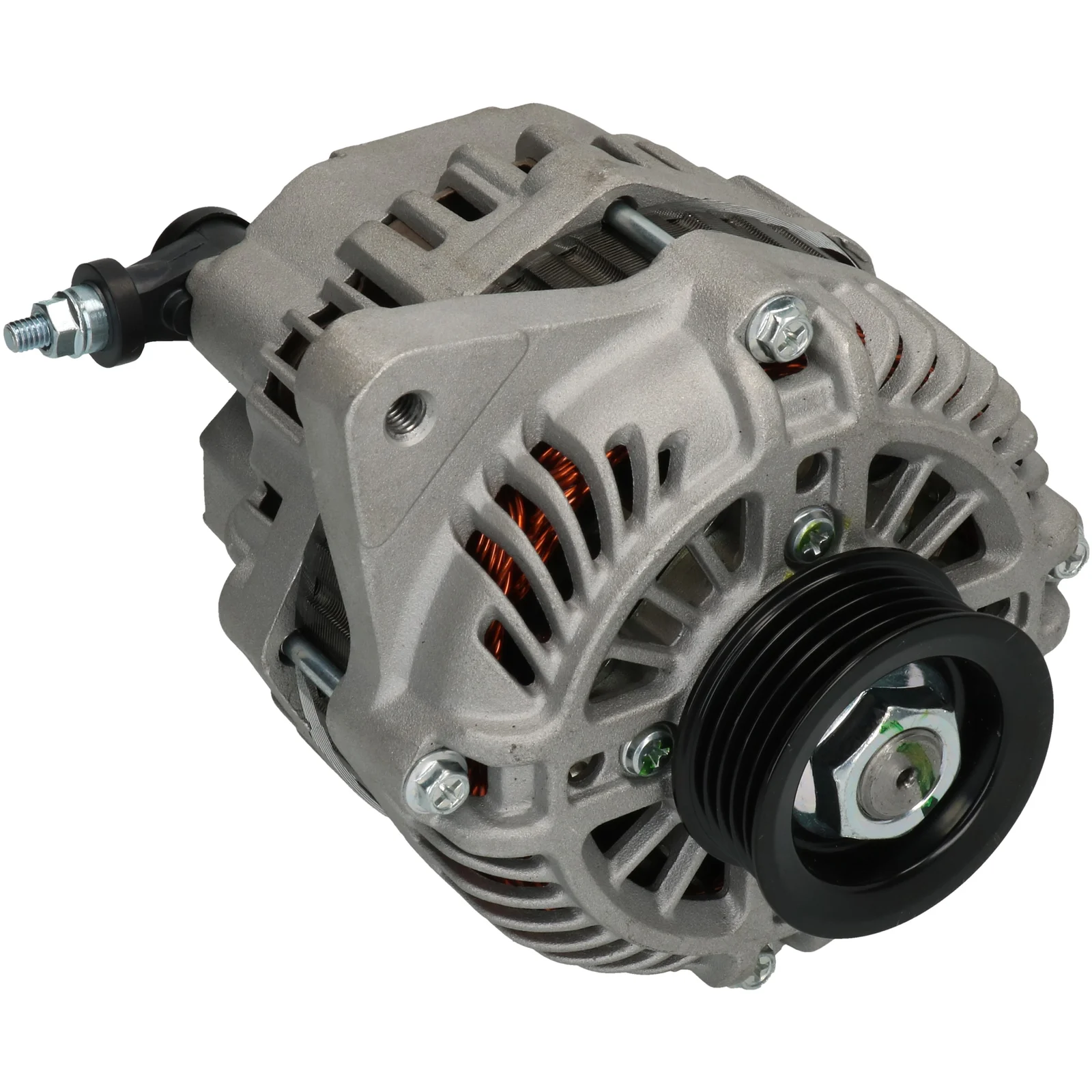

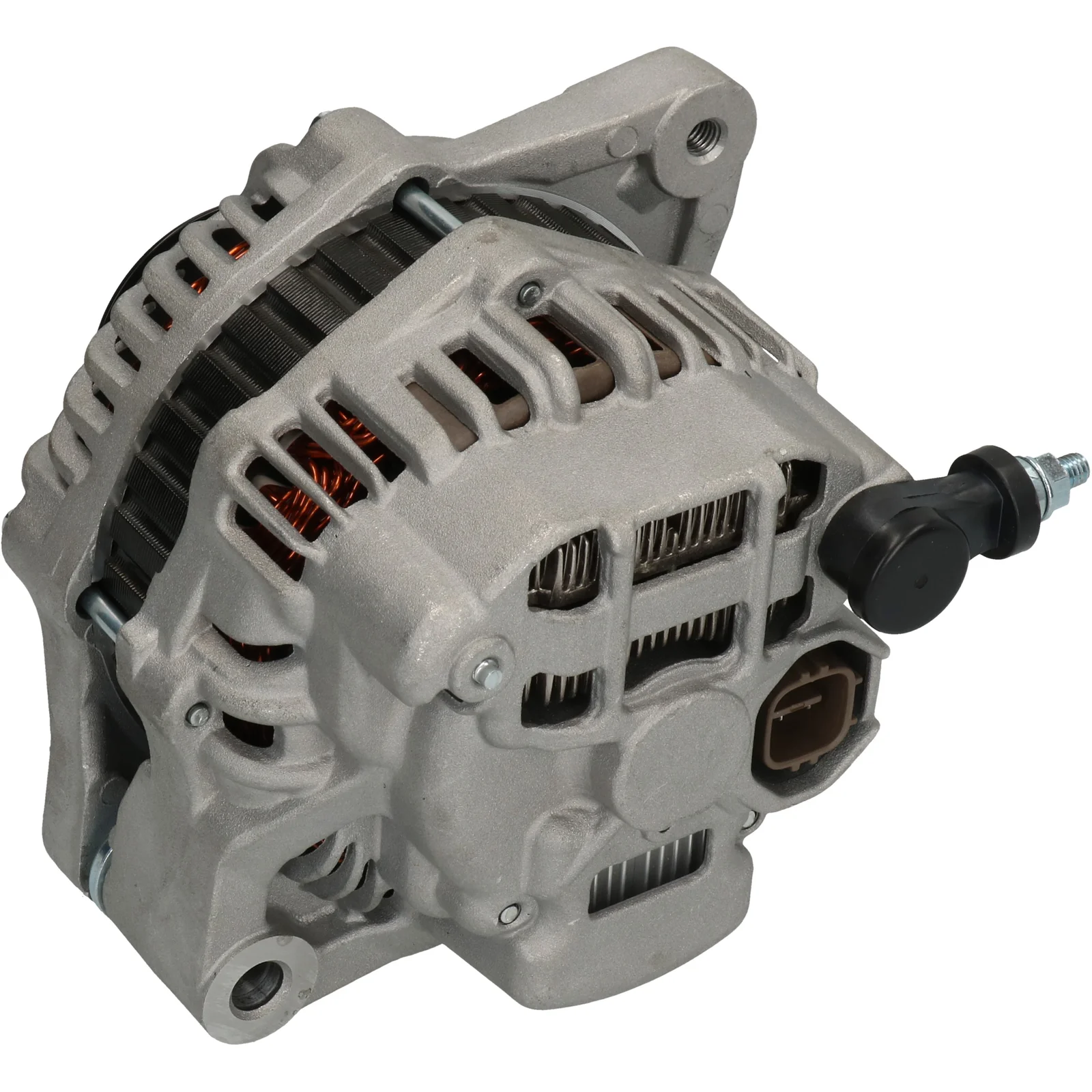

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116439

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Pulley dia.: 55.00

Beskrivning

Voltage: 14
Amp: 80
Pulley dist.: 91.50
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 5
Radius: 80.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 3
Rotation: CW
Plug no.: PL60
Total length mm: 160.00
Terminal type: IG-C-FR-L
Pulley: SP
Regulator type: IR

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL60
Bracket hole 10.50
Position/B+ in min. 3
Pulley SP
Pulley dia. 55.00
Pulley dist. 91.50
Radius 80.00
Radius 2 84.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Terminal type IG-C-FR-L
Voltage 14
Total length 160.00 mm
Width/holder arm 58.00
Amp 80

  • OEM
    A005TG1991, A005TG2491ZE, A005TG2591, A005TG2591AE, A005TG2591ZE, A2TG2191, A5TG1991, A5TG1991ZE, A5TG2191, A5TG2491, A5TG2491ZE, A5TG2591, A5TG2591ZE, F032116439, 23100-4A00J, 31400-71l00, 31400-71L01, 31400-71L02, 31400-71L03, 31400-71l04, 31400-85l00, 31400-85L02, 31400-85L03, 31400-85L11, 95512966

  • Konkurrentreferens
    A5387S, DRA0856, 28-6751, 165.905.080, 185.522.080, 245.133.802, 553592RI, 12061114, 0986085650, 0986086890

  • Normaliserat artikelnummer
    a005tg1991, a005tg2491ze, a005tg2591, a005tg2591ae, a005tg2591ze, a2tg2191, a5387s, a5tg1991, a5tg1991ze, a5tg2191, a5tg2491, a5tg2491ze, a5tg2591, a5tg2591ze, dra0856, f032116439, 231004a00j, 286751, 553592ri, 3140071l00, 3140071l01, 3140071l02, 3140071l03, 3140071l04, 3140085l00, 3140085l02, 3140085l03, 3140085l11, 12061114, 95512966, 165905080, 185522080, 245133802, 0986085650, 0986086890

  • Passar modeller
    Suzuki Model: Splash Model series: Splash Size of motor: 1.0 Brand of engine: K10B Body: Hatchback From date: 01-06-2011 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Model type: 4WD Size of motor: 1.2 Type description: FZ, NZ Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Model type: 4x4 Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.2 Brand of engine: K12B Type description: AZG412 Body: Hatchback From date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.2 Brand of engine: K12B Type description: FZ, NZ Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.6 Brand of engine: M16A Type description: MZ, EZ Body: Hatchback From date: 01-01-2012 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 80
    Pulley dist.: 91.50
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 5
    Radius: 80.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 3
    Rotation: CW
    Plug no.: PL60
    Total length mm: 160.00
    Terminal type: IG-C-FR-L
    Pulley: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL60
    Bracket hole 10.50
    Position/B+ in min. 3
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 91.50
    Radius 80.00
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Terminal type IG-C-FR-L
    Voltage 14
    Total length 160.00 mm
    Width/holder arm 58.00
    Amp 80
  • Fordonsmatchning

    • OEM
      A005TG1991, A005TG2491ZE, A005TG2591, A005TG2591AE, A005TG2591ZE, A2TG2191, A5TG1991, A5TG1991ZE, A5TG2191, A5TG2491, A5TG2491ZE, A5TG2591, A5TG2591ZE, F032116439, 23100-4A00J, 31400-71l00, 31400-71L01, 31400-71L02, 31400-71L03, 31400-71l04, 31400-85l00, 31400-85L02, 31400-85L03, 31400-85L11, 95512966

    • Konkurrentreferens
      A5387S, DRA0856, 28-6751, 165.905.080, 185.522.080, 245.133.802, 553592RI, 12061114, 0986085650, 0986086890

    • Normaliserat artikelnummer
      a005tg1991, a005tg2491ze, a005tg2591, a005tg2591ae, a005tg2591ze, a2tg2191, a5387s, a5tg1991, a5tg1991ze, a5tg2191, a5tg2491, a5tg2491ze, a5tg2591, a5tg2591ze, dra0856, f032116439, 231004a00j, 286751, 553592ri, 3140071l00, 3140071l01, 3140071l02, 3140071l03, 3140071l04, 3140085l00, 3140085l02, 3140085l03, 3140085l11, 12061114, 95512966, 165905080, 185522080, 245133802, 0986085650, 0986086890

    • Passar modeller
      Suzuki Model: Splash Model series: Splash Size of motor: 1.0 Brand of engine: K10B Body: Hatchback From date: 01-06-2011 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Model type: 4WD Size of motor: 1.2 Type description: FZ, NZ Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Model type: 4x4 Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.2 Brand of engine: K12B Type description: AZG412 Body: Hatchback From date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.2 Brand of engine: K12B Type description: FZ, NZ Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.6 Brand of engine: M16A Type description: MZ, EZ Body: Hatchback From date: 01-01-2012 Fuel: Gasoline Approved: Yes
      1 / 2
